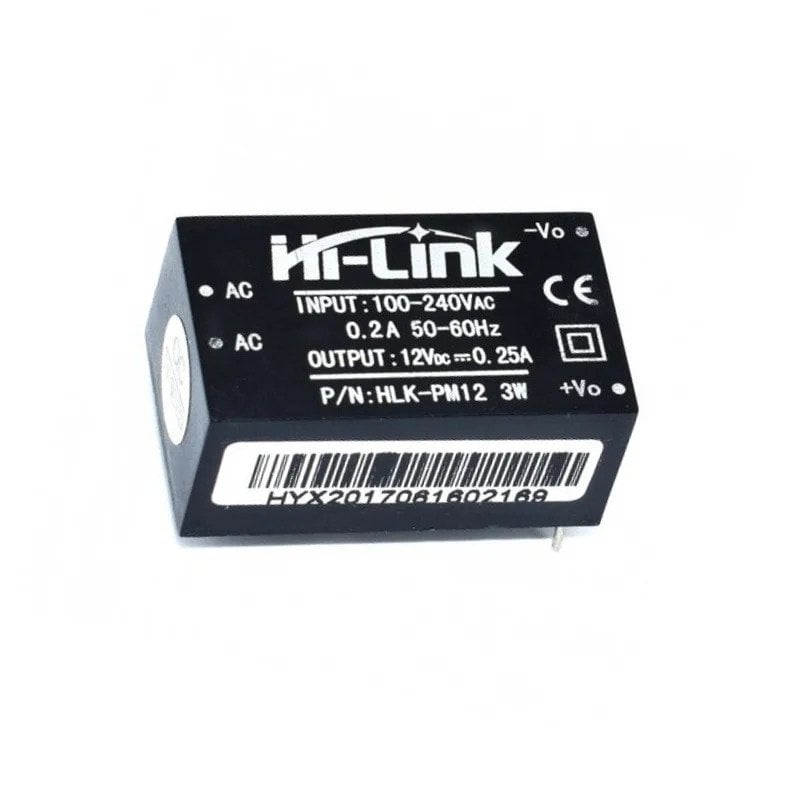

Hi-Link HLK PM12 12V/3W Switch Power Supply Module
The HLK-PM12 12V/3W Switch Power Supply Module is a compact step-down power supply unit that transforms 120V AC – 230V AC into 12V DC. It is designed for PCB mounting and is electrically isolated from the input. With a 3 Watt power capacity, it is ideal for small-scale projects needing a 12-volt supply directly from the mains. The module offers multiple advantages, including low power consumption, high efficiency, dependable performance, minimal temperature increase, and robust isolation for safety.
As a switching power supply, this module maintains a stable output voltage even with varying input voltages. Its ease of installation on PCBs makes it a convenient choice for powering portable devices. It finds diverse applications across smart homes, automation, control systems, communications equipment, and various industrial instruments.
Specifications
AC Input Voltage Range
90 ~ 264V
Output DC Voltage
12 V
Input Low Voltage Efficiency
Vin=110VAc, Output full-load: 69%
Input High Voltage Efficiency
Vin=220VAc, output full-load: 70%
Long-term reliability
MTBF 100000h
Load rated output voltage
+5±0.1
Short-term maximum output current
1000mA
The maximum output current for a long time:
600mA
Operating Temperature:
-20 to +60°C
Store Temperature
-40 to +80°C
Relative humidity
5 to 95%
Rated input voltage
100-240VAc
Maximum input current
<0.2A
Input current surge
<10A
Dimensions in mm (LxWxH)
33 x 19 x 15
Weight(gm)
22
Color
Black
Voltage Regulation
±0.2 %
Load Regulation
±0.5 %
Features
Meet UL, CE requirements,
Ultra-thin, ultra-small
All voltage input (AC: 90 ~ 264V)
Low ripple and low noise
Output overload and short circuit protection
High efficiency, high power density
The product is designed to meet the requirements of EMC and Safety Test
Low power consumption, environmental protection, no-load loss <0.1W
Hi-Link HLK PM12 12V/3W Switch Power Supply Module Overview
The Hi-Link HLK PM12 12V/3W Switch Power Supply Module is a compact, PCB-mountable AC-to-DC converter that steps down 90–264VAC mains voltage to a regulated 12V DC output at up to 0.25A (3W). Designed for applications where space is limited, it delivers stable power with low ripple and noise while meeting UL and CE safety standards.
Key Features of Hi-Link HLK PM12 12V/3W Switch Power Supply Module
Wide AC input range: 90–264VAC for global mains compatibility
Regulated 12V DC output at 3W (0.25A) with low ripple and low noise
Built-in overload, overcurrent and short circuit protection for safe operation
Ultra-thin, ultra-small design ideal for compact PCB integration
High efficiency and high power density minimize heat generation
EMC-compliant and electrically isolated input/output for robust safety
Genuine product, fast shipping across India from Zbotic
Applications and Use Cases
Powering microcontroller boards (Arduino, ESP32) and low-power development kits
Supplying 12V LED strips or small LED indicator modules
Driving relay modules and small automation controllers
Low-current industrial sensor modules and data acquisition systems
Backup power for digital thermostats and home automation nodes
Embedded telecom and networking interface power supply
How to Use Hi-Link HLK PM12 12V/3W Switch Power Supply Module
Mount the HLK-PM12 module onto your PCB by soldering the input (L and N) and output (V+ and V−) pins according to the silk-screen markings. Ensure adequate clearance around the module for ventilation and maintain proper creepage distances. Apply 90–264VAC to the input and verify 12V DC at the output before connecting downstream circuitry.
Why Buy from Zbotic?
Genuine Products: All items sourced from authorized distributors
Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
Free Shipping: Free delivery on qualifying orders
COD Available: Cash on Delivery, UPI, cards, net banking
Technical Support: Expert help for setup and troubleshooting
Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum output current of the HLK-PM12?
The HLK PM12 module provides a steady 12V DC output at up to 0.25A (3W). It is not suitable for loads requiring higher current.
Does the module provide isolation between AC input and DC output?
Yes, the HLK-PM12 is designed with reinforced isolation meeting safety and EMC standards, ensuring the output is electrically isolated from the mains input.
How do I protect against short circuits or overloads?
The module features built-in overload and short circuit protection. In case of a fault, it will shut down output until the condition is cleared and power is cycled.
The Hi-Link HLK PM12 12V/3W Switch Power Supply Module is a versatile hi-link power supply module used across a wide range of applications including electronics workbench, LED lighting, industrial equipment, embedded system power, and CCTV installations.
Common use cases:
Powering a development board or test setup
Driving LED strip installations
Providing regulated DC power to equipment
This product is ideal for electronics labs, makers, and system integrators.
Technical Tip: Ensure output voltage and current match your load requirements. Switching power supplies are more efficient but may introduce noise; consider linear for sensitive analog circuits.
