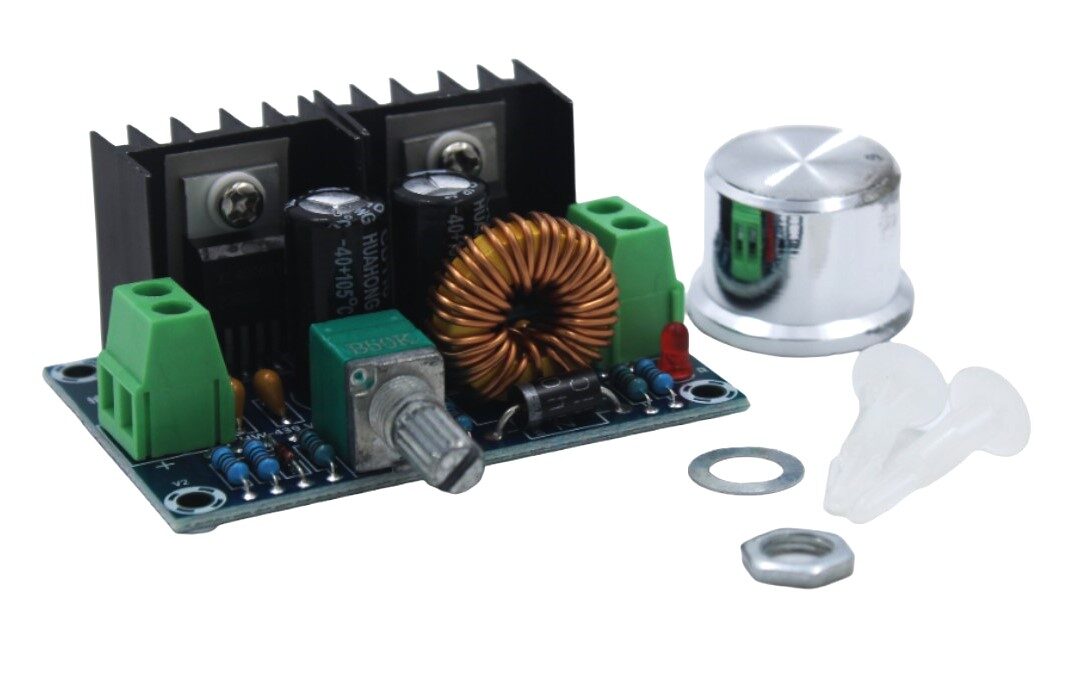

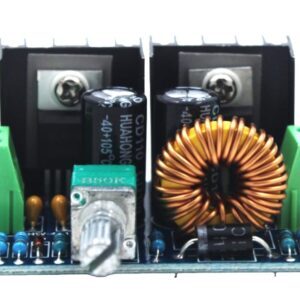

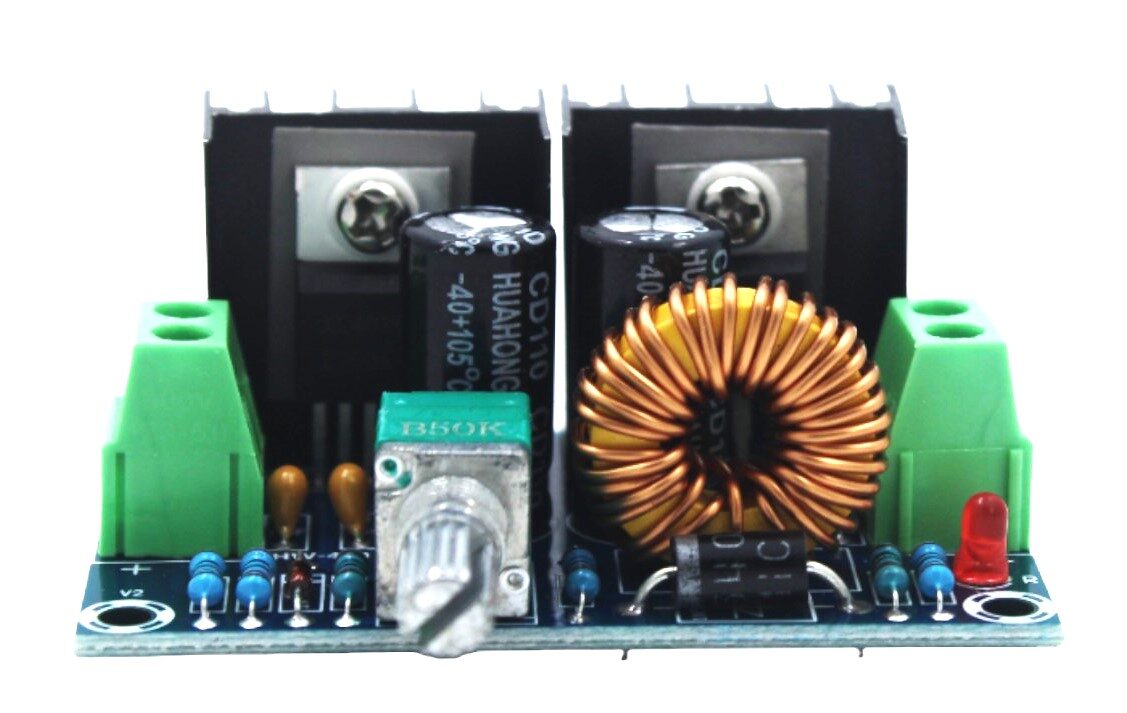

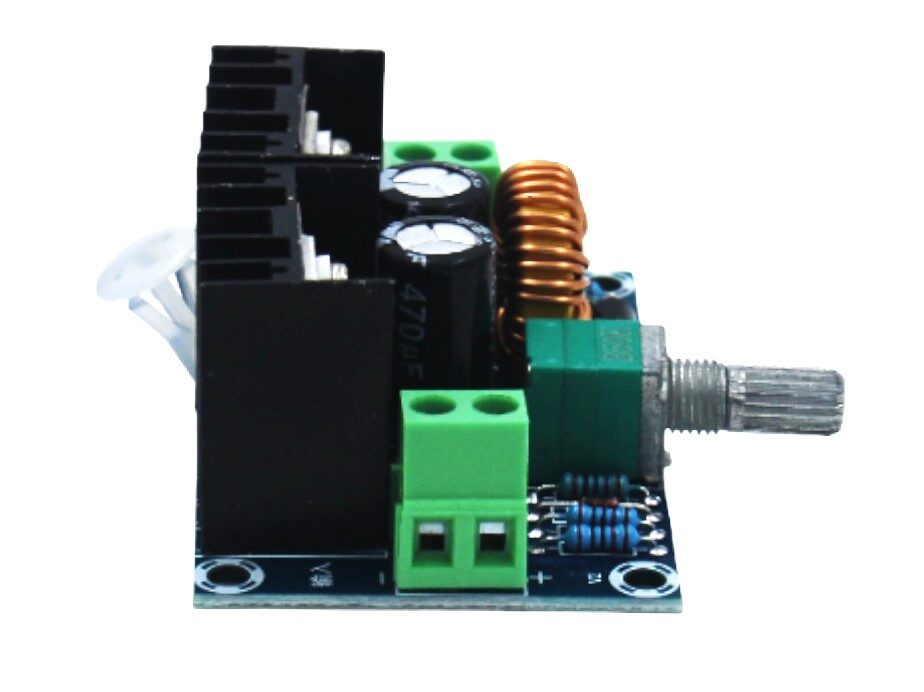

XL4016E1 200W Step Down Power Supply Module
This XL4016E1 200W Step-Down Power Supply Module with voltage rating 4-40VDC to 1.25-36VDC.This module is rated for a maximum power of 200W. The output current for the module can be increased to 8A with the addition of an external fan onto the heatsinks to cool the IC.

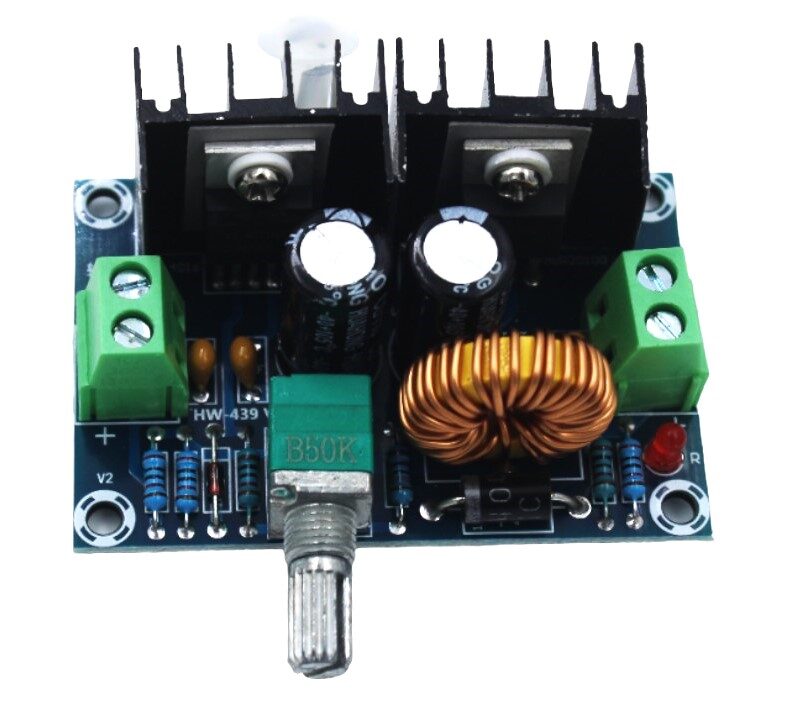

Note: This Product is available in two different variants (XL4016E1 and HW-674) with the same working, we will ship it randomly.
Features:
- Adjustment method: first correct input power (between 4-40V) then multimeter to monitor the output voltage and adjust potentiometer (usually clockwise turn boost, buck turn counterclockwise),
- Input: IN+ input positive IN- input negative
- Output: OUT+ output positive OUT- output negative
- Static power consumption is only about 6mA.
- Connection: Welding, plus pin can be directly soldered after the PCB.
- Short circuit protection: current limiting, thermal protection, self-recovery.
- Non-isolated step-down (BUCK) switching regulator.
- Short circuit protection: Current limiting, self-recovery
- Potentiometer adjustment direction is as Clockwise (increase) and Anti-clockwise (decrease)
- Non-synchronous rectification
Specifications:
| Input Voltage (V) | 4 to 40VDC |
|---|---|
| Output Voltage (V) | 1.25 to 36VDC |
| Max Current (A) | 8 |
| Maximum Power (W) | 200 |
| Efficiency | 94% |
| Switching Frequency (KHz) | 180 |
| Length (mm): | 61 |
| Width (mm): | 41 |
| Height (mm): | 27 |
| Weight (g): | 51 |
Package Includes:
1 x XL4016E1 200W Step-Down Power Supply Module
Technical Specifications
| Model | XL4016E1 |
|---|---|
| Power Rating | 200W |
| SKU | AI1156 |
| Weight | 0.05 kg |
| Availability | In Stock |
Applications & Use Cases
The XL4016E1 200W Step Down Power Supply Module is a versatile buck converter used across a wide range of applications including voltage step-down for electronics, battery-powered projects, LED driver circuits, microcontroller power supply, and solar power regulation.
Common use cases:
- Converting 12V car battery to 5V for USB devices
- Powering a Raspberry Pi from a drone battery
- Regulating solar panel output for charging
This product is ideal for electronics hobbyists, IoT developers, and power supply designers.
Technical Tip: Buck converters are more efficient than linear regulators (LM7805). Choose one rated for at least 1.5x your required current. Ensure input voltage is at least 2V above output.
