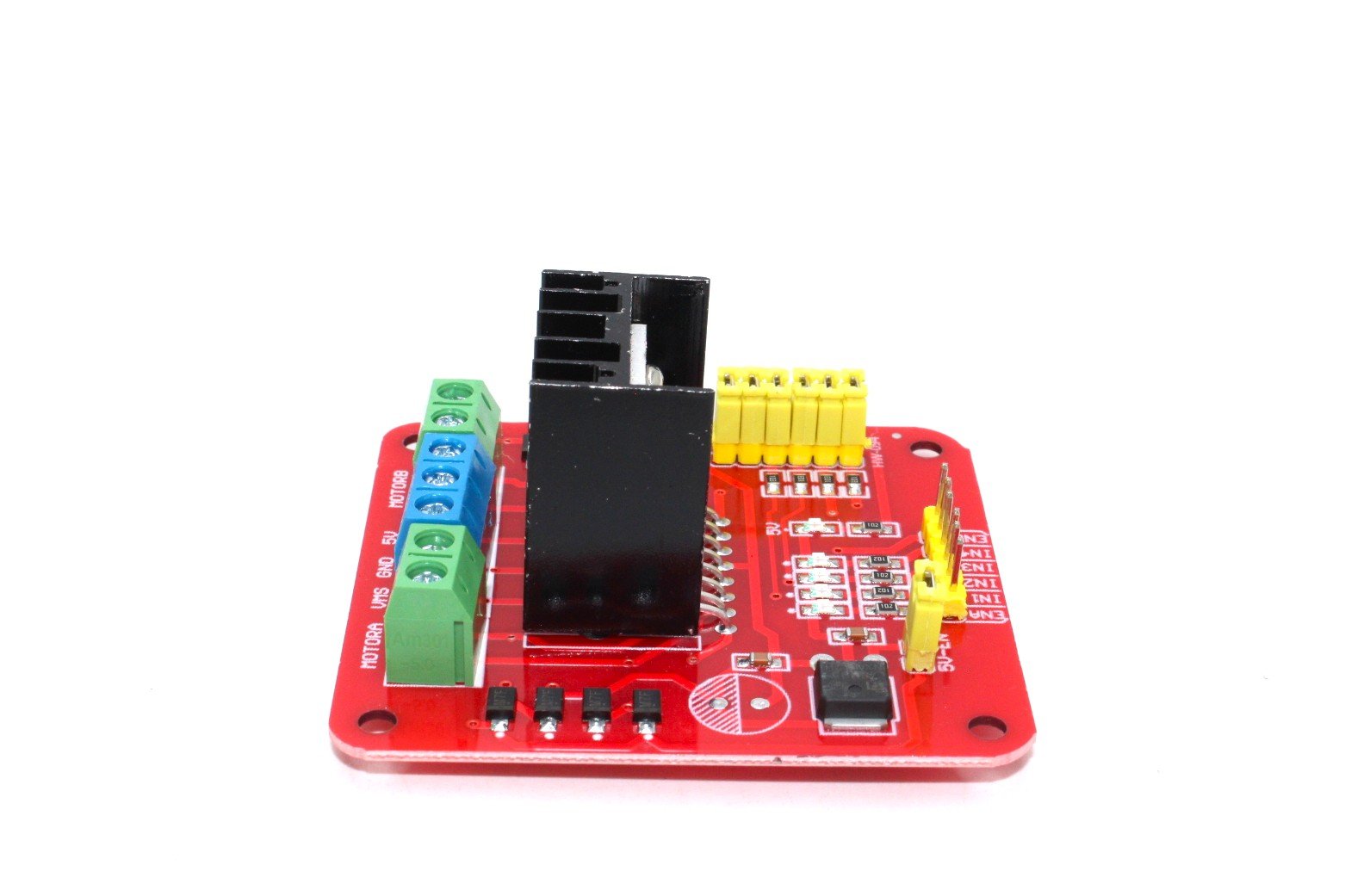

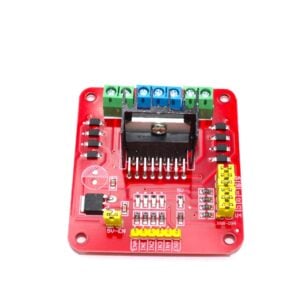

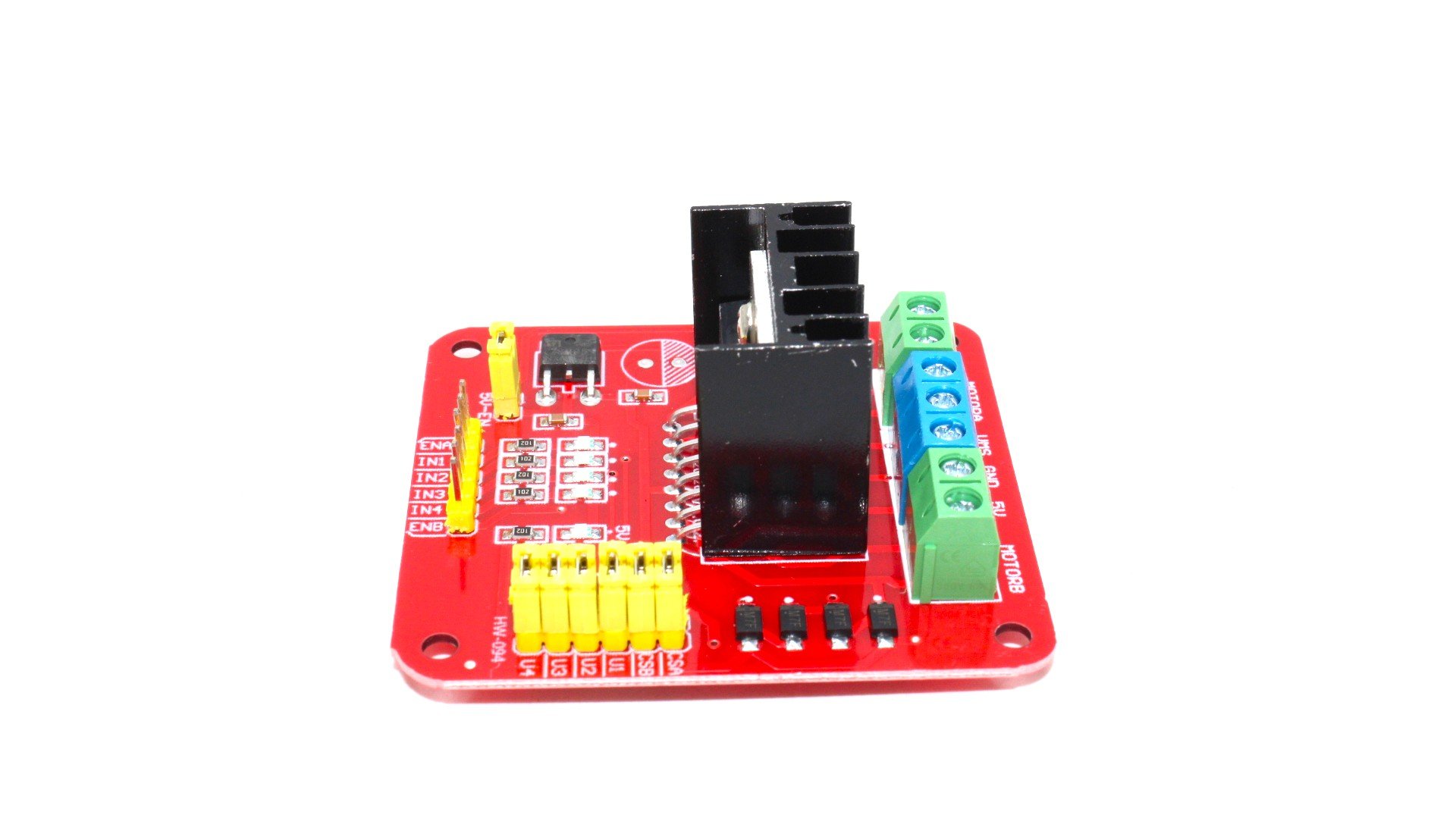

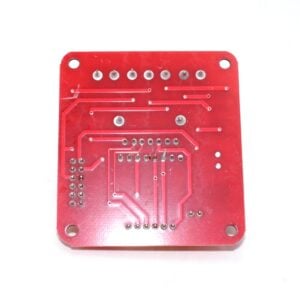

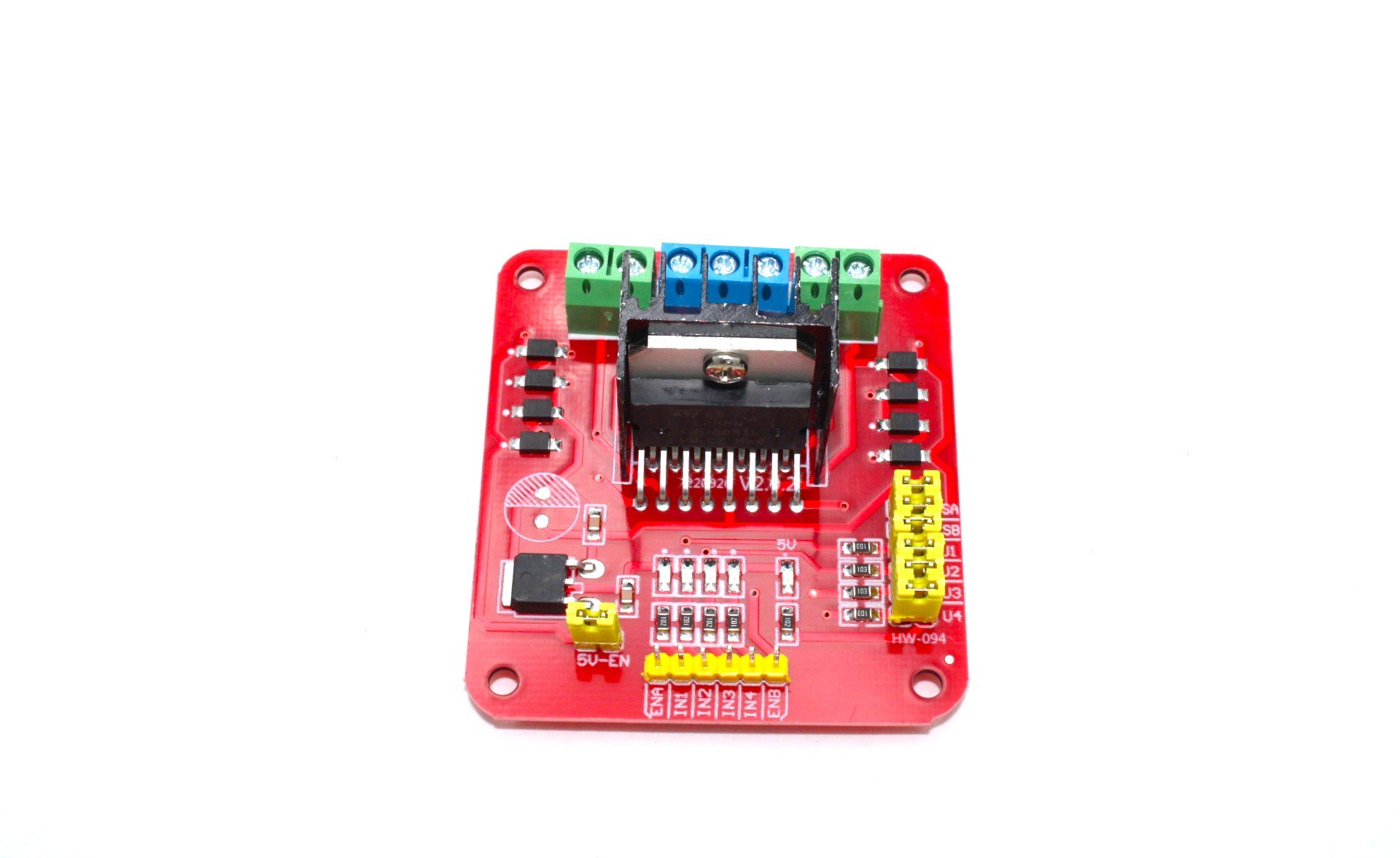

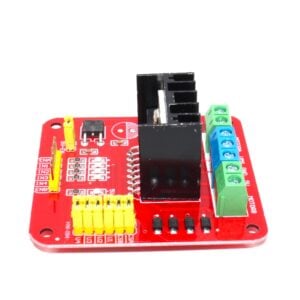

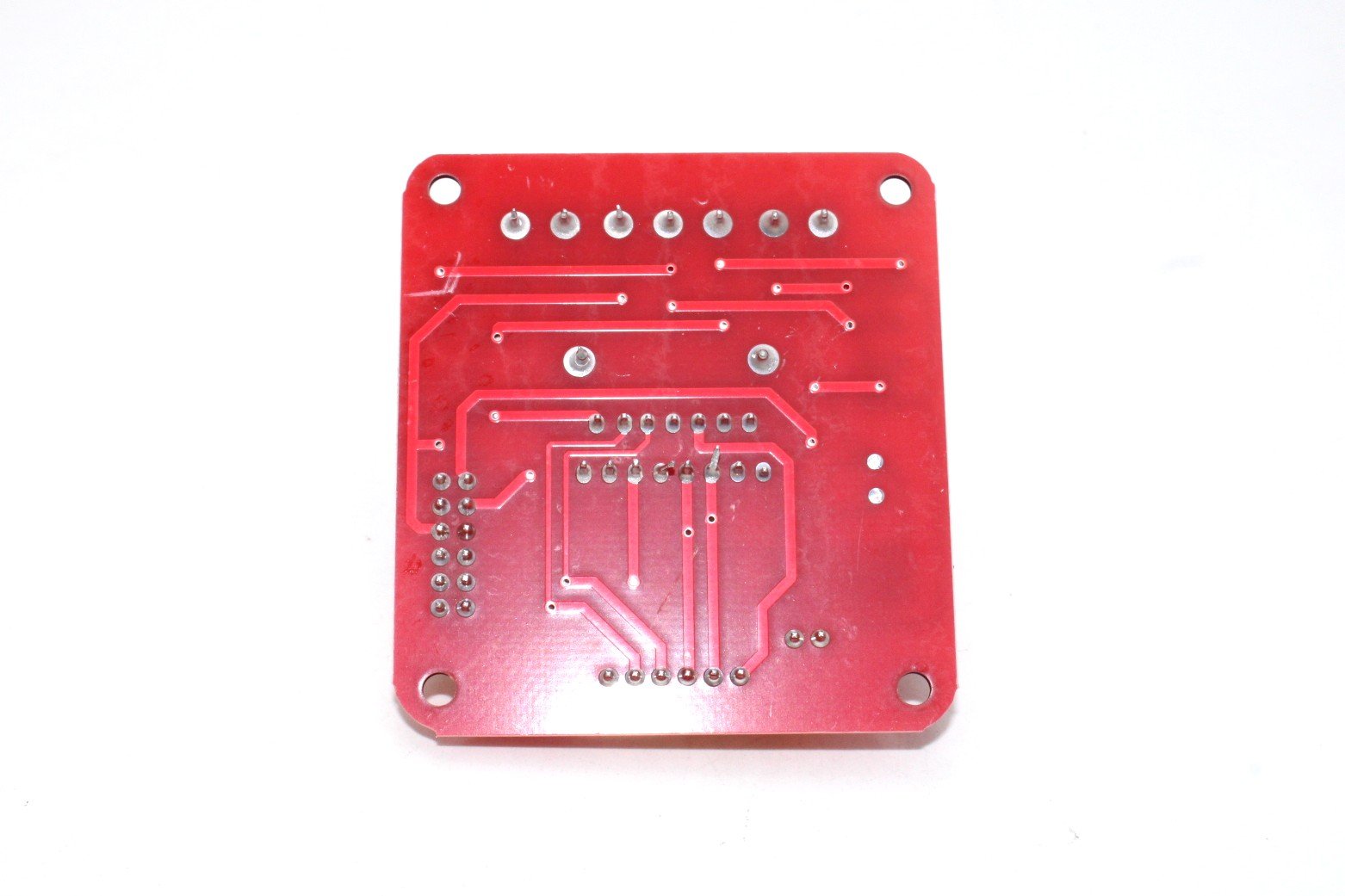

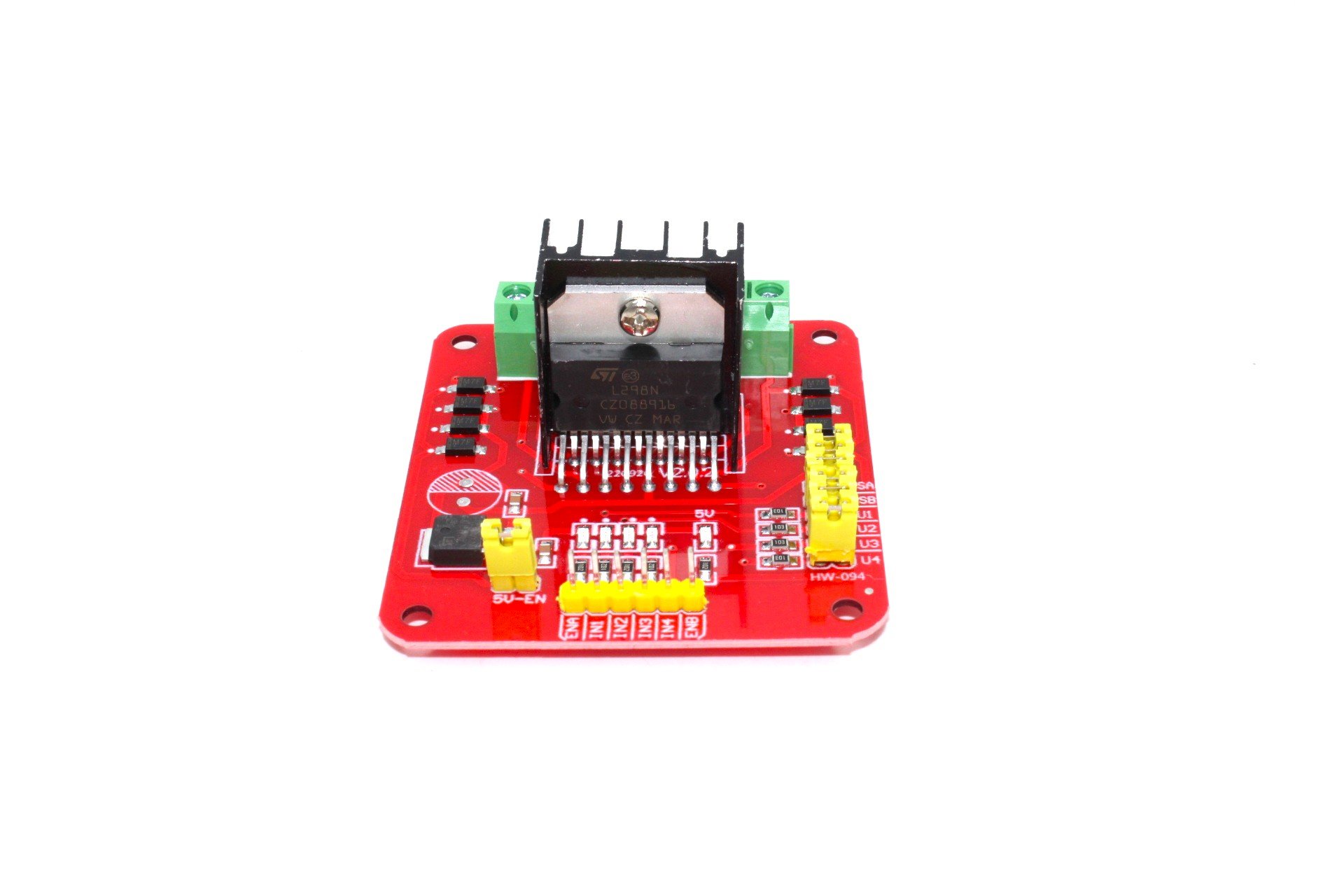

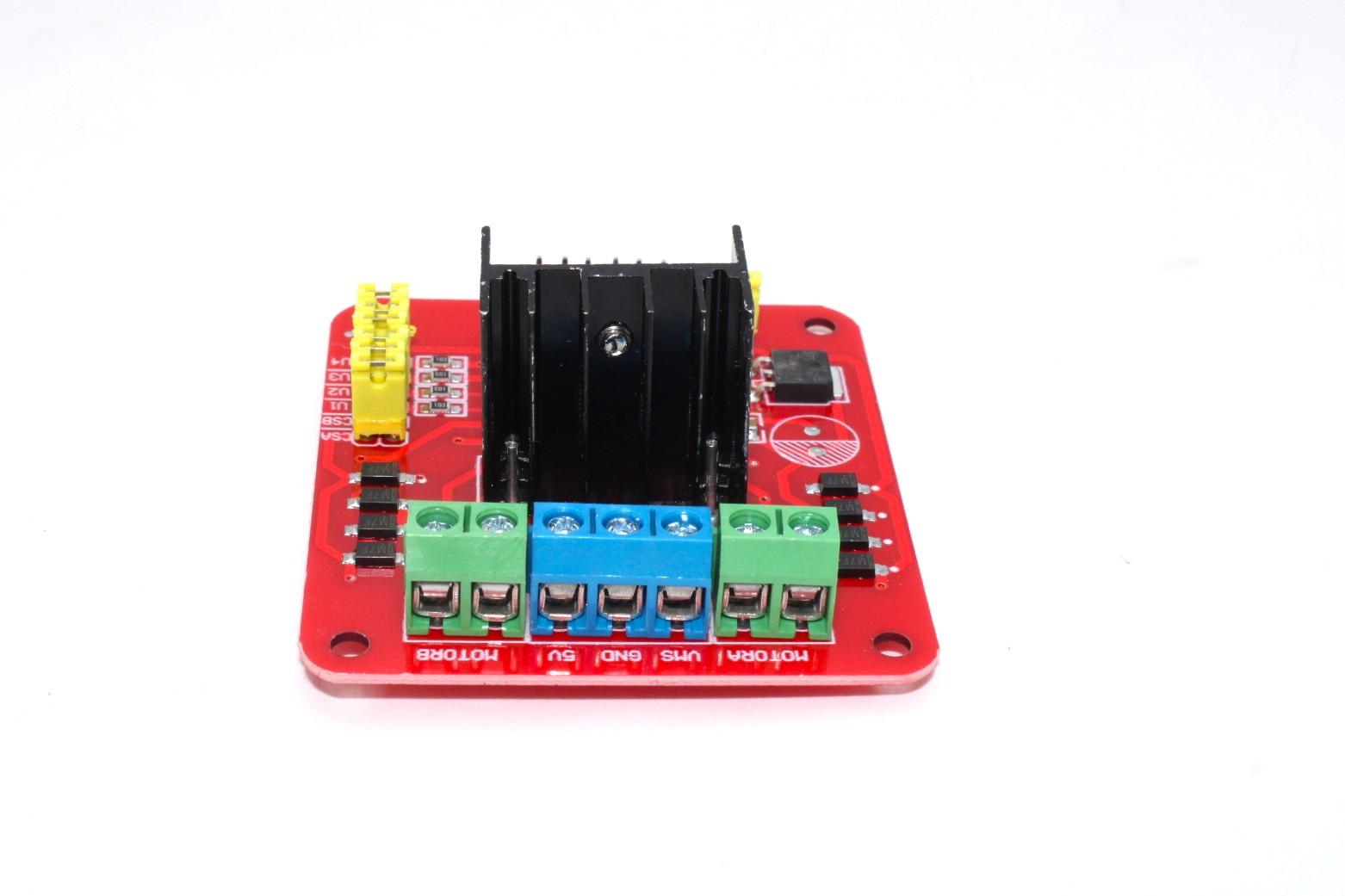

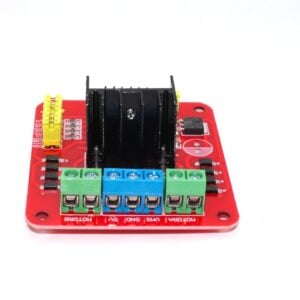

L298N Dual H Bridge DC/Stepper Motor Driver Controller Module
The motor driver for DC and Stepper Motors is highly sought after due to its incorporation of the renowned L298N Dual H Bridge Driver Chip. It is designed for optimal performance at an affordable price.
The L298N Dual H Bridge DC/Stepper Motor Driver Controller Module is capable of operating two robot motors. It employs the well-known L298N Dual H-Bridge Motor Driver chip, enabling it to power motors ranging from 5-35 Volts with a current capacity of up to 2 Amps per channel. Its versatile digital input controls grant full autonomy to each motor, providing precise management of speed, direction, and braking.
Additionally, the board includes a convenient 5V regulator, which can supply power to additional components, such as the microcontroller of your robot. The module’s design is modular, making it compatible with a broad range of robot controllers, including the widely-used Arduino series.
The L298N driver module features the authentic, high-quality L298N chip from ST company, utilizing SMT technology and premium aluminum electrolytic capacitors to ensure circuit stability. This module proficiently manages the speed and direction of DC motors and also controls two-phase stepper motors.
Features :
- Popular L298N Dual H-Bridge Motor Driver chip
- Drivers motors from 5-35V at up to 2A per channel
- Provides 4 LEDs that reflect the state of the control logic
- Independent direction, speed, and braking for each motor
- Screw terminals for easy connections to motors and power
- Includes a heavy-duty heat sink for maximum performance
- Easy to interface with most robot controllers
- Supports current sensing
- Handy power LED
Specifications:
| Model Series: | L298N Series |
|---|---|
| Voltage Rating (V): | 5 to 35VDC |
| Current Rating (A): | 2 |
| Driver IC | L298N |
| Input Voltage (VDC) | 5 ~ 35 |
| Supply Current (A) | 2 (peak per channel) |
| Logic Voltage (V) | 4.5 to 5.5 |
| Logic Current (mA) | 0 to 36 |
| Control Signal Voltage (V) | 4.5 to 5.5 |
| Output Power (W) | 20 |
| Operating Temperature (°C) | -25 to 130 |
| Length (mm): | 60 |
| Width (mm): | 55 |
| Height (mm): | 30 |
| Weight (g): | 35 |
Package Includes:
1 x L298N Dual H Bridge DC/Stepper Motor Driver Controller Module
