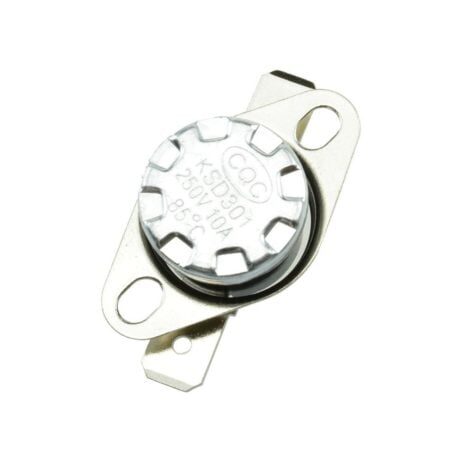

KSD301 Normal Close NC Temperature Controlled Switch Thermostat

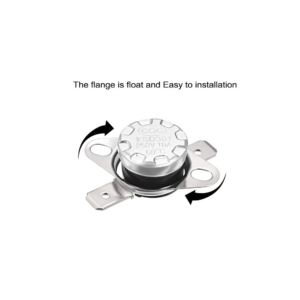

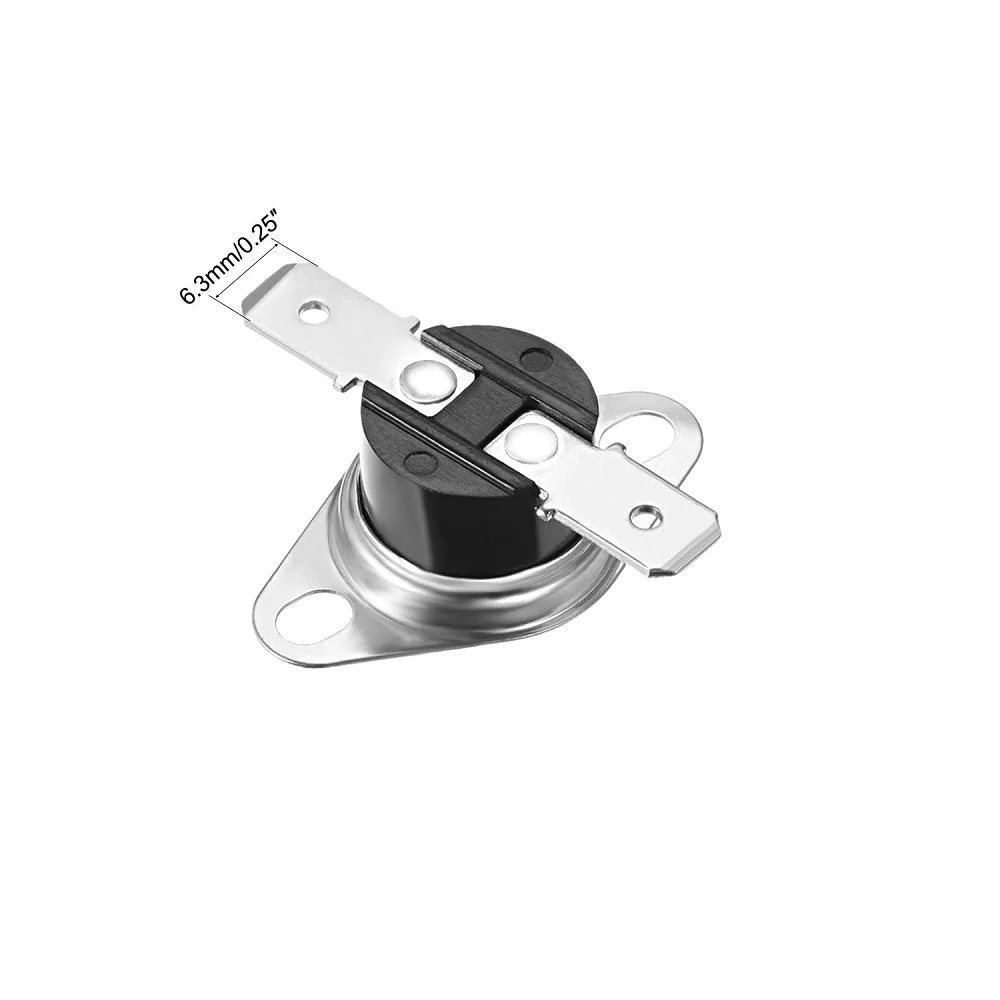

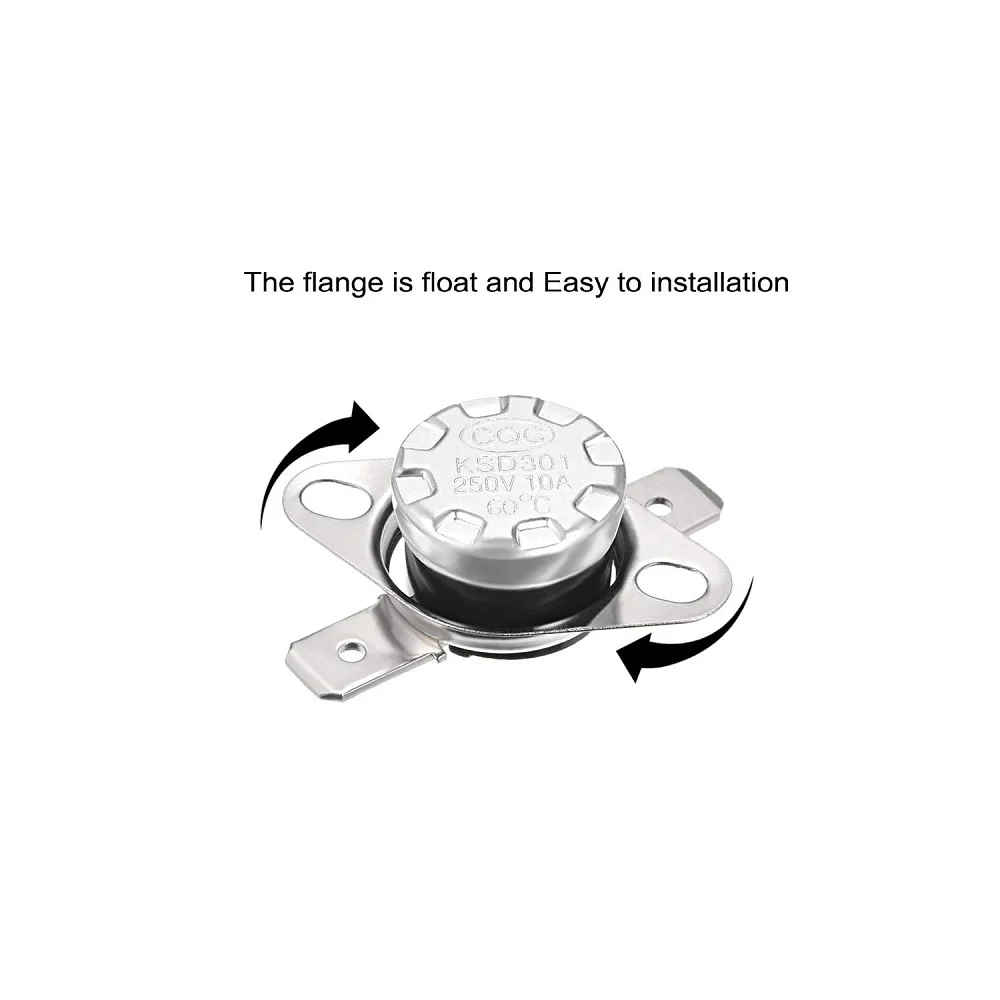

This switch has a double metal chip that provides dynamic speed, sensitivity, reliability, and stability at the action temperature. It has a long service life and does not produce any arc phenomenon. The flange on the switch is floating and easy to install. The pin width is 6.3 mm.
Application:
Mainly used for microwave, oven, coffee maker, Speed Cook oven, heater, Dryer, gas furnace, Bath Vent/Heater, wall heater, motor electric heating water dispenser, water bottles, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, motor cleaner
Specification:
| Model | KSD301 |
|---|---|
| Rated Voltage | 250V |
| Rated Current | 10A |
| Rated Temperature | 85ºC |

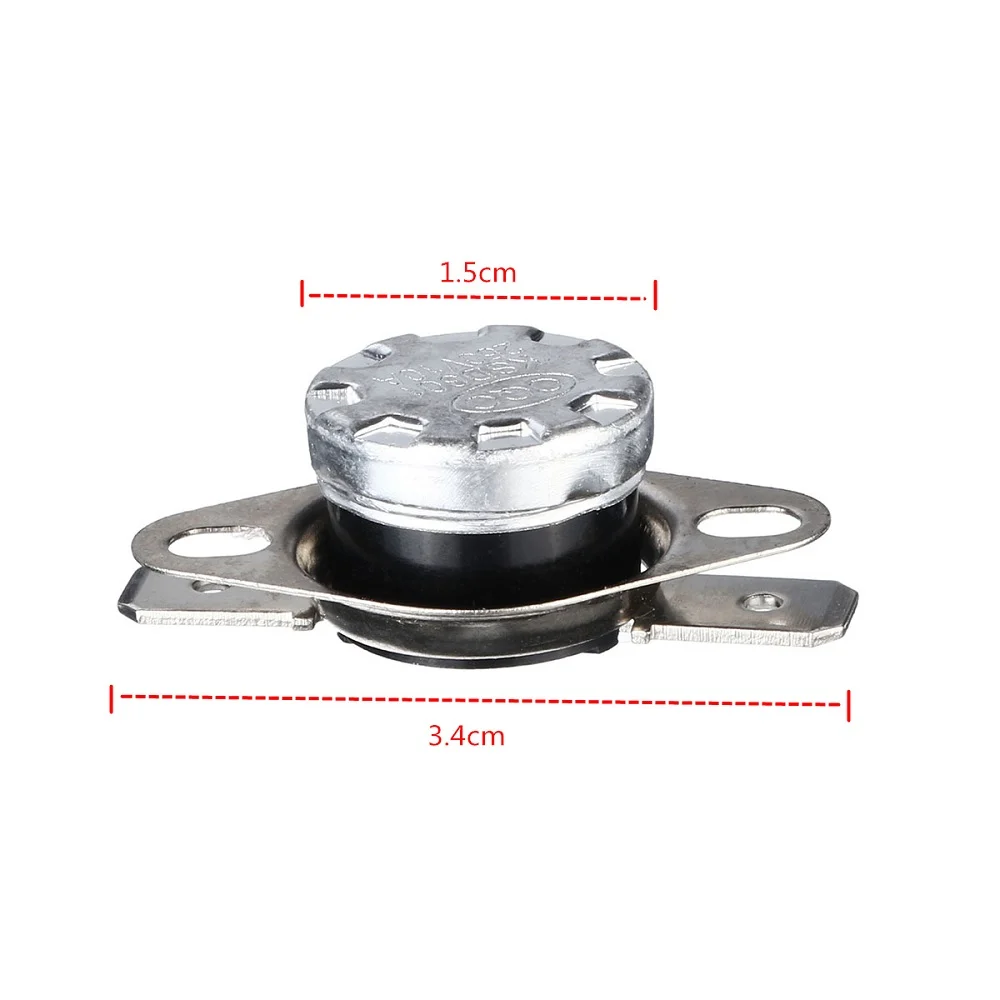

| Diameter | 16mm |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 7 × 5 × 3 cm |
Package Includes:
1 x KSD301 Normal Close NC Temperature Controlled Switch Thermostat
