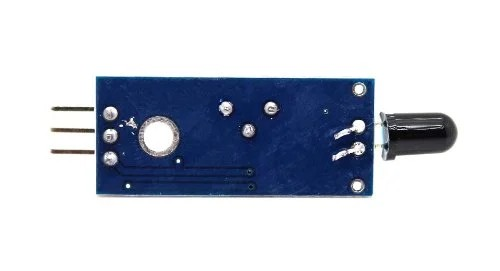

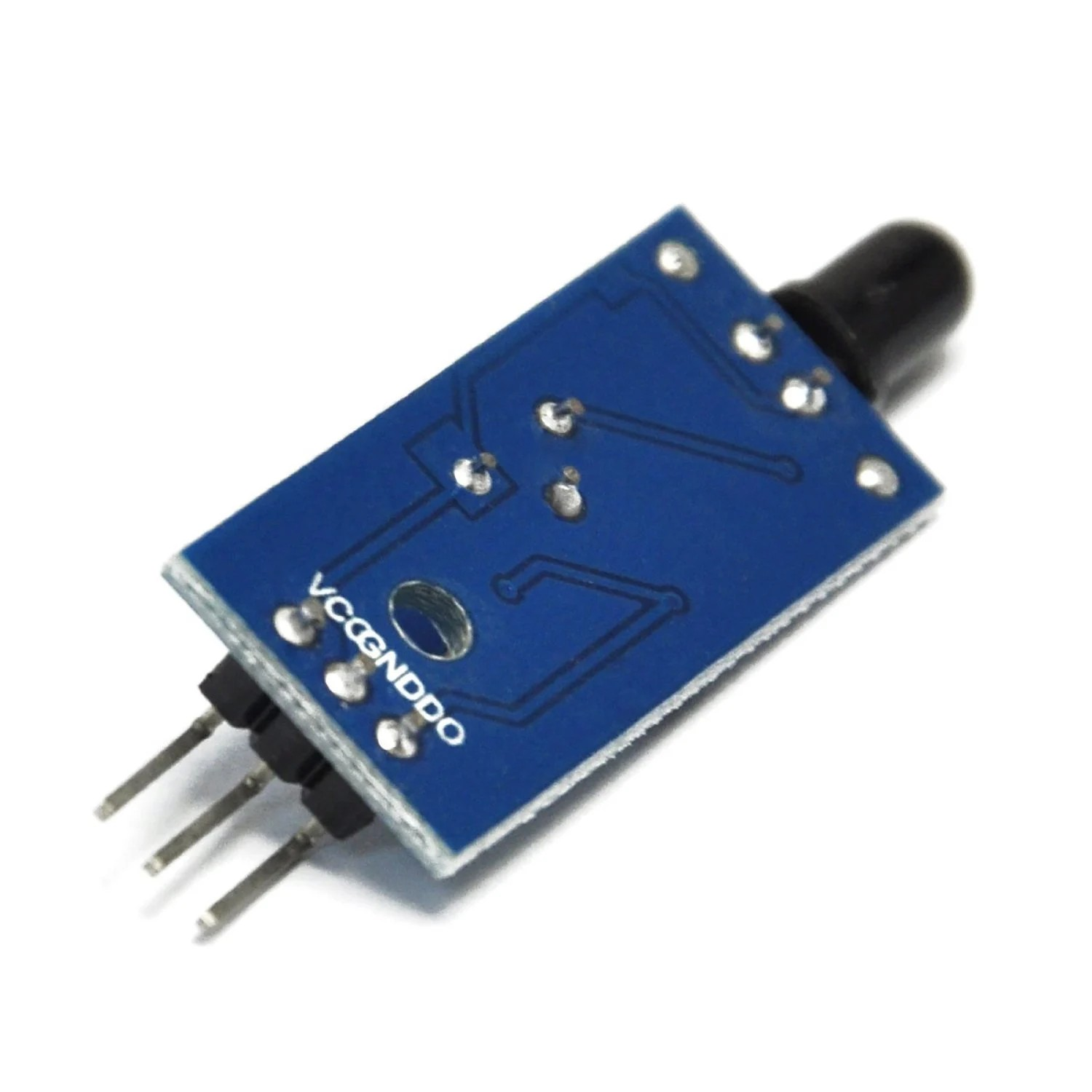

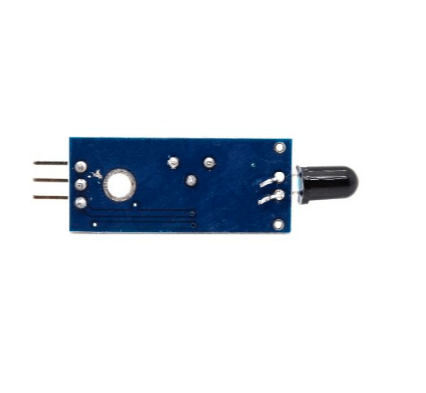

3PIN Flame Sensor Infrared Receiver Ignition Source Detection Module
Description:
The 3PIN Flame Sensor Infrared Receiver Ignition Source Detection Module is a compact and versatile component compatible with Arduino boards. It is designed to detect flames and light sources within the wavelength range of 760nm to 1100nm, making it particularly effective for identifying lighter flames from distances of up to 80cm.
This module operates on the principle that larger flames result in greater detection distances, with a detection angle of 60 degrees. It is highly sensitive to the flame spectrum, ensuring accurate and reliable detection.

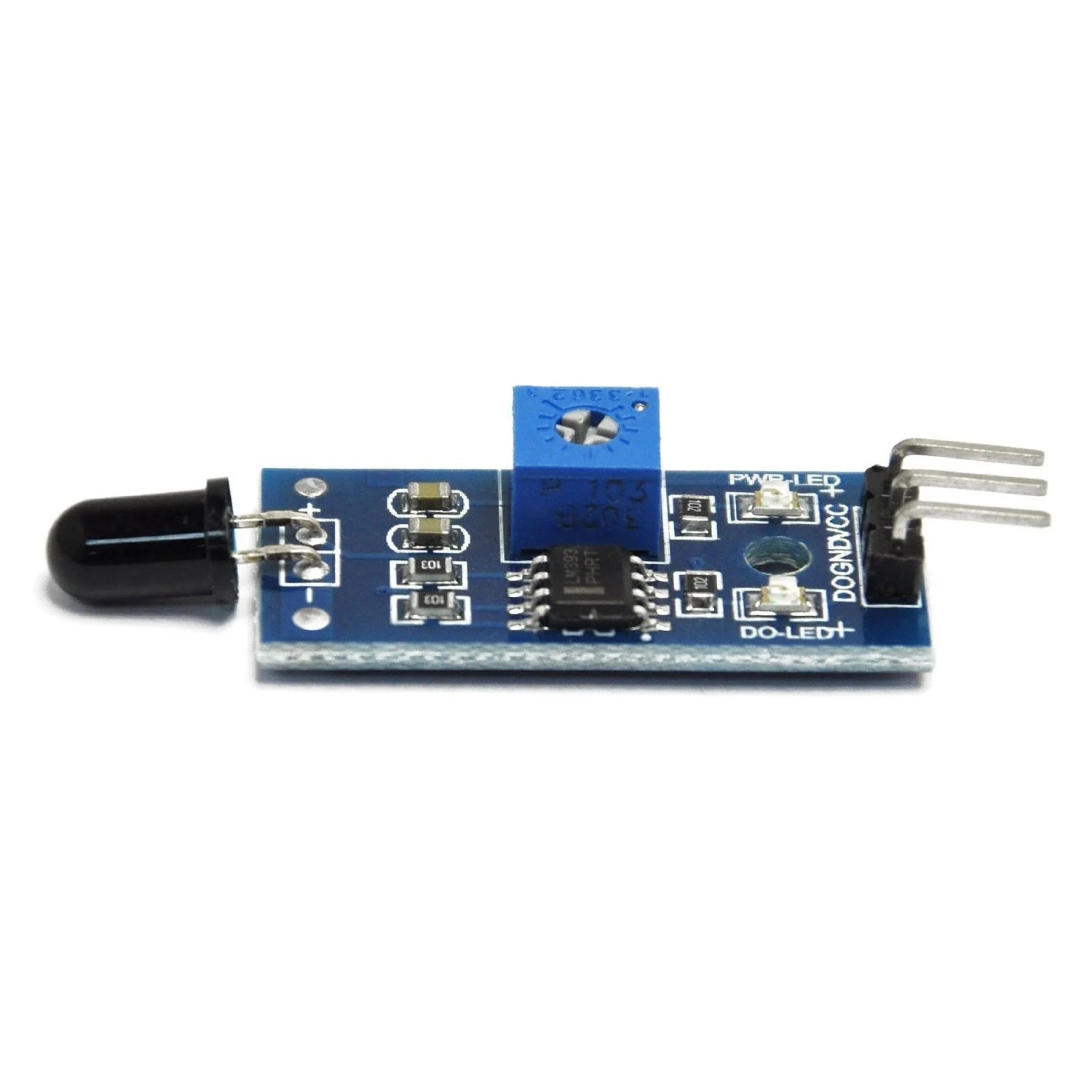

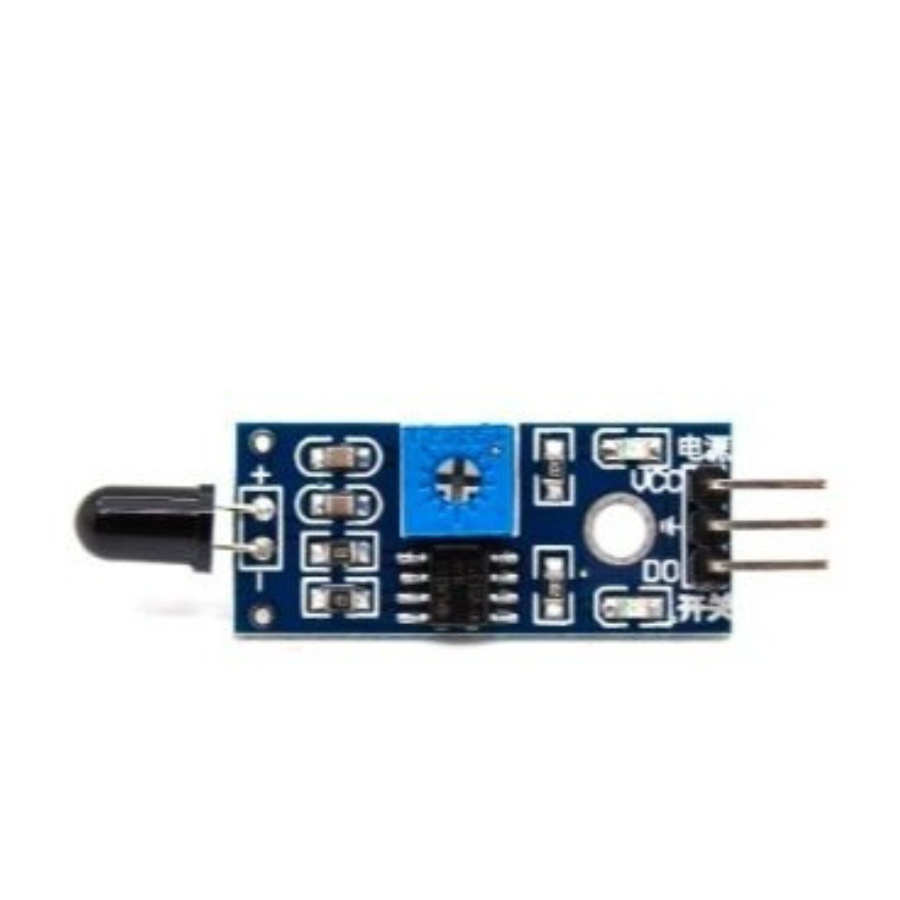

Equipped with a one-channel output signal at the D0 terminal, this module can be easily integrated into alarm systems or other switching applications. Users can adjust its sensitivity using the blue potentiometer on the board, allowing for fine-tuning based on specific needs.
With its compact design, Arduino compatibility, and adjustable sensitivity, the Flame Sensor Infrared Receiver Module provides a convenient and effective solution for flame detection in various projects, including fire detection systems, safety monitoring, and automation applications.
Features :
- Indicator light: a green one for the switch, a red one for power.
- Built in a potentiometer for sensitivity control.
- Onboard signal output indication, output effective signal is high, at the same time the indicator light up, the output signal can directly connect to microcontroller IO.
- Can detect fire or wavelength in 760 ~ 1100 nm nano within the scope of the light source.
- Detection angle about 60 degrees, the flame spectrum especially sensitive.
- The flame of the most sensitive sensors flame, the regular light is also a response, generally used for fire alarm purposes.
Applications:
This sensor can be used as a robot eyes to find the fire source in a firefighting robot.
Specifications:
| Output Channel | 1 |
|---|---|
| Operating Voltage (VDC) | 3.3 ~ 5 |
| Mounting Hole(mm) | 3 |
Package Includes
- 1 x Flame Sensor Infrared Receiver Module Ignition Source Detection Module
