This is the 12V variant of the XH-W3001 DC 12V 120W Digital Microcomputer Thermostat Switch in Temperature & Humidity Sensor. Available at ₹181.72 (₹154.00 + GST) with free shipping across India.

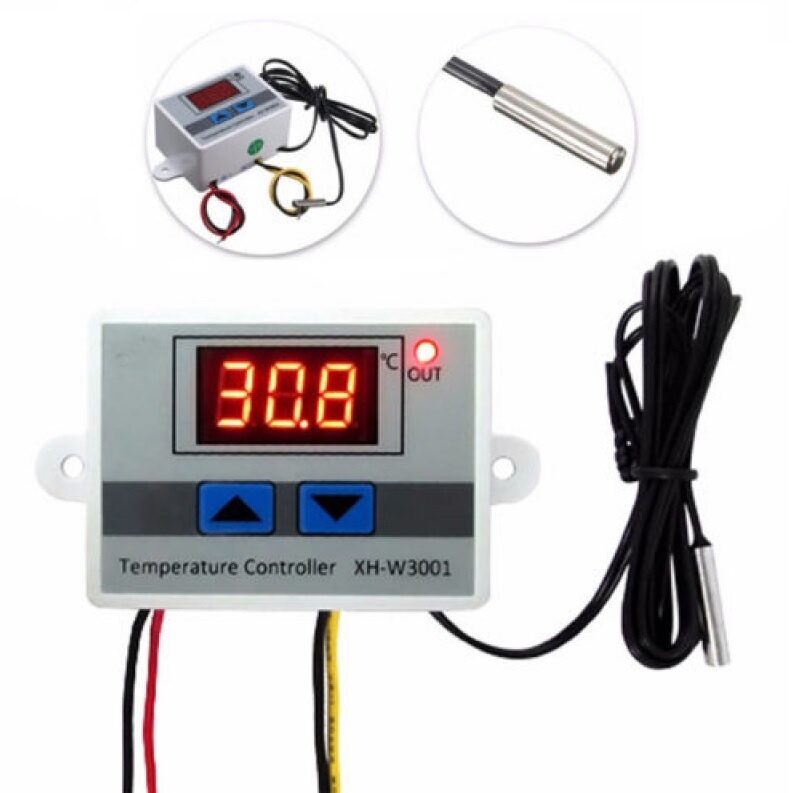

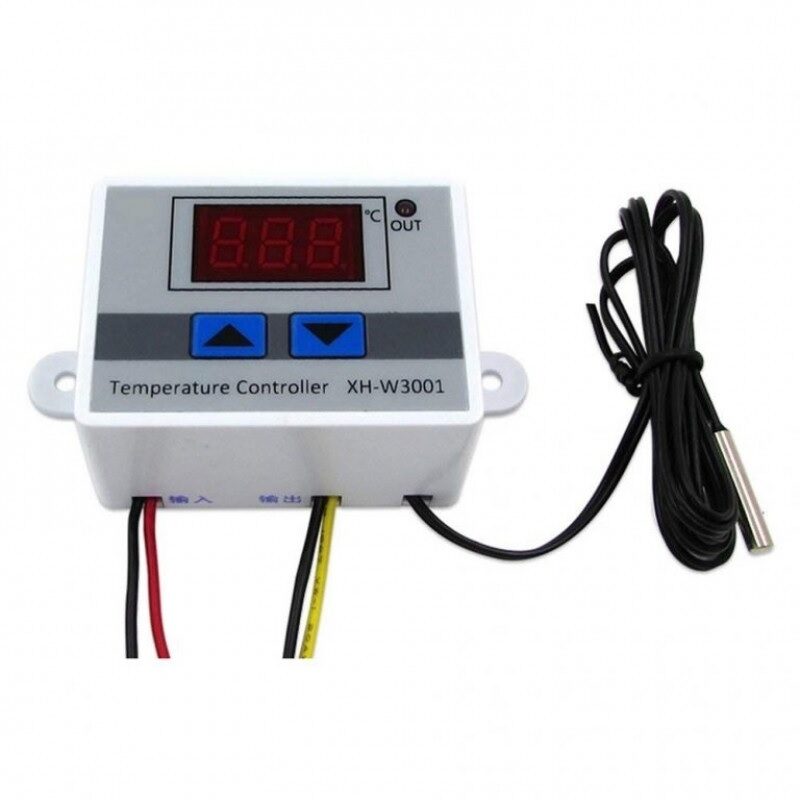

XH-W3001 DC 12V 120W Digital Microcomputer Thermostat Switch
Introducing the XH-W3001 DC 12V 120W Digital Microcomputer Thermostat Switch a highly accurate and cost-effective temperature measurement and control tool.
With a temperature control precision of 0.1°C, it offers a wide control range from -50°C to 110°C. The module includes a durable 1-meter stainless steel probe, making it waterproof and resistant to rust. Additionally, all sensitive components are housed in a flame-retardant ABS casing, ensuring both safety and environmental protection.
Button Functions
- Press UP to show start temperature button.
- On Long press of the UP button, the display starts Flashing, then press the UP or DOWN button Set the beginning of the temperature value
- Press Down the display button to stop temperature.
- On Long press of the Down button, the display starts Flashing, then press the UP or Down button Set to stop the temperature value.
Features
Easy to install
Output type: Direct Output
Output capacity: MAX 10Aemperature measurement, display; refrigeration, heating control
Temperature setting upper and lower limits
Simple operation, suitable for seafood machines.
Upper key: The start temperature is displayed in one press, and long press to set start temperature.
Lower key: The stop temperature is displayed in one press and long press to set stop temperature.
Specifications:
| Rated Power (W) | 120 |
|---|---|
| Rated Current (mA) | 10 Amp Max. |
| Measurement Input | NTC10K |
| Temp. Measuring Range (°C) | -50 ~ 110 |
| Temperature Control Range (°C) | -50 ~ 110 |
| Control Accuracy | Upto 0.1℃ |
| Measuring Accuraccy | ± 0.2 ℃ |
| Temp Probe Cable Length | 1 Meter |
| Dimensions (LxWxH) mm | 60 x 45 x 31 |
| Weight (g): | 55 |
| Shell Material | Plastic |
Package Includes
1 x XH-W3001 DC 12V 120W Digital Microcomputer Thermostat Switch
Video
Force Sensor FSR402: How to Measure Pressure with Arduino
The FSR402 (Force Sensitive Resistor) is a thin, flexible sensor that changes its electrical resistance in response to...
Read More →
LDR Light Sensor: Automatic Night Lamp Circuit with Arduino
Table of ContentsWhat Is an LDR (Light Dependent Resistor)?How Does an LDR Work?Components NeededCircuit Diagram and WiringArduino Code...
Read More →
Vibration Sensor SW-420 vs ADXL345: Which One Should You Use for Your Project?
When building a vibration-sensing project with Arduino or any microcontroller, you'll quickly run into two popular options: the...
Read More →Technical Specifications
| Model | XH-W3001 |
|---|---|
| Operating Voltage | 12V |
| Power Rating | 120W |
| SKU | AI0488 |
| Weight | 0.050001 kg |
| Availability | Out of Stock |
Applications & Use Cases
The XH-W3001 DC 12V 120W Digital Microcomputer Thermostat Switch is a versatile temperature & humidity sensor used across a wide range of applications including weather stations, greenhouse monitoring, HVAC systems, cold chain logistics, and server room monitoring.
Common use cases:
- Building a home weather station with Arduino
- Monitoring greenhouse conditions via IoT
- Alerting when server room temperature exceeds threshold
This product is ideal for IoT developers, agricultural engineers, and home automation enthusiasts.
Technical Tip: DHT22 offers better accuracy than DHT11. For precision applications, use SHT31 or BME280. Ensure adequate ventilation around the sensor.
