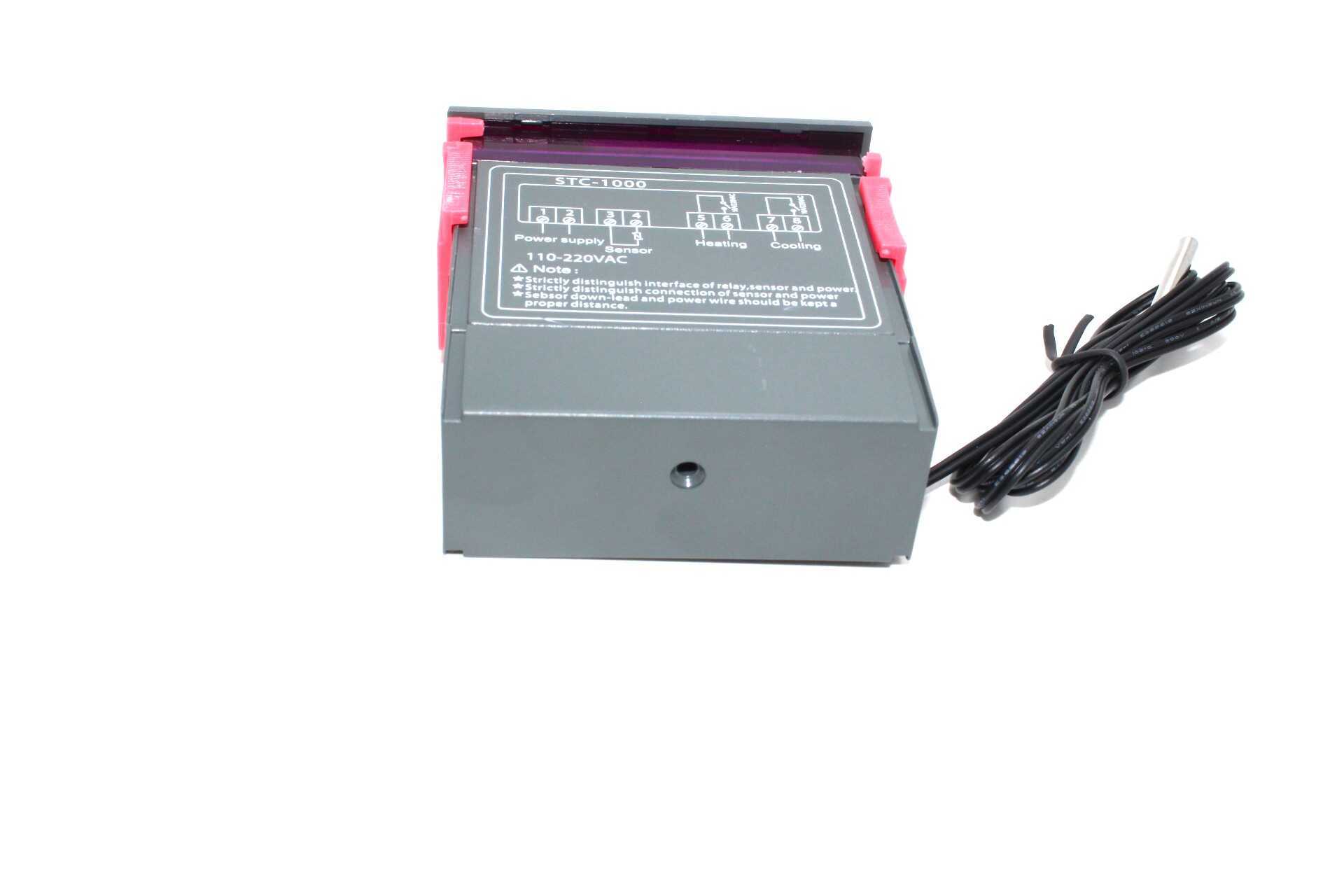

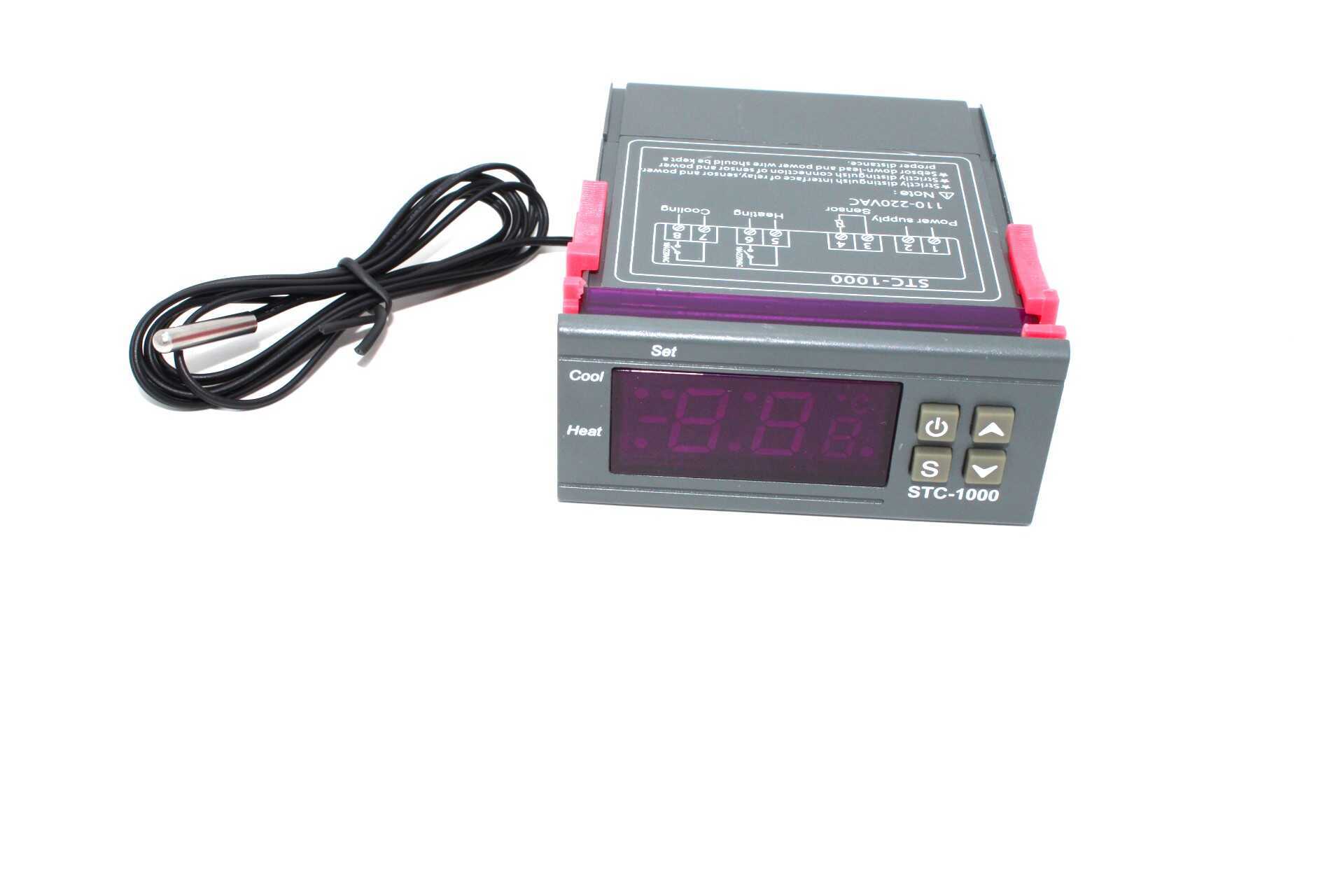

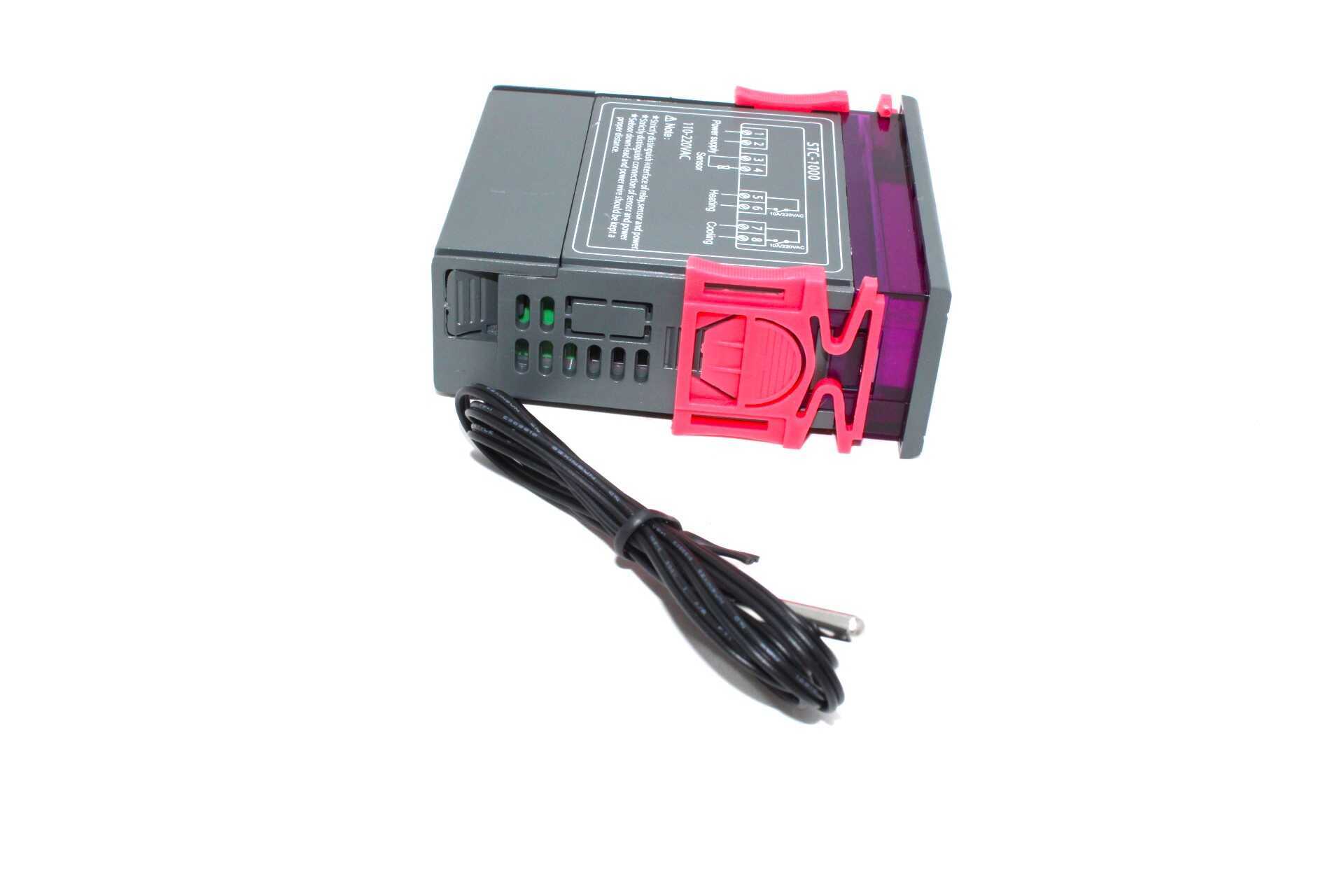

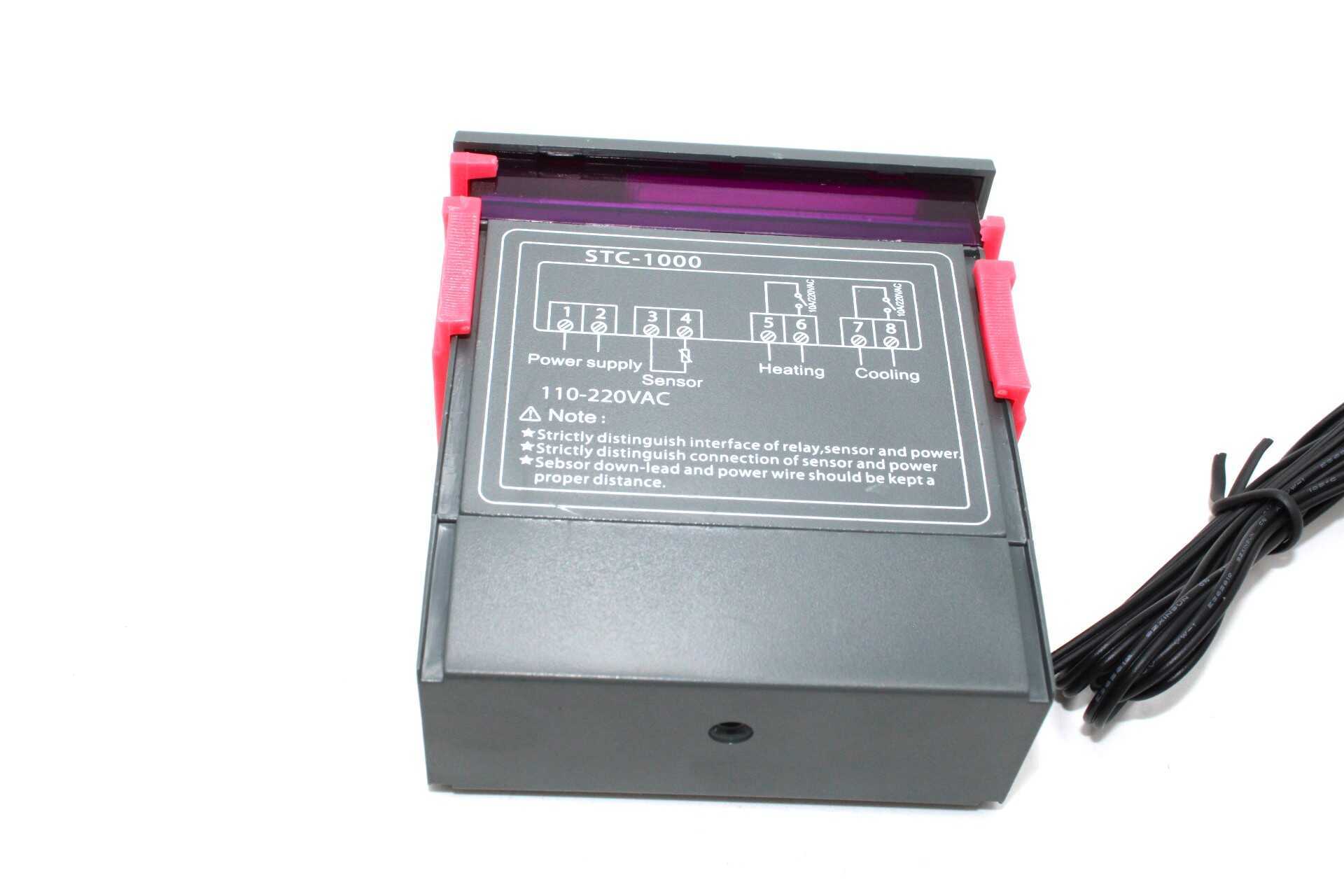

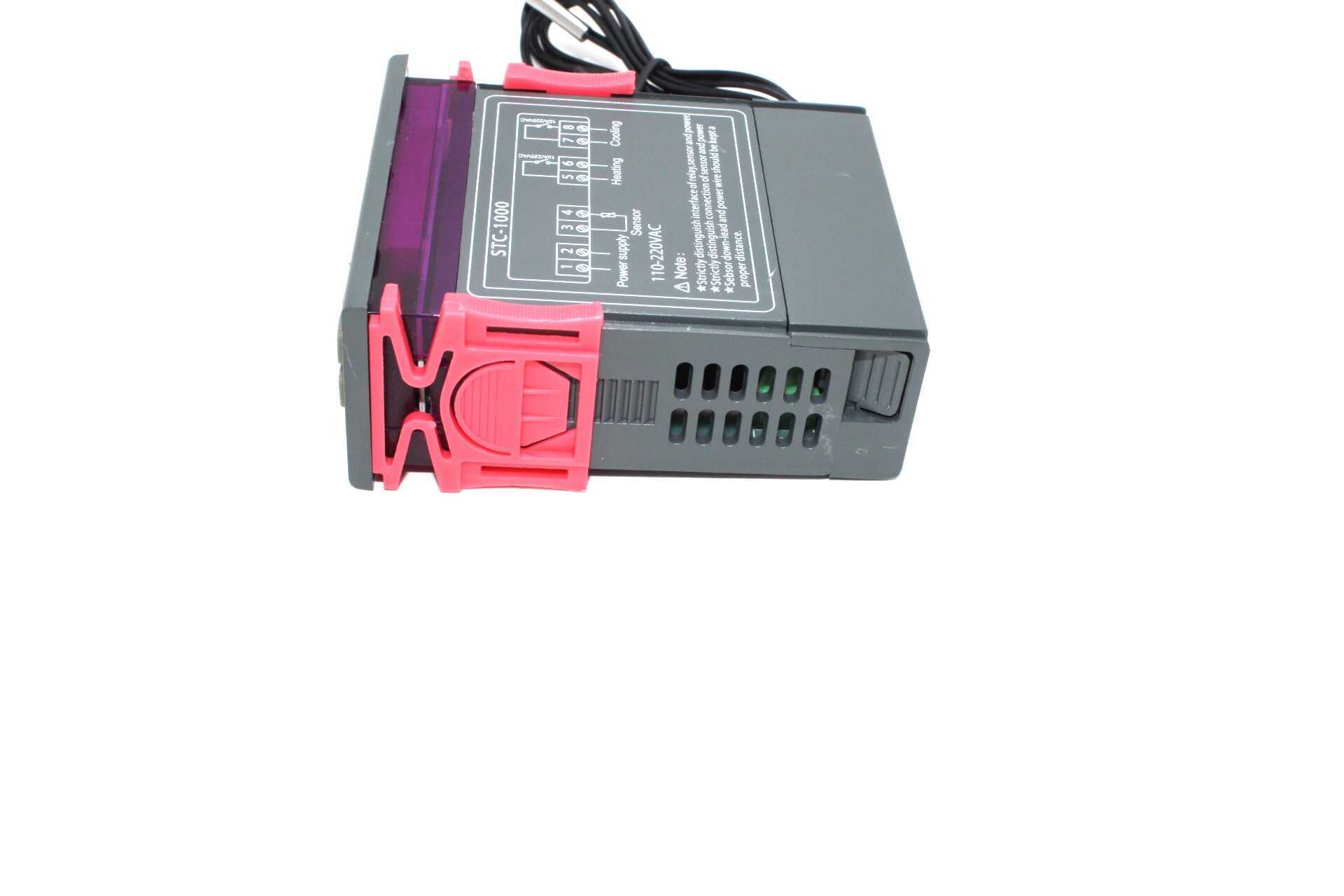

STC-1000 AC220V Digital Temperature Controlled Thermostat Switch
This is a temperature-controlled thermostat switch designed to regulate the heating or cooling of an object using an NTC sensor to monitor the temperature. The module operates on a 220V AC input, providing two output ports for connecting devices that control the temperature—either heating or cooling equipment for the test system.
Application:
Outdoor use uses involving potential chemical contamination or electrical interference
Nuclear energy control systems, combustion systems, railroad systems, aviation systems
Medical equipment, amusement machines, vehicles, safety equipment, and installations subject to separate industry or government regulations
Systems, machines, and equipment that could present a risk to life or property
Domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment, and another temperature-controlled system.
Features
Mini temperature controller.
With a clear LED display for better readability.
Wide temperature measuring range.
Dual heating and cooling control.
Automatic over-temperature alarm
Relay output.
High Control precision 0.1 centigrade
Specifications:
Model | STC-1000 |
---|---|
Temperature Measuring Range | -50 to 90°C |
Control Temperature Range | -50 to 90°C (Adjustable) |
Control Temperature Difference | 0.3 to 10°C (Adjustable) |
Relative Humidity | 20 to 85% |
Resolution | 0.1°C |
Accuracy | ± 1°C |
Sensor | NTC sensor |
Sensor Cable Length | 1m |
Relay Output Capacity | Heating: 10A (max) 250 V Cooling: 10A (max) 250V |
Package Includes
1 x STC-1000 AC 220V Digital Temperature Controlled Thermostat Switch
1 x User Manual
