Looking for Htu21d Module? HTU21D Temperature and Humidity Sensor Module (HW-220 ) is available at Zbotic with fast shipping across India.
HTU21D Temperature and Humidity Sensor Module (HW-220 )
The HTU21D (HW-220 ) Temperature and Humidity Sensor Module is a high-quality, low-cost, easy-to-use sensor that measures both humidity and temperature with high accuracy. It is suitable for environmental sensing and data logging applications, such as weather stations or humidor control systems. It uses I2C communication protocol, which requires only two data lines to connect to the sensor. The measurement time of this sensor is up to 50 msec.

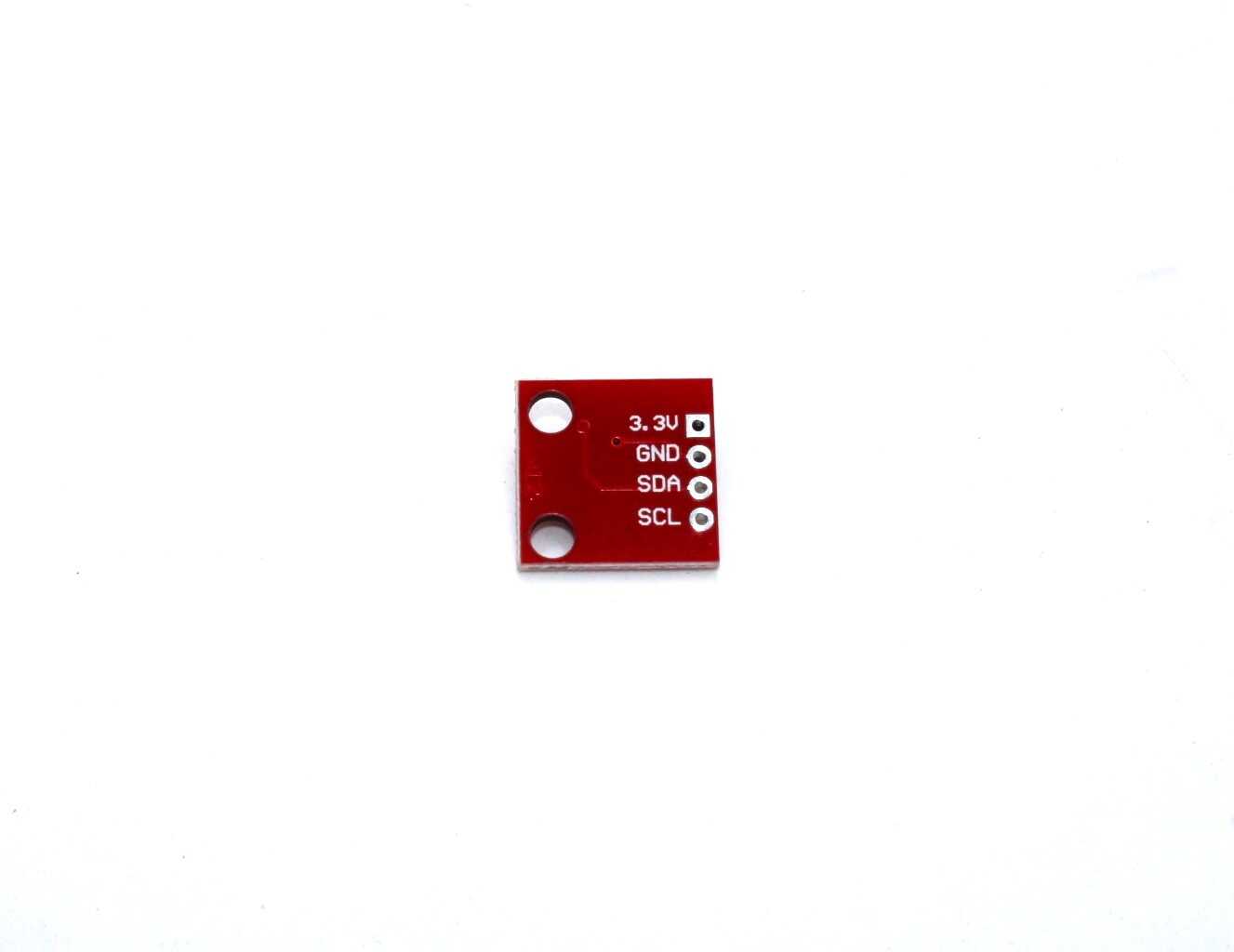

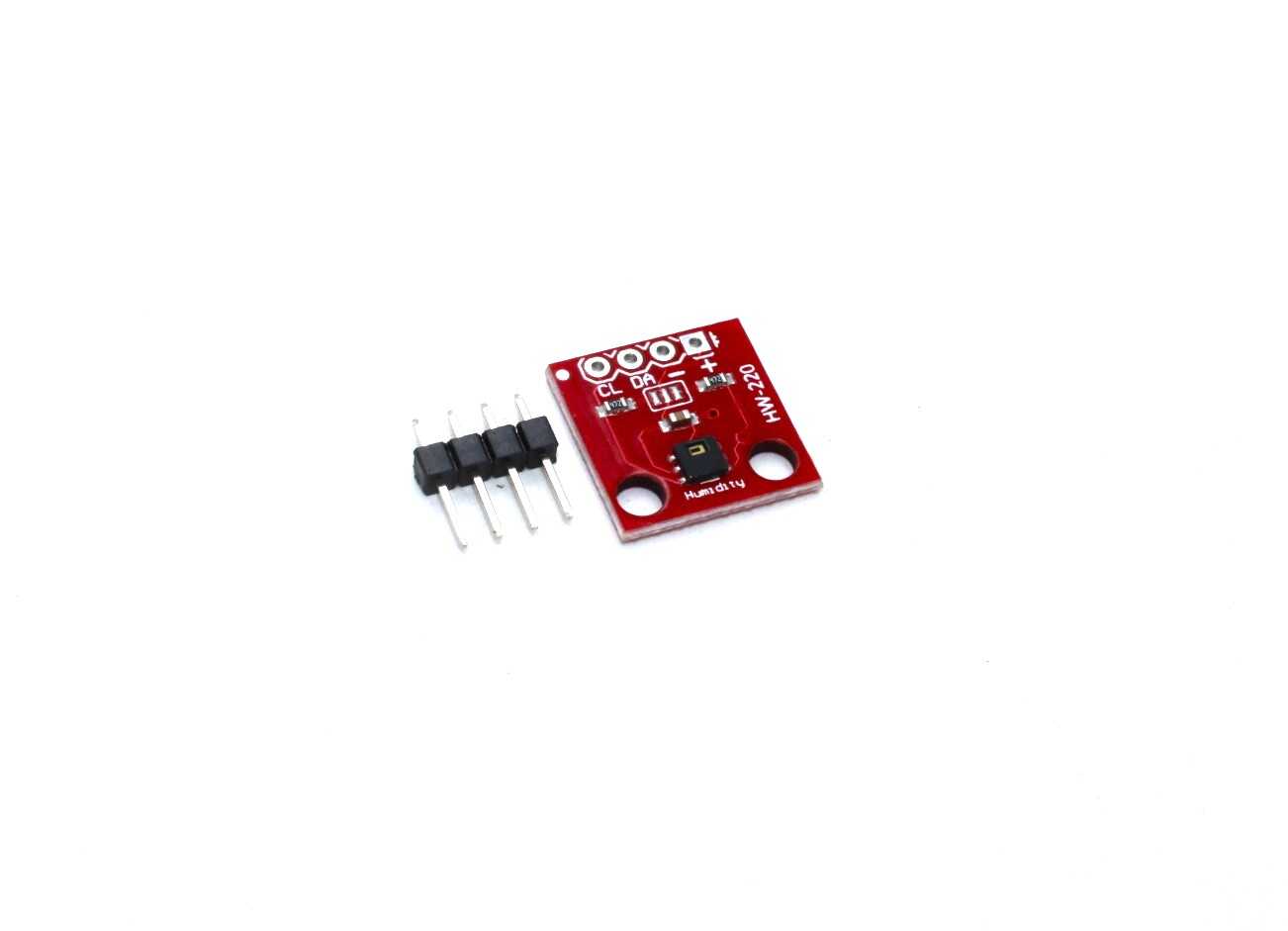

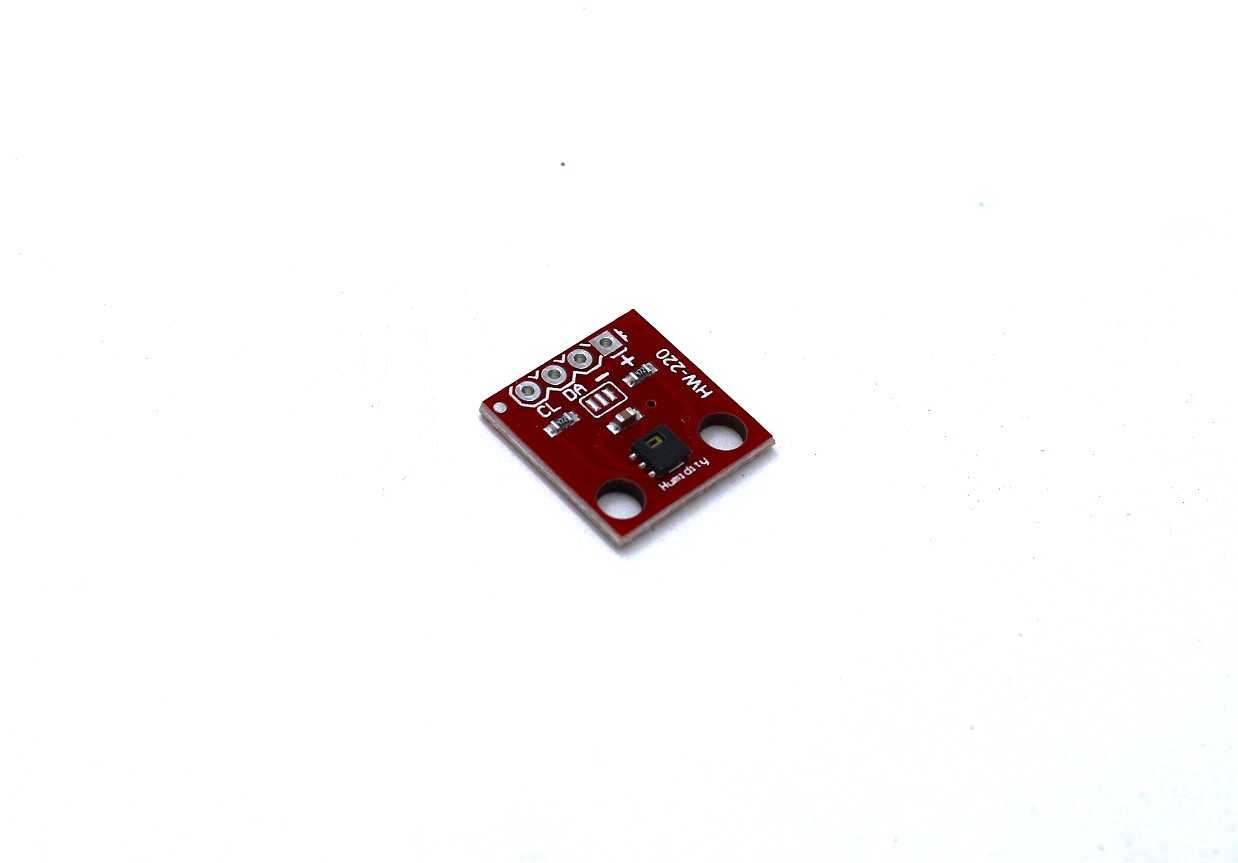

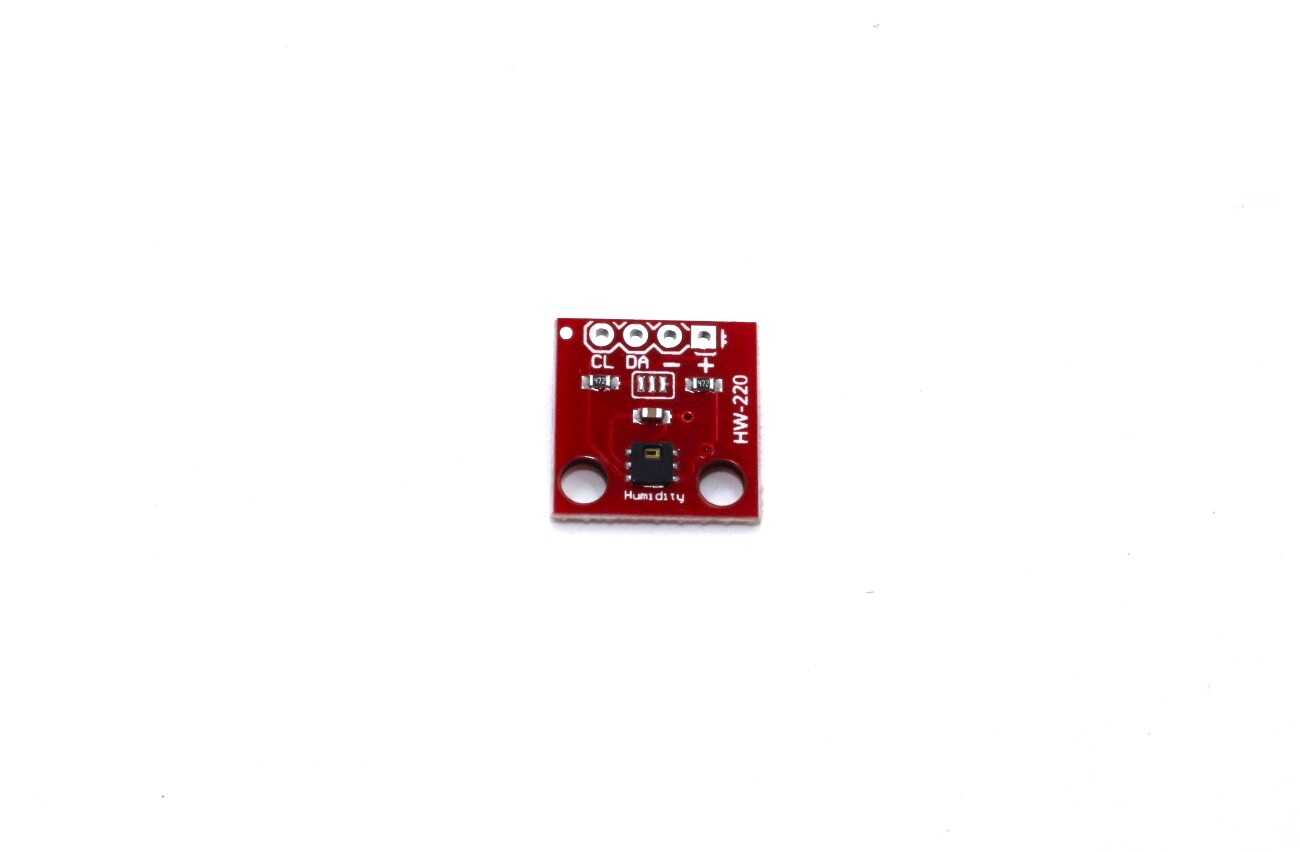

This breakout board has four pins: VCC, GND, and two I2C data lines. It also has built-in 4.7k pull-up resistors for I2C communications. If you have multiple I2C devices on the same bus, you may need to disable these resistors.
Note:
Full drops of water can damage the sensor. We recommend wrapping the board in Teflon/irrigation tape for extreme conditions where water droplets may find their way into the sensor.
specification-
Power supply (V)
1.5 ~ 3.6
Humidity measure range
0 – 100%RH
Humidity precision(10%RH to 95%RH)
HTU21DA ±2%RH
Max. power consumption (µW)
2.7
Communication
I2C
Measure time
50 msec
Year drift
-0.5%RH/year
Response time
5 sec
Length (mm):
16
Width (mm)
16
Height (mm)
2.5
Weight (gm)
5
Shipping Weight
0.01 kg
Shipping Dimensions
4 × 3 × 1 cm
Package Includes
1 x HTU21D Temperature and Humidity Sensor Module (HW-220 )
HTU21D Temperature and Humidity Sensor Module Overview
The HTU21D (HW-220) Temperature and Humidity Sensor Module is a compact I2C breakout board that measures relative humidity (0–100%RH) and temperature (–40 to +105 °C) with high accuracy. It combines ultra-low power consumption (2.7 µW) with a fast response time (measurement in up to 50 ms), making it ideal for environmental sensing and data logging.
Key Features of HTU21D Temperature and Humidity Sensor Module
Power supply: 1.5 – 3.6 V operation for low-voltage projects
Humidity range: 0–100%RH and temperature range: –40 °C to +105 °C
Ultra-low power consumption: just 2.7 µW
I2C communication with built-in 4.7 kΩ pull-up resistors on SDA and SCL
Fast measurement cycle: data ready in up to 50 ms
Genuine HTU21D sensor module and fast shipping from Zbotic
Applications and Use Cases
Weather station humidity and temperature monitoring
Greenhouse climate control and data logging
Server room or data center environmental monitoring
Home humidor humidity maintenance
HVAC system feedback and automation
How to Use HTU21D Temperature and Humidity Sensor Module
Connect VCC to a 1.5–3.6 V supply (3.3 V recommended), GND to ground, and wire SDA/SCL to the microcontroller’s I2C pins. With built-in 4.7 kΩ pull-up resistors, you can immediately communicate over I2C: initialize the bus, send a humidity or temperature measurement command, wait up to 50 ms, and read the results directly from the sensor.
Why Buy from Zbotic?
Genuine Products: All items sourced from authorized distributors
Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
Free Shipping: Free delivery on qualifying orders
COD Available: Cash on Delivery, UPI, cards, net banking
Technical Support: Expert help for setup and troubleshooting
Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I wire the HTU21D sensor to my microcontroller?
Connect VCC to a stable 1.5–3.6 V supply (3.3 V recommended), GND to ground, SDA to the I2C data line, and SCL to the I2C clock line. The onboard 4.7 kΩ pull-up resistors allow direct connection to a compatible 3.3 V I2C bus.
What measurement accuracy can I expect?
The HTU21D delivers high-precision humidity readings across 0–100%RH and temperature readings from –40 °C to +105 °C, with typical response times under 50 ms, ensuring reliable environmental monitoring.
Can I use the HTU21D module with a 5 V microcontroller?
This module operates at up to 3.6 V logic levels. To interface with a 5 V microcontroller, use a level shifter or an I2C voltage translator to protect the sensor and maintain reliable communication.
The HTU21D Temperature and Humidity Sensor Module (HW-220 ) is a versatile temperature & humidity sensor used across a wide range of applications including weather stations, greenhouse monitoring, HVAC systems, cold chain logistics, and server room monitoring.
Common use cases:
Building a home weather station with Arduino
Monitoring greenhouse conditions via IoT
Alerting when server room temperature exceeds threshold
This product is ideal for IoT developers, agricultural engineers, and home automation enthusiasts.
Technical Tip: DHT22 offers better accuracy than DHT11. For precision applications, use SHT31 or BME280. Ensure adequate ventilation around the sensor.
