PRODUCT DESCRIPTION
A type K thermocouple is a temperature sensor that has Chromel and Alumel conductors and meets the output standards of ANSI/ASTM E230 or IEC 60584 for type K thermocouples. It can be in different forms, such as an immersion sensor, a surface sensor, a wire, or another type of sensor or cable.
Unlike a J type thermocouple, which has iron and constantan, a K type thermocouple has a nickel/chromium alloy (chrome) and a nickel/aluminum alloy (alumel). These alloys give the K type thermocouple better resistance to oxidation and acidity than the iron parts of the J type.
A K type thermocouple consists of two metal alloys: Chromel (90% nickel, 10% chromium) and Alumel (95% nickel, 2% manganese, 2% aluminum, and 1% silicon). Because the thermocouple is based on nickel, it has good corrosion resistance. This makes it suitable for many applications and situations.
Features:
- Tolerance: ± 1.5
- Operating temperature: up to 2000°C
- Operating Voltage(VDC): 3 to 5.5
- Internal integrated cold junction compensation circuit;
- With a simple three-serial SPI interface;
- Temperature signal can be converted into 12-bit digital
- Embedded thermocouple break detection circuitry.
- High-impedance differential inputs
Specification:
| Product | K-type Thermocouple |
|---|---|
| Tolerance | ± 1.5 |
| Operating temperature | up to 2000°C |
| Thermocouple length | 110cm |
| Operating Voltage(VDC) | 3 to 5.5 |
| Sensitivity | approximately 41 µV/°C |
| Material | Chrome and alumni |
| Shipping Weight | 0.016 kg |
| Shipping Dimensions | 10 × 7 × 1 cm |
Package Includes:
1 x K-type Thermocouple

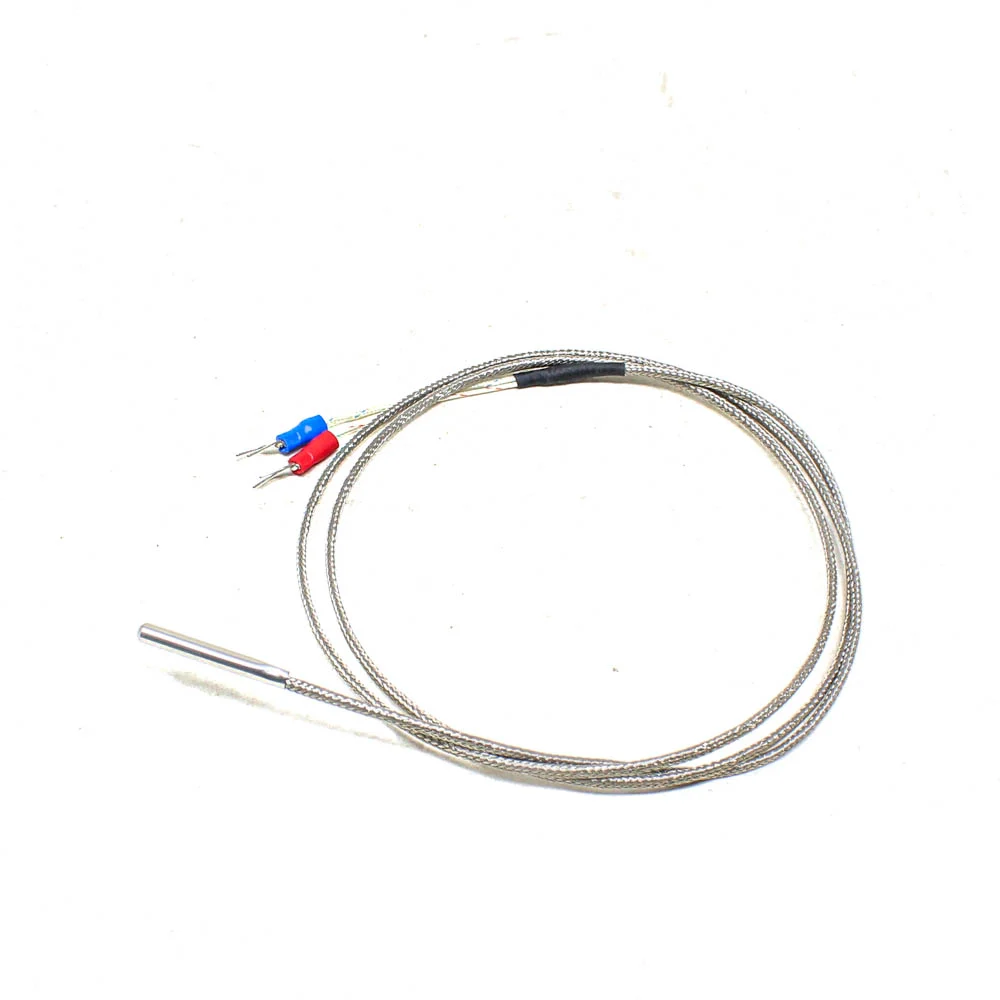

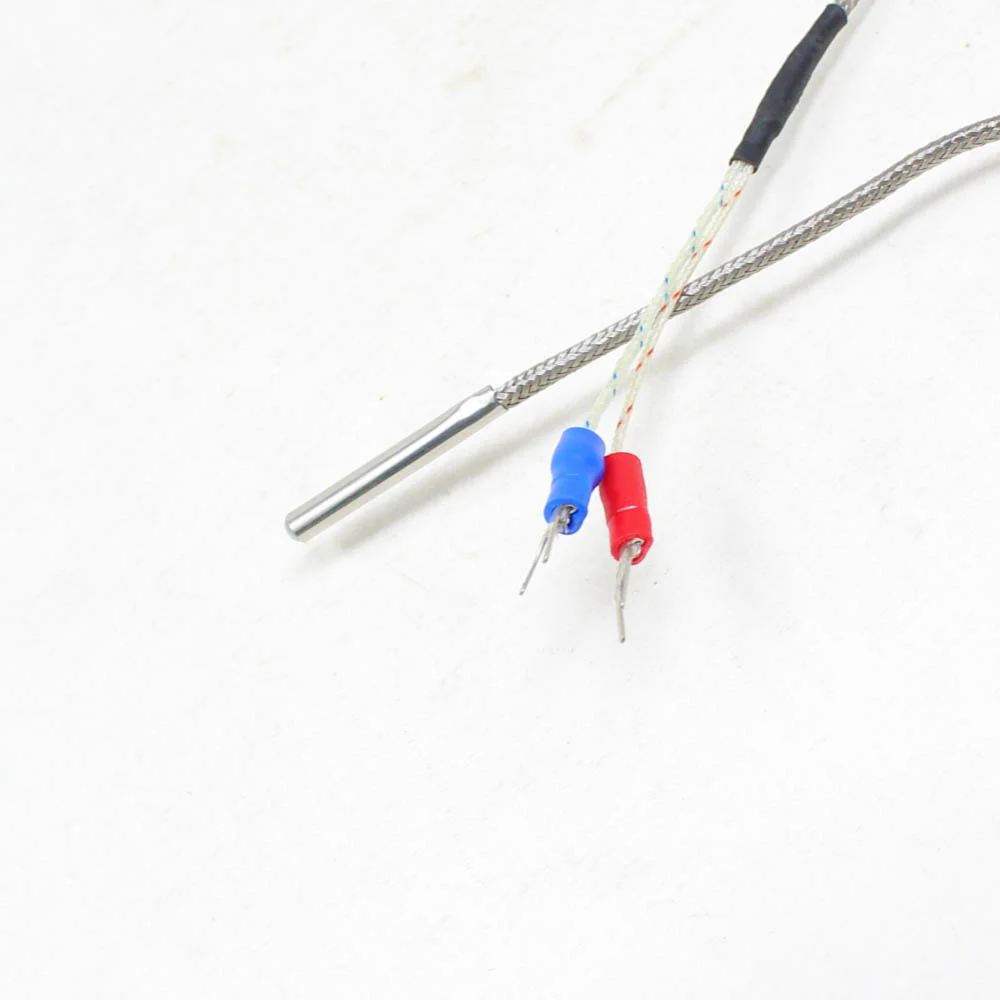

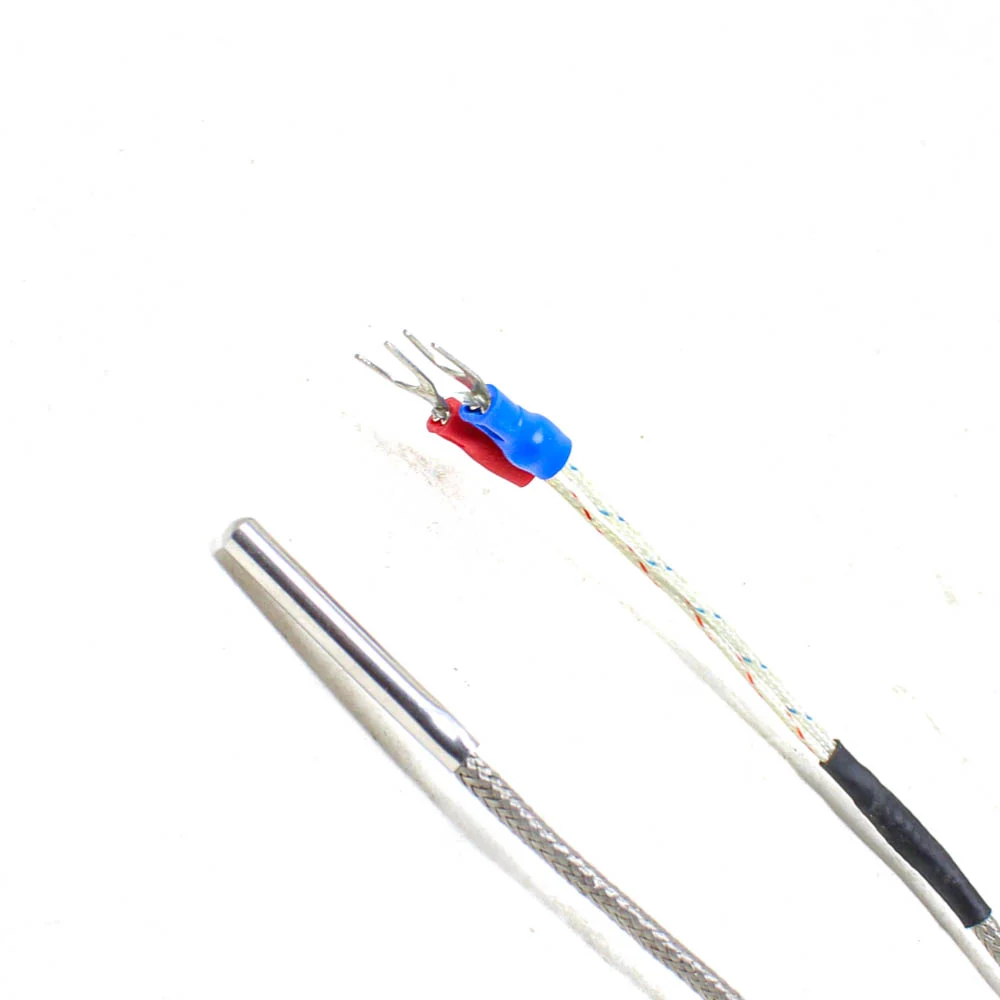

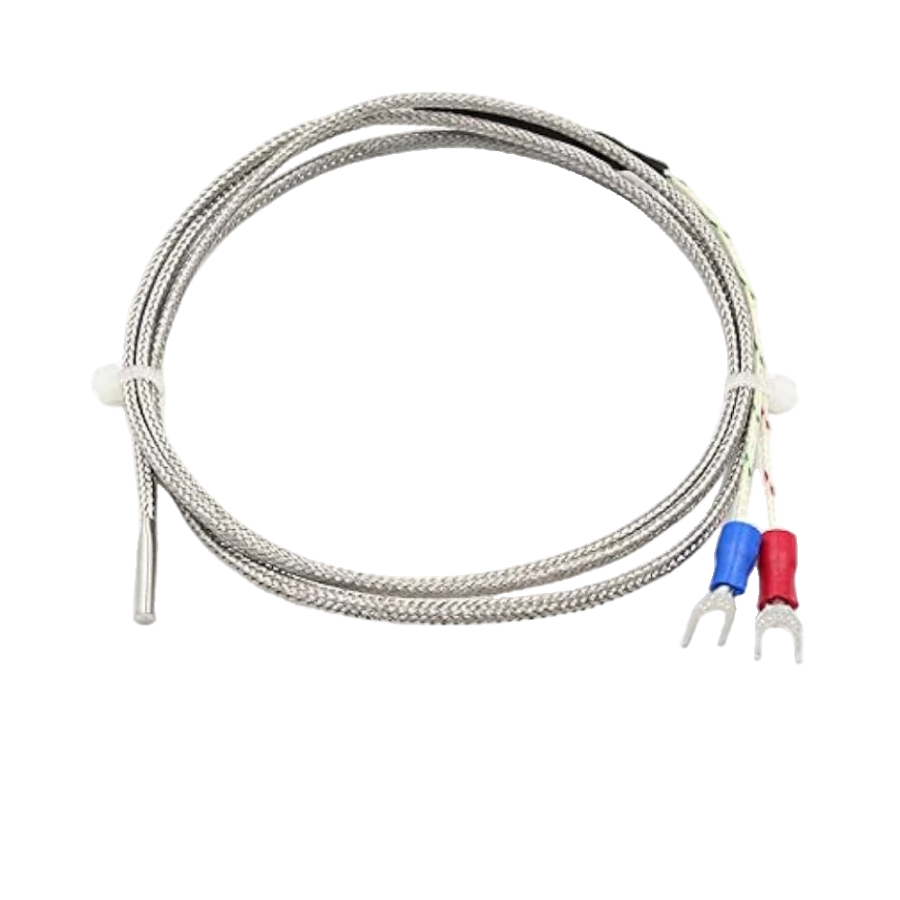

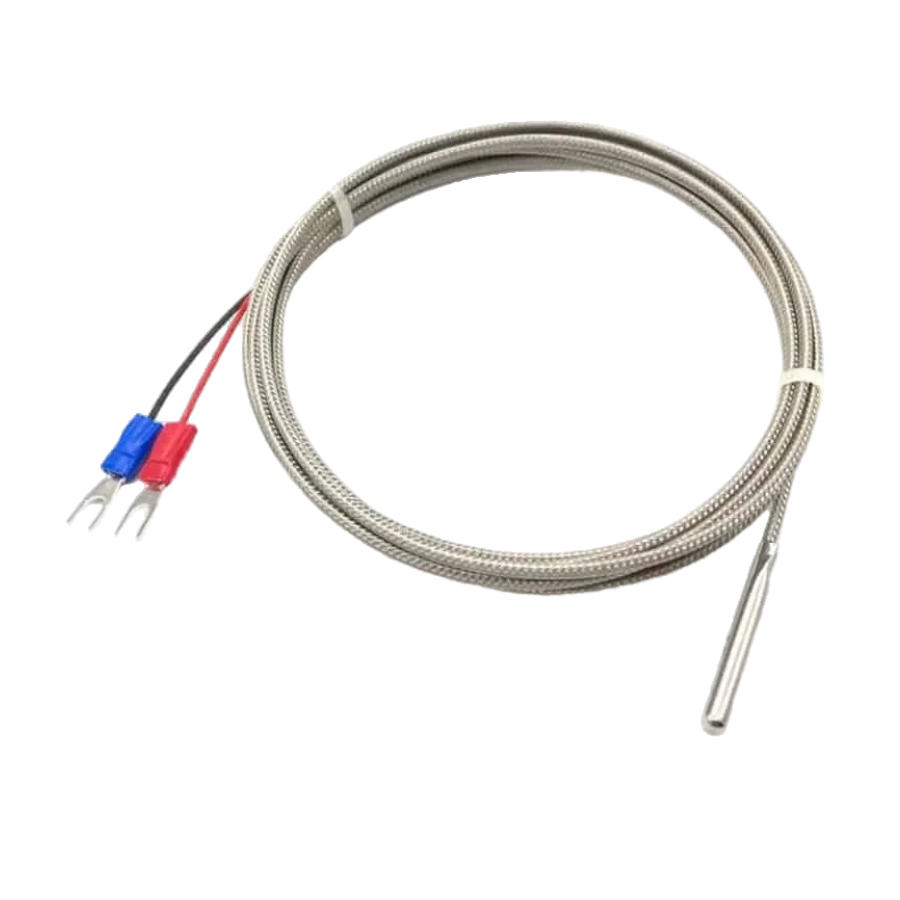

K-type Thermocouple Overview
The K-type Thermocouple is a high-temperature sensor built with Chromel and Alumel alloys, designed to accurately measure temperatures up to 2000°C. With its integrated cold junction compensation circuit and robust construction, it’s ideal for industrial, laboratory, and process monitoring applications.
Key Features of K-type Thermocouple
- Tolerance of ±1.5°C for reliable temperature readings
- Wide operating temperature range up to 2000°C

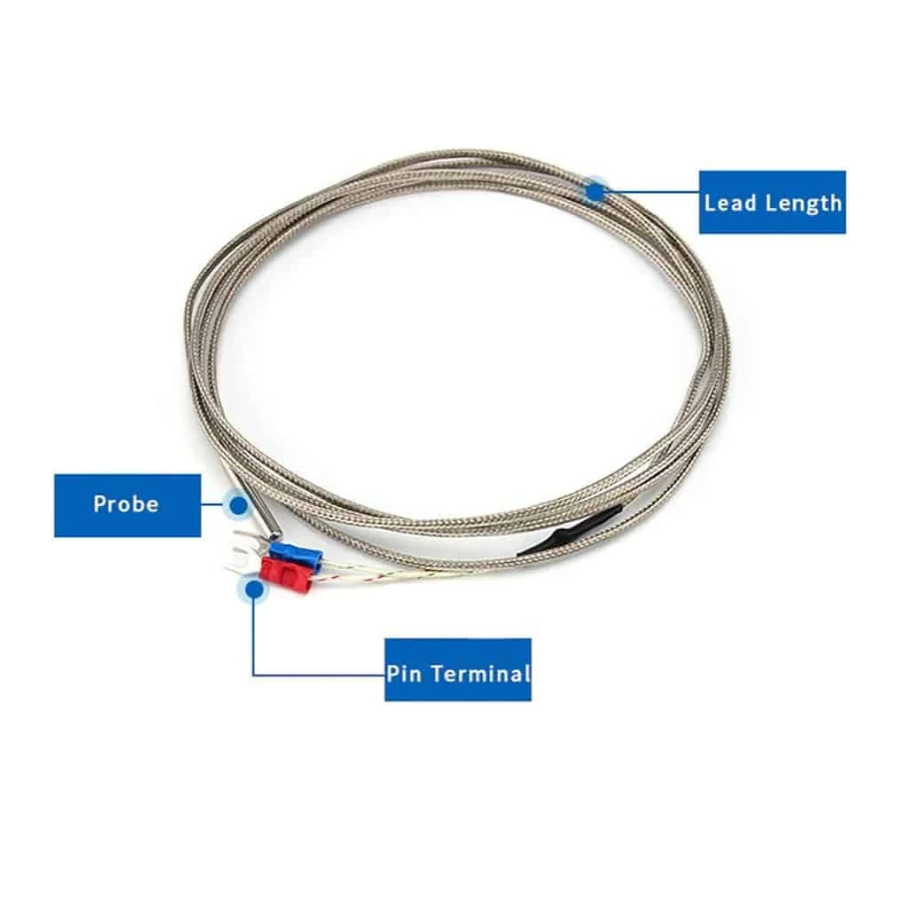

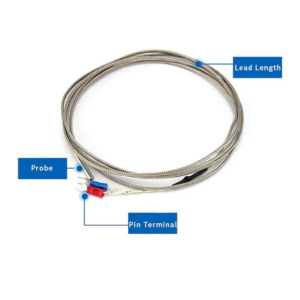

- 110 cm probe length for deep insertion and flexible positioning
- Operates on 3 to 5.5 VDC for compatibility with common data acquisition systems
- Internal integrated cold junction compensation circuit for accurate low-end readings
- Simple three-wire SPI interface for easy integration
- Genuine product, fast shipping from Zbotic
Applications and Use Cases
- Monitoring industrial furnace and kiln temperatures
- Lab oven and reactor temperature profiling
- Quality control in metal heat treatment
- Calibration of 3D printer hot ends and extruders
- Process temperature logging in chemical plants
- HVAC system performance testing
How to Use K-type Thermocouple
Connect the three SPI wires from the thermocouple to your microcontroller or data logger, supply 3–5.5 VDC power, and configure your software to read SPI temperature outputs. Secure the 110 cm probe in the measurement zone, ensure proper cold junction placement, and begin temperature monitoring with minimal calibration.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the temperature tolerance of this K-type thermocouple?
This thermocouple has a tolerance of ±1.5°C, meeting ANSI/ASTM E230 and IEC 60584 standards for type K sensors.
How do I interface the thermocouple with my data acquisition system?
Use the simple three-wire SPI interface: connect VCC (3–5.5 VDC), GND, and SPI data lines to your controller, then configure your software to read the SPI temperature data stream.
Does this thermocouple include cold junction compensation?
Yes, it features an internal integrated cold junction compensation circuit, ensuring accurate readings without external compensation hardware.
