Product Description

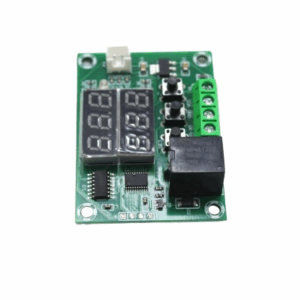

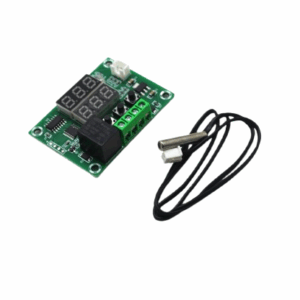

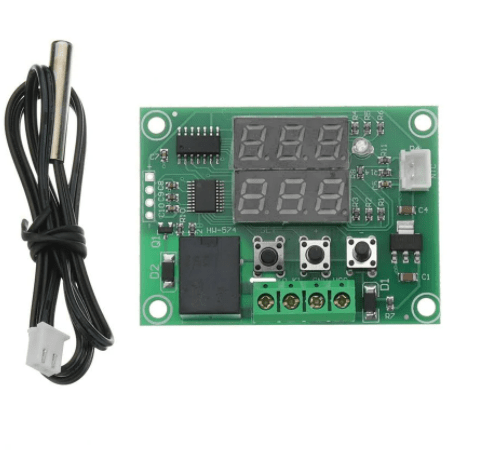

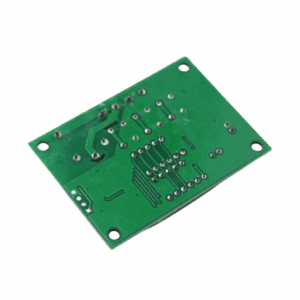

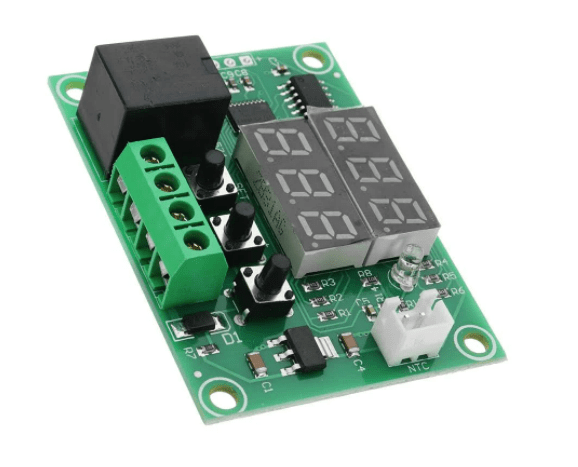

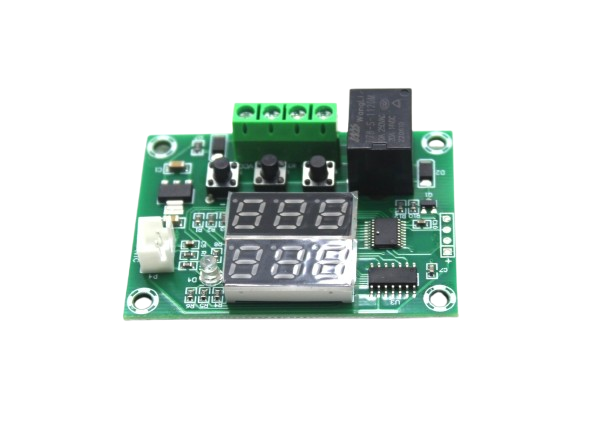

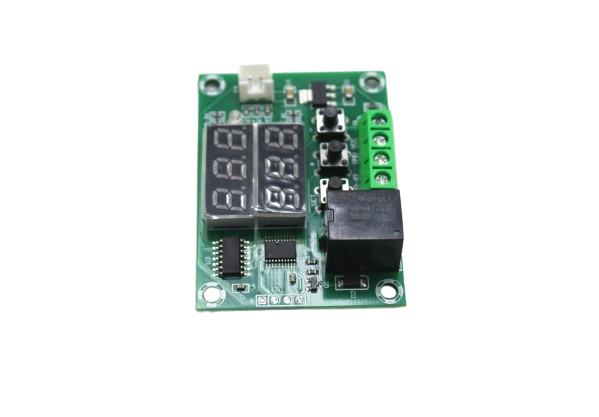

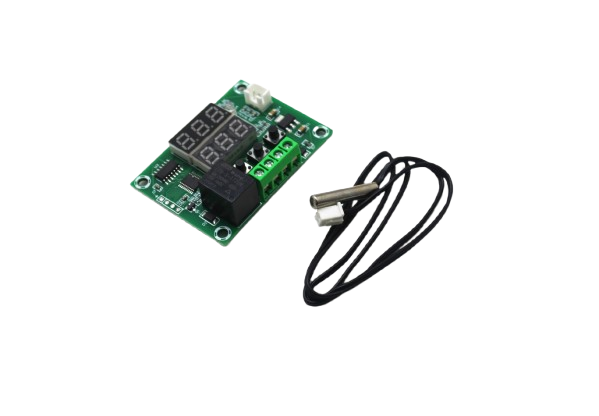

This is XH-W1219 12V Digital Red and Green Display Temperature Controller Module With NTC Waterproof Temperature Sensor. The XH-W1219 thermostat module with its C and I/O (sensor input, keys, double display, relay) can be re-programmed for automation tasks, and its easy to work with.
Digital thermostat module. The temperature controller/switch with waterproof NTC probe and integrated LED display in red and green.
Note: This board is Nuvoton based.
Button Functions
P0(Temperature Control Mode)
When first use this product; if you are using it for heating, please set H, if using it for cooling, please set C
P1(Return Difference Setting)
Long press SET key entering into the internal setting, choose P1 setting; then press SET key to achieve return difference value setting
P2(Temperature Calibration)
This function is for temperature calibration. If detection temperature and the actual temperature is different, then users can apply this function to calibrate
P3(Delay Start)
This function is for compressor cooling
P4(Set High-Temperature Alarm Value)
When the actual temperature is higher than this value, the screen will flash and sound an alarm
Features
- Control Range: -50~110 °C
- Control Precision: 0.1 °C

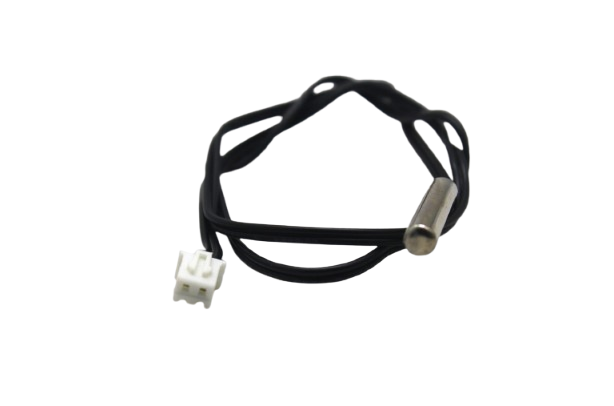

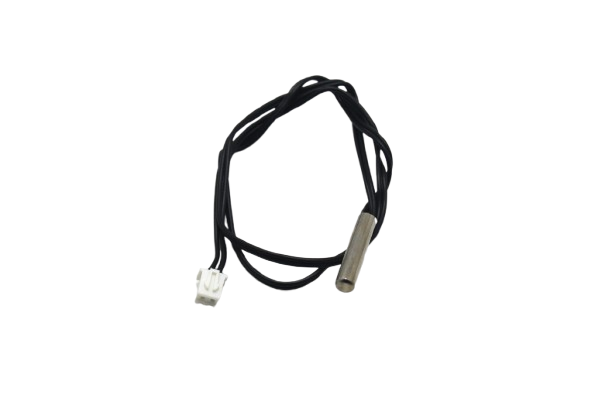

- Measuring Input: NTC10K waterproof sensor L=0.5m.
- High-Temperature Alarm: -49~110 °C
- Input Voltage: DC 12V
- Output Type: Relay output 10A (max)
- Return Difference Setting: 0.1~30 °C
- Delay Starting: 0-10min
- Temperature Calibration: -10~10 °C
Package Includes
- 1 x XH-W1219 12V Digital Red and Green Display Temperature Controller Module With NTC Waterproof Temperature Sensor
