This is the 525mm variant of the B3950 10K NTC Thermistor Temperature Sensor 5*25mm with XH2.54 Connector with 0.5 Meter Cable in Temperature & Humidity Sensor. Available at ₹36.34 (₹30.80 + GST) with free shipping across India.

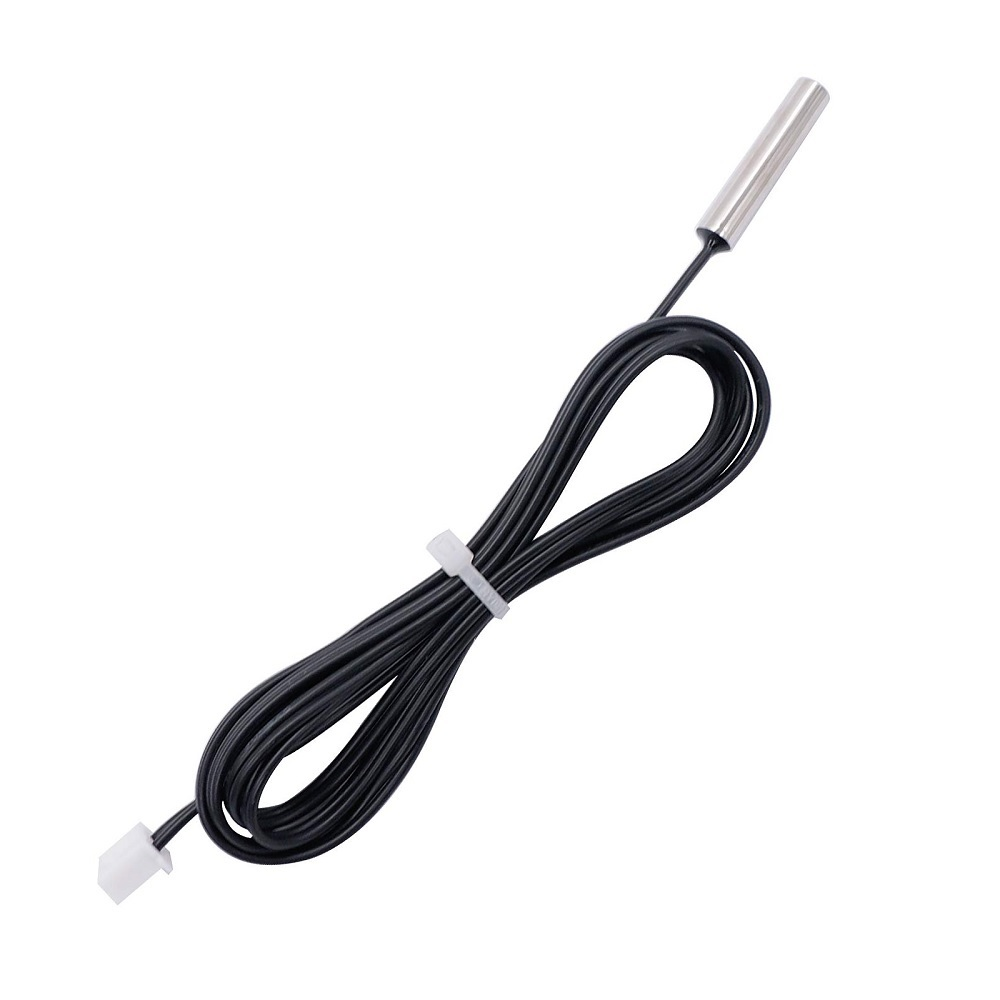

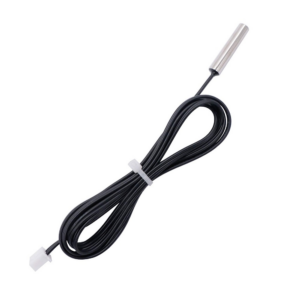

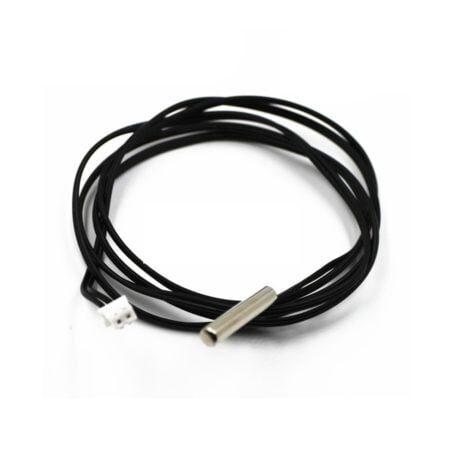

B3950 10K NTC Thermistor Temperature Sensor 5*25mm with XH2.54 Connector with 0.5 Meter Cable
The B3950 10K NTC Waterproof High Precision Thermistor Temperature Sensor, measuring 5 x 25mm, is versatile and suitable for various temperature measurement applications.

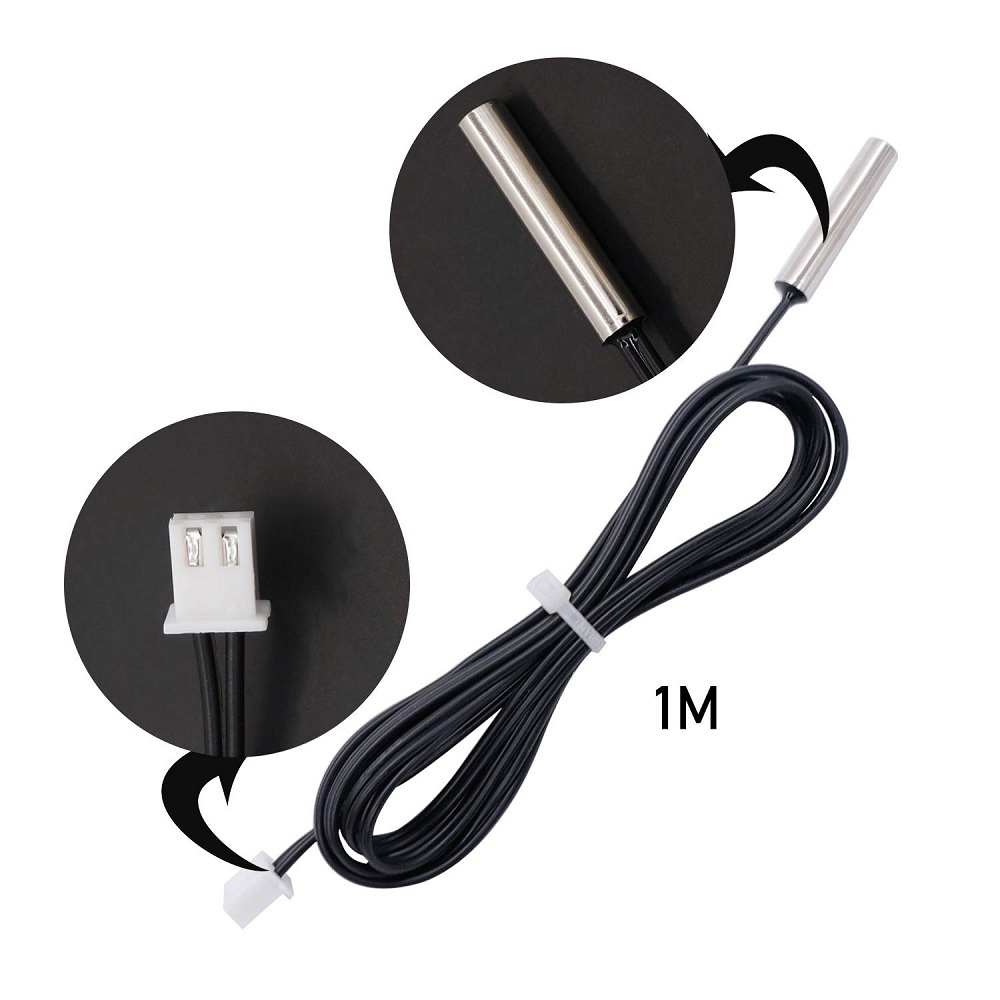

Featuring a stainless-steel tip of 5 x 25mm size and an XH2.54 connector with a 0.5-meter cable, this sensor offers convenience and ease of use. Its Negative Thermal Coefficient (NTC) means that its resistance decreases as temperature rises. However, in practical applications, the relationship between resistance and temperature may not be linear. Therefore, relying on an accurate table of measurements from the accompanying datasheet often proves more reliable than using a linear formula.
Specifications and Features:

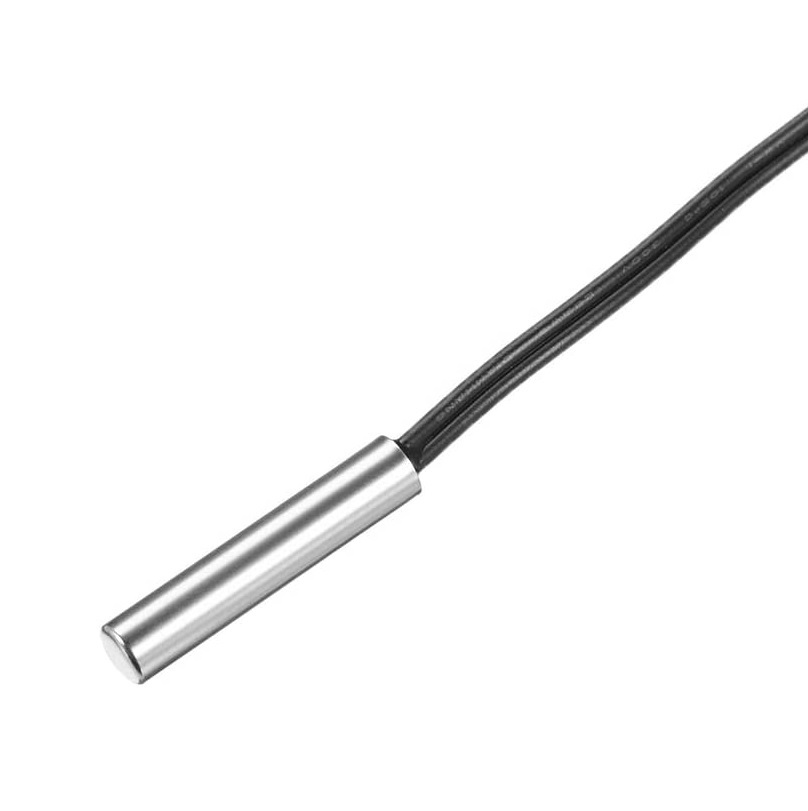

Probe sheath material: Stainless Steel
Style: B3950 10K
Resistance value: 10K ± 1%
Measurement range: -20 to 105 °C
Cable Length: 0.5 Meter

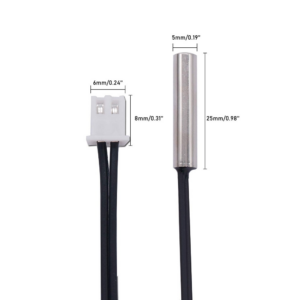

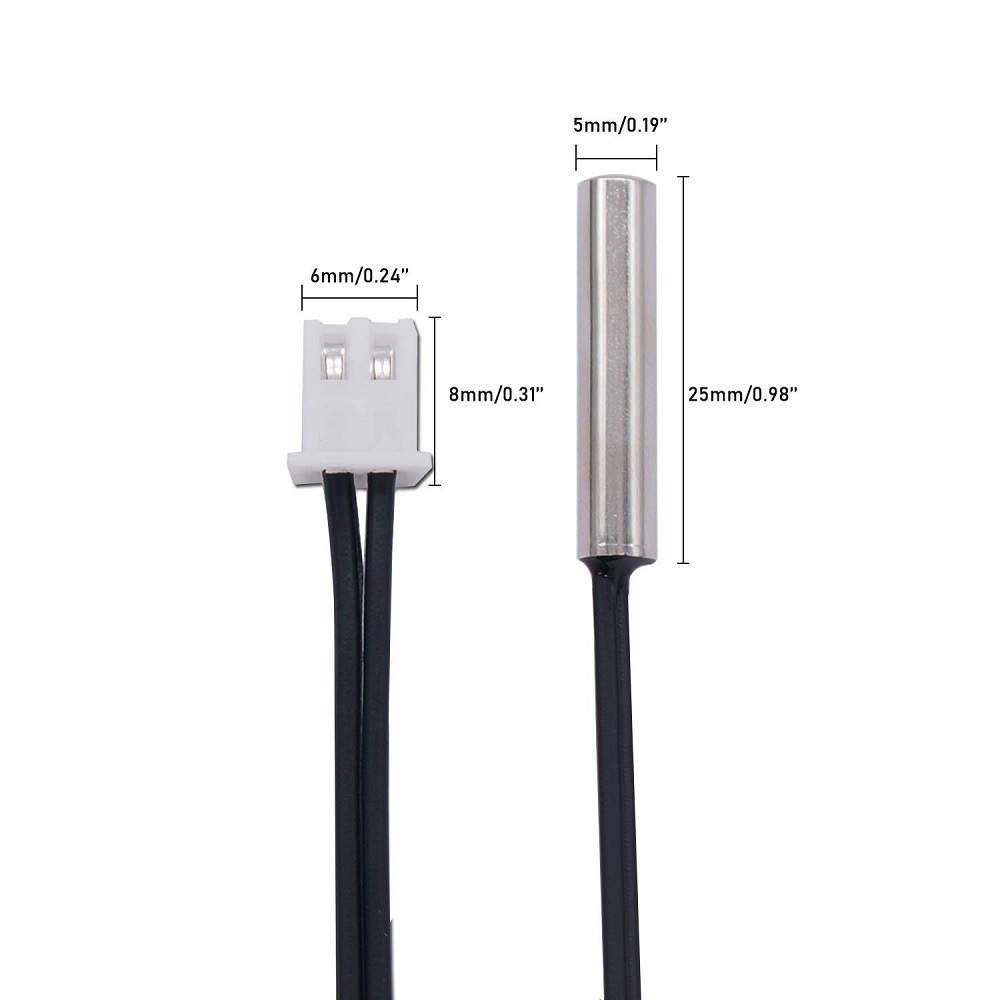

Size of probe: 5 x 25 mm
Output wires: 2
Typical Dissipation Constant: 5mW/ °C
Probe insulation: >100MOhm.
Package Includes:
1 x B3950 10K NTC Thermistor Temperature Sensor 5*25mm with XH2.54 Connector with 0.5 Meter Cable
Tilt Sensor SW-520D Tutorial: Arduino Tilt Detection Project
The SW-520D tilt sensor is one of the simplest yet most useful components in an electronics maker's toolkit....
Read More →
Vibration Sensor SW-420 vs ADXL345: Which One Should You Use for Your Project?
When building a vibration-sensing project with Arduino or any microcontroller, you'll quickly run into two popular options: the...
Read More →
Photointerrupter and Encoder Disk: RPM Measurement Project with Arduino
Measuring rotational speed (RPM) is a fundamental requirement in motors, fans, industrial machinery, and hobby robotics. One of...
Read More →Technical Specifications
| Model | B3950 |
|---|---|
| Size | 25mm |
| Interface / Protocol | BLE |
| SKU | AI2321 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The B3950 10K NTC Thermistor Temperature Sensor 5*25mm with XH2.54 Connector with 0.5 Meter Cable is a versatile temperature & humidity sensor used across a wide range of applications including weather stations, greenhouse monitoring, HVAC systems, cold chain logistics, and server room monitoring.
Common use cases:
- Building a home weather station with Arduino
- Monitoring greenhouse conditions via IoT
- Alerting when server room temperature exceeds threshold
This product is ideal for IoT developers, agricultural engineers, and home automation enthusiasts.
Technical Tip: DHT22 offers better accuracy than DHT11. For precision applications, use SHT31 or BME280. Ensure adequate ventilation around the sensor.
