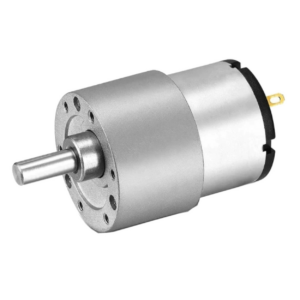

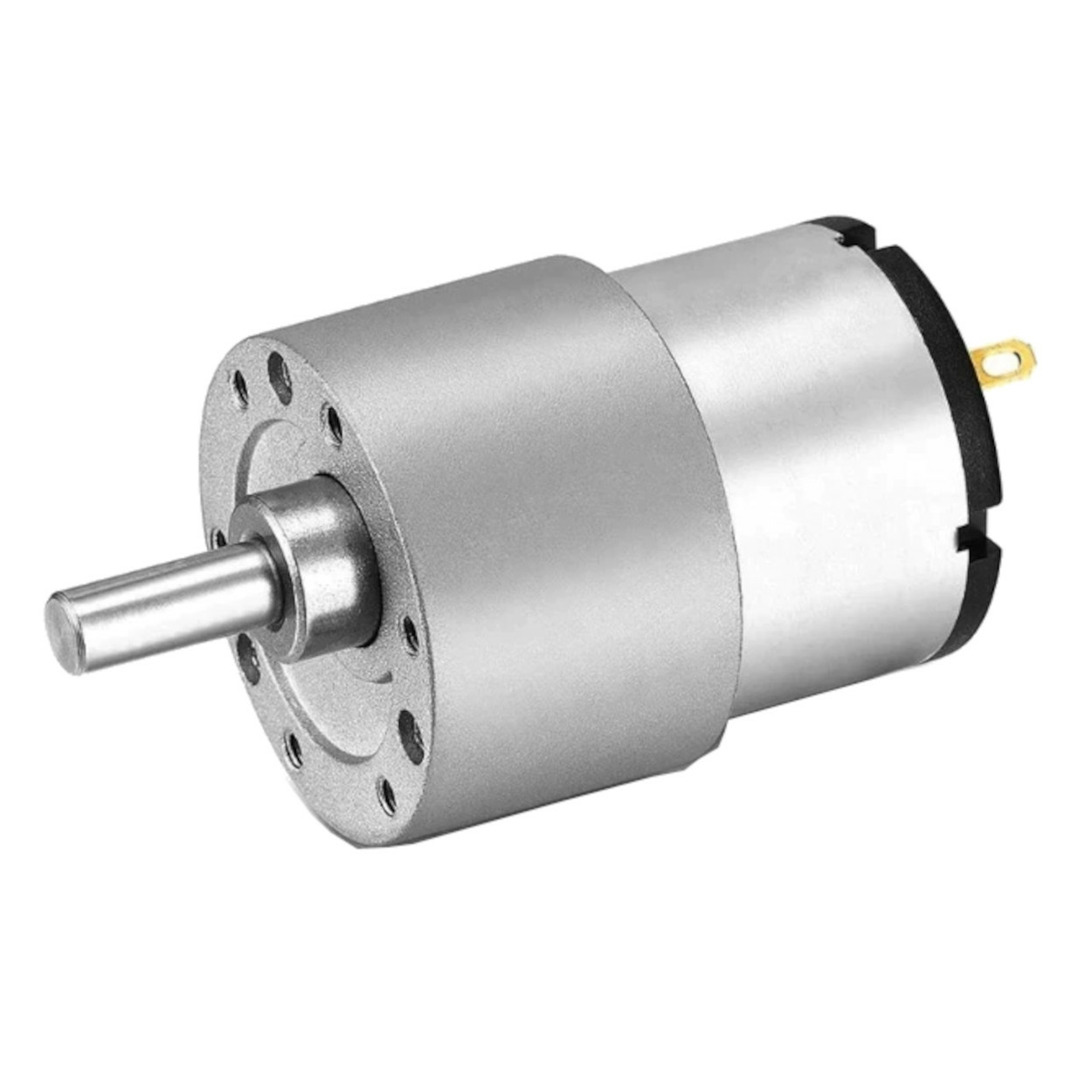

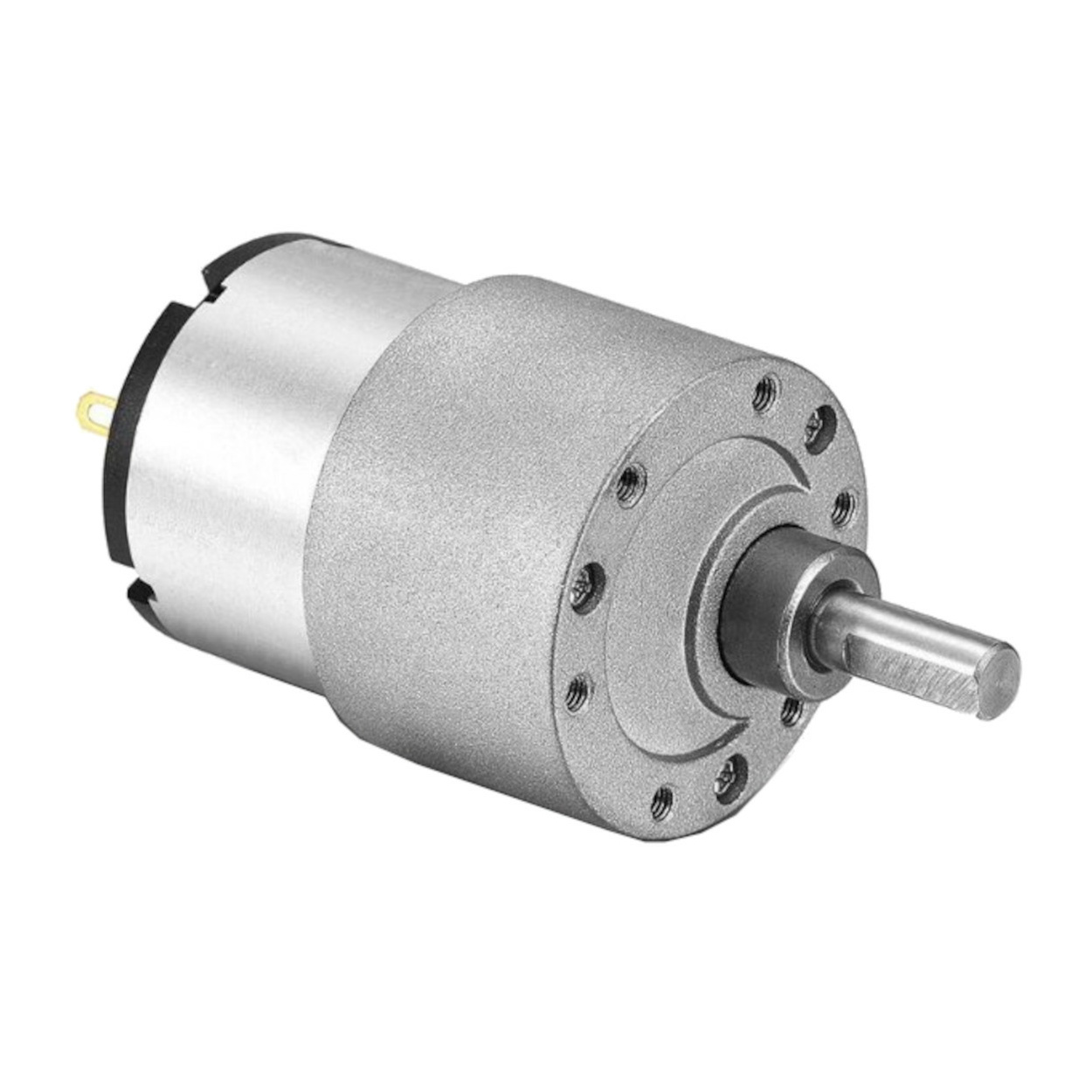

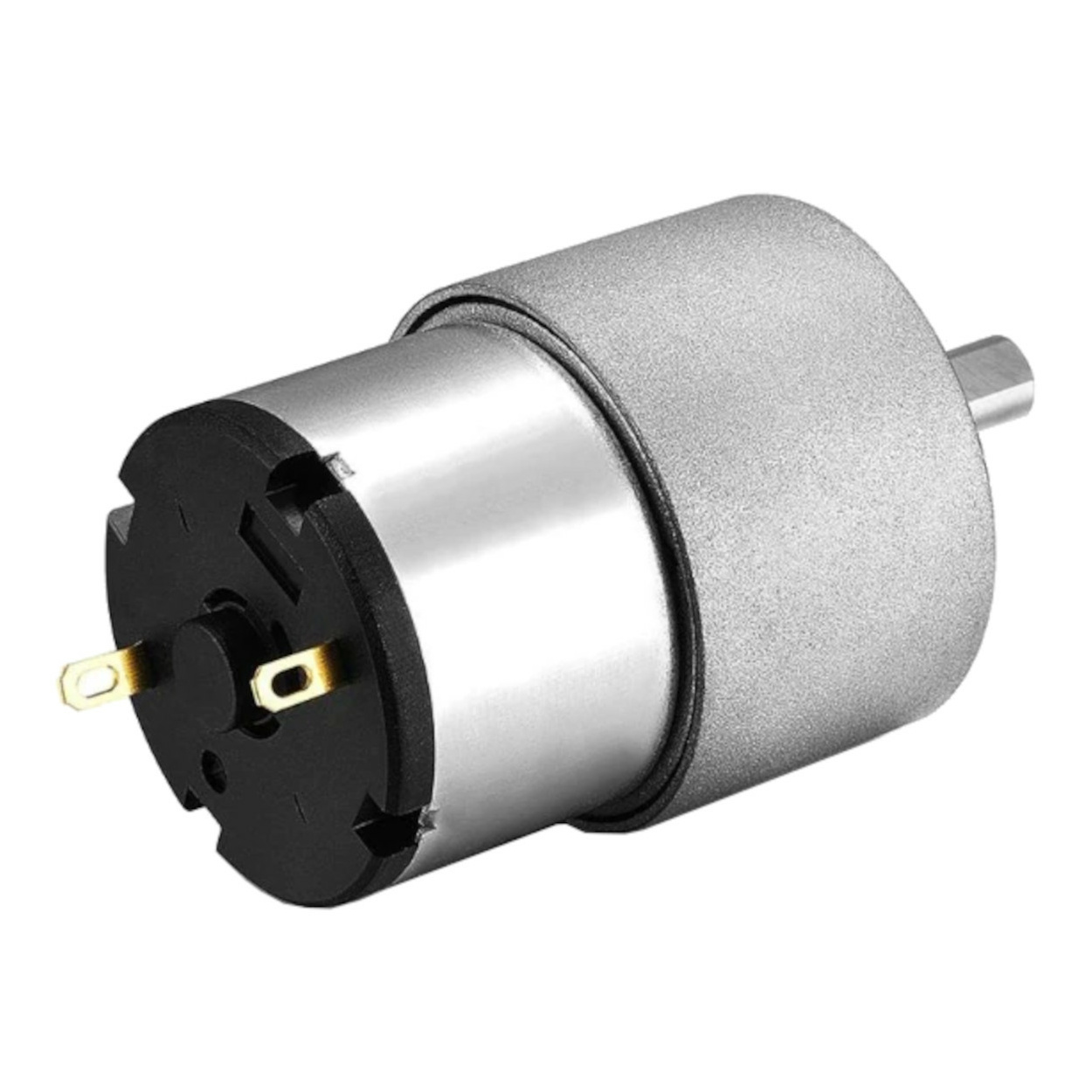

This is the Red variant of the JGB37-520 DC24V 7RPM/MIN Miniature Forward and Reverse Brushed DC Speed Reducer Motor in Motors & Drivers & Pumps & Actuators, Brushed / Brushless DC motor Driver, Motor Drivers. Available at ₹526.28 (₹446.00 + GST) with free shipping across India.
DC motor is equipped with a brushed motor, which makes the motor more stable and durable. This gearbox motor has high performance and excellent electrical conductivity, which can improve the service life of the product 12V Reduction motor for small smart device parts, like a Full vending machine, small lock, smart toy, etc.
This large and powerful JGB37-520 DC gear motor is available in a wide range of operating voltages and speeds, suitable for almost any project.
Features:
- Small gear motor with low speed, low noise, and high torque.
- The geared motor adopts pure copper winding, which has the characteristics of low heat generation and low loss.
- The metal gearbox has the characteristics of wear resistance and rust resistance, and the motor has a long service life.
- The high-torque gear motor has a thickened magnet with a strong magnetic field and strong anti-interference.
Specification:
- Model: PB37-520-7
- Rated Voltage: 24V
- Revolving Speed: 7 RPM
- Rated Torque: 0.15 kg. cm
- Stall Torque: 0.6 kg. cm
- Rated Current: 100 mA
- Stall Current: 1.2A

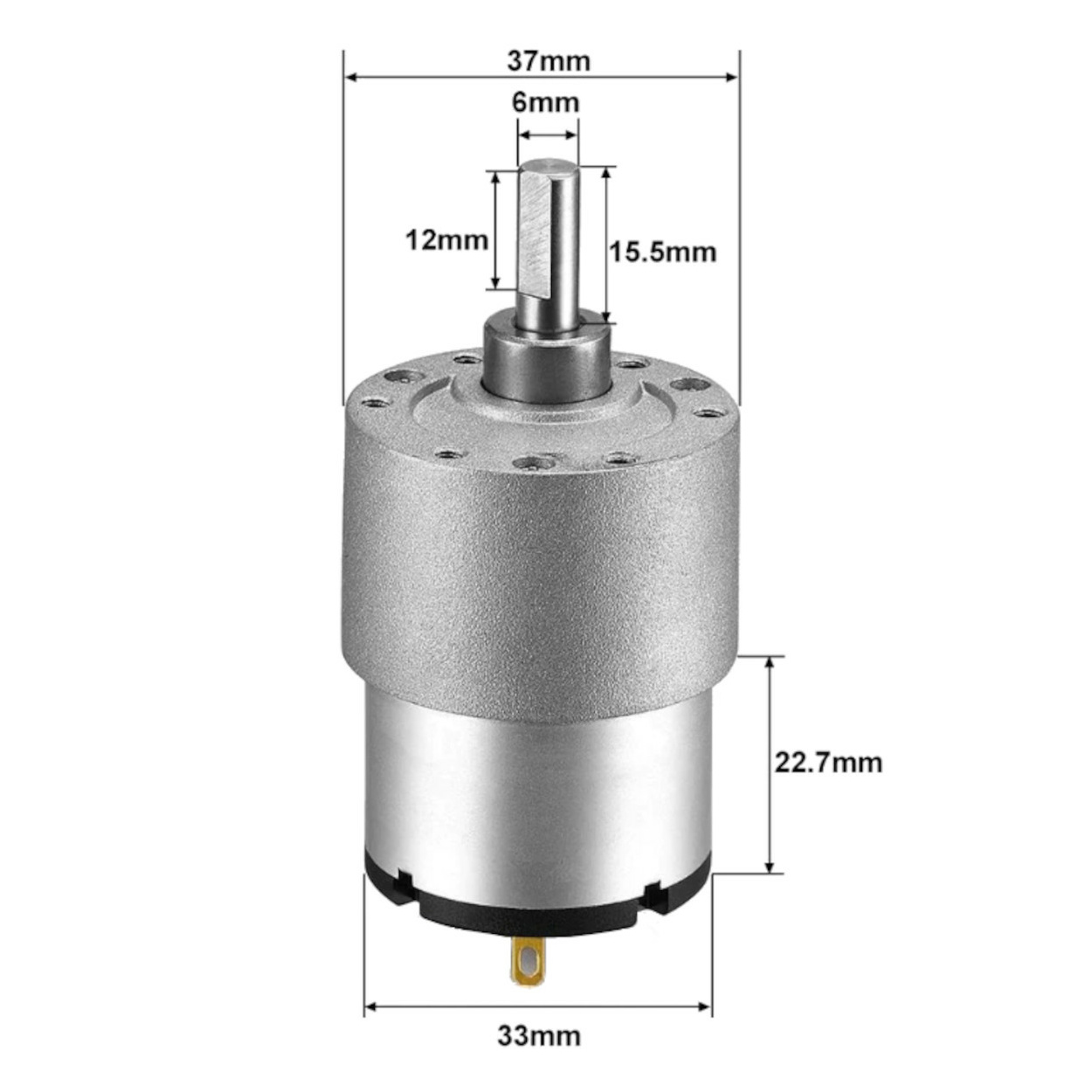

- Total Length(LxWxH) : 77x37x37mm
- Gear Material: Full Metal
- Shaft Size : 6 x 15mm(D*L)
- Gearbox length(L) :27mm
- Shaft Type : D Type
- Net Weight: 0.1911kg
Applications:
- Vending machines
- panoramic cameras
- Slot machines
- Money detectors
- Coin refund devices
- Automatic doors
- Peritoneal machines
- Toys, etc.
High Power Stepper Motor Driver: TB6600 Wiring & Setup Guide
The TB6600 stepper motor driver is one of the most popular high-current stepper drivers available for hobbyists, makers,...
Read More →
MG996R Servo Motor: High Torque Projects & Control Guide
The MG996R servo motor is one of the most popular high-torque servos in the maker and robotics community....
Read More →
Automatic Plant Watering System with Servo Valve & Soil Sensor (Arduino Project)
Whether you travel often, forget to water your plants, or simply want to automate your home garden, an...
Read More →Technical Specifications
| Model | JGB37-520 |
|---|---|
| Operating Voltage | 24V |
| Speed | 7 RPM |
| Color | Red |
| SKU | AI3732 |
| Weight | 0.2 kg |
| Availability | Out of Stock |
Applications & Use Cases
The JGB37-520 DC24V 7RPM/MIN Miniature Forward and Reverse Brushed DC Speed Reducer Motor is a versatile brushed / brushless dc motor driver used across a wide range of applications including robot motor control, DC motor speed regulation, H-bridge circuits, electric vehicle drives, and conveyor belt control.
Common use cases:
- Bidirectional motor control for a robot
- PWM speed control of a DC motor
- Building a motorized platform
This product is ideal for robotics engineers and motor control enthusiasts.
Technical Tip: L298N is a classic dual H-bridge driver. For higher efficiency, consider MOSFET-based drivers like BTS7960.
