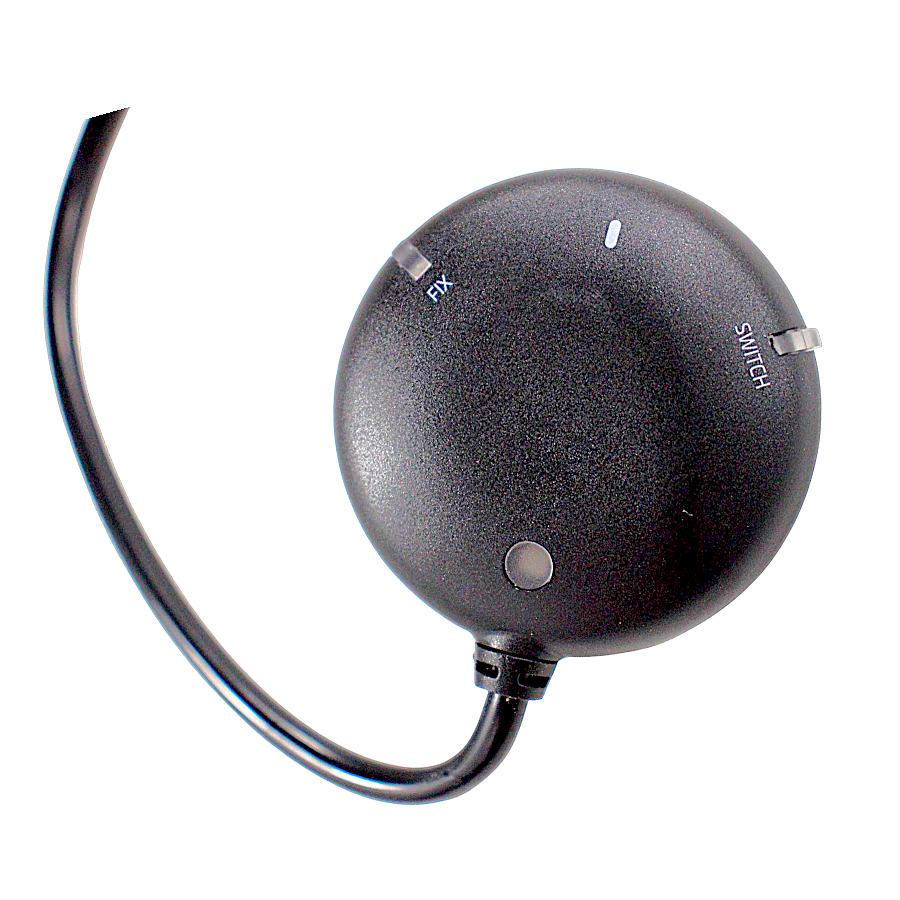

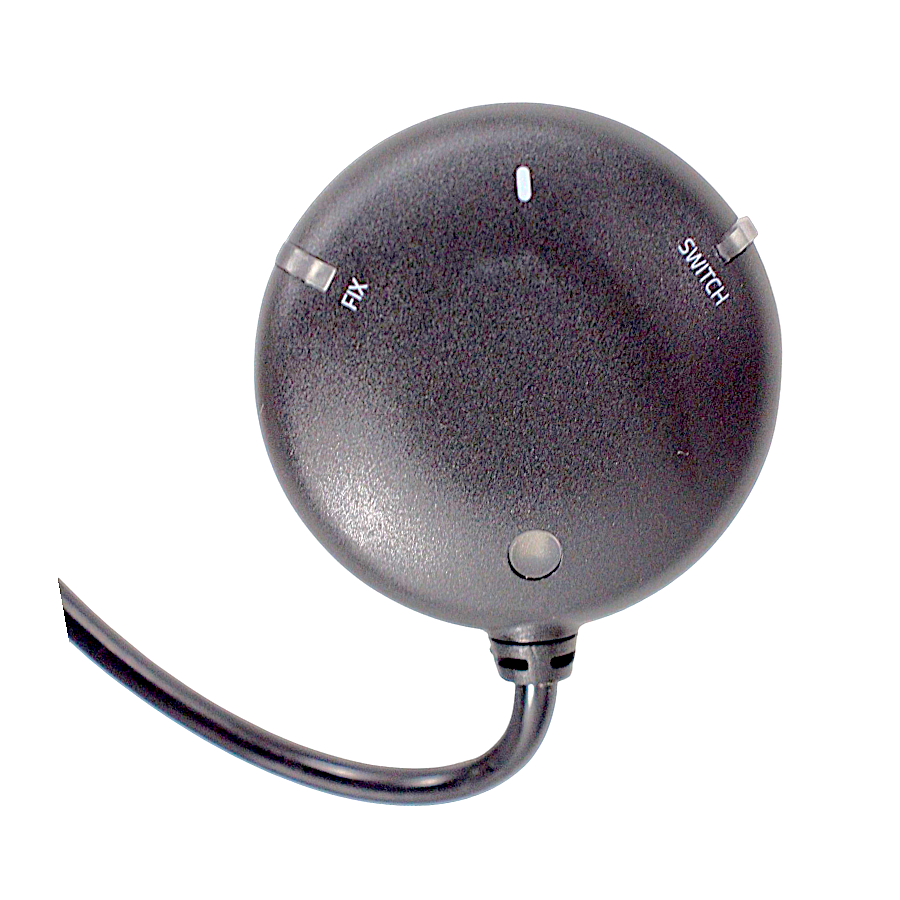

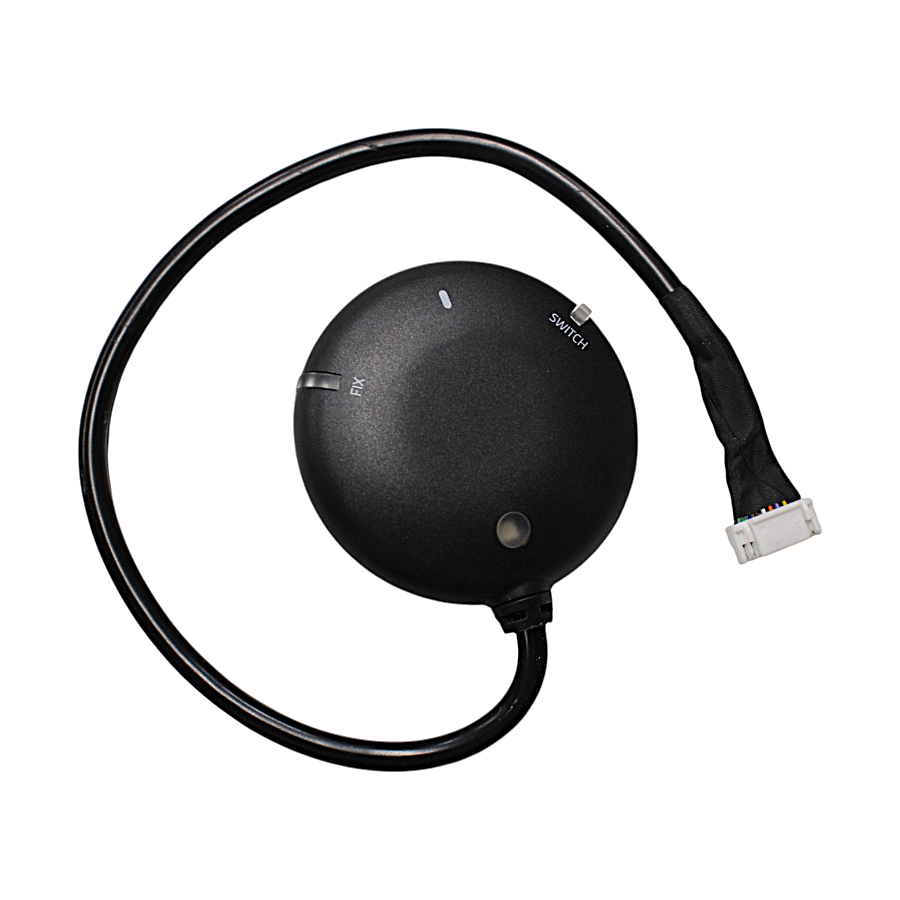

The Holybro M9N GPS features a UBLOX M9N module, an IST8310 compass, a tri-colored LED indicator, and a safety switch, along with three different connector options tailored for various uses. This module is preset with a baud rate of 115200 at 5Hz.
Utilizing multi-constellation GNSS technology powered by the u-blox M9N, the M9N GPS is a concurrent GNSS receiver capable of receiving and tracking multiple GNSS systems simultaneously. Thanks to its multi-band RF front-end architecture, it can concurrently receive signals from all four primary GNSS constellations: GPS, Galileo, GLONASS, and BeiDou.
Additionally, it is equipped with an IST8310 compass, a tri-colored LED indicator, a buzzer, and a safety switch. The module is configured with a baud rate of 115200, an update from the previous 38400.
The device boasts a high-gain 25 x 25 mm2 patch antenna that ensures superior performance. Its omnidirectional antenna radiation pattern offers increased installation flexibility. The antenna’s active circuitry and a rechargeable backup battery facilitate warm starts.
Note: This module comes with three connector variants. This is the standard connector variant
Features:
- Ublox Neo-M9N module
- Max concurrent reception of 4 GNSS
- Industry-leading -167 dBm navigation sensitivity
- Cold starts: 26s
- LNA MAX2659ELT+
- 25 x 25 x 4 mm ceramic patch antenna
- Rechargeable Farah capacitance
- Low-noise 3.3V regulator
- Current consumption: less than 150mA @ at 5 volts
- Fix indicator LEDs
- Protective case
- 26cm cable included
- Diameter: 50mm total size, 32 grams with case.
Specification-
| Product | M9N GPS Module |
|---|---|
| Ublox Neo | M9N module |
| Industry-leading | 167 dBm navigation sensitivity |
| Cold starts | 26s |
| Low noise | 3.3V regulator |
| Current consumption | less than 150mA @ 5V |
| cable included | 26cm |
| Diameter | 50mm |
| ceramic patch antenna | 25 x 25 x 4 mm |
| Shipping Weight | 0.11 kg |
| Shipping Dimensions | 13 × 11 × 4 cm |
Packages Includes:
1 x M9N GPS Module (Standard Connector)

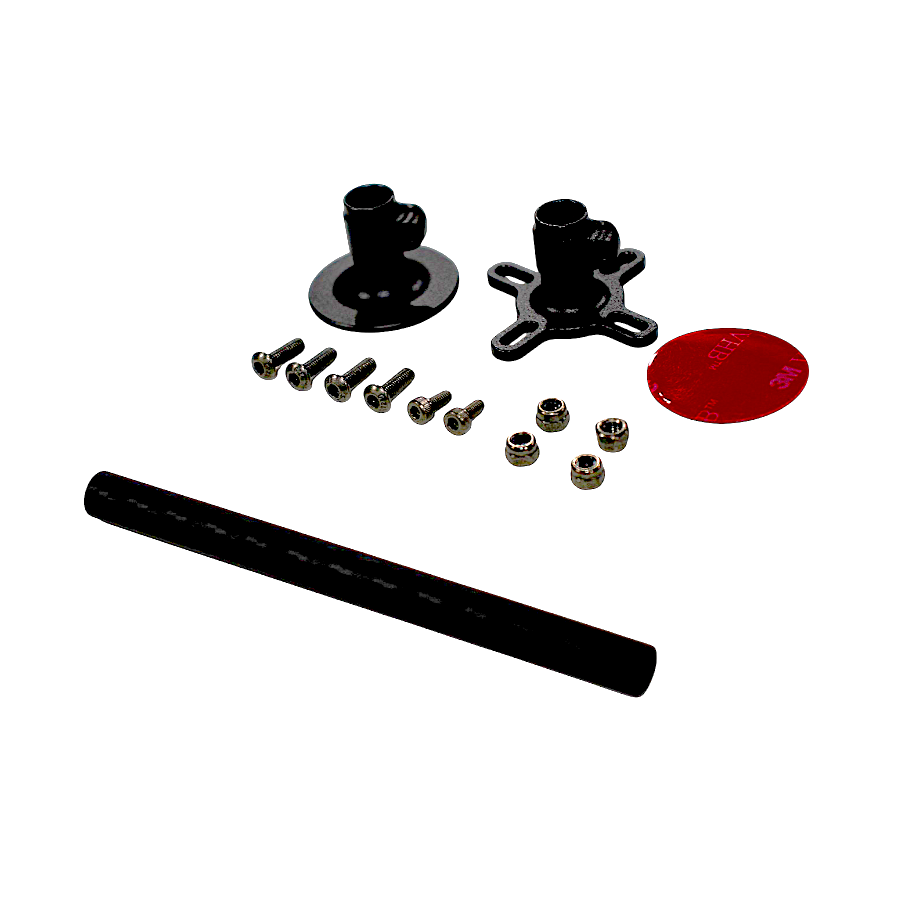

1 x Fixed Carbon Fiber GPS mount
FPV Drone LiPo Battery Maintenance: Storage and Longevity Guide
FPV Drone LiPo Battery Maintenance: Storage and Longevity Guide Your LiPo batteries are quite possibly the most expensive...
Read More →
How to Flash Betaflight Firmware: Complete Beginner Guide
Table of Contents What is Betaflight and Why Flash It? Before You Begin: What You Need Step 1:...
Read More →
Drone Light Show: Synchronized LED Flight Formation
Table of Contents Understanding Drone Light Show Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →Technical Specifications
| Brand | Holybro |
|---|---|
| Model | M9N |
| SKU | AI5712 |
| Weight | 0.13 kg |
| Availability | In Stock |
Applications & Use Cases
The Holybro M9N GPS with Standard Connector is a versatile gps modules used across a wide range of applications including drone navigation, asset tracking, fleet management, precision agriculture, and hiking/outdoor gadgets.
Common use cases:
- Adding GPS waypoint navigation to a drone
- Building a vehicle tracker
- Precision positioning for surveying
This product is ideal for drone builders, fleet managers, and outdoor electronics developers.
Technical Tip: Multi-constellation receivers (GPS + GLONASS + BeiDou) provide faster and more accurate fixes. RTK modules offer centimeter-level precision.
