CUAV NEO 3 GPS Module | GNSS U-blox M9N Drone Hardware
The CUAV NEO 3 GPS Module, featuring the GNSS U-blox M9N, represents the latest innovation from the CUAV brand. Building upon the design of its predecessor, the NEO V2, the NEO 3 maintains its hardware integrity while introducing significant upgrades.
Key among these enhancements is the integration of the Ublox NEO M9N GNSS module. This advanced module supports multiple satellite navigation systems, including Beidou, Galileo, Glonass, and GPS simultaneously. As a result, users benefit from superior horizontal positioning accuracy, reaching up to an impressive 0.7 meters.
In addition to its exceptional GNSS capabilities, the NEO 3 GPS Module is outfitted with integrated safety features, including a safety switch, buzzer, and RGB light. These elements enhance operational safety and offer added convenience during drone deployment and operation.
Features:
- Easy to use
- Buzzer prompt
- safety switch
- CAN Bus
- MS5611 Barometer
- RGB Status Light
- CROCOMM custom four-star high gain antenna
- Simultaneous reception by the four satellite systems: Supports simultaneous reception of Beidou, Galileo, Glonas, and GPS four satellite systems
- Good quality product
Comparison between NEO v2 & NEO 3:
Specification:
Number of concurrent GNSS | 4(Supports Beidou, Galileo,GLONASS,GPS receive at the same time) |
---|---|
Frequency band | GPS:L1C/A GLONASS:L10F Beidou:B11 Galileo:E1B/C |
GNSS Augmentation System | SBAS:WAAS,EGNOS,MSAS QZSS:L1s(SAIF), Other: RTCM3.3 |
Nav. update | 25Hz(Max) |
Accuracy | 2.0M (Upto 0.7M) |
Speed accuracy | 0.05m/s |
Number of GNSS (max) type | 32+ |
Port Type | GHR-04V-S |
Voltage | 4.7-5.2V |
Operating Temperature | -10~70°C |
Size | 60*60*15.8MM |
Weight | 33g |
Package Includes:
1 x CUAV NEO 3 GPS Module | GNSS U-blox M9N Drone Hardware

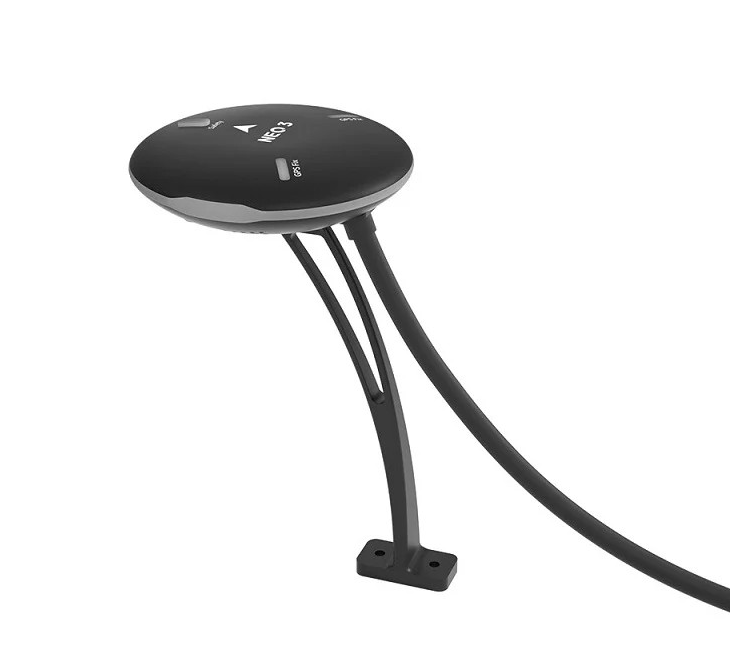

1 x Stand and cable
