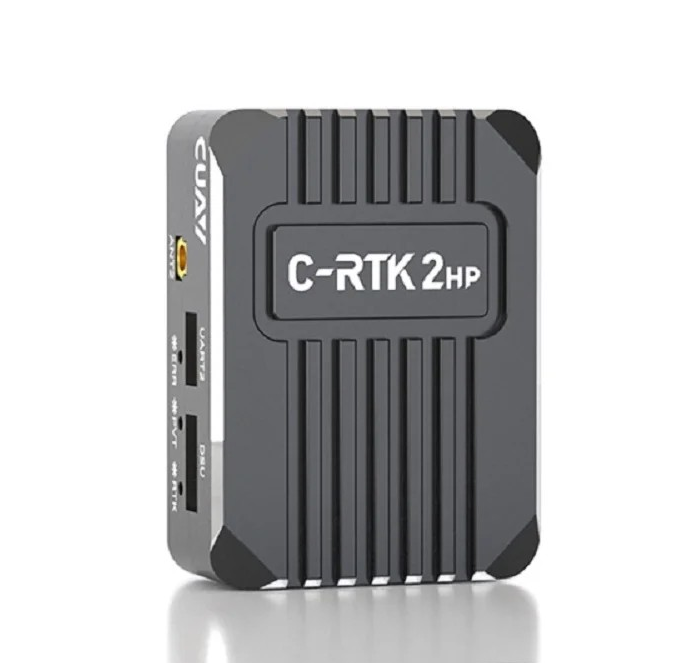

CUAV C-RTK 2 HP GNSS Heading Module

(32 customer reviews)
Share:
Add to wishlist
Add to compare

Centimeter-Level Positioning

Single Module Dual Antenna Estimate yaw

All-constellation Multi-frequency Receiver

Supports Drone CAN Protocol

Sensor: Compass: RM3100, Grro/ACC: ICM42688

Antenna 1 (main): BDS:B11, B21, B31; GPS:L1C/A, L2P/L2C, L5; GLONOSS:L1, L2; Galileo: E1, E5a, E5b; QZSS:L1, L2, L5

Antenna 2: BDS:B11, B21, B31 GPS:L1C/A, L2C; GLONOSS:L1, L2 Galileo: E1, E5b QZSS:L1, L2

Brand: CUAV SKU: AI5624
Category:
Tags: , , , ,

₹26,394.90 (₹25,138.00 + GST)

CUAV C-RTK 2 HP GNSS Heading Module

It’s CUAV C-RTK 2 HP GNSS Heading Module from CUAV! The module utilizes multiple satellite constellations, such as GPS, GLONASS, Beidou, and Galileo, to provide high-precision positioning down to the centimeter level. This level of accuracy is crucial for applications like drone navigation, where precise location data is essential. The dual-antenna configuration helps in determining not only the position but also the heading or orientation of the device. This is particularly valuable for applications like precision agriculture, where the orientation of equipment matters.

Many GNSS modules, including the CUAV New C-RTK 2HP, incorporate an IMU for measuring changes in orientation and velocity. This enhances the performance in dynamic and challenging environments. The module is designed to operate in various environmental conditions, including extreme temperatures and humidity levels.

Note: Refer to Interface Design below for more info.

Screenshot 56

Cuav Cuav C Rtk 2 Hp Gnss Heading Module 4

Cuav Cuav C Rtk 2 Hp Gnss Heading Module 3

Features:

  1. Centimeter-Level Positioning
  2. Single Module Dual Antenna Estimate yaw
  3. All-constellation Multi-frequency Receiver
  4. Supports Drone CAN Protocol
  5. Sensor: Compass: RM3100, Grro/ACC: ICM42688
  6. Antenna 1 (main): BDS:B11, B21, B31; GPS:L1C/A, L2P/L2C, L5; GLONOSS:L1, L2; Galileo: E1, E5a, E5b; QZSS:L1, L2, L5
  7. Antenna 2: BDS:B11, B21, B31 GPS:L1C/A, L2C; GLONOSS:L1, L2 Galileo: E1, E5b QZSS:L1, L2
  8. Position Accuracy: Single point positioning: horizontal 1.5M/elevation: 2.5m DGPS (assisted positioning): horizontal 0.4M+1PPM/ elevation: 0.8m+1 PPM, RTK: Horizontal 0.8cm+1PPM/Elevation: 1.5cm+1PPM
  9. Estimate yaw accuracy: 0.2 degrees/1m (distance between antenna 1 and antenna 2)
  10. Max star: Single: 28+ RTK:50 +
  11. Positioning speed: Cold start <30s/auxiliary start <5s
  12. Data refresh rate: 5Hz (default); Max 20Hz
  13. Data format: RTCM3.X
  14. Data protocol: Dronecan/NMEA

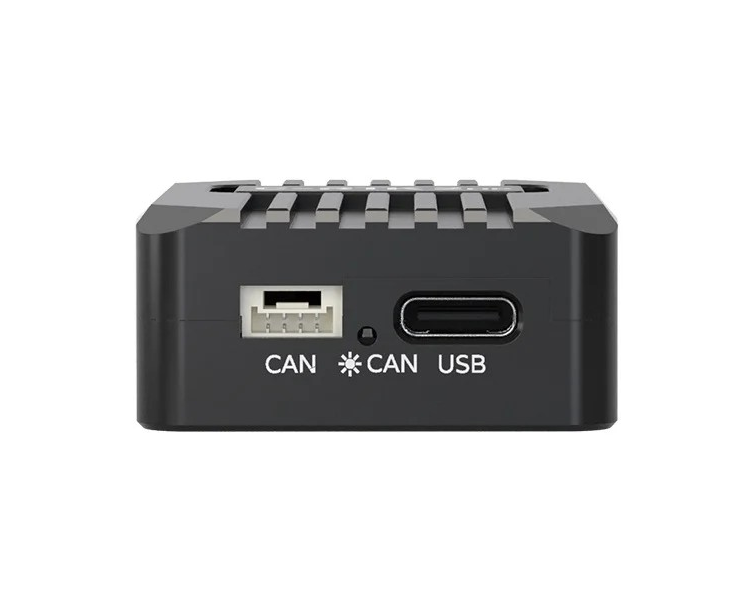

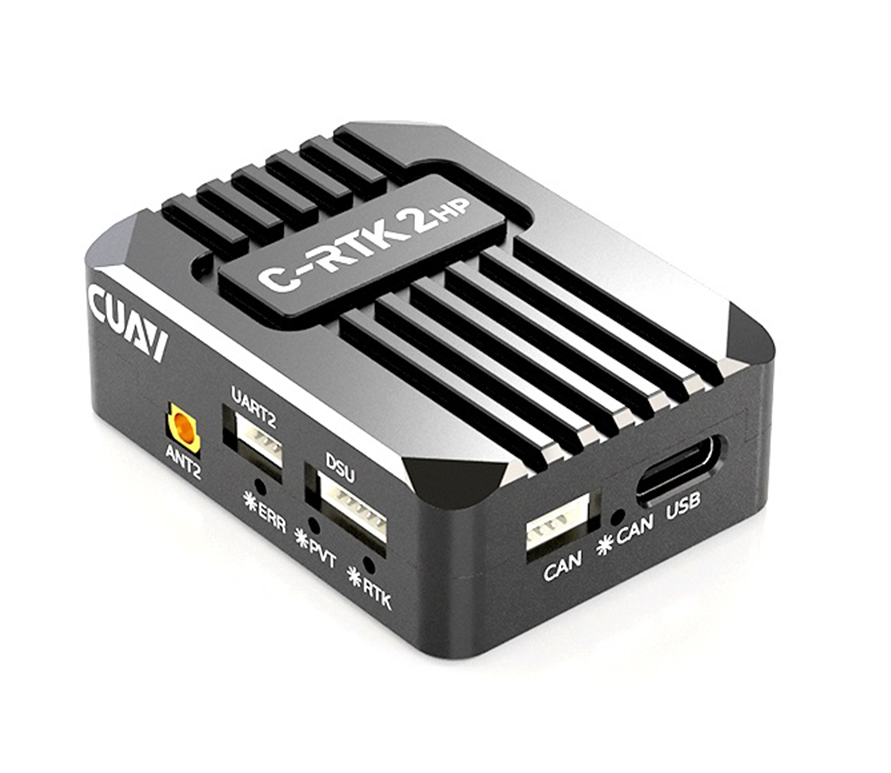

  15. Interface: Antenna interface *2, CAN*1, UART*1, DSU*1, USB*1

Specification:

Processor STM32F4
Module Type All-constellation Multi-frequency
Channels 1408
GNSS BDS/GPS/GLONASS/Galileo/QZSS
Length (mm): 50
Width (mm): 37
Height (mm): 17
Weight (g): 40

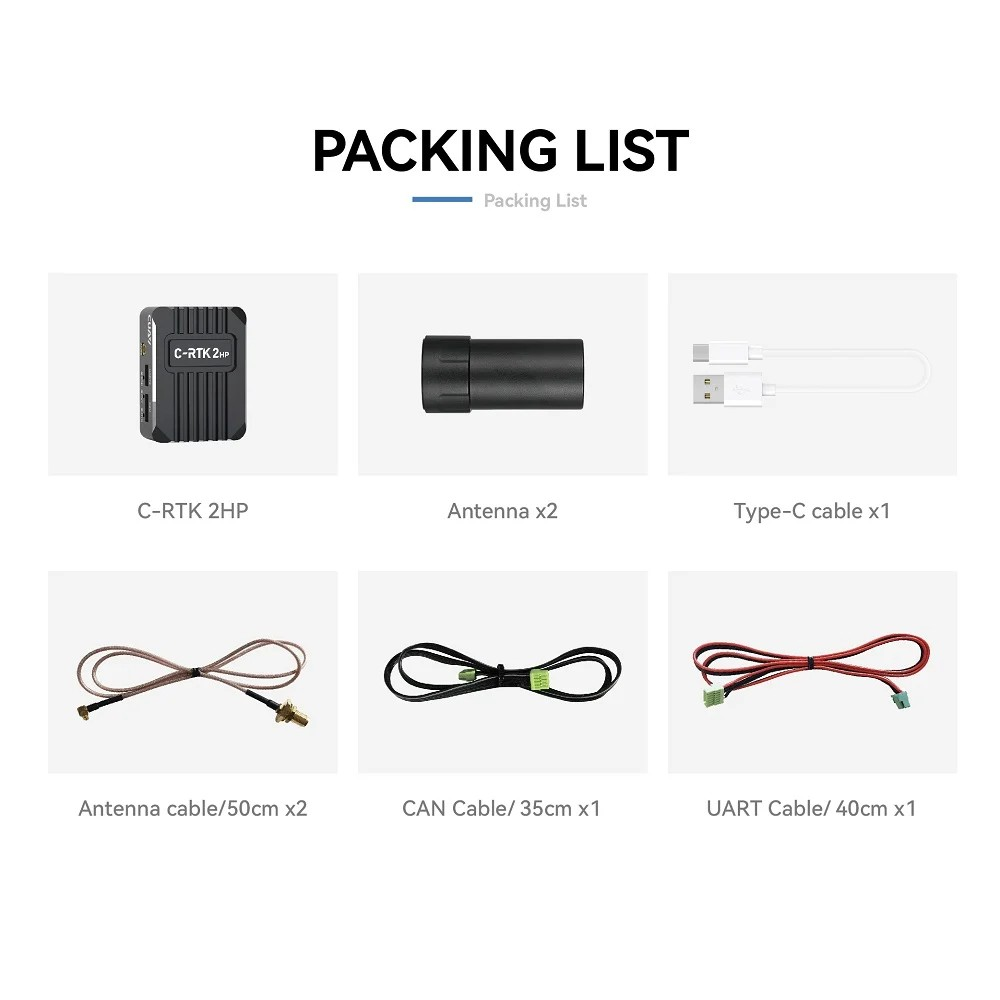

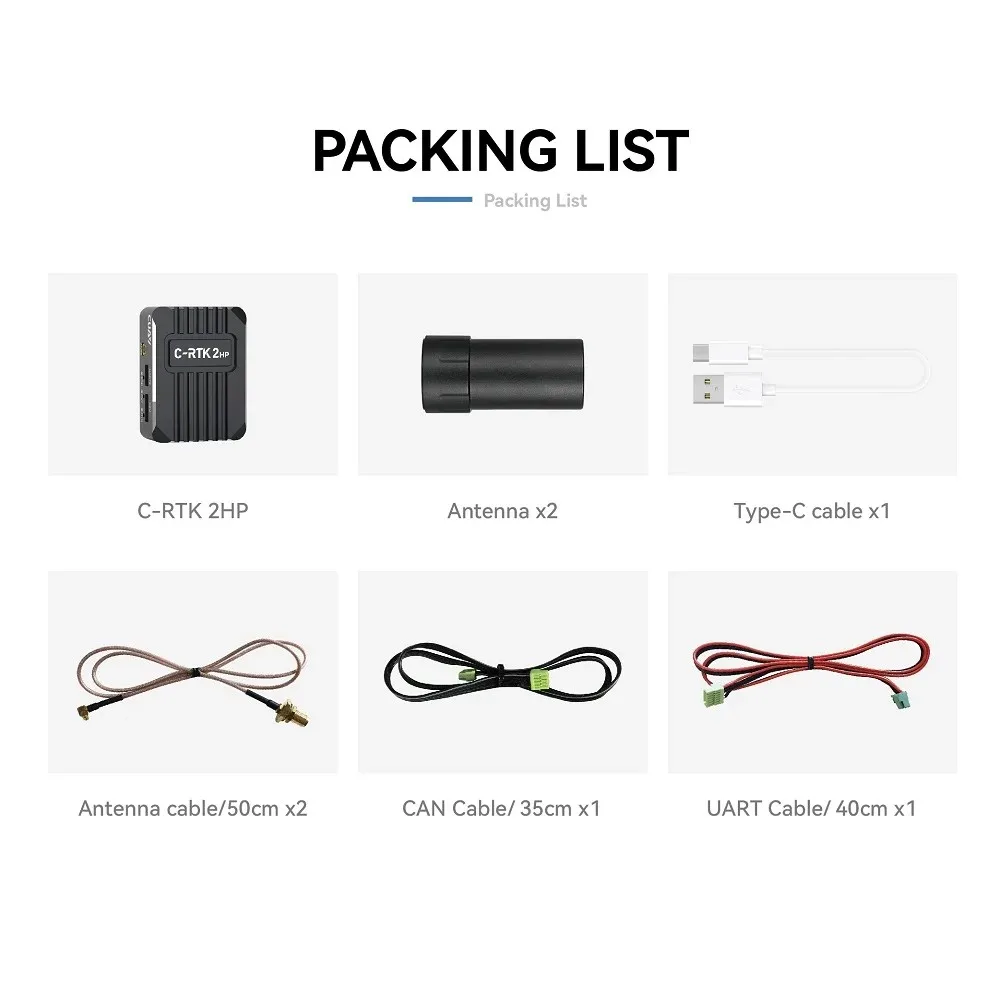

Package Includes:

1 x CUAV C-RTK 2 HP GNSS Heading Module & Accessories as shown in image.

1 x C Type cable

1 x can cable

1 x C-RTK 2 HP UART cable

2 x Antenna Feeder

Interface Design kidsj4tg 5

Tags:
Also in GPS Modules:
Holybro M9N GPS with Standard ConnectorHolybro H-RTK F9P Rover LiteBeitian Dual BN-220 GPS GLONASS Antenna Module TTL Level RC DroneGPS NEO-7M Satellite Positioning Module Development Board for Arduino STM32 51
Related Articles:
Build an Autonomous Delivery Drone with ArduPilot

Build an Autonomous Delivery Drone with ArduPilot

Table of Contents Why Build an Autonomous Delivery Drone? How ArduPilot Enables Autonomy Complete Parts List for Your...

Read More →
 FPV Simulator Training: Velocidrone and Liftoff Guide

FPV Simulator Training: Velocidrone and Liftoff Guide

Table of Contents Understanding FPV Simulator Training Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...

Read More →
 How to Set Up Drone Telemetry with Mission Planner

How to Set Up Drone Telemetry with Mission Planner

Table of ContentsWhat Is Drone Telemetry?Why Use Mission Planner?Components You NeedWiring the Telemetry ModuleInstalling Mission Planner on WindowsConnecting...

Read More →

Technical Specifications

BrandCUAV
SKUAI5624
Weight0.34 kg
AvailabilityOut of Stock

Applications & Use Cases

The CUAV C-RTK 2 HP GNSS Heading Module is a versatile gps modules used across a wide range of applications including drone navigation, asset tracking, fleet management, precision agriculture, and hiking/outdoor gadgets.

Common use cases:

  • Adding GPS waypoint navigation to a drone
  • Building a vehicle tracker
  • Precision positioning for surveying

This product is ideal for drone builders, fleet managers, and outdoor electronics developers.

Technical Tip: Multi-constellation receivers (GPS + GLONASS + BeiDou) provide faster and more accurate fixes. RTK modules offer centimeter-level precision.
