Picking the right flight controller that suits your needs is always a daunting task… Don’t worry we zbotic.in is here to assist you to get a quality product. Buy this Pixhawk 2.4.8 32 Bit PX4 Autopilot flight controller for your drone application. what are you have to do is just check it’s a specification.
The most common question asked by our community is “what is flight controller” and the answer is here The flight controller (aka FC) is the brain of the Drone(Quadcopter). It’s a circuit board with a range of sensors that detect movement of the drone, as well as user commands so Pixhawk 2.4.8 does. Using this data, it then controls the speed of the motors to make the craft move as instructed.
It Supports 8 RC channel with 4 serial port. Various user interfaces are available for programing, reviewing logs, even some apps for smartphones & tablets. It detects and configures all its peripherals automatically
Difference between Good quality and norma; quality pixhwak
Features of Pixhawk 2.4.8:
- The advanced 32-bit ARM CortexM4 high-performance processors; can run NuttX RTOS real-time operating system.
- 14 PWM / servo output.
- Bus interface (UART, I2C, SPI, CAN).
- The integrated backup power and backup controller fails; the primary controller fails over to the backup control is safe.
- Provide automatic and manual modes.
- Provide redundant power input and failover.
- Multicolor LED lights.
- Provide a multi-tone buzzer Interface.
Pixhawk Pinout Connections :
Pixhawk buzzer :
This buzzer is used with Pixhawk and PX4 autopilot to annunciate status tones. The buzzer includes a two-position DF14 connector on one side that plugs directly into the Pixhawk or PX4 FMU board.The Passive buzzer has a JST-SH connector on one side that plugs directly into the Pixhawk.Once connected you will be able to hear different sounds that relate to different modes.
Specification :
- Fit for Pixhawk PX4 flight controller
- Different tones in different flight modes
- DF13 Plug,cable length 18cmMicro SD card to record flight data.
Pixhawk Saftey Switch :
This is a replacement safety switch for the Pixhawk 1. The switch is used to enable/disable the outputs to motors and servos. It also features a status LED light.
LED Meaning:
- Constant blinking – the system is initialising
- Intermittent blinking – system is ready. Press the safety switch to enable output to the motors.
- Solid – safety switch has been pressed. Motors and servos are able to move once the vehicle is armed.
APM 2.5.2/2.6/2.8 Pixhawk Power Module V1.0:
- Max input voltage: 28V
- Max current sensing: 90A
- Voltage and current measurement configured for 5V ADC
- Switching regulator outputs 5.3V and 3A max
- 6-pos DF13 cable plugs directly to APM 2.5’s ‘PM’ connector
- Support 6S battery.
PIXHAWK PPM Encoder Module:
- Support the input channels: 8.
- Output: PPM SUM × 1 / MUX × 1.
Glass Fiber Flight Controller Anti-vibration/Shock absorber Set:
- Color: Black
- Material: Glass-fiber
- Suit for the different open-source flight controllers, like APM 2.5/2.6/2.8, KK, MWC, and Pixhawk 2.4

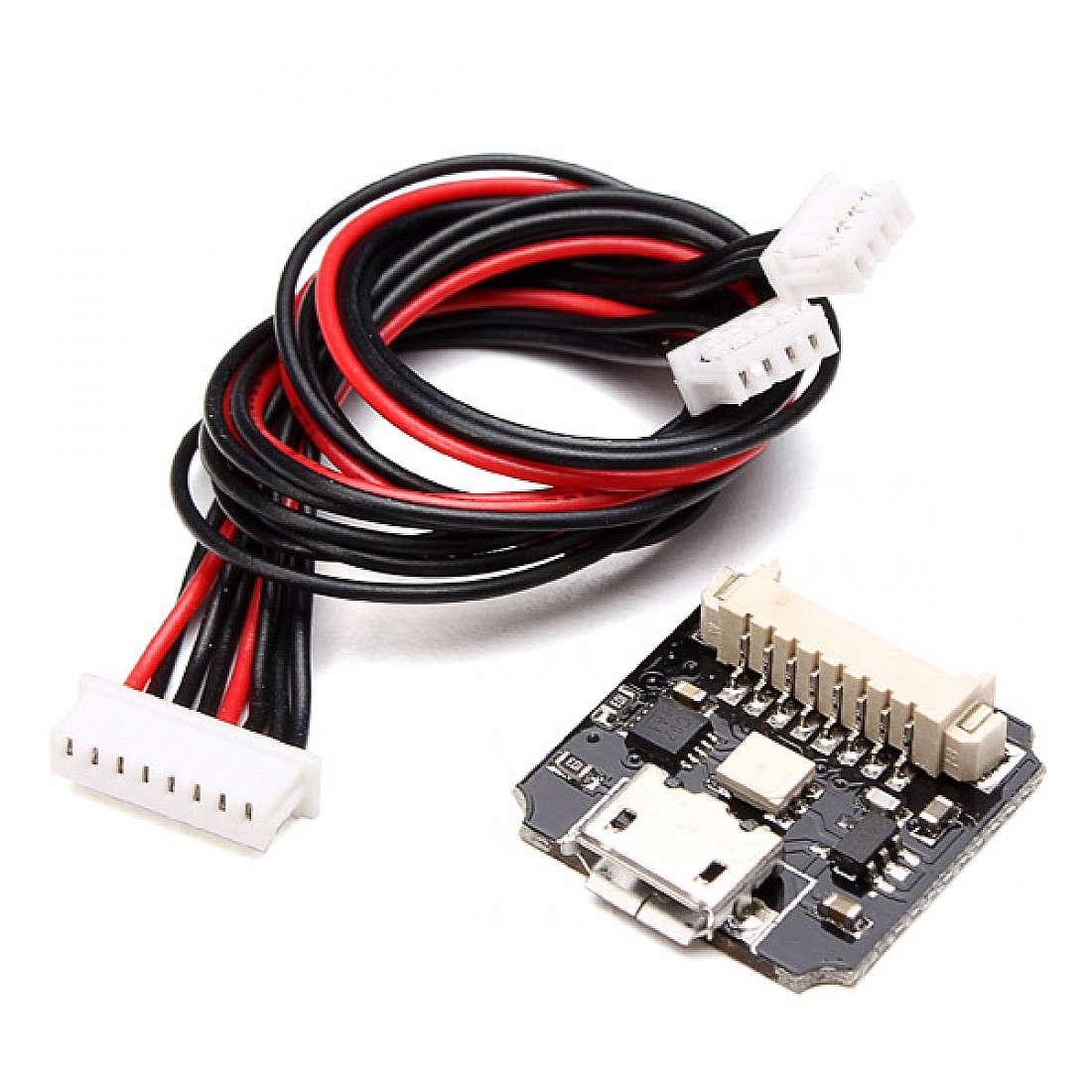

Pixhawk RGB Module :
This includes an external RGB-LED and USB receptacle to connect to Pixhawk. Use the provided cables and connect to the I2C splitter module to set up a bright, multicolor LED and convenient USB port for your vehicle.
Features:
- RGB indicator extends to outside displaying
- Extension USB interface for external USB connection
- The same LED controller and RGB LED with Pixhawk
PPM Module :
Pulse position modulation (PPM) encoding is the system where encoding is carried out by positioning the pulses. The PPM encoder allows to encode up to 8 PWM (pulse width modulated) signals into one PPM (pulse position modulation) signal.
This PPM encoder will encode regular PWM inputs into a single PPM output. This allows you to combine up to 8 channels from a regular RC receiver to a single wire PPM input for your flight controller e.g. Pixhawk or APM. The nice thing about PPM is that it will enable you to reduce all channels to a single wire, excluding ground and power lines.

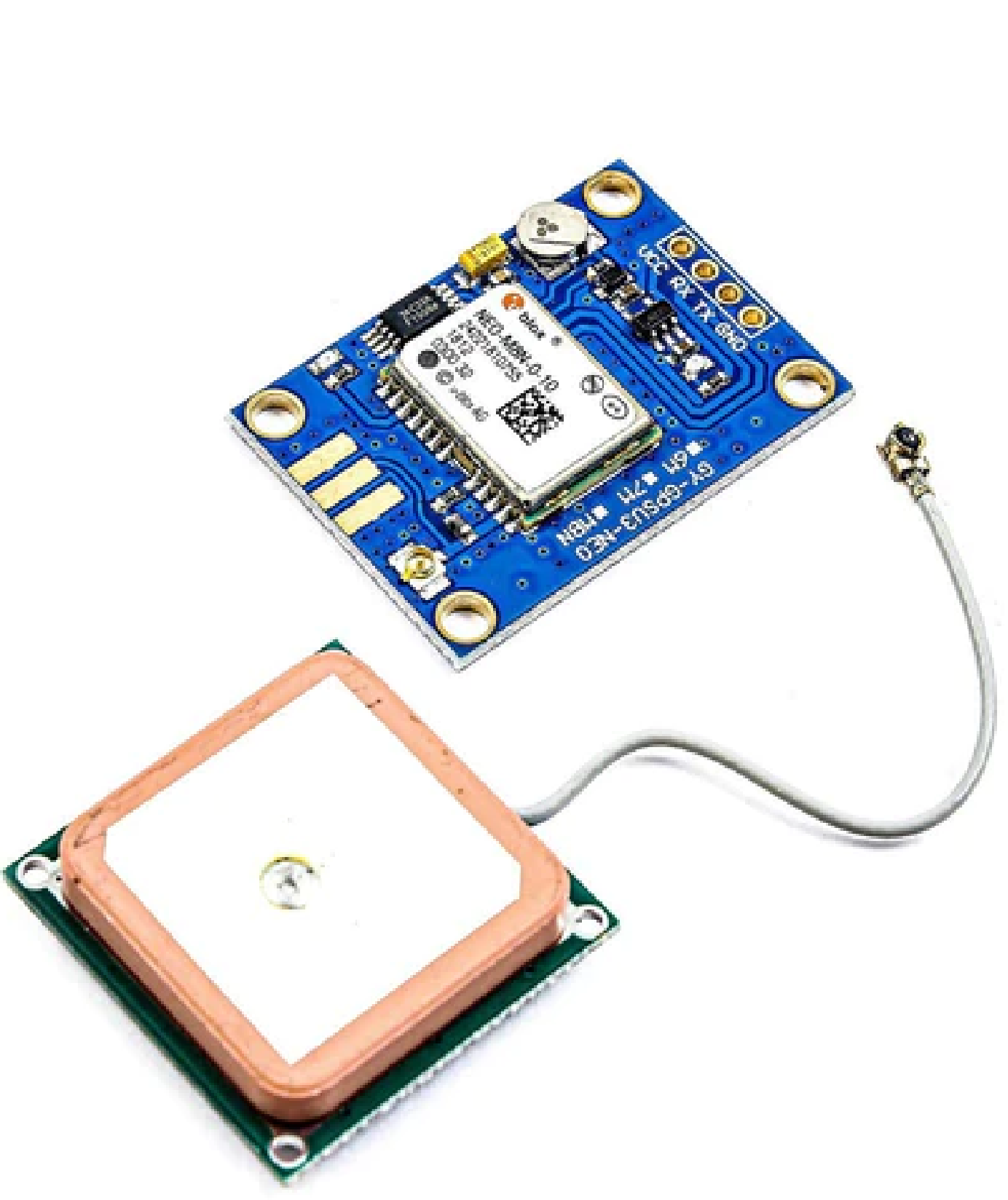

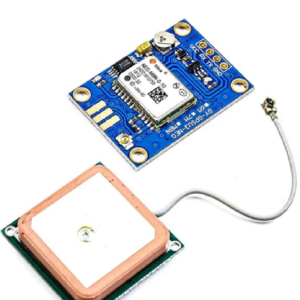

NEO-M8N GPS Module:
- Receiver type 72-channel Ublox M8 engine.
- GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1.
- SBAS L1 C/A: WAAS, EGNOS, MSAS.
- Galileo-ready E1B/C (NEO-M8N).
- Nav. update rate1 Single GNSS: up to 18 HZ.
- Concurrent GNSS: up to 10 Hz.
- Position accuracy2 2.0 m CEP.
- Acquisition2 Cold start: 26 s.
- Aided starts: 2 s.
- Reacquisition: 1.5 s.
- Sensitivity2 Tracking & Nav: –167 dBm.
- Cold start: –148 dBm.
- Hot starts: –156 dBm.
- Assistance AssistNow GNSS Online.
- Assist Now GNSS Offline (up to 35 days)3.
- Assist Now Autonomous (up to 6 days).
- OMA SUPL & 3GPP compliant
- Oscillator TCXO (NEO-M8N/Q).
- Crystal (NEO-M8M).
- RTC crystal Built-In.
- Noise figure On-chip LNA (NEO-M8M). Extra LNA for.
- lowest noise figure (NEO-M8N/Q).
- Anti-jamming Active CW detection and removal.
- An extra onboard SAW bandpass filter (NEO-M8N/Q).
- Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N).
- Supported antennas Active and passive.
- Odometer Travelled distance.
- Data-logger For position, velocity, and time (NEO-M8N).
GPS Folding Base Antenna set:
- Material: CNC Aluminum alloy, carbon glass fiber rod
- Mounting rod diameter: 4mm
- length of rod: 14 cm.
- GPS plate diameter: 40 mm.
- Base plate diameter: 35 mm
- Mounting hole spacing: 16-35mm
- Weight: 20g
- Colour: Anodised black
- Note: Adhesive Pad is not included.

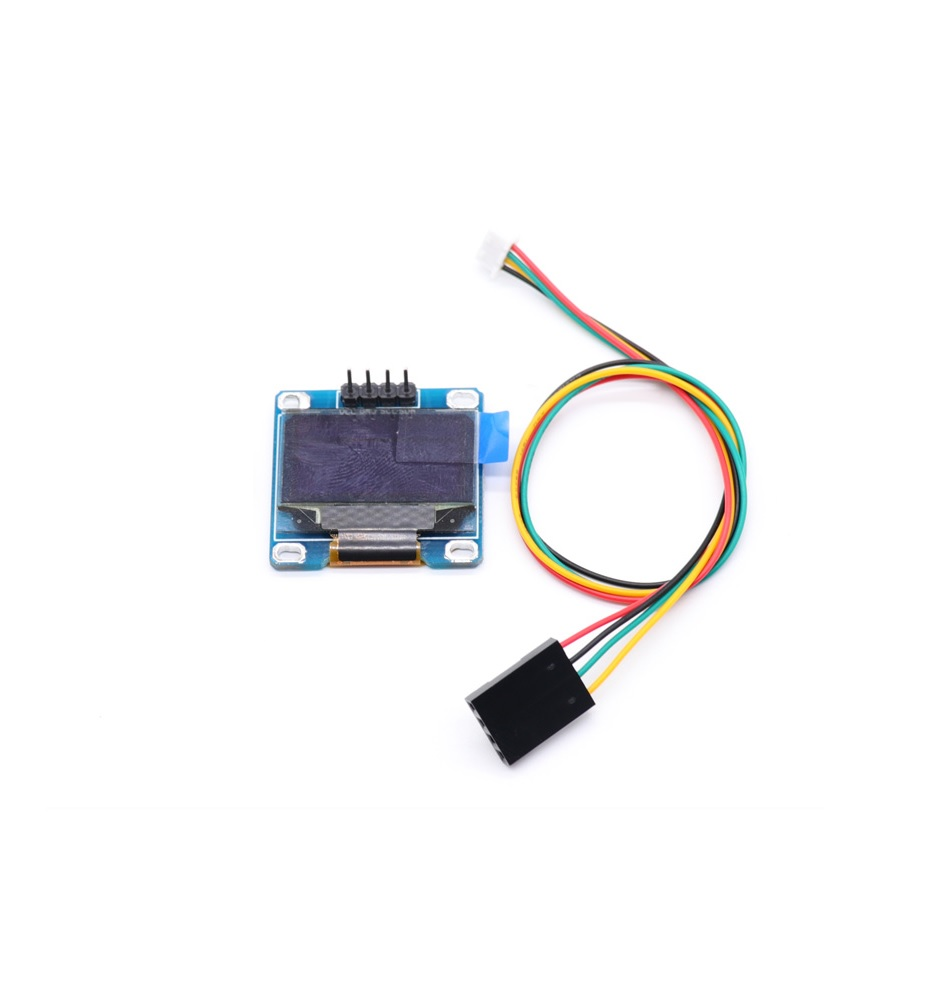

OSD OLED Display :
It is suitable for flight control of Pixhawk, etc. and is used to display the status information of aircraft. This module is connected to Pixhawk’s I2C interface
Features:
- Light weight
- Display compatible with Pixhawk 2.4.8 PIX PX4 Flight Control
- Easy to use
- Plug and play device

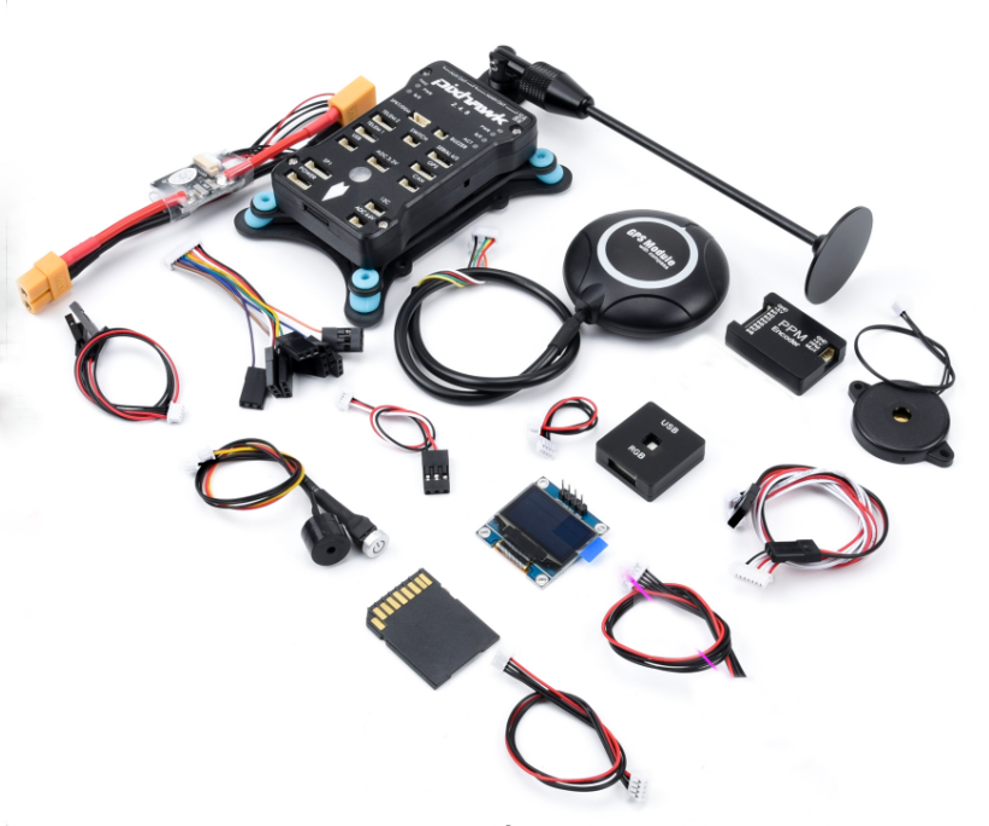

Package Includes :
1 x Pixhawk 2.4.8 FC.
1 x Pixhawk safety switch.
1 x Pixhawk Buzzer
1 x SD Card
1 x pixhawk power module
1 x shock absorber
1 x pixhawk PPM Module
1 x pixhawk RGB Module

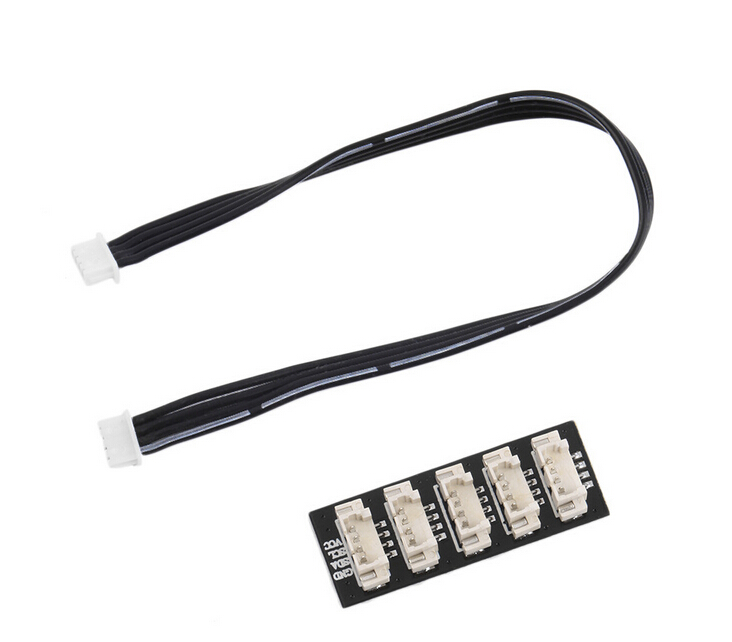

I2C

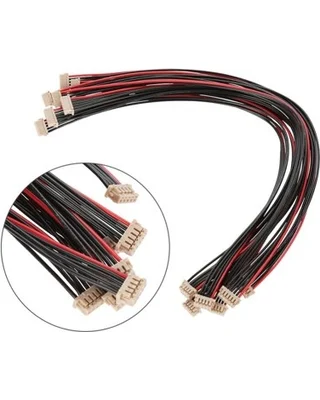

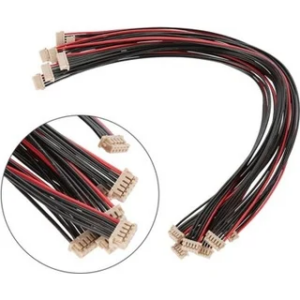

1 x 4/5/6 DF13 Pin cable
1 x Neo M8N GPS
1 X GPS Holder
1 x OSD OLED Display
Drone Arm Strength Test: Carbon Fiber vs Aluminum Trade-off
Table of Contents Why Arm Material Matters for Drone Performance Carbon Fiber: Properties and Performance Aluminium: Properties and...
Read More →
X-Class Drone Build: Giant Racing Quad Guide
Table of Contents Understanding X-Class Drone Build Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
Drone Power Line Inspection: Commercial Application
Table of Contents Understanding Drone Power Line Inspection Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →Technical Specifications
| Brand | Pixhawk |
|---|---|
| Pin Count | 6-pin |
| Interface / Protocol | I2C, BLE |
| SKU | AI4343 |
| Weight | 0.46 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Pixhawk 2.4.8 Full Combo Set (Pixhawk 2.4.8 FC+Buzzer+ Safety Switch+Power Module+PPM+I2C+Shock Absorber Board+SD Card+Neo-M8N GPS+GPS Holder+ OSD OLED Display +DF13 4/5/6 Pin Cable+RGB module) is a versatile drone kits used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
