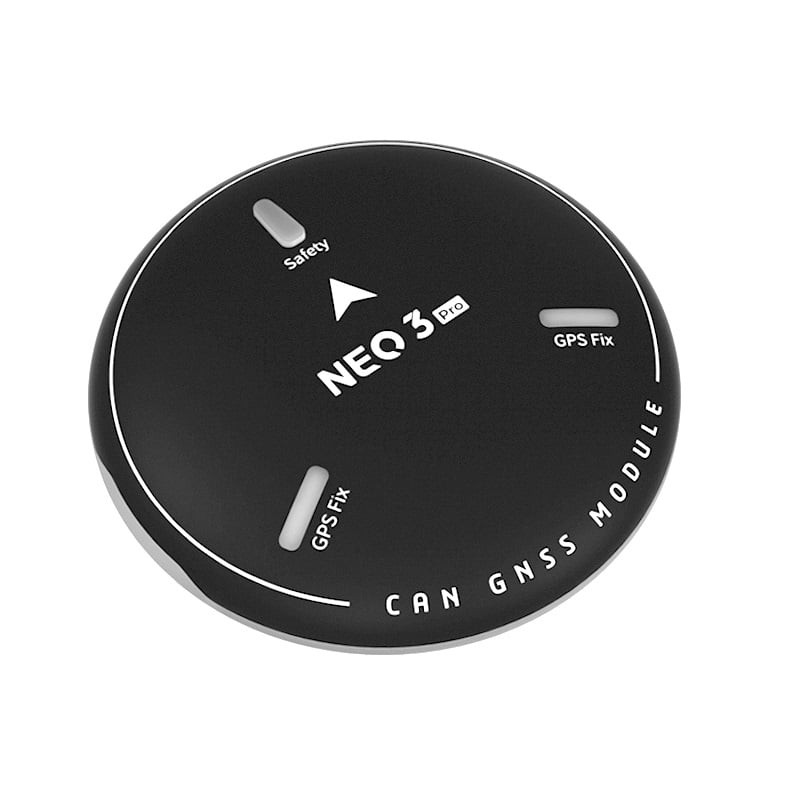

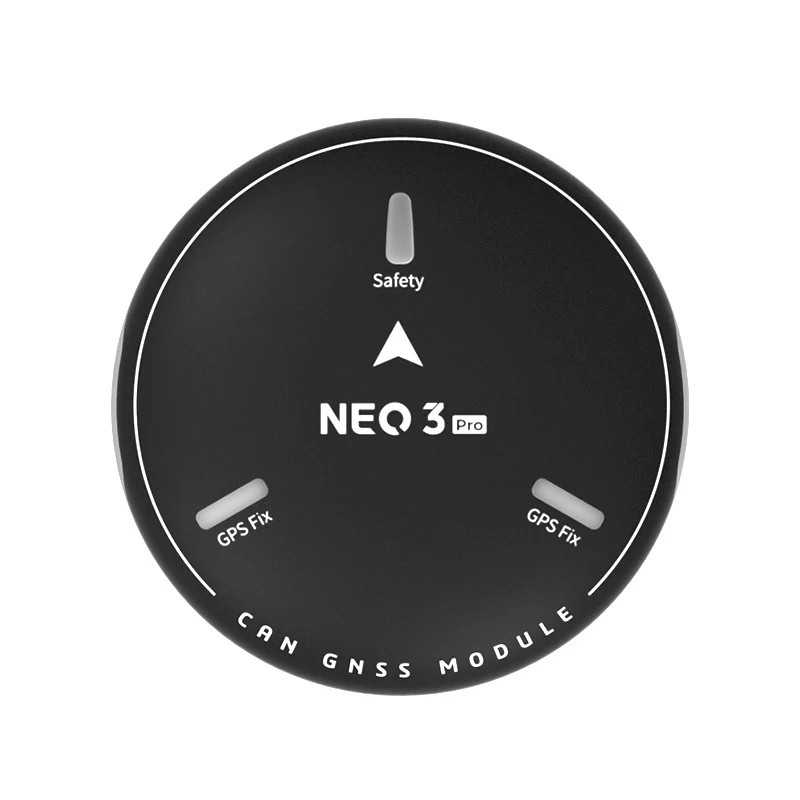

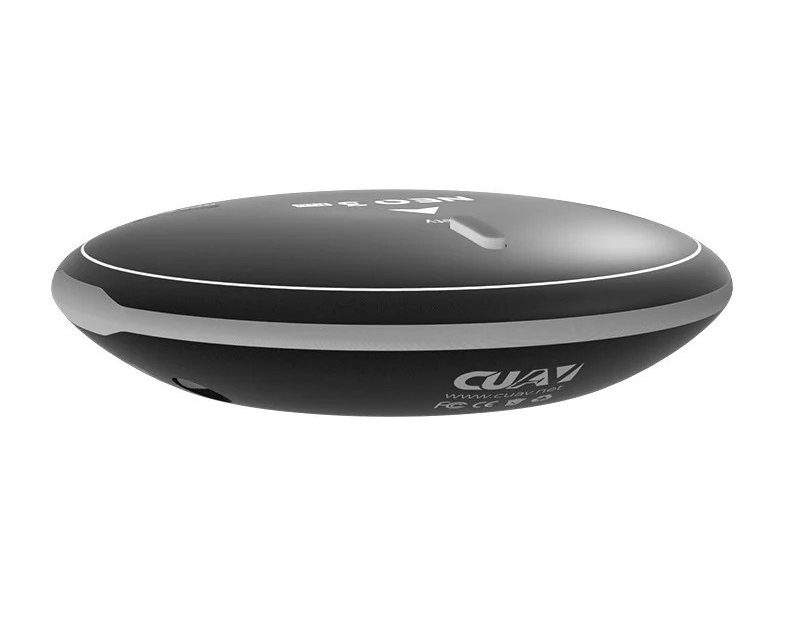

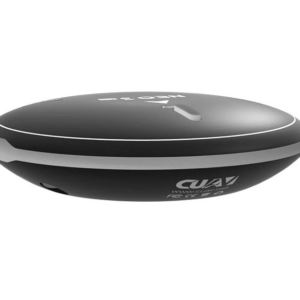

CUAV NEO 3 Pro GPS Module | GNSS U-BLOX M9N CAN BUS
The NEO 3 Pro GPS Module, equipped with GNSS U-BLOX M9N and CAN BUS compatibility, is a state-of-the-art addition to the CUAV product range. Improving upon the NEO V2’s hardware design, the NEO 3 Pro features significant enhancements, notably its integration of the Ublox NEO M9N GNSS module.
This sophisticated module supports a multitude of satellite navigation systems, such as Beidou, Galileo, Glonass, and GPS, all at once. Consequently, users gain from improved precision, with horizontal positioning accuracy up to a remarkable 0.7 meters.
Beyond its advanced GNSS capabilities, the NEO 3 Pro includes built-in safety features like a safety switch, buzzer, and RGB light. These components boost the user experience and guarantee dependable performance across various uses, establishing the NEO 3 Pro GPS Module as an exceptional option for precise navigation and positioning solutions.

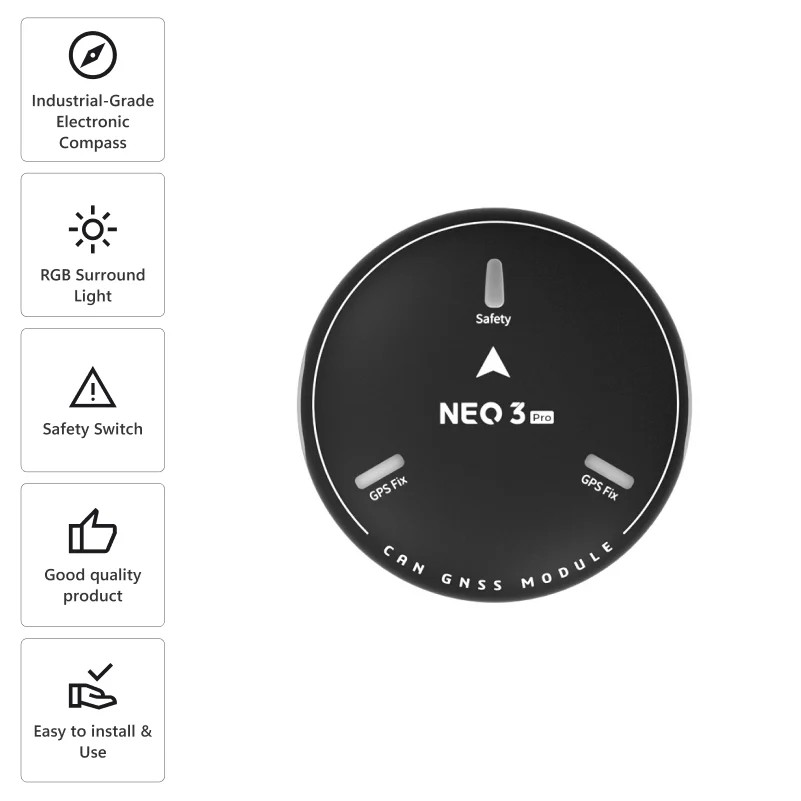

Features:
- Easy to use.
- Industrial-Grade Electronic Compass
- RGB Surround Light
- Buzzer Prompt
- Safety Switch
- Barometer
- CAN BUS
- Easy to install.
- Good quality product
Comparison between NEO v2 Pro &Â NEO 3 Pro:

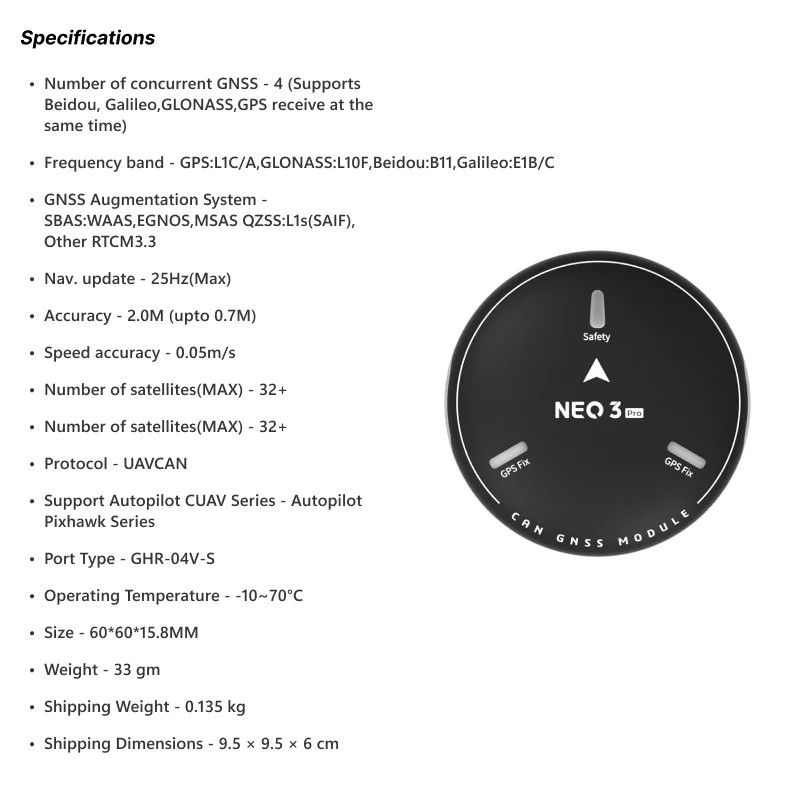

Specification:
Number of concurrent GNSS | 4 (Supports Beidou, Galileo,GLONASS,GPS receive at the same time) |
---|---|
Frequency band | GPS:L1C/A GLONASS:L10F Beidou:B11 Galileo:E1B/C |
GNSS Augmentation System | SBAS:WAAS,EGNOS,MSAS QZSS:L1s(SAIF), Other RTCM3.3 |
Nav. update | 25Hz(Max) |
Accuracy | 2.0M (upto 0.7M) |
Speed accuracy | 0.05m/s |
Number of satellites(MAX) | 32+ |
Protocol | UAVCAN |
Support Autopilot CUAV Series | Autopilot Pixhawk Series |
Port Type | GHR-04V-S |
Voltage | 4.7-5.2V |
Operating Temperature | -10~70°C |
Size | 60*60*15.8MM |
Weight | 33g |
Package Includes:
1 x CUAV NEO 3 Pro GPS Module | GNSS U-BLOX M9N CAN BUS

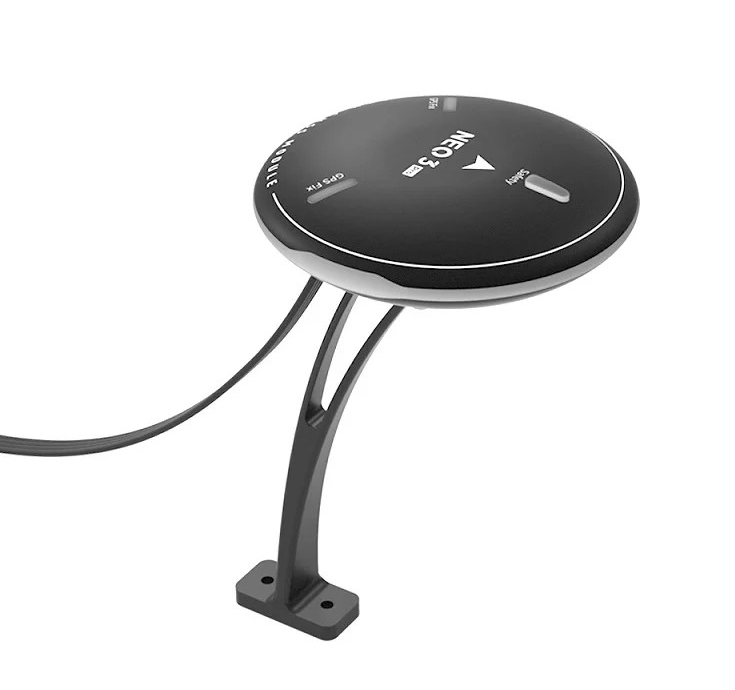

1 x stand and cable.
