Looking for M10 Case? Holybro Micro M10 GPS With Case is available at Zbotic with fast shipping across India.

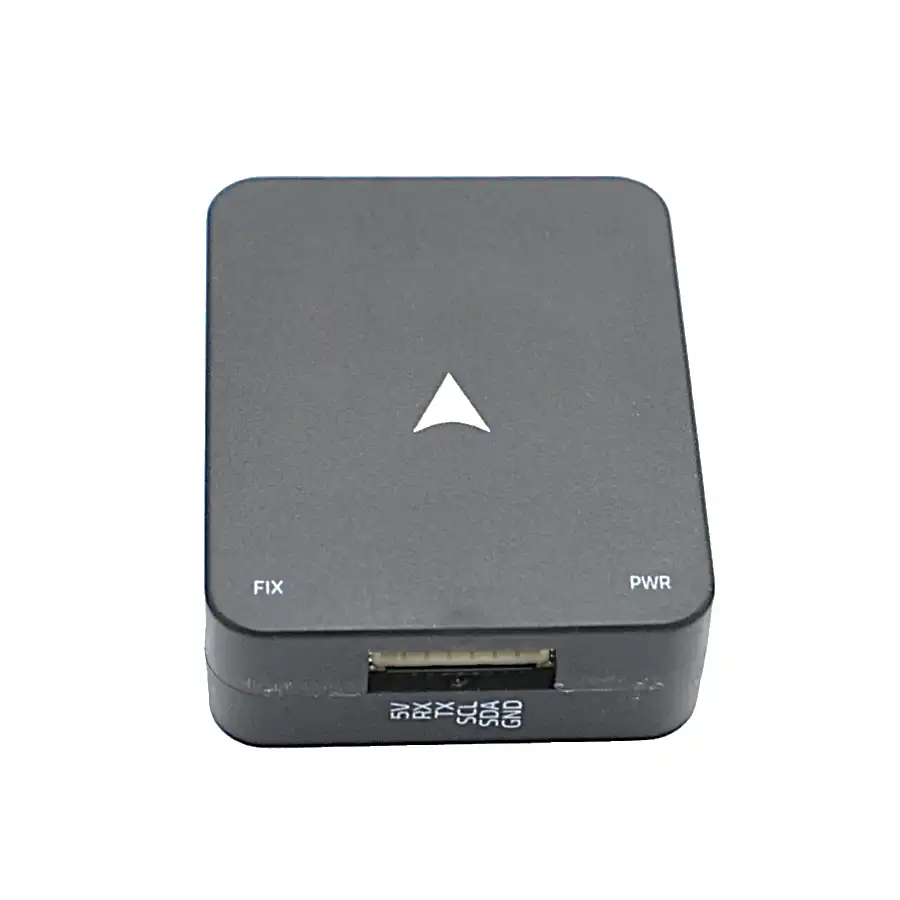

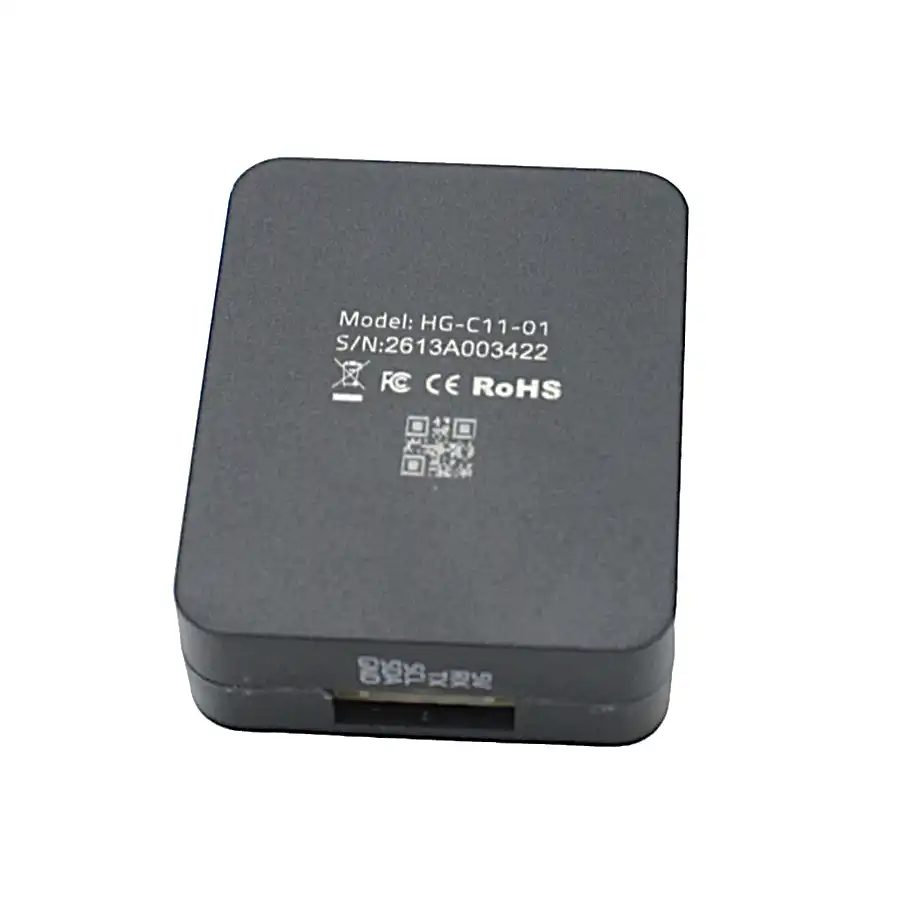

The Holybro Micro M10 GPS with Case is equipped with a multi-constellation GNSS, powered by the u-blox M10 concurrent GNSS receiver, capable of receiving and tracking various GNSS systems simultaneously. Thanks to its multi-band RF front-end architecture, it can concurrently receive signals from all four primary GNSS constellations: GPS, Galileo, GLONASS, and BeiDou. Additionally, it includes the IST8310 compass.
Its high-gain 25 x 25 mm² patch antenna delivers superior performance, and its omnidirectional radiation pattern offers increased installation flexibility. The device also boasts active circuitry for the ceramic patch antenna and a rechargeable backup battery to facilitate warm starts.
For firmware support, the M10 GPS requires PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0, or newer versions.
Features:
- The newest Ublox 10th Gen GNSS
- Fast & Accurate Positioning
- IST8310 Compass
- Small Form Factor
specification
| GNSS Receiver | Ublox M10 |
|---|---|
| Number of Concurrent GNSS | Up to 4 GNSS – BeiDou – Galileo – GLONASS – GPS – QZSS |
| Frequency Band | – GPS L1 – Galileo E1 – GLONASS L1 – BeiDou B1 – SBAS L1 – QZSS L1 |
| Compass | IST8310 |
| Output Protocol | – UBX (U-blox) – NMEA |
| Accuracy | 2.0m CEP |
| Nav. Update Rate | Up to 25 Hz (single GNSS), Up to 10 Hz (4 concurrent GNSS) |
| GNSS Augmentation System | EGNOS, GAGAN, MSAS and WAAS QZSS: L1S |
| Default Baud Rate | 115200 |
| Input Voltage | 4.7-5.2V |
| Port Type | JST-GH-6P |
| Antenna | 25 x 25 x 4 mm ceramic patch antenna |
| Power consumption | Less than 200mA @ 5V |
| Operating Temperature | -40~80C |
| Dimension | – 32 x 26 x 9mm (w/o Case) – 34 x 28 x 11mm (With Case) |

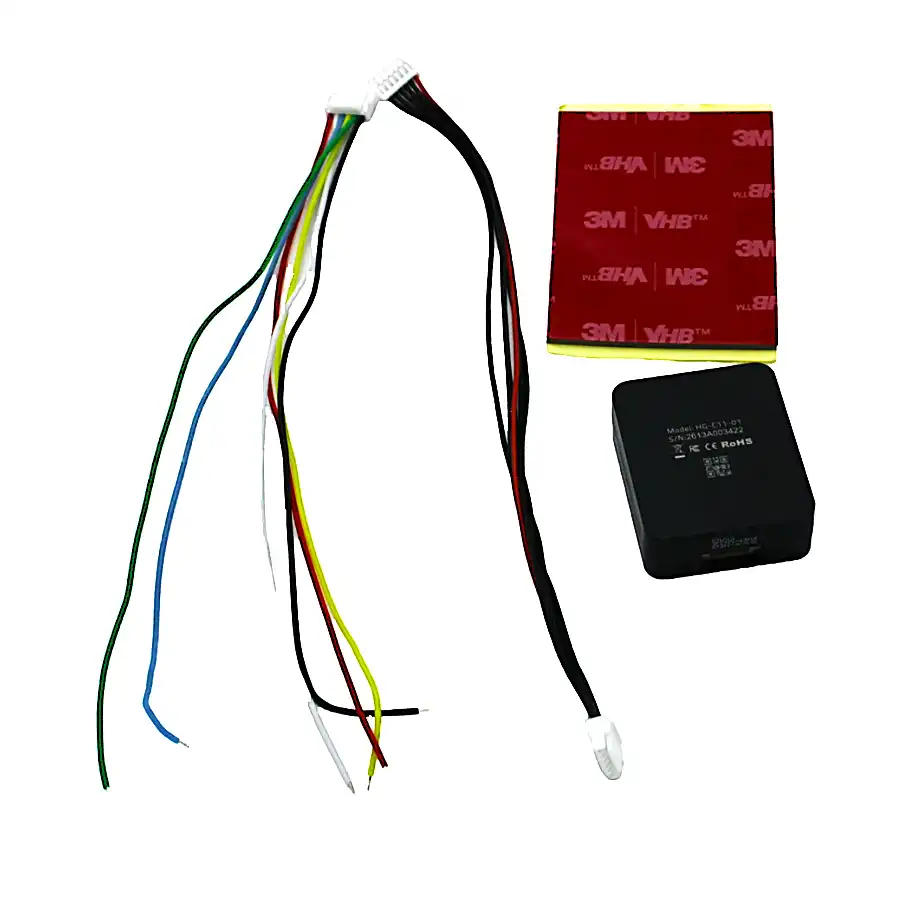

Package Includes:
1x Micro GPS module *1
1x JST GH 6 Position Connector 15 cm
1x JST-GH 6pin Colored Silicon Cable 15 cm
M10 Case Overview
Model: Holybro Micro M10 GPS With Case
Multi-Constellation GNSS
IST8310 Compass
High-Performance Antenna
Compact Design
Firmware Compatibility
Rechargeable Backup Battery
