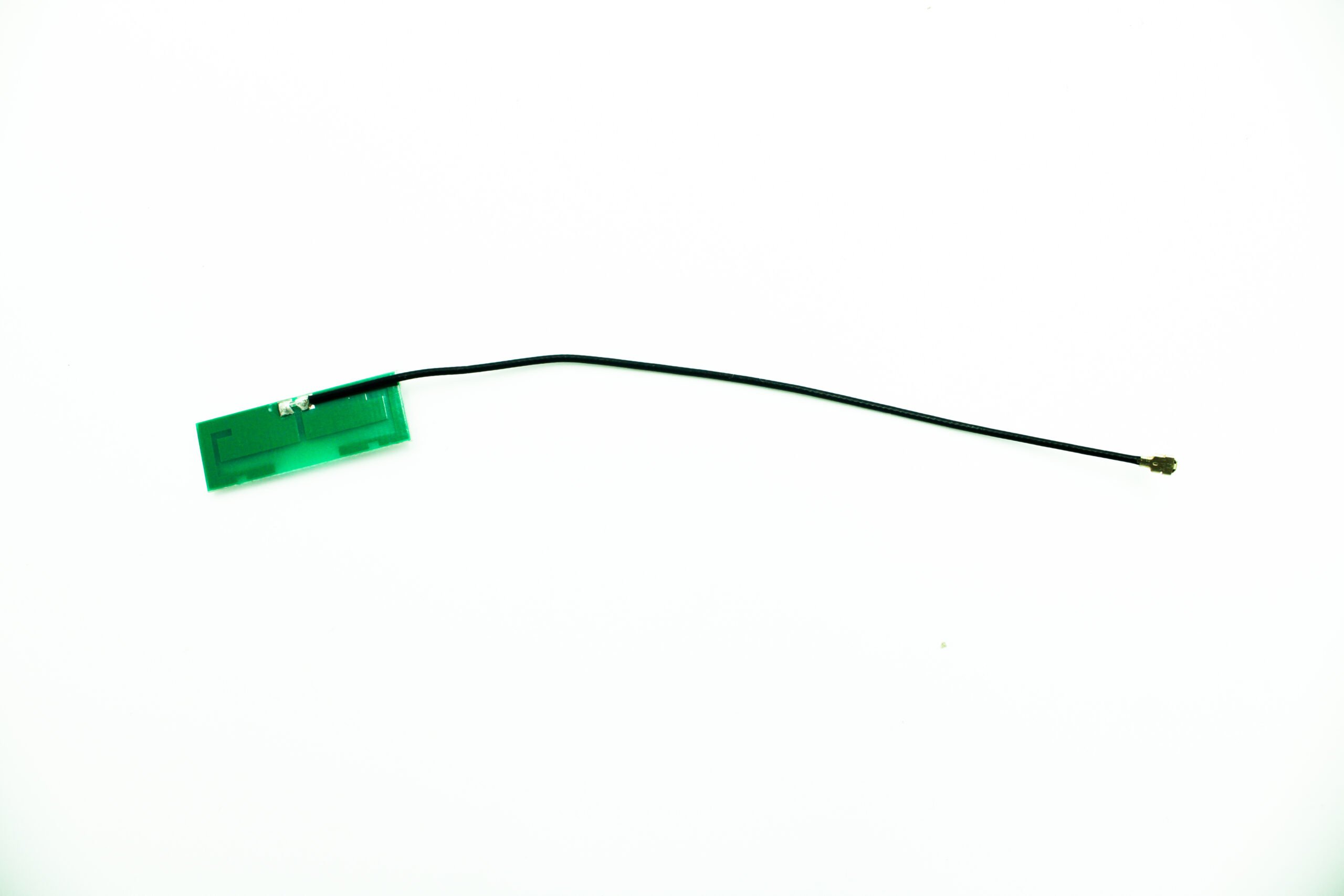

This PCB Patch Antenna operates at a frequency of 1575 +/- 20MHz and offers a gain of over 2.5dBi. PCB Antennas, which are wireless devices for receiving and transmitting signals, are extensively utilized in GPS systems. A primary advantage of using a PCB (printed circuit board) antenna is the significant cost reduction in the overall radio module.
This antenna comes with an IPEX MHF1 Female connector to connect with the application. (We can also arrange your Required connector if you need the antenna in bulk quantity)
Application: GPS
Features:
- Internal PCB Antenna for GPS Applications
- Compact Size
- High quality
- Low cost

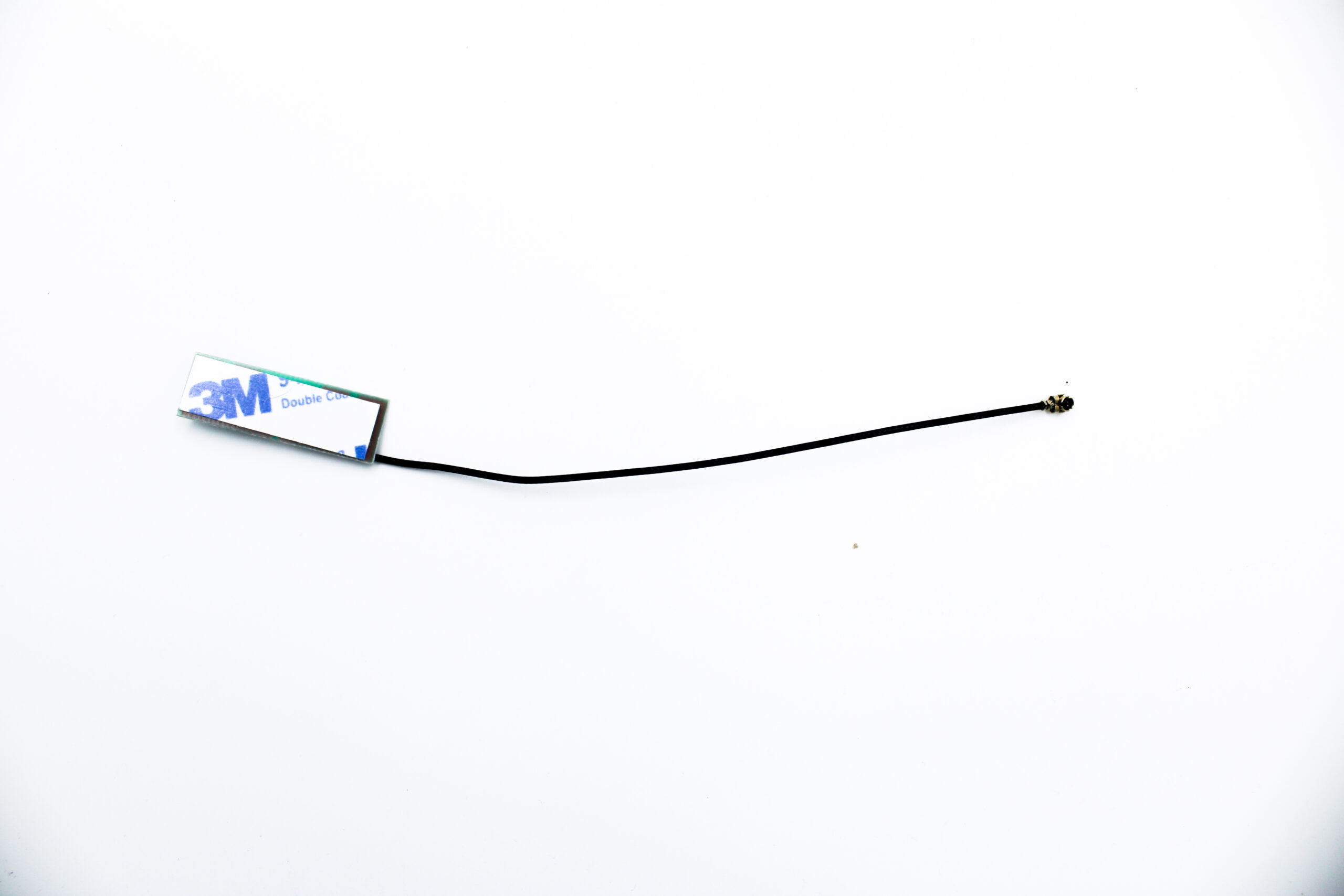

- 3M high-quality adhesive
- Masking for corrosion-free
Package Includes:
1 x LWC-GPS-passive LP-03-(V1.0) Patch antenna
Technical Specifications
| SKU | AI1524 |
|---|---|
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The GPS Passive Sticker Antenna(V1.0) is a versatile multiprotocols antennas used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
