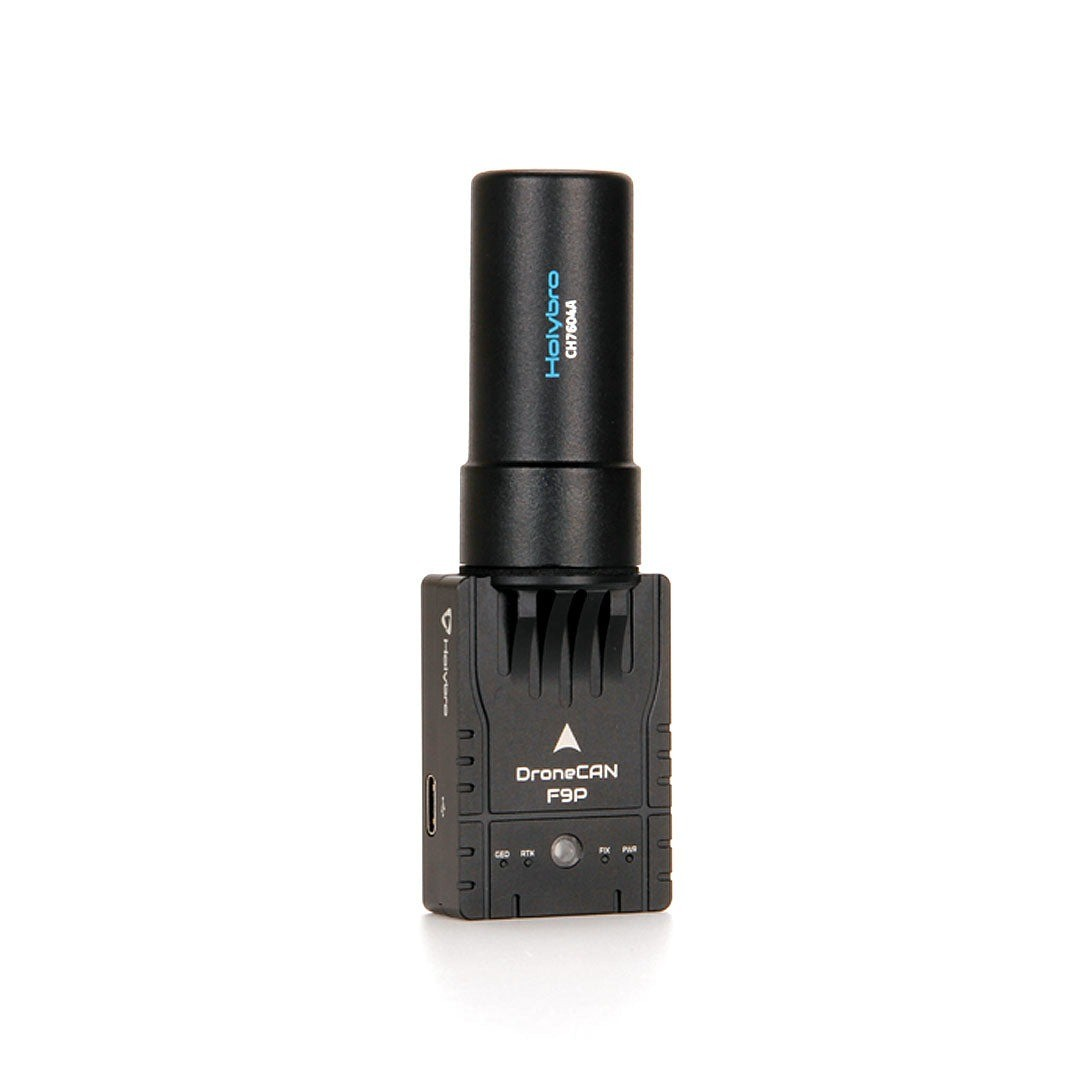

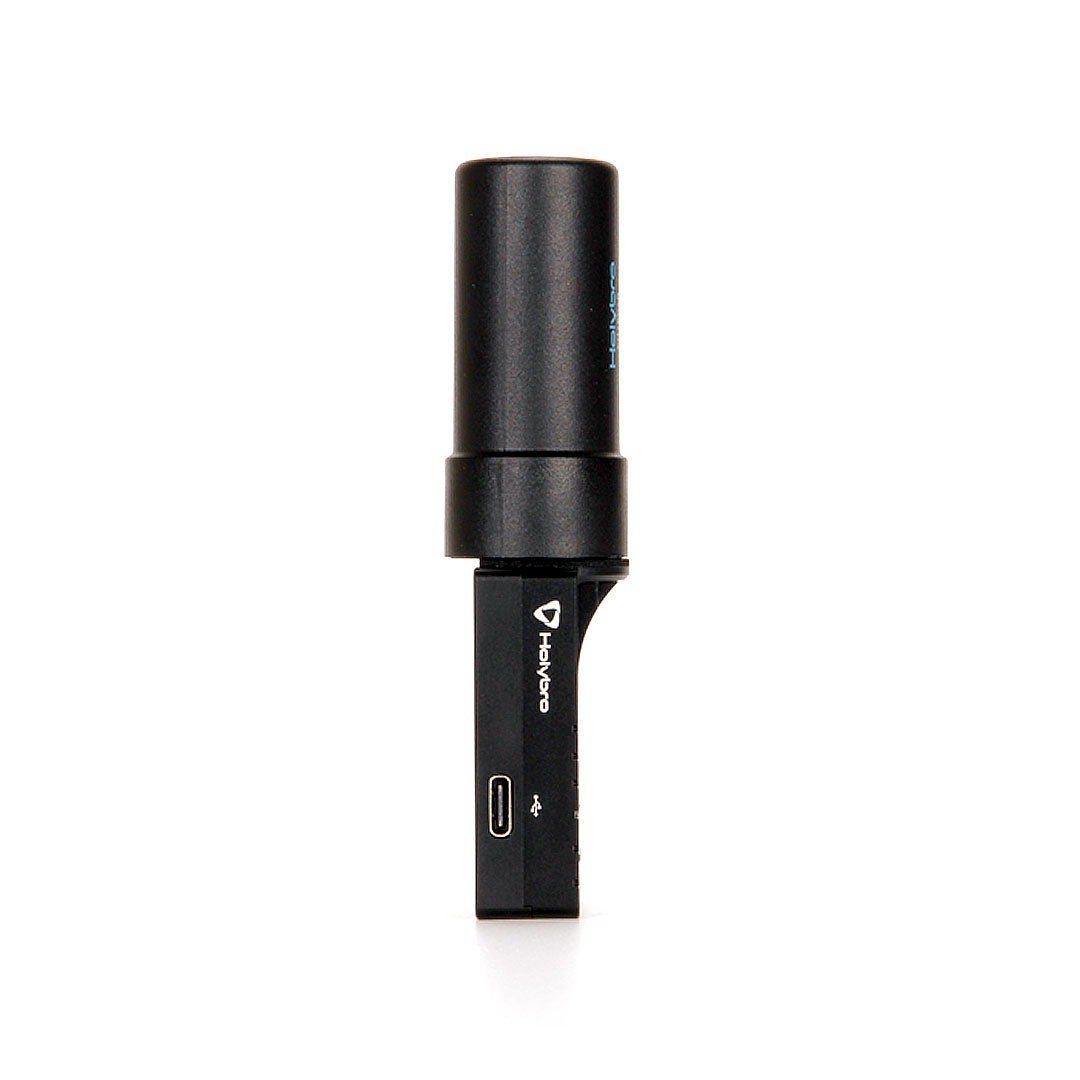

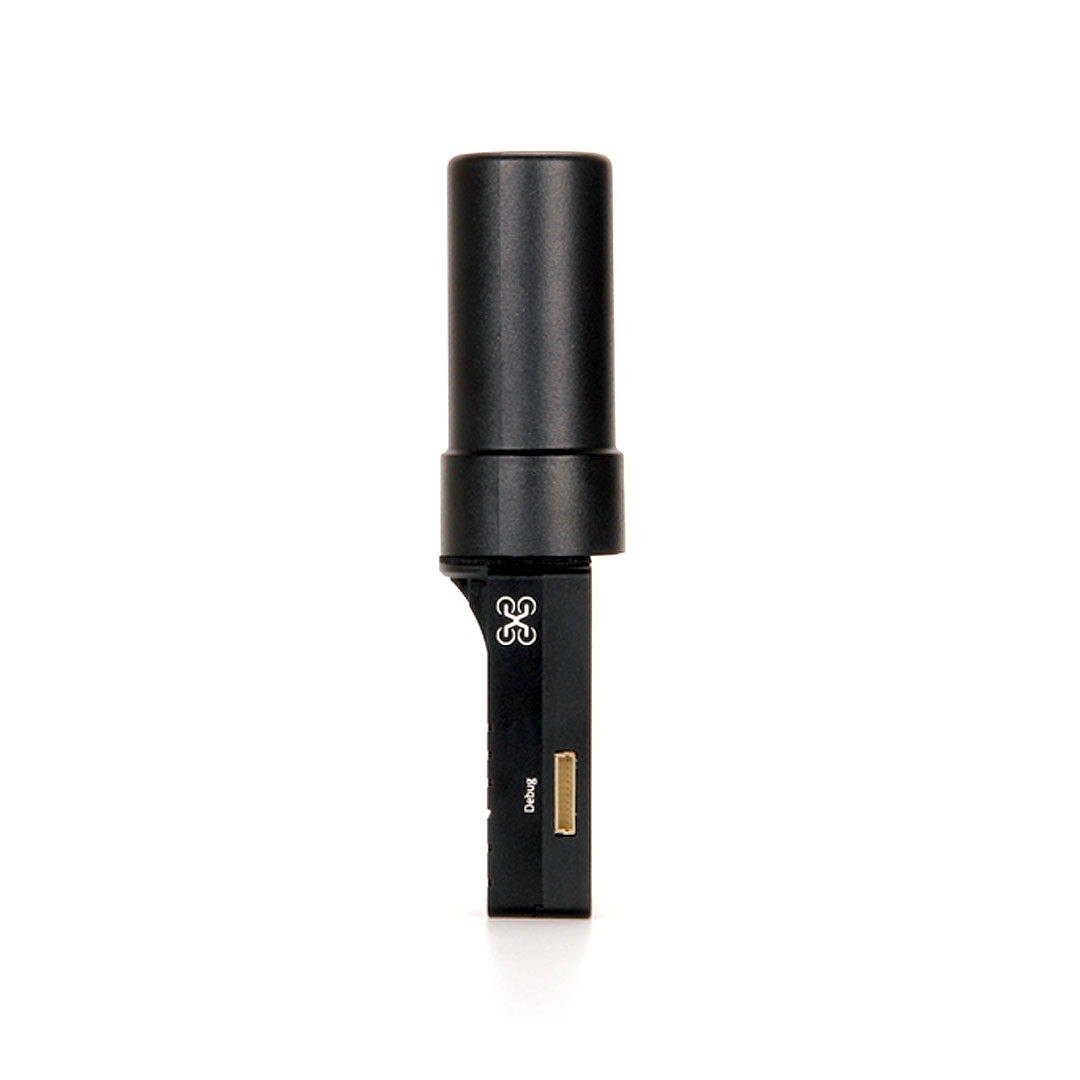

The DroneCAN H-RTK F9P, Holybro’s latest differential high-precision GNSS positioning system, utilizes the DroneCAN protocol for communication. It offers multi-band RTK with quick convergence times and dependable performance, simultaneous reception of GPS, GLONASS, Galileo, and BeiDou, and a rapid update rate suitable for highly dynamic and voluminous applications requiring centimeter precision.
The system’s integration of the DroneCAN Protocol ensures up to an 8 Hz navigation update rate, upgradeability, noise immunity, real-time capabilities, and greater robustness against electromagnetic interference compared to UART. It also frees up serial ports on the flight controller, as multiple CAN devices can connect to a single CAN bus through a hub.
Featuring a u-blox F9P module, BMM150 compass, tri-colored LED indicator, and an STM32G4 processor clocked at 170 MHz with 512 KByte Flash and 96KByte RAM, the DroneCAN-F9P supports firmware upgrades via the DroneCAN GUI Tool and is compatible with the open-source Pixhawk series flight controllers.
Features:
- High Precision: Achieve centimeter-level accuracy for precise drone navigation.
- DroneCAN Compatibility: Seamlessly integrates with DroneCAN-enabled devices.
- Helical Antenna: Exceptional signal reception in challenging environments.
- Advanced GNSS: Utilizes F9P technology for accurate positioning.
- Professional Grade: Ideal for surveying, mapping, and industrial applications.
- Plug-and-Play: Easy setup for efficient mission planning.
- Reliable Performance: Ensure stable flight even in challenging conditions.
Specification-
Model | DroneCAN H-RTK F9P Helical |
---|---|
Receiver | U-blox ZED-F9P high precision GNSS module |
Antenna Type | Helical Antenna with 36dB LNA |
Processor | STM32G473 |
Magnetometer | BMM150 |
GNSS | BeiDou, Galileo, GLONASS, GPS / QZSS |
GNSS Bands | B1I, B2I, E1B/C, E5b, L1C/A, L1OF, L2C, L2OF |
Positioning Accuracy(degrees) | 3D FIX: 1.5 m / RTK: 0.01 m |
Communication Protocol | DroneCAN 1Mbit/s |
Antennas Peak Gain | L1: 2dBi L2: 2dBi |
Time-TO-First Fix | Cold start: ≤25s, Hot start: ≤1s |
Navigation Update Rate | RAW: 20Hz Max RTK: 8Hz Max Moving Base RTK: 5Hz Max |

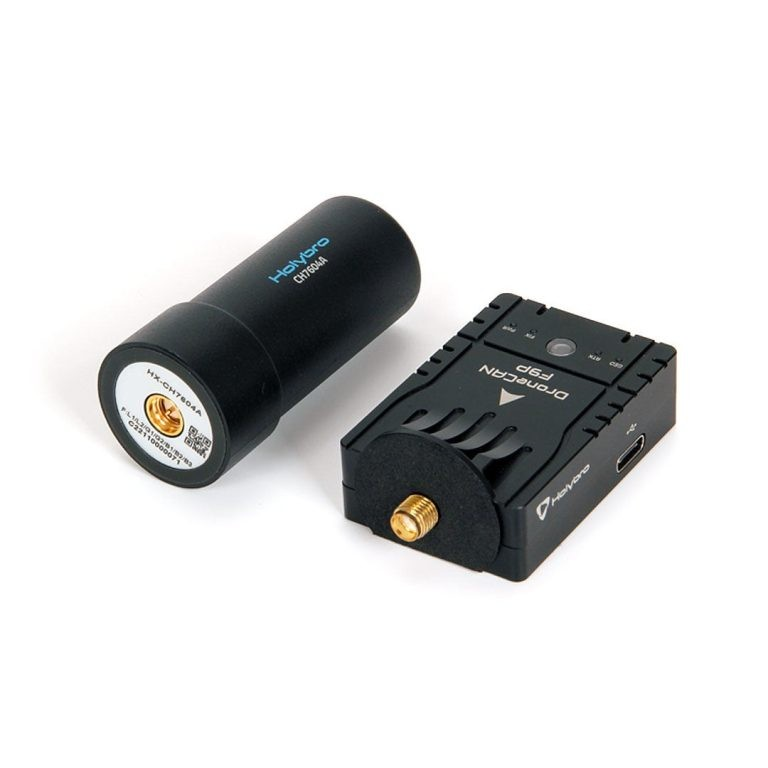

Connection | Board: SMA female Antenna: SMA male |
Working Voltage | 4.75V~5.25V |
Current Consumption (mA) | ~250mA |
Weight (g): | 58 |
Operating Temperature (°C) | -20 to 85 °C |
Application | Rover (aircraft) or Base station |
Shipping Weight | 0.151 kg |
Shipping Dimensions | 13 × 11 × 5 cm |

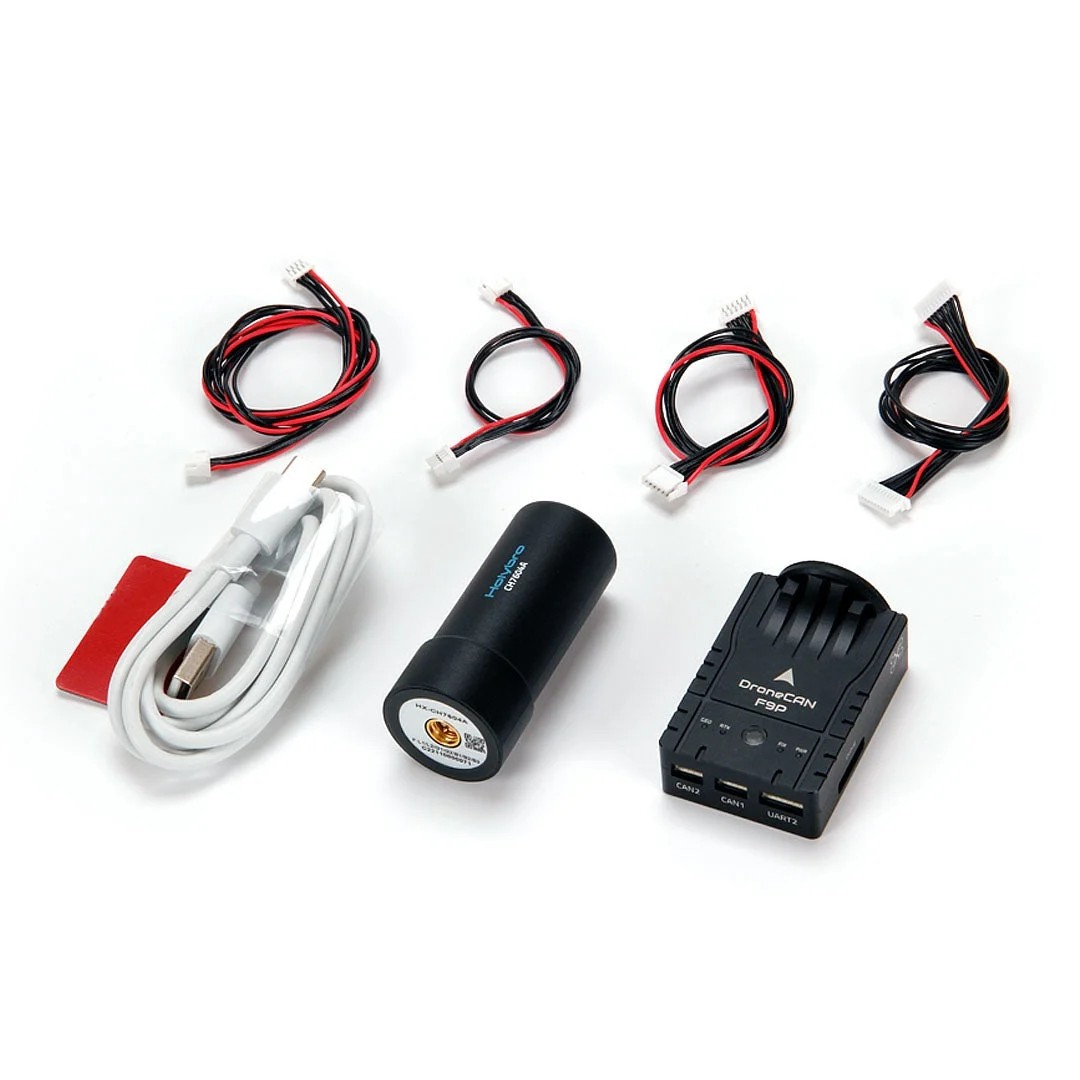

Package Includes:
1 x DroneCAN H-RTK F9P Helical
1 x High Precision GNSS Antenna
1 x GH 4P cable 400mm
1 x GH 4P cable 150mm
1 x GH 6P cable 150mm
1 x SH 8P cable 150mm
1 x USB (type-c) cable
