Looking for Here3+ Gps Istand Receiver? Here3+ GPS receiver with iStand is available at Zbotic with fast shipping across India.

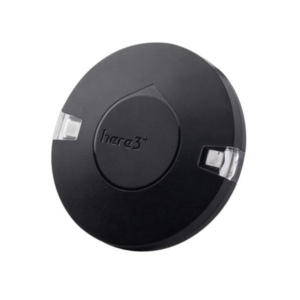

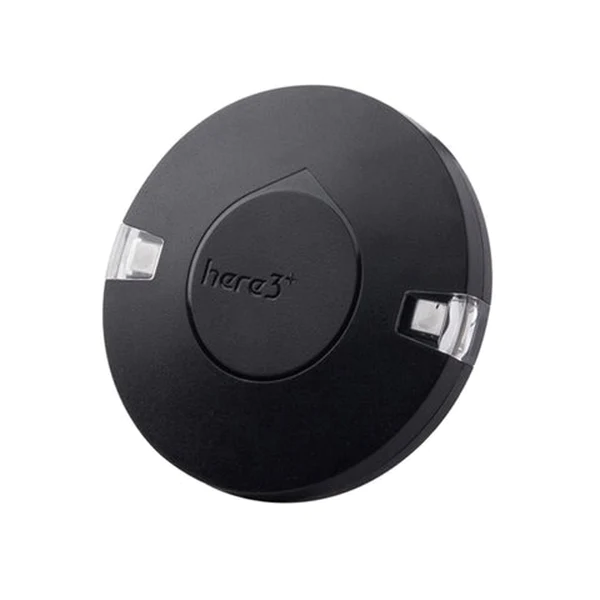

- CubePilot Here3+ GPS Module w/ iStand
- Enhanced dust and water resistance
- High data rate and real-time features
- Powered by dual-core STM32H757 processor.
- Features built-in IMU for advanced navigation.

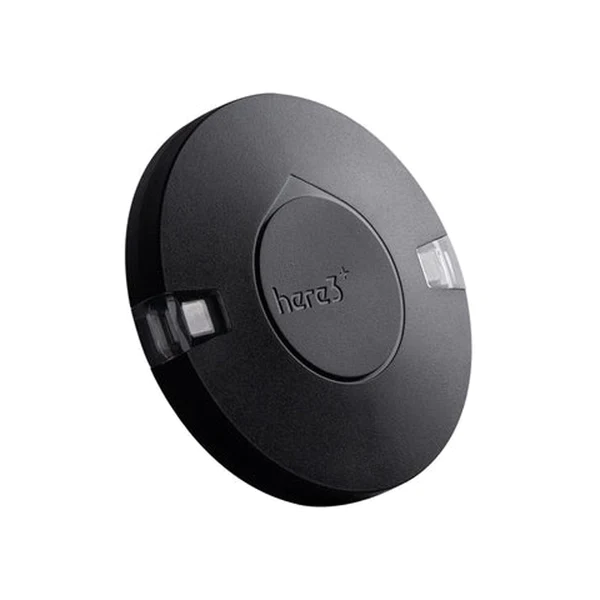

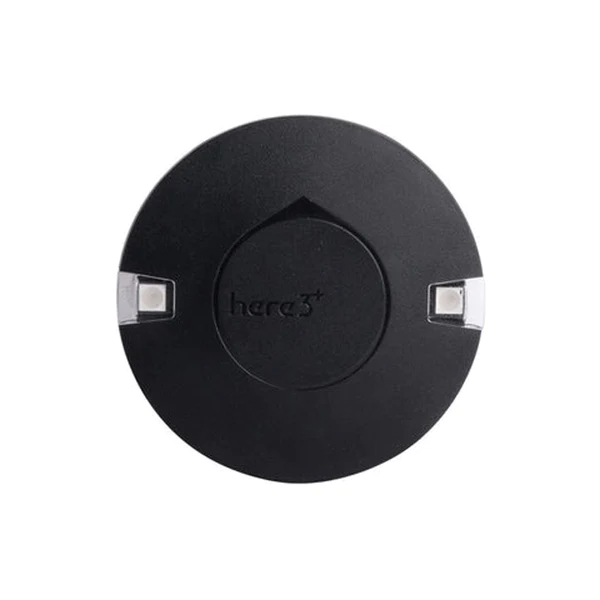

The CubePilot Here3+ GPS Module w/ iStand is a highly economical GNSS system that boasts RTK mode support, offering positioning accuracy down to the centimeter level under optimal conditions. This model exhibits enhanced resistance to dust and water compared to its predecessor, the original Here+, although it is not guaranteed to be completely waterproof.
The Here3+ GPS module is characterized by its high data rate, upgradeability, noise immunity, and real-time features, all of which are made possible by the DroneCAN protocol. The system has transitioned to the DroneCAN 8 Mbit bus speed and is compatible with future firmware updates.
The Here3+ GPS module is powered by the dual-core STM32H757 processor, which operates at a speed of 400 MHz and is equipped with 2 MByte Flash and 1 MByte RAM. This is a significant upgrade from the Here 3 model, which uses the STM32F302 processor.
The system also features a built-in IMU, which includes a compass, gyroscope, and accelerometer, to cater to advanced navigation requirements. Future updates for the system will be accessible via Mission Planner.
Please note that while the Here3+ GPS module has improved dust and water resistance, it is not guaranteed to be completely waterproof.

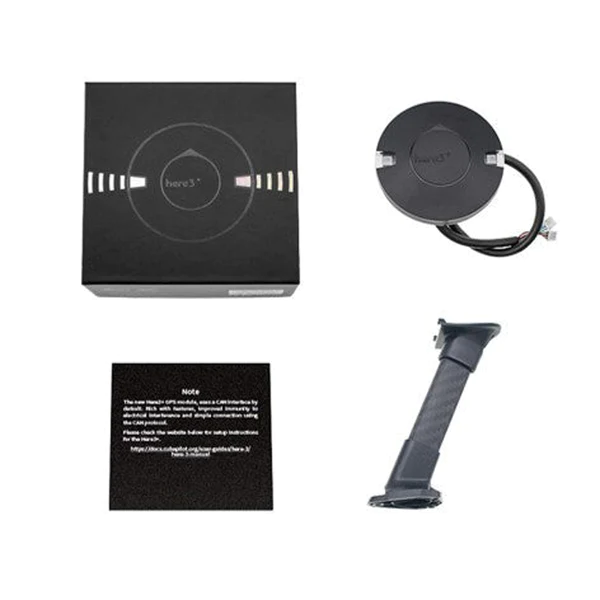

package Include-
- 1x Here3+ GPS Module
- 1x iStand
Here3+ GPS receiver with iStand Overview
The Here3+ GPS receiver with iStand is a high-precision GNSS module designed for drone and robotic navigation. Featuring u-blox M8P-2 technology and RTK support, it delivers centimeter-level positioning accuracy for demanding aerial and land-based applications.
Key Features of Here3+ GPS receiver with iStand
- Dual-core STM32H757 processor for real-time data handling and noise immunity
- u-blox M8P-2 GNSS module supporting GPS L1C/A, GLONASS L1OF and BeiDou B1I constellations
- RTK mode with 0.025 m accuracy and 3D FIX accuracy of 2.5 m under standalone operation
- Built-in IMU sensors (ICM42688 accelerometer/gyro and RM3100 magnetometer) for advanced orientation data
- 8 Hz navigation update rate over Drone CAN 8 Mbit/s interface
- Enhanced dust and water resistance with integrated iStand mount for secure installation
- Genuine product, ready stock and fast shipping from Zbotic across India
Applications and Use Cases
- Precision agriculture UAVs requiring RTK-level positioning for crop mapping
- Surveying and mapping drones where centimeter accuracy is critical
- Autonomous land vehicles and rovers for industrial inspection
- Search and rescue drones performing waypoint navigation in challenging environments
- Research robots needing high-rate GNSS and IMU fusion for SLAM experiments
How to Use Here3+ GPS receiver with iStand
Mount the Here3+ module securely on your vehicle using the included iStand, connect it to your autopilot’s Drone CAN port, and power up the system. Configure RTK settings in your flight controller software, calibrate the onboard IMU sensors, then establish a base or network RTK link to begin centimeter-level positioning.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What positioning accuracy can I expect in RTK mode?
In RTK mode under optimal conditions, the Here3+ achieves horizontal positioning accuracy of 0.025 m (2.5 cm), making it suitable for precision tasks.
Which GNSS constellations are supported?
The Here3+ receiver covers GPS L1C/A, GLONASS L1OF and BeiDou B1I, ensuring robust multi-constellation coverage for reliable fixes.
How do I integrate the Here3+ with my flight controller?
Simply install the module on the iStand mount, connect the Drone CAN cable to your flight controller’s CAN port, then configure the CAN ID and RTK parameters in your autopilot software.
Tethered Drone Build: Unlimited Flight Time for Events and Surveillance
Tethered Drone Build: Unlimited Flight Time for Events and Surveillance Imagine a drone that can hover for eight...
Read More →
Best Drone Radio Transmitters in India 2026: RadioMaster vs FlySky Compared
Best Drone Radio Transmitters in India 2026: RadioMaster vs FlySky and More The radio transmitter (TX) is arguably...
Read More →
Drone Motor KV Rating Explained: How to Pick the Right Motor
Table of ContentsWhat is KV Rating in a Drone Motor?How KV Affects RPM and PerformanceLow KV vs High...
Read More →Technical Specifications
| SKU | AI5192 |
|---|---|
| Weight | 0.24 kg |
| Availability | In Stock |
Applications & Use Cases
The Here3+ GPS receiver with iStand is a versatile gps modules used across a wide range of applications including drone navigation, asset tracking, fleet management, precision agriculture, and hiking/outdoor gadgets.
Common use cases:
- Adding GPS waypoint navigation to a drone
- Building a vehicle tracker
- Precision positioning for surveying
This product is ideal for drone builders, fleet managers, and outdoor electronics developers.
Technical Tip: Multi-constellation receivers (GPS + GLONASS + BeiDou) provide faster and more accurate fixes. RTK modules offer centimeter-level precision.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
