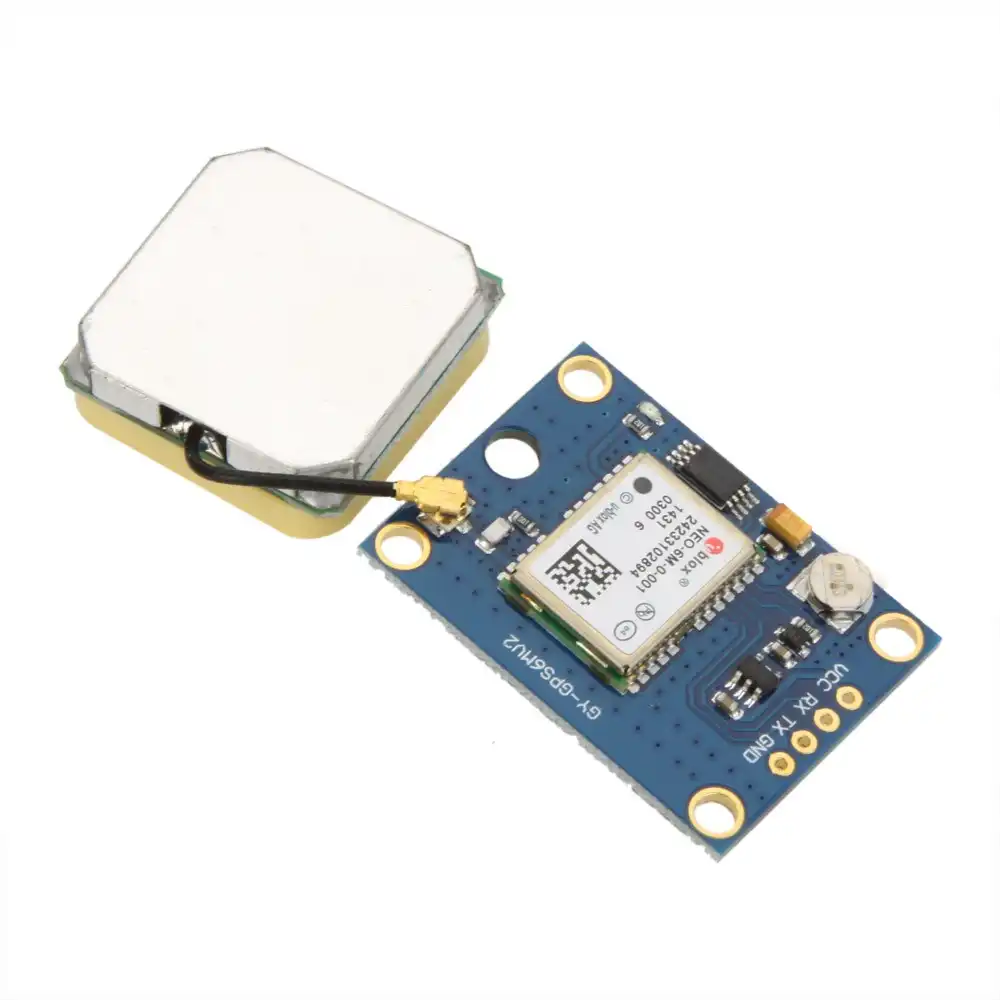

NEO-6M GPS Module with EPROM

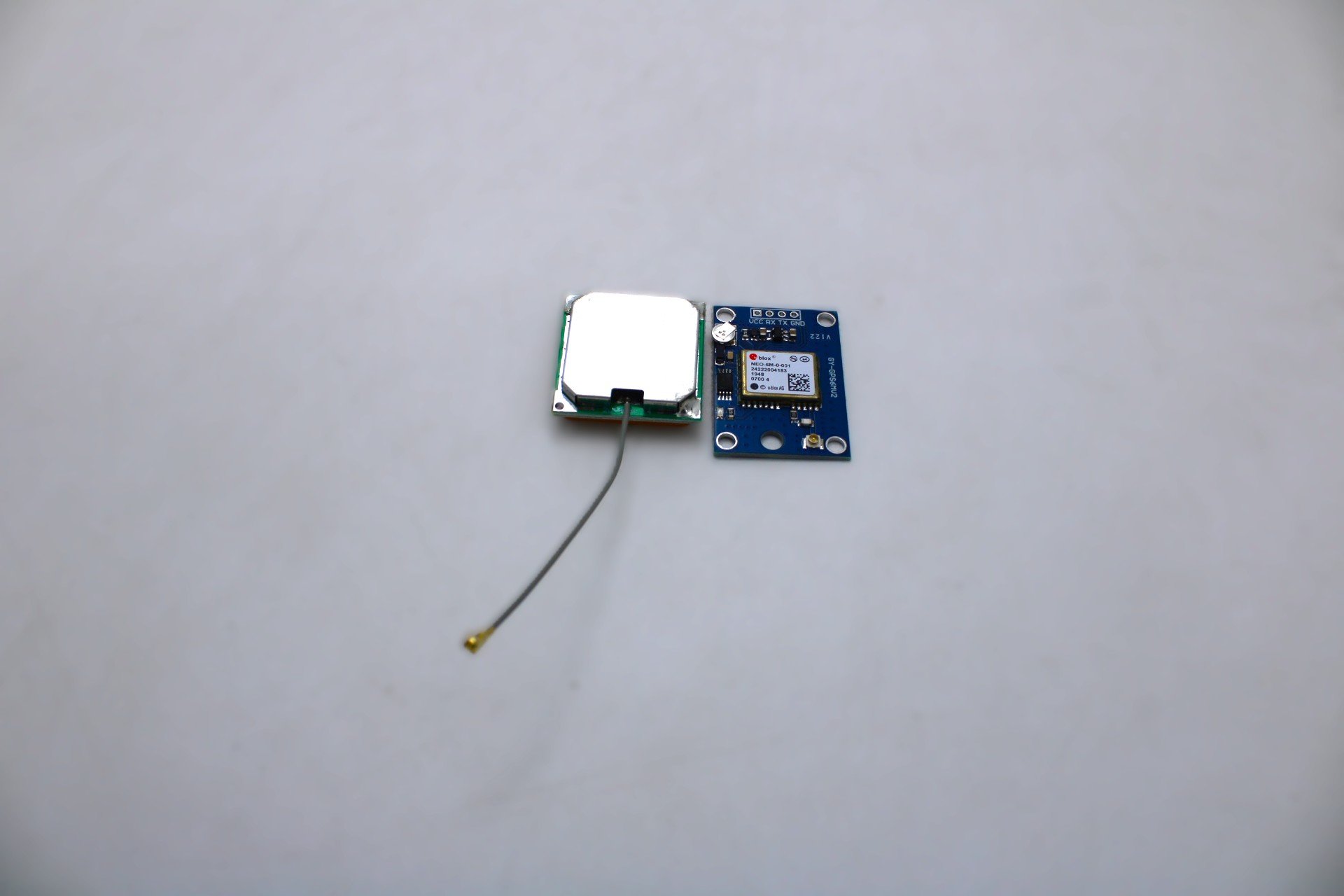

Introducing the NEO-6M TTL GPS Module with EPROM, featuring advanced technology from Ublox for exceptional positioning accuracy. This module includes a larger 25 x 25 mm active GPS antenna with a UART TTL socket for enhanced performance. It comes equipped with a battery for quicker GPS lock times and is fully compatible with Ardupilot Mega v2, making it ideal for multirotor control platforms.

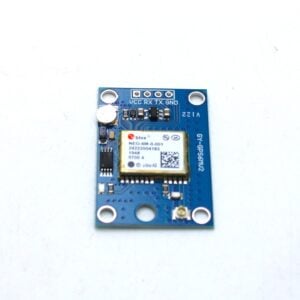

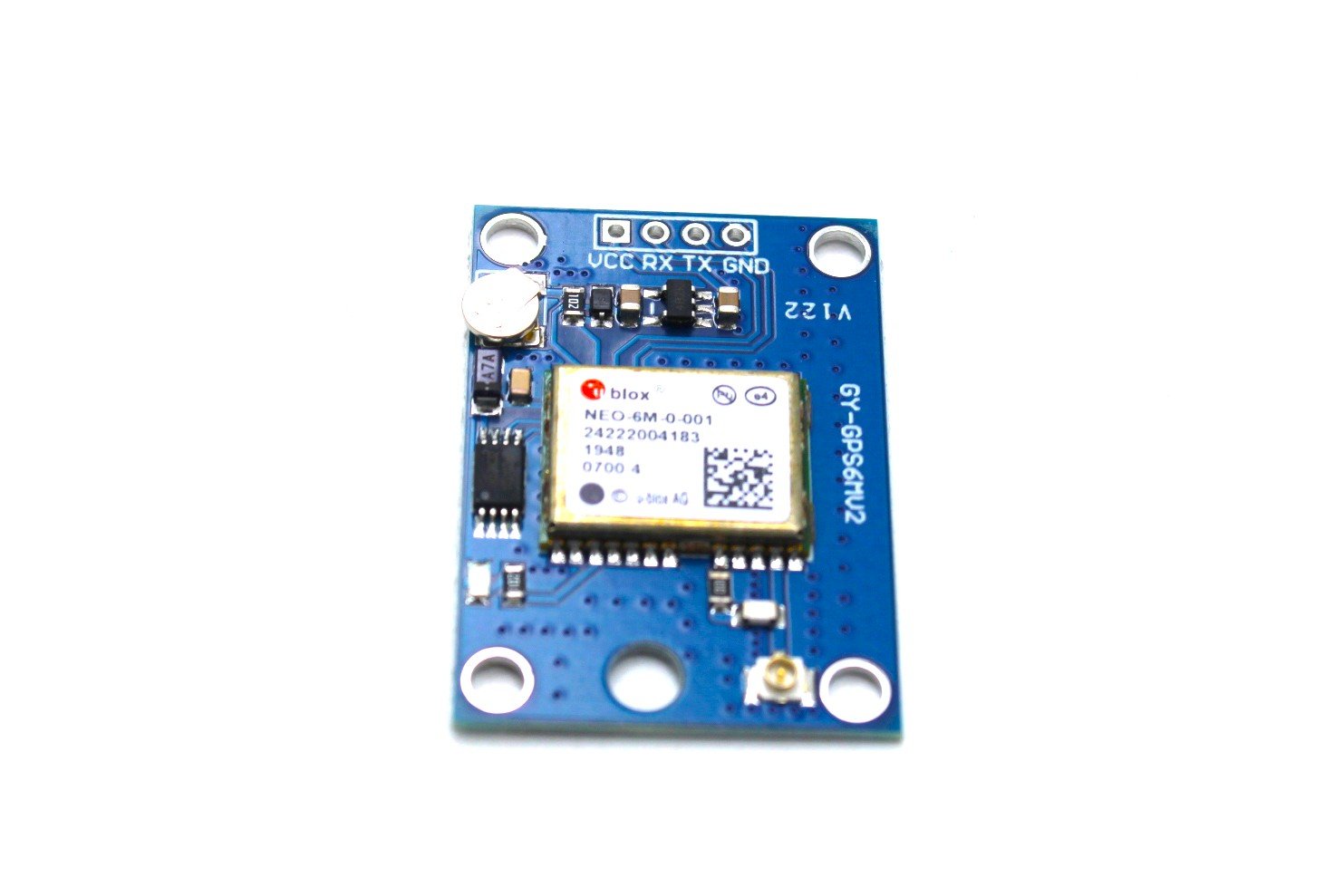

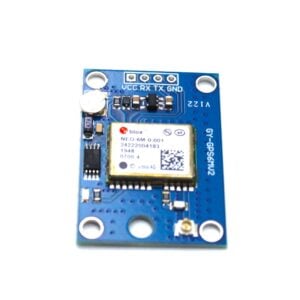

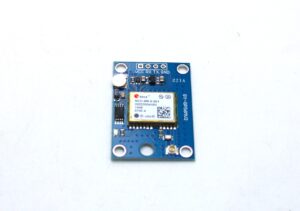

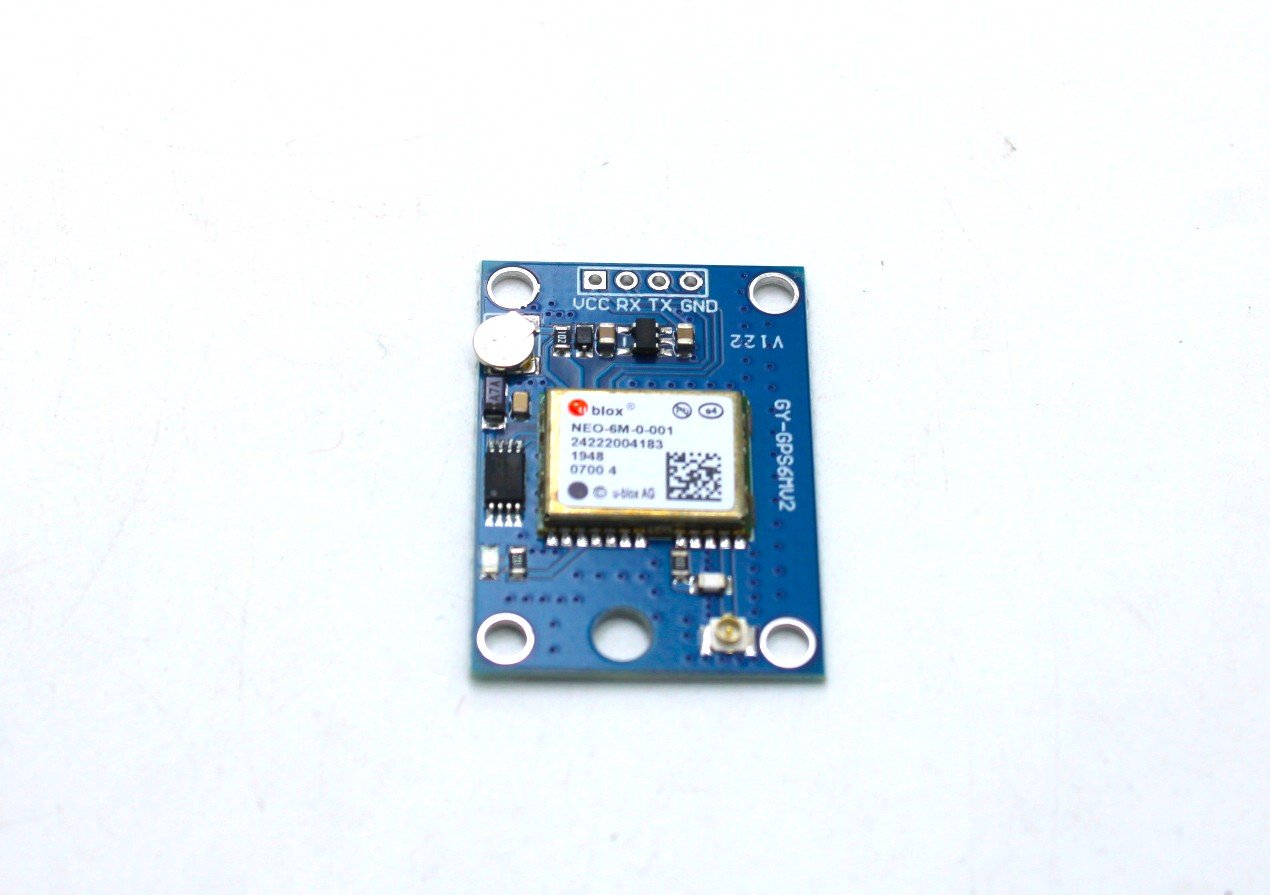

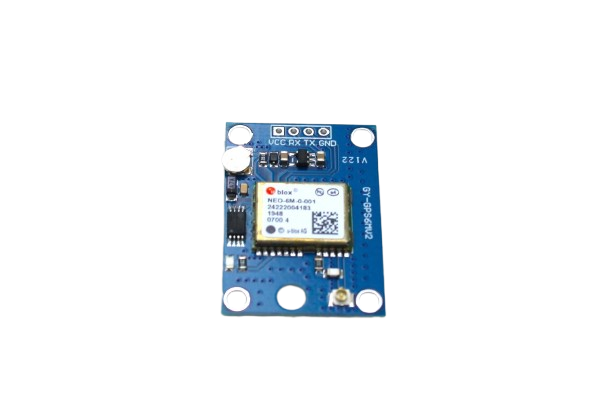

The Ublox GPS module provides serial TTL output through four pins: TX, RX, VCC, and GND. For easy configuration and settings management, you can use the u-center software, which is available for download and offers a user-friendly interface with full functionality. Unlock the full potential of your GPS module with this accessible software.
NOTE:
Ublox NEO-6M GPS Module IS NOT COMPATIBLE WITH APM 2.8 FLIGHT CONTROLLER.
Specification/Features:
- 5Hz position update rate
- Operating temperature range: -40 TO 85°CUART TTL socket
- EEPROM to save configuration settings
- Rechargeable battery for Backup
- The cold start time of 38 s and Hot start time of 1 s
- Supply voltage: 3.3 V
- Configurable from 4800 Baud to 115200 Baud rates. (default 9600)
- SuperSense ® Indoor GPS: -162 dBm tracking sensitivity
- Support SBAS (WAAS, EGNOS, MSAS, GAGAN)

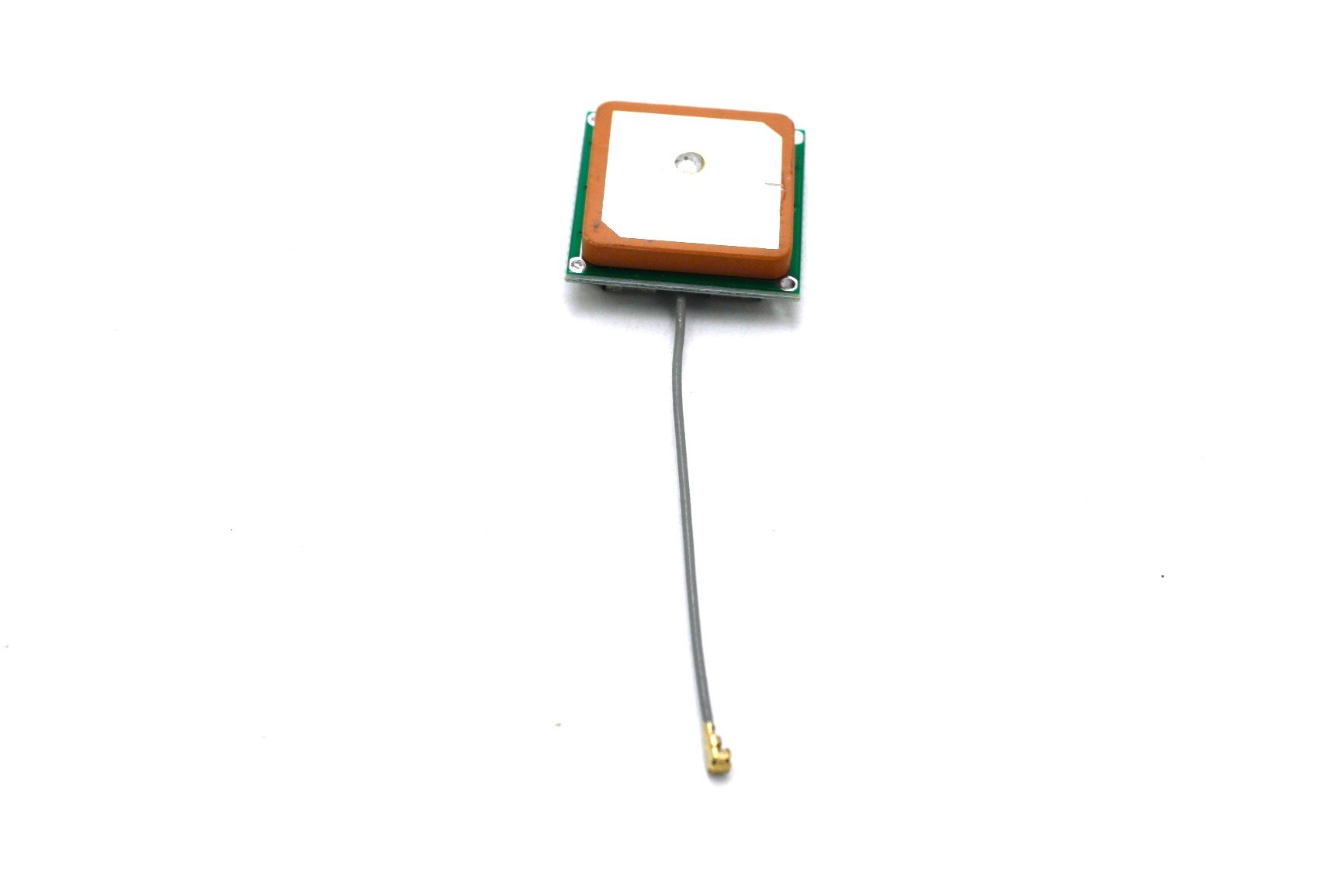

- Separated 18X18mm GPS antenna.
Useful Links:
Package Includes
- 1 x NEO-6M GPS Module with EPROM
Video
IoT Gateway Design: Raspberry Pi Multi-Protocol Hub
Table of Contents What is an IoT Gateway Raspberry Pi as Gateway Hardware Multi-Protocol Support Edge Processing on...
Read More →
Smoke Detection using MQ-2 Gas Sensor
Introduction: This is a robust Gas sensor suitable for sensing LPG, Smoke, Alcohol, Propane, Hydrogen, Methane and Carbon Monoxide concentrations in the air. If you are planning on...
Read More →
Buck-Boost Converter: When and How to Use Them
Buck-Boost Converter: When and How to Use Them If you've ever needed to power a 5V circuit from...
Read More →Technical Specifications
| Model | NEO-6M |
|---|---|
| SKU | AI0141 |
| Weight | 0.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The NEO-6M GPS Module with EPROM is a versatile iot and wireless used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
