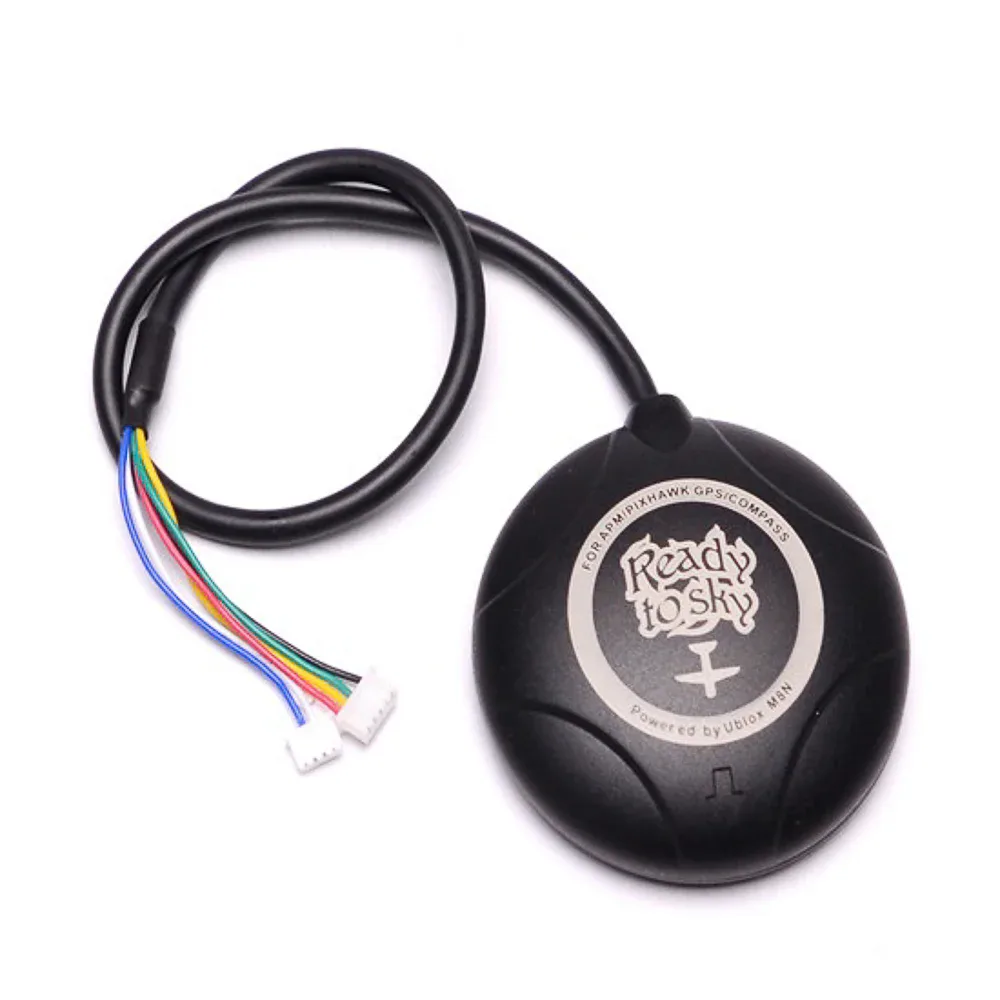

This is a new generation NEO-M8N High Precision GPS Module with Built-in Compass for PIXHAWK and APM FC (Ready to connect to PIXHAWK FC) with onboard Compass, low power consumption, and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy, support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol, and mode or more.

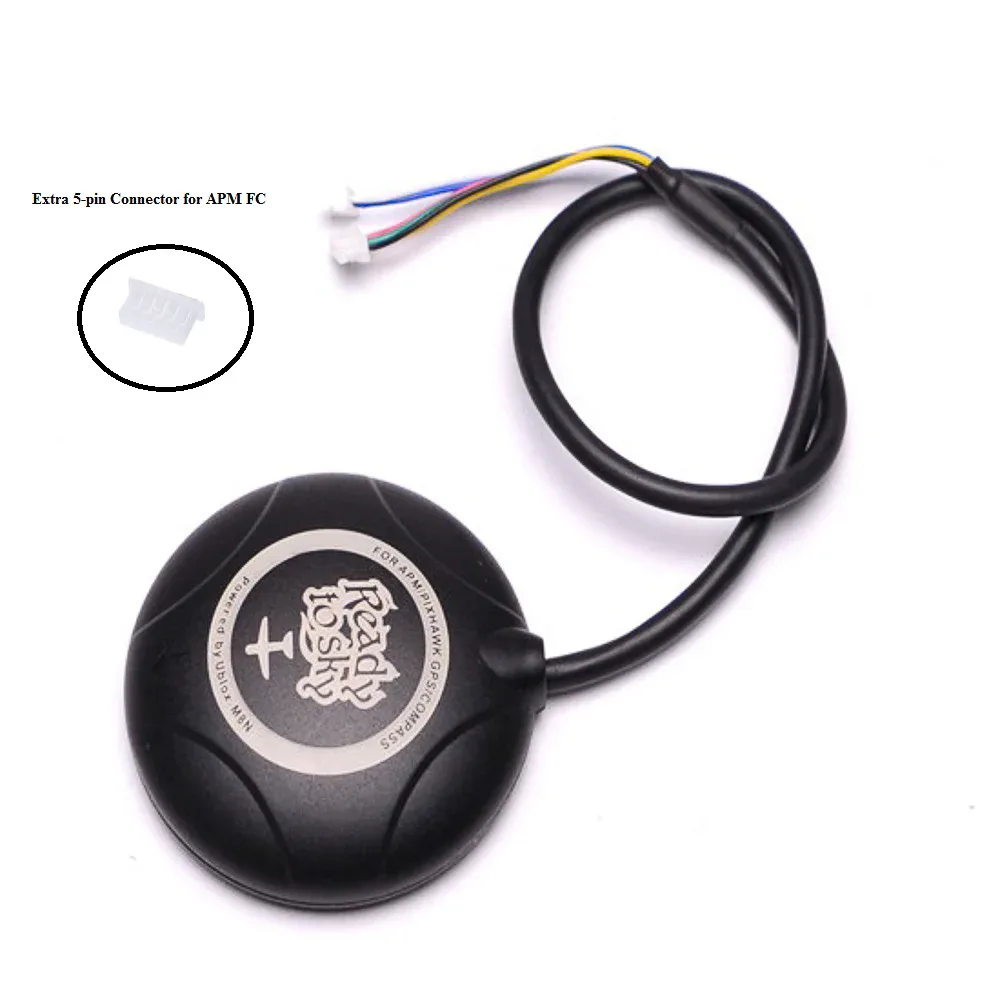

Additionally, you can connect the same module to APM Flight Controller just after swapping the extra 5-pin connector provided in Package.
So if you want GPS telemetry for your FPV flying or camera ship? This new generation GPS NEO-M8N is the answer. Capable of accuracy between 0.6 and 0.9 meters it is a significant improvement over previous models. Sattelite searching and acquisition is very fast, generally taking around ten seconds to locate and acquire up to 6 satellites. It also has a built-in compass with a 10Ghz refresh rate and a low noise figure which ensures this GPS module offers excellent performance.
The NEO-M8N provides the best performance and easiest RF integration of all the NEO-M8 configurations. The NEO form factor allows easy migration from previous NEO generations. Sophisticated RF-architecture and interference suppression ensure maximum performance even in GNSS-hostile environments. NEO-M8 combines a high level of robustness and integration capability with flexible connectivity options. The future-proof NEO-M8N includes an internal Flash that allows simple firmware upgrades for supporting additional GNSS systems.
NEO-M8N GPS Module for APM APM2.52 APM Flight Controller with Case and GPS Antenna Mount to protect the GPS preventing electromagnetic interference. A new generation GPS NEO-M8N GPS Module, with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy. Support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol, and mode or more. The NEO-M8N and ceramic antenna make this a very accurate receiver, fast locks & lots of satellites, and the stand is very sturdy to protect the GPS preventing electromagnetic interference.
Note: When using 2.8 boards with our GPS module must remove the jumper, if you need to calibrate, make the control and GPS compass direction same and keep the two position fixed(cannot make any move, must fix them on the quadcopter and then calibrate, or it will be failed.)

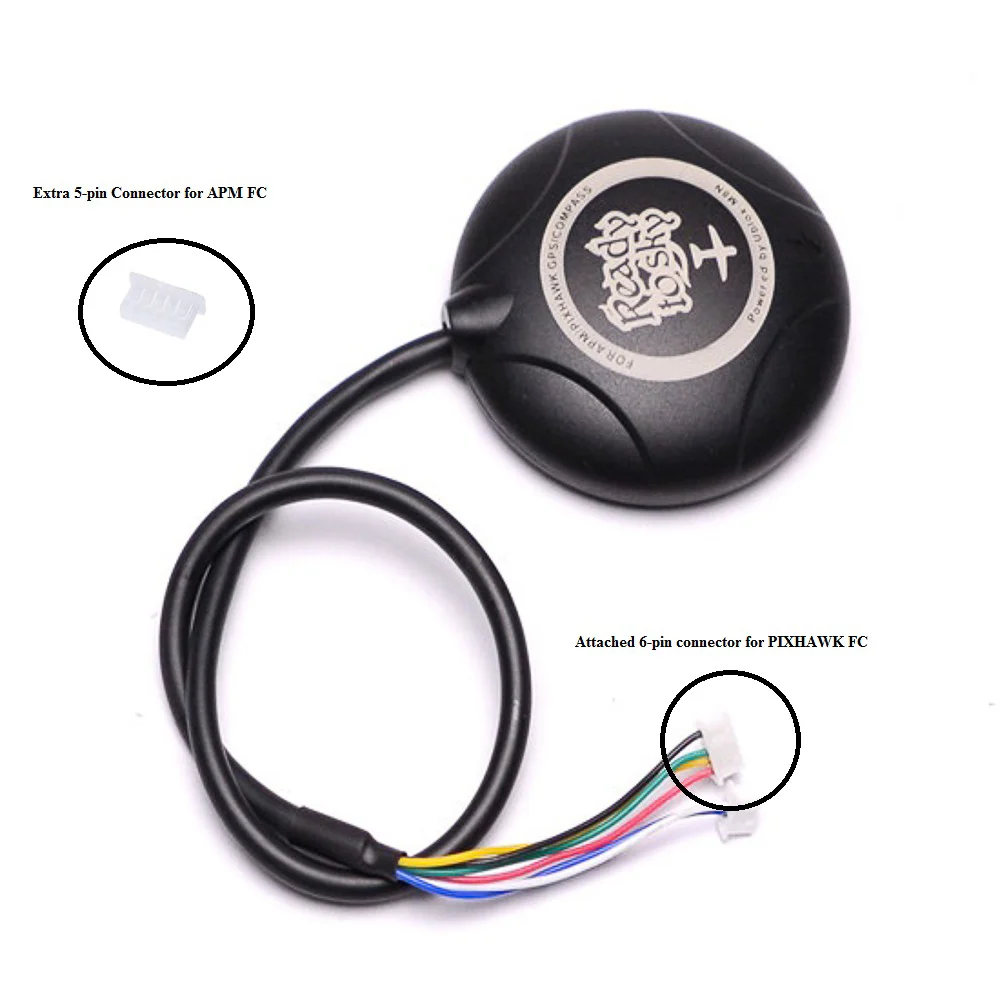

Connector difference of PIXHAWK and APM FC:
Features:
- GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
- SBAS L1 C/A: WAAS, EGNOS, MSAS
- Galileo-ready E1B/C (NEO-M8N)
- Onboard Compass
- Assistance AssistNow GNSS Online
- AssistNow GNSS Offline (up to 35 days)
- AssistNow Autonomous (up to 6 days)
- OMA SUPL & 3GPP compliant
- Oscillator TCXO (NEO-M8N/Q),
- Crystal (NEO-M8M)
- RTC crystal Built-In
- Noise figure On-chip LNA (NEO-M8M). Extra LNA for
- lowest noise figure (NEO-M8N/Q)
- Anti-jamming Active CW detection and removal. Extra
- onboard SAW bandpass filter (NEO-M8N/Q)
- Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
- Supported antennas Active and passive
- Odometer Travelled distance
- Data-logger For position, velocity, and time (NEO-M8N)
Specification:
| Model | Ublox NEO-M8N |
|---|---|
| Receiver Type | 72-channel Ublox M8 engine. |
| Main Chip | Ublox NEO-M8N |
| Input Supply Voltage (VDC) | 0.5 ~ 3.6 |
| Sensitivity (dBm) | Tracking & Navigation: -161 dBm |
| Position Accuracy (Meter) | 2, 2.5 |
| Acceleration (g) | <4 |
| Navigation Update Rate | up to 18 HZ. |
| Operating Temperature Range (°C) | -45 to 105 |
| Tracking Sensitivity (dBm) | -161 dBm |
| Co-Ordinate System | WGS-84 |
| Capture Time | 0.1s Average |
| Avg Cold Start Time (s) | 30 |
| Warm Start Time (s) | 1 |
| Boot Time | 1S |
| Maximum Altitude (m) | 18000 |
| Dimensions (mm) LxWxH | 54 x 22 (Dia x W) |
| Weight (gm) | 35 |
| Cable Length (cm) | 20 |
| Shipping Weight | 0.06 kg |
| Shipping Dimensions | 7 × 6 × 6 cm |
Package Includes:
1 x NEO M8N GPS for Pixhawk and APM flight controller
1 x Extra 5-pin Connector for APM FC

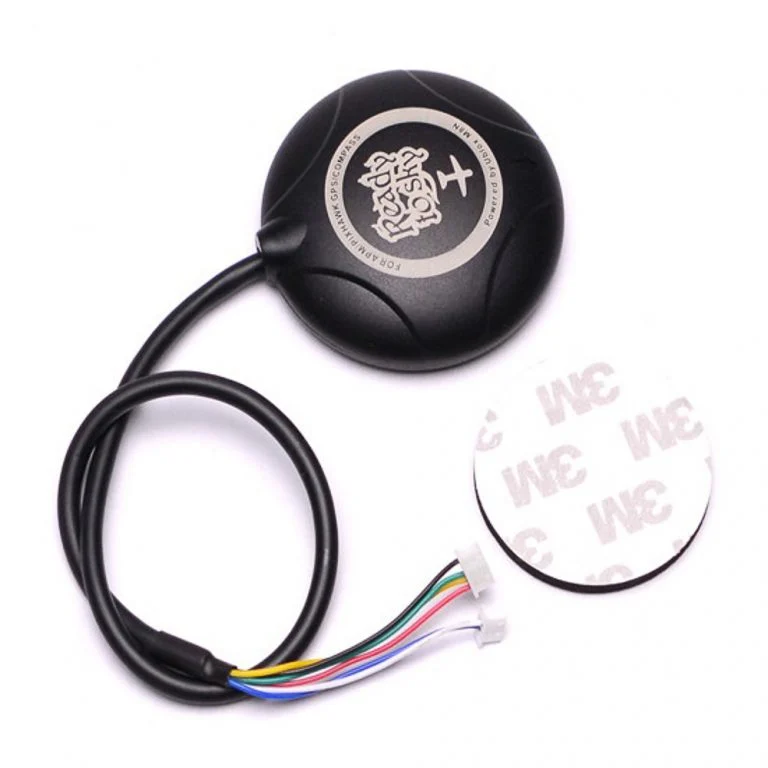

1X Self Adhesive Magnetic Dia (Round)
Note: This is a product of ReadyToSky brand powered by Ublox chip inside
Drone FPV Camera: CMOS vs CCD, Latency, and FOV
Table of Contents Understanding Drone FPV Camera Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
Hover Games and FPV Racing Clubs India: Getting Started
Hover Games and FPV Racing Clubs India: Getting Started India's FPV drone racing scene has exploded over the...
Read More →
Mini Drone Build: 3-Inch Toothpick Quad for Beginners
Mini Drone Build: Complete Beginner's Guide to a 3-Inch Toothpick Quad The 3-inch toothpick quad is arguably the...
Read More →Technical Specifications
| SKU | AI4360 |
|---|---|
| Weight | 0.05 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Ublox NEO M8N GPS For PixhawkFC is a versatile gps modules used across a wide range of applications including drone navigation, asset tracking, fleet management, precision agriculture, and hiking/outdoor gadgets.
Common use cases:
- Adding GPS waypoint navigation to a drone
- Building a vehicle tracker
- Precision positioning for surveying
This product is ideal for drone builders, fleet managers, and outdoor electronics developers.
Technical Tip: Multi-constellation receivers (GPS + GLONASS + BeiDou) provide faster and more accurate fixes. RTK modules offer centimeter-level precision.
