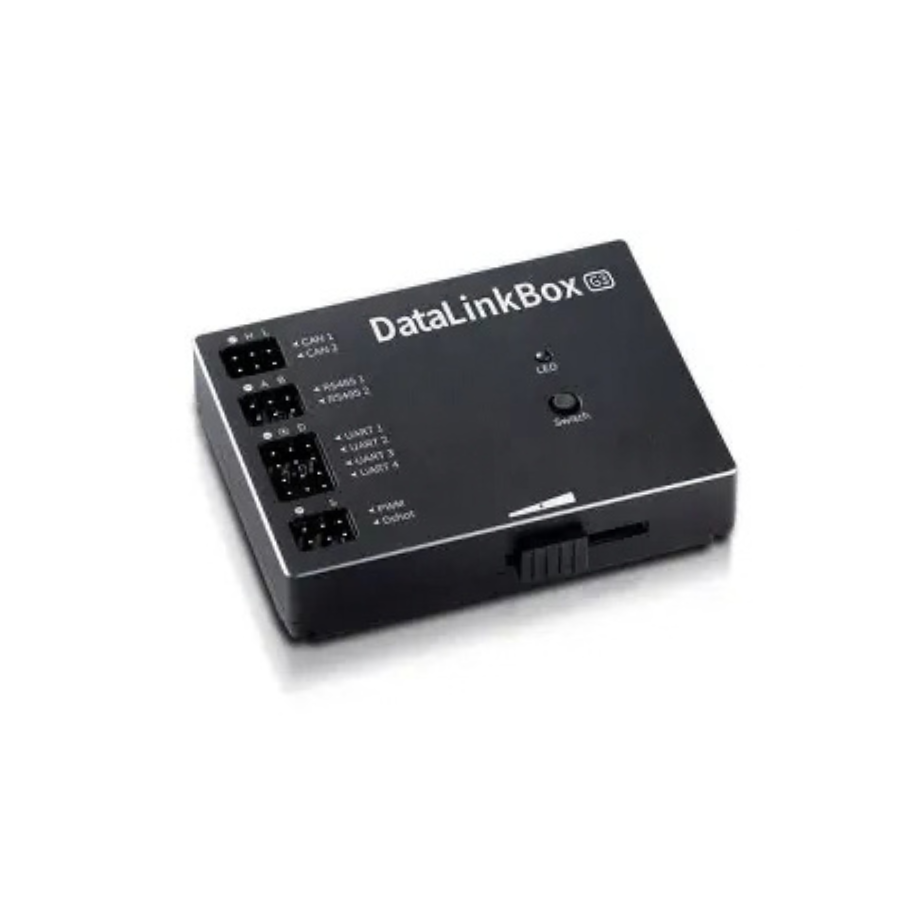

Hobbywing Data Link Box G3 – Advanced Data Link Communication Module
Description:
HOBBYWING DataLinkBox G3 is a next-generation data link and parameter tuning device designed for UAV/drone propulsion systems and compatible ESCs. It enables convenient ESC parameter configuration, real-time device status monitoring, firmware updates, and throttle testing through the DataLink V3 application and desktop software.
The DataLinkBox G3 features Bluetooth connectivity for wireless parameter adjustment through supported mobile devices and supports multiple communication interfaces, including UART, CAN, RS485, USB, and Bluetooth. It also provides PWM and DShot throttle output, along with CAN and RS485 digital throttle support.
The DataLinkBox G3 is a communication device that integrates data collection, storage, and transmission. When used with the operating software, it enables real-time monitoring of the propulsion system’s operation and records flight status data. The DataLinkBox G3 helps users analyze ESC usage data, upgrade ESC programs, and adjust parameters, fulfilling personalized setup needs and significantly enhancing the safety and reliability of the aircraft.
Features:
- Next-generation DataLink V3 communication and tuning system
- Designed for UAV/drone propulsion system parameter tuning
- Built-in Bluetooth for wireless mobile-app connectivity
- Supports UART, CAN, RS485, USB and Bluetooth communication
- Supports PWM, DShot, CAN and RS485 throttle modes
- Dual-channel throttle lock control
- Virtual throttle slider through the mobile application
- Physical throttle slider for convenient throttle testing
- Real-time device status and fault information
- Supports firmware updates through cloud service
- Type-C interface for computer-based configuration and advanced settings
- Compatible with Android, iOS, Windows and Mac
- Compact and lightweight design
- 128 MB internal storage
Specifications:
| Specification | Details |
|---|---|
| Product Name | DataLinkBox G3 |
| Communication Protocol | UART, CAN, RS485, USB*, Bluetooth* |
| Operating Voltage | 6–81 V |
| Throttle Modes | CAN*, RS485*, PWM, DShot |
| Throttle Output | Software Interface / Throttle Slider |
| Dimensions | 67 × 52.8 × 15 mm |
| Weight | 50 g |
| Internal Storage | 128 MB |
| Wireless Communication | Bluetooth |
| Computer Interface | Type-C |
| Compatible Platforms | Android, iOS, Windows, Mac |
| Application | UAV/Drone ESC Parameter Tuning & Propulsion Testing |
Package Includes:
1xHobbywing Data Link Box G3 – Advanced Data Link Communication Module
