Looking for Holybro Micro Osd Ic? Holybro Micro OSD V2 is available at Zbotic with fast shipping across India.
The On-Screen Display (OSD) is engineered to interface with contemporary Pixhawk-style flight controllers, offering a real-time display of crucial flight data such as battery voltage and flight duration during FPV flights. It is compatible with Holybro Pixhawk 4 Series (Full & Mini) and Holybro Durandal flight controllers as a plug-and-play module, arriving preconfigured to exhibit essential information. Additionally, the OSD can be linked to software for custom layout and functionality configuration, necessitating an FTDI programmer.
Features:
- Holybro Micro OSD V2.
- Compact on-screen display module.
- Real-time flight data overlay.
- Voltage, altitude, flight mode, etc.
- Configurable through flight controller.
- Supports PAL/NTSC video systems.
- Enhances FPV flying experience.
Specifications:
- ATmega328P with Arduino bootloader
- MAX7456 monochrome on-screen display

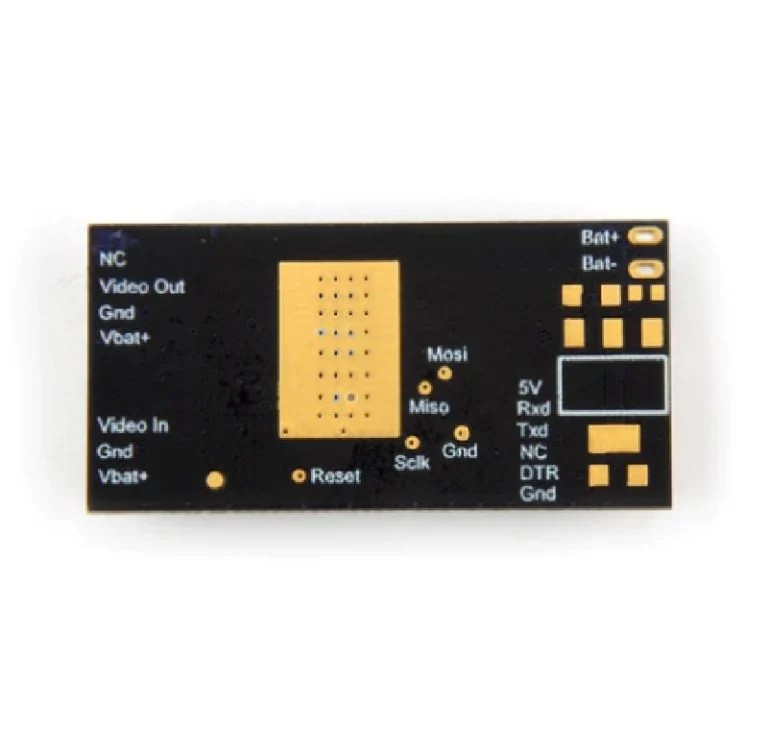

- Standard 6-pin ISP header
- Solder jumper for PAL video option
- Exposed test points for HSYNC and LOS
- Dimensions:17.5*35mm
- Weight: 8g
Specification-
| Processor | ATmega328P |
|---|---|
| Display | MAX7456 monochrome |
| Power Pin | Standard 6-pin ISP header |
| Product | Micro OSD V2 |
| Length (mm): | 36 |
| Width (mm): | 19 |
| Height (mm): | 1 |
| Weight (g): | 10 |
| Shipping Weight | 0.012 kg |
| Shipping Dimensions | 10 × 8 × 1 cm |

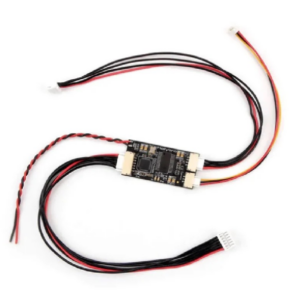

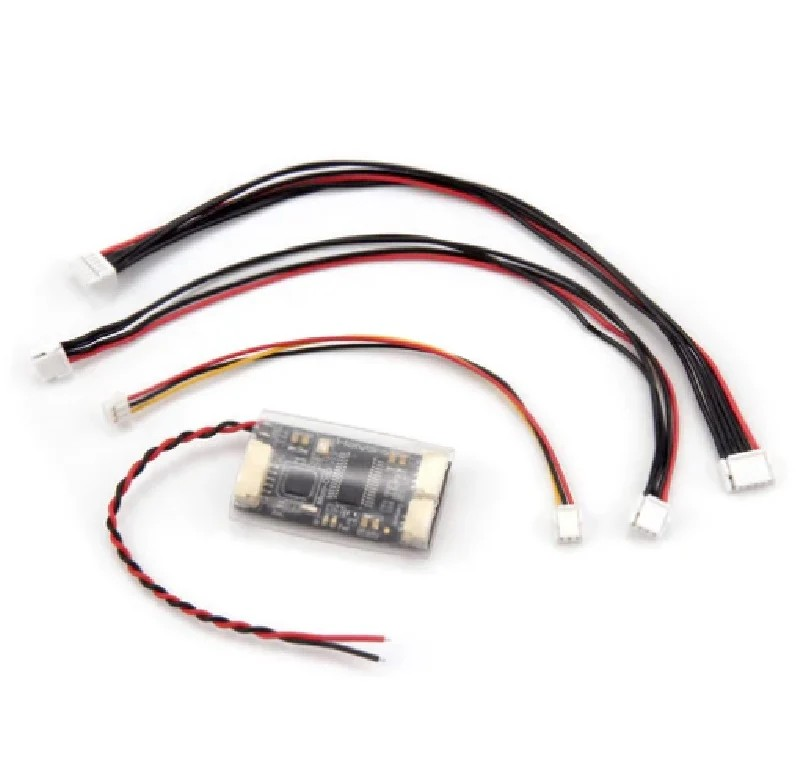

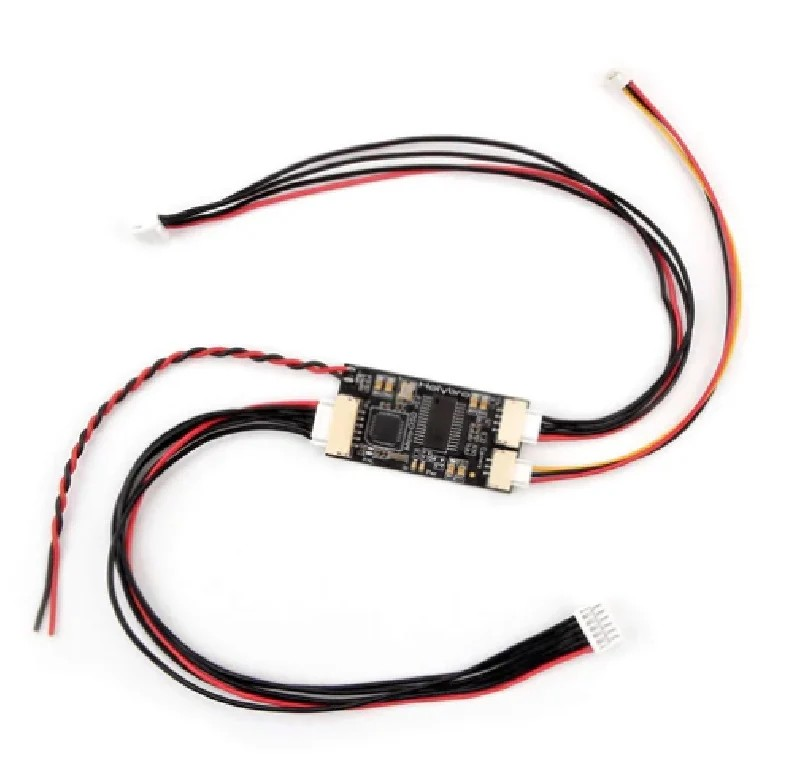

Package Includes:
1 x Micro OSD
1 x GH 6P cable
1 x GH 4P cable
1 x GH 3P cable
Holybro Micro OSD V2 Overview

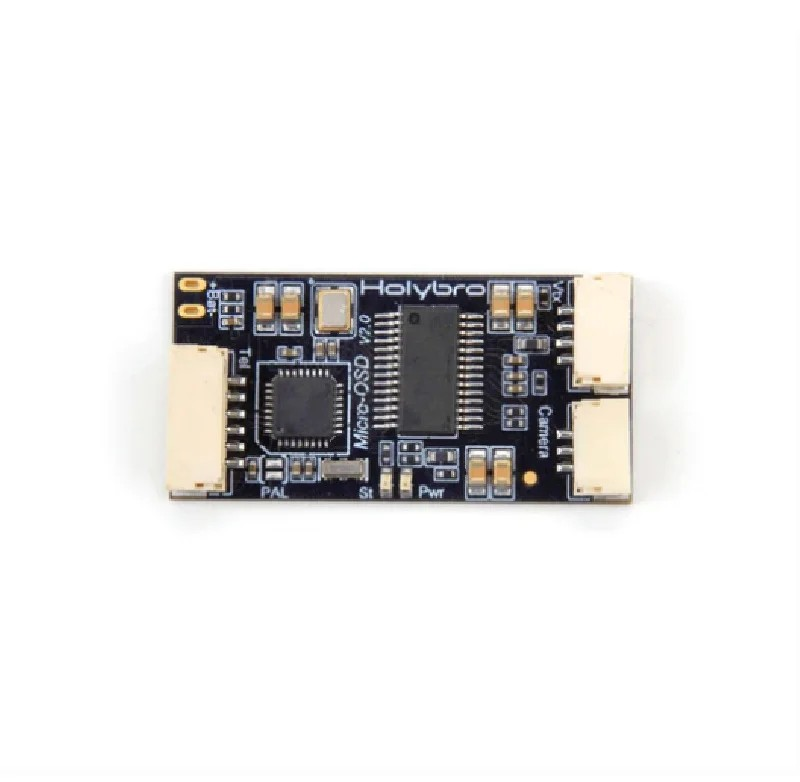

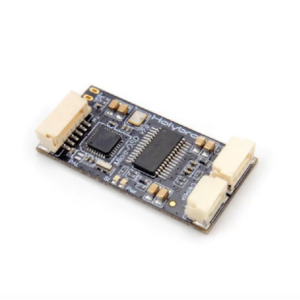

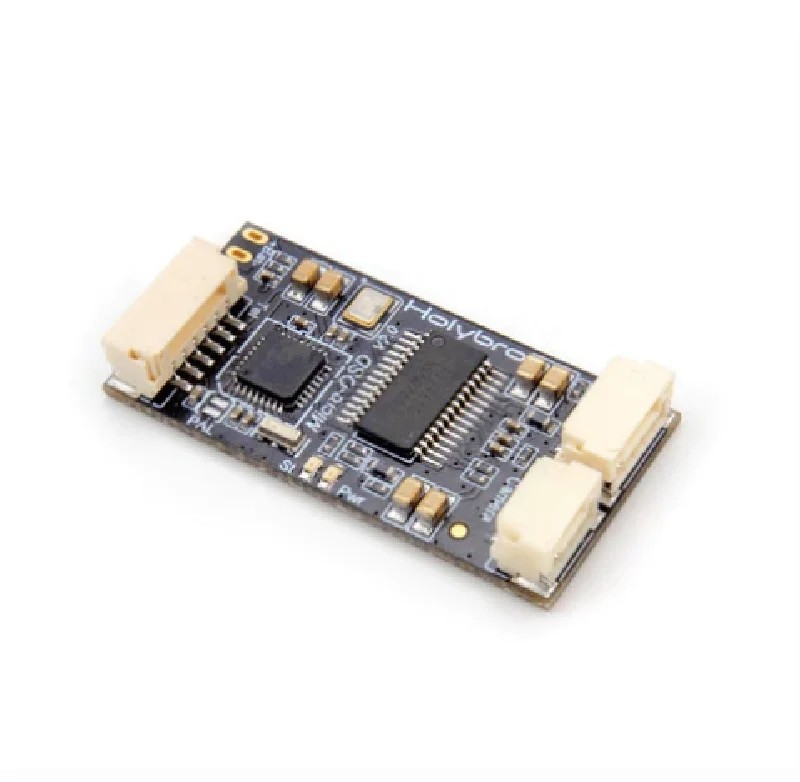

The Holybro Micro OSD V2 is a compact on-screen display module featuring an ATmega328P processor and a MAX7456 monochrome display chip. Designed for FPV pilots, it overlays critical flight data—such as battery voltage, altitude and flight time—directly onto your video feed and plugs seamlessly into Holybro Pixhawk 4 Series and Durandal flight controllers.
Key Features of Holybro Micro OSD V2
- ATmega328P processor for reliable on-screen display performance
- MAX7456 monochrome display chip ensures crisp, high-contrast overlays
- Standard 6-pin ISP header for firmware updates and custom layout configuration via FTDI programmer
- Plug-and-play compatibility with Holybro Pixhawk 4 Series (Full & Mini) and Durandal controllers
- Preconfigured to show essential metrics: battery voltage, flight duration, altitude
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- FPV racing drones monitoring live battery voltage and flight time
- Aerial photography platforms tracking altitude and power consumption
- Research UAVs requiring real-time telemetry overlays for data logging
- Custom multicopter builds integrating OSD without complex wiring
- Prototype flight controller systems needing adjustable on-screen displays
How to Use Holybro Micro OSD V2
Simply plug the Micro OSD V2 into the dedicated OSD port on a compatible Pixhawk 4 or Durandal controller, power it from the 5 V rail, and route your video signal through the module. For layout tweaks or firmware updates, connect an FTDI programmer to the 6-pin ISP header, launch the OSD configuration software, and adjust parameters as needed.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which flight controllers does the Holybro Micro OSD V2 support?
It plugs directly into the OSD port of Holybro Pixhawk 4 Series (Full & Mini) and Durandal controllers, offering true plug-and-play telemetry overlay without extra wiring.
How do I customize the OSD layout?
Use an FTDI programmer connected to the module’s standard 6-pin ISP header and run the compatible OSD configuration software. You can adjust font size, data positions, and select which metrics to display.
Can I update the firmware on this OSD module?
Yes. Through the ISP header and an FTDI programmer, you can upload new firmware builds for the ATmega328P to add features or ensure compatibility with future flight controller updates.
