If you’re looking to dive into the world of electronics and build your own drone, this PPM Encoder is a perfect choice. Pulse Position Modulation (PPM) is a technique that encodes signals by positioning pulses. This encoder can combine up to 8 PWM (Pulse Width Modulated) signals into a single PPM output.
Many flight controllers, such as the Pixhawk autopilot, only accept PPM-compatible receivers. If your receiver uses PWM, you’ll need a PPM encoder like this one to connect to a PPM-only flight controller.
The PPM encoder transforms standard PWM inputs into a single PPM output, allowing you to consolidate up to 8 channels from a traditional RC receiver into one PPM input for your flight controller, like Pixhawk or APM. The key advantage of PPM is that it simplifies wiring by combining all channels into a single wire, alongside ground and power lines.
Important Powering Instructions:
The included jumper JP1 offers flexibility in powering your receiver, servos, and PPM Encoder. Typically, the power for these components is sourced from the autopilot board, in which case, JP1 should be shorted.
However, if the receiver or servos are connected to a separate power source, and the autopilot’s +5V is also linked to the PPM Encoder via the PPM connector, you **must** remove jumper JP1. This ensures that the autopilot’s power supply is isolated from the separate receiver power supply. Failing to do this could damage the autopilot’s +5V switching regulator.
Note:
The firmware is pre-configured to read 8 channels. If you wish to adjust the PPM encoder settings, such as inverting the PPM signal or modifying the fail-safe values, you will need an AVR ISP programmer for reprogramming.
Features:
Support the input channels: 8
Output: PPM SUM × 1 / MUX × 1
Dimensions: 28 x 19 x 5 mm
Weight: 12 gm. (containing all the input and output wires)
Specification:
Input Channel
8 PWM channel
Output channel
1 PPM channel
PWM signal cable length (mm)
60
PPM signal cable length (mm)
90
PPM Encoder dimensions
As per below
Length (mm)
31.60
Width (mm)
23
Height (mm)
8
Weight (gm)
10
Shipping Weight
0.015 kg
Shipping Dimensions
6 × 5 × 2 cm
Package Includes:

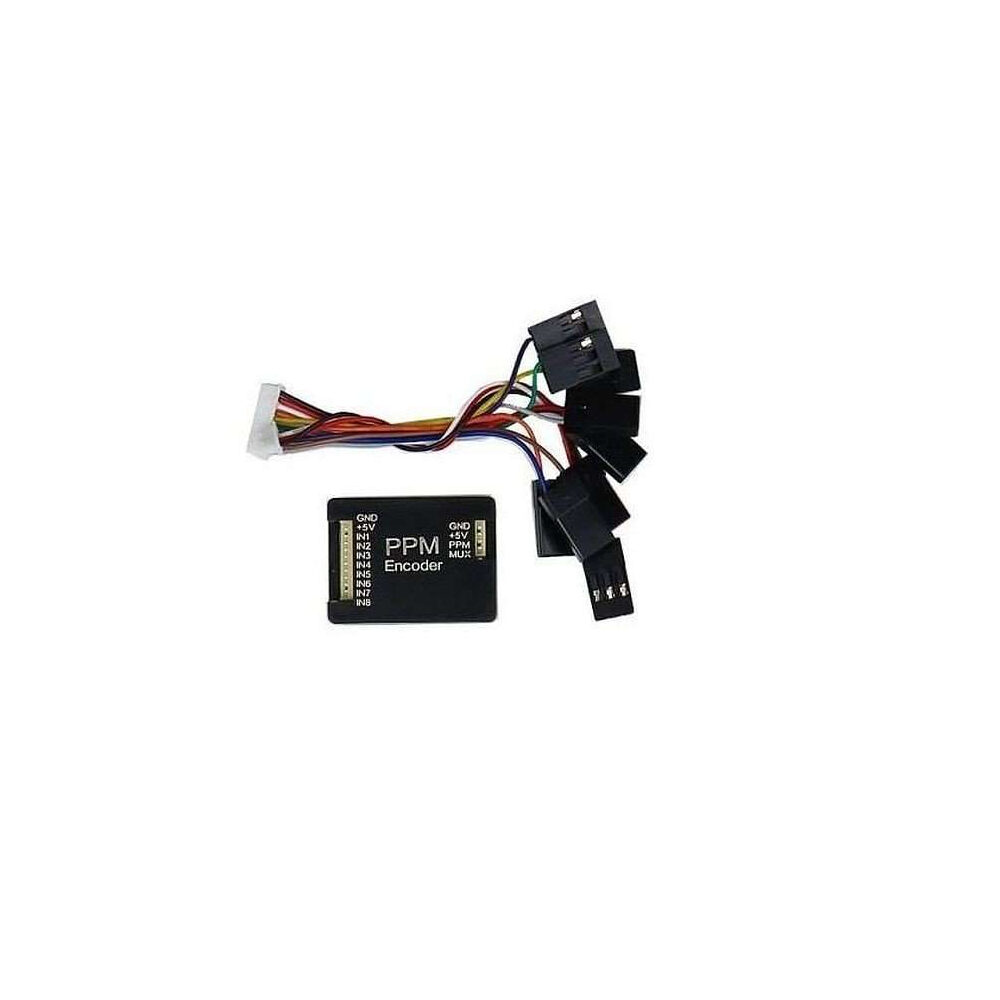

1 x Pixhawk PPM Encoder Module.
1 x JR plug 10P input end of the cable.
1x JR plug 4P output end of the cable.
The Pixhawk PPM Encoder Module is a compact interface that converts up to 8 individual PWM signals into a single Pulse Position Modulation (PPM) output. It is specifically designed to bridge standard RC receivers and PPM-only flight controllers such as Pixhawk or APM.
Key Features of Pixhawk PPM Encoder Module
Supports up to 8 PWM input channels for full RC control consolidation
Provides one PPM SUM output and one MUX output for flexible signal routing
Ultra-compact design (28 × 19 × 5 mm) and lightweight (10.5 g including wires)
Simple plug-and-play wiring—compatible with most PWM receivers
Ideal for Pixhawk, APM and other PPM-only flight controllers
Genuine product with fast shipping from Zbotic
Applications and Use Cases
Consolidating channels from a PWM RC receiver to feed a Pixhawk autopilot
Upgrading older PWM-only transmitters for use with modern PPM-only controllers
Building multi-rotor drones where cable reduction and reliability are critical
Integrating into fixed-wing UAVs or RC planes that require PPM input
Educational robotics projects demonstrating PWM to PPM signal conversion
Rapid prototyping of autonomous vehicles needing single-wire control
How to Use Pixhawk PPM Encoder Module
Connect each RC receiver’s PWM output to the corresponding input pins on the encoder, then run a single PPM SUM cable from the encoder’s PPM output into your flight controller’s PPM input port. Power the module through the receiver’s BEC line and configure your Pixhawk or APM to accept PPM signal input—no additional software is required.
Why Buy from Zbotic?
Genuine Products: All items sourced from authorized distributors
Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
Free Shipping: Free delivery on qualifying orders
COD Available: Cash on Delivery, UPI, cards, net banking
Technical Support: Expert help for setup and troubleshooting
Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How many channels can the Pixhawk PPM Encoder Module combine?
This module can merge up to 8 separate PWM inputs into one PPM SUM output, preserving all 8 control channels.
Is the PPM output compatible with both Pixhawk and APM controllers?
Yes, the PPM SUM output is fully compatible with Pixhawk, APM and any other flight controllers that require a PPM-type input.
What signal outputs are provided by this encoder?
It supplies a single PPM SUM output for consolidated control and a MUX port for advanced multiplexed signal applications.
The Pixhawk PPM Encoder Module is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
Central brain for drone stabilization and navigation
GPS waypoint missions for surveying
Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
Shipping & Delivery
Free shipping on orders above ₹999 across India
Dispatched within 1-3 business days
Expected delivery: 3-7 business days depending on location
Secure packaging to ensure safe transit of electronic components
Weight
0.01 kg
15 Days Warranty
Please note that this item is only covered by a standard supplier warranty against manufacturing defects for a period of 15days from the time of delivery. It is important to understand that only manufacturing defects are covered under this warranty, and any other issues will not be considered for reimbursement or replacement. We strongly advise inspecting the product upon delivery to ensure it meets your expectations. In case of any manufacturing defects, we guarantee reimbursement or replacement.
What voids warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
