GEPRC-GR1404 4500KV:

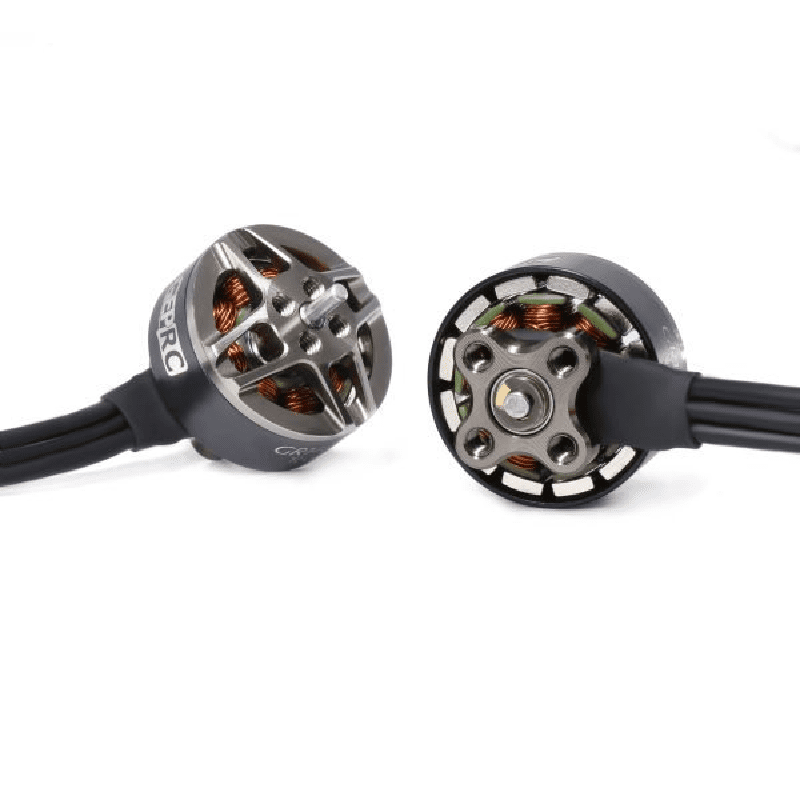

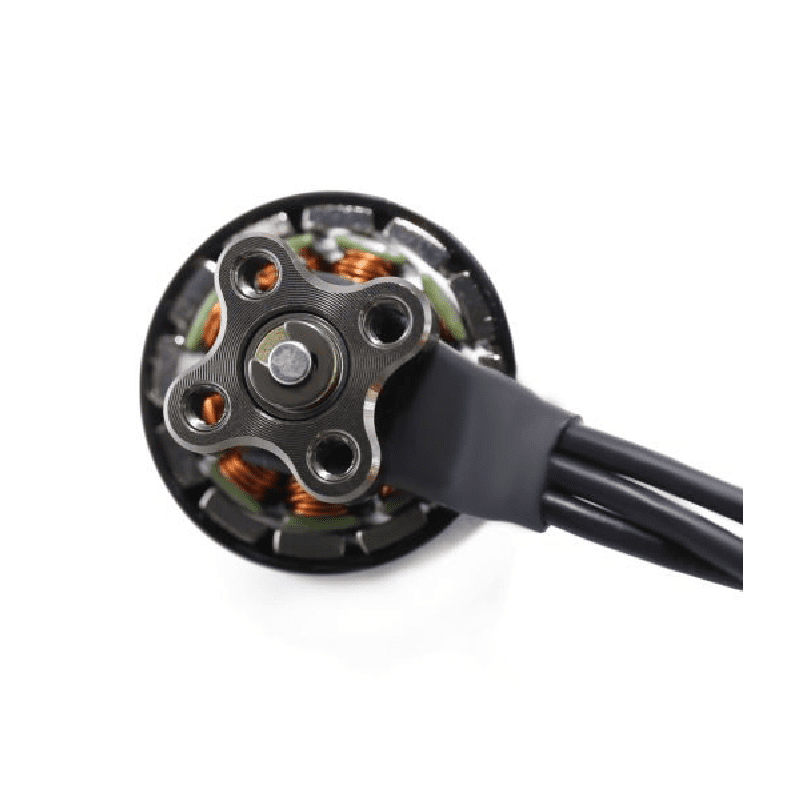

The GEPRC GR1404 4500KV brushless motor is a lightweight, efficient solution for micro FPV drones. Engineered for power and precision, it delivers up to 214W of continuous performance while maintaining smooth responsiveness and stability. Weighing just 9.8g, the motor features a 9N12P configuration, robust stator design, and supports 2–4S LiPo batteries. Ideal for 3-inch builds, it ensures dependable output with low idle current and great thermal efficiency.
Features:
- Ultra-lightweight motor optimized for micro drones.
- Excellent for 2–4S LiPo battery builds.
- Low idle current for efficient power usage.
- Strong 9mm mounting pattern for stability.
- Internal resistance ensures low heat build-up.
Specification
| Motor KV (RPM/V): | 4500 |
|---|---|
| Model No.: | GR1404 |
| Compatible LiPO Batteries: | 2-4S LiPo |
| Shaft Diameter (mm): | 1.5 |
| Stator Height | 4mm |
| Stator Diameter | 14mm |
| Shipping Weight | 0.7 kg |
Package Includes:
- 1 x GEPRC-GR1404 4500KV
GEPRC-GR1404 4500KV Overview
The GEPRC-GR1404 4500KV is a brushless motor engineered specifically for 3-inch micro FPV drones. With a 9N12P stator configuration and precision-built design, it delivers up to 214W of continuous power, smooth throttle response and exceptional stability on 2–4S LiPo setups.
Key Features of GEPRC-GR1404 4500KV
- High 4500KV rating for rapid RPM and punchy acceleration

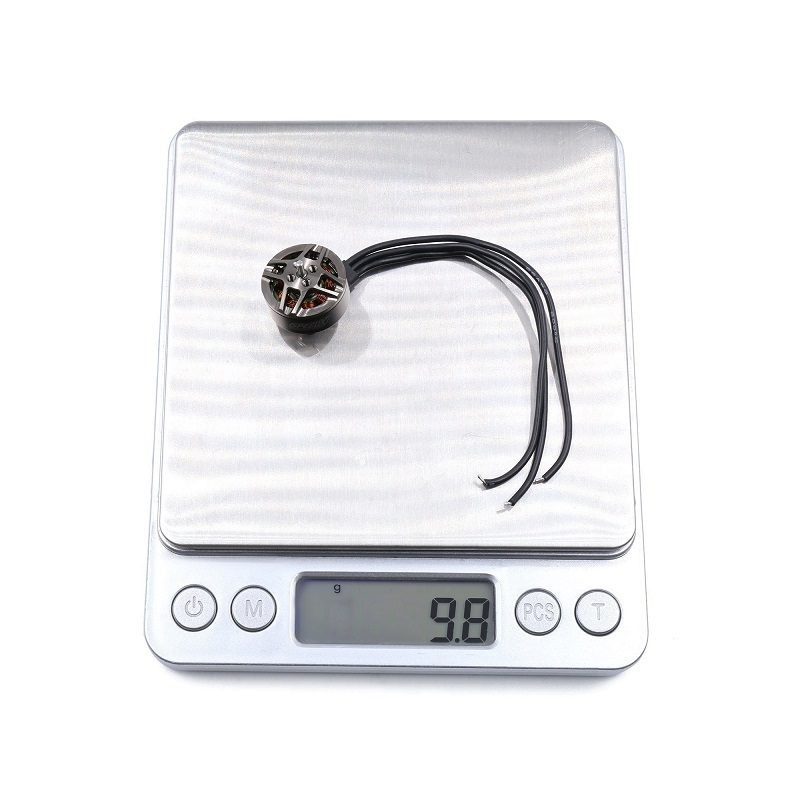

- Ultra-lightweight 9.8 g construction to minimize overall drone mass
- Supports 2S–4S LiPo batteries for flexible voltage options
- Strong 9 mm mounting pattern ensures rock-solid attachment
- Low idle current and optimized internal resistance for cooler operation
- Fast shipping from Zbotic—dispatch within 24 hours
Applications and Use Cases
- High-agility 3-inch FPV freestyle builds
- Lightweight micro racing drones under 250 g
- Cinewhoop rigs needing smooth power delivery
- Indoor obstacle-course flyers
- Experimental long-range micro quad prototypes
How to Use GEPRC-GR1404 4500KV
Mount the GR1404 to your 3-inch drone frame using the 9 mm bolt holes, attach the prop adapter, then solder motor leads to a compatible 20–30 A brushless ESC. Configure ESC parameters and throttle curves in your flight controller software, connect a 2–4S LiPo battery, and perform a motor test to ensure smooth startup and balanced RPM across all axes.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What prop size works best with the GR1404 4500KV?
The GR1404 performs optimally with 3-inch props (e.g., 3×3″ or 3×4.5″) to balance thrust, efficiency and motor loading.
Which ESC amperage is recommended?
A 20 A–30 A brushless ESC is ideal, supporting the motor’s continuous draw up to 214 W while maintaining headroom for bursts.
Will this motor fit standard micro frames?
Yes, the 9 mm mounting hole pattern is compatible with most 3-inch micro FPV drone frames available on the market.
Servo Motor PID Control with Arduino: Smooth Positioning
Every robotics builder eventually wants smoother, more precise motion from their motors. Whether you are building a robotic...
Read More →
FPV Drone Crash Repair Guide: Fix Arms, Motors and ESCs Like a Pro
Table of ContentsPost-Crash Assessment: What to Check FirstRepairing and Replacing Broken ArmsDiagnosing Motor DamageMotor Replacement Step-by-StepDiagnosing ESC DamageESC...
Read More →
Servo Motor Horn Types: Propeller, Disc & Arm for Robotics
Table of ContentsIntroduction: Why the Horn Matters in Servo DesignHow a Servo Motor WorksComplete Guide to Servo Horn...
Read More →Technical Specifications
| Brand | GEPRC |
|---|---|
| Model | GEPRC-GR1404 |
| KV Rating | 4500KV |
| SKU | AI6906 |
| Weight | 0.0208 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GEPRC-GR1404 4500KV is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
