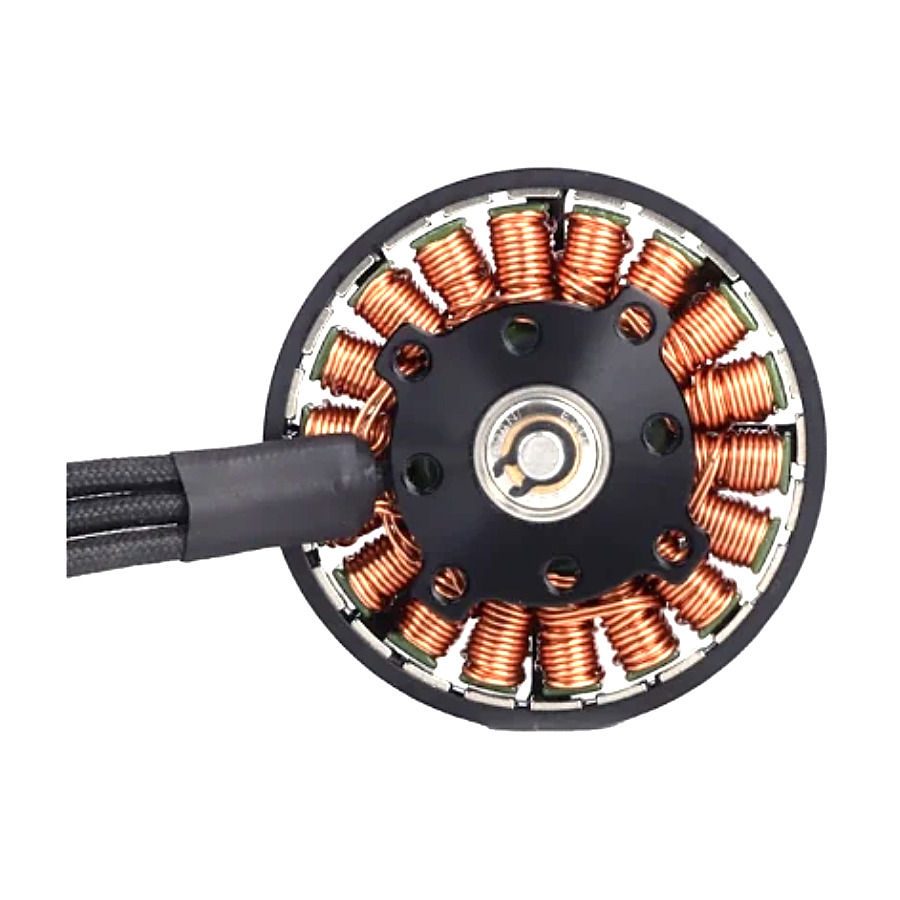

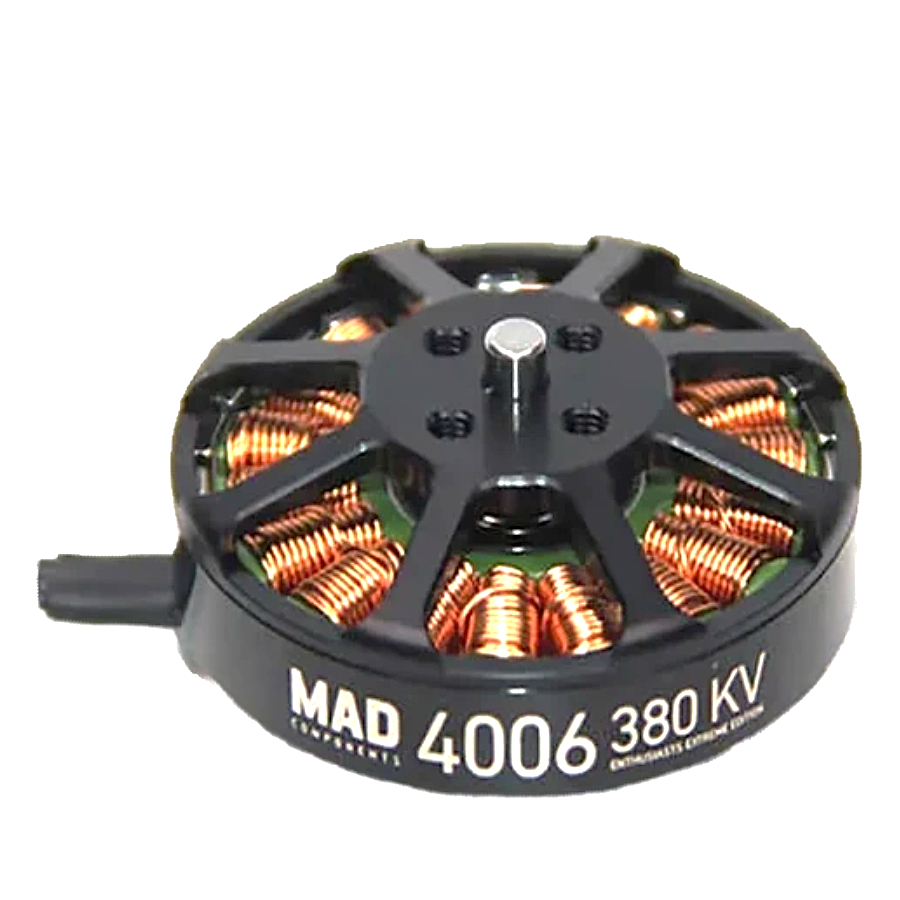

MAD Motor 4006 EEE 380 KV
Description:
The MAD 4006 EEE 380KV FLUXER PRO Drone Motor is a high-efficiency brushless motor engineered for precision drone applications, offering an unmatched thrust-to-weight ratio of 30.5:1. Weighing just 72g, it delivers up to 2.2 kgf of thrust, making it ideal for heavy-lift drones, FPV racing, and industrial UAVs. Optimized for 6S LiPo systems and compatible with 13–16” carbon fiber props, it excels in low-RPM, high-torque performance, increasing flight time while reducing vibrations to less than 5mg. Perfectly suited for cinematography, mapping, inspection, and agricultural drones, the MAD 4006 Drone Motor is built for professionals demanding efficiency, power, and long-term reliability in extreme conditions.
Features:
- High thrust-to-weight ratio (30.5:1)
- Max thrust: 2200g with only 72g motor weight
- Optimized for 6S LiPo batteries
- High-efficiency design (>81%) for longer flights
- Low-RPM high torque for heavy payloads
- Ultra-precise rotor balancing (<5mg vibration)
Specification:
| Item Type: | Drone motor |
|---|---|
| Model No: | 4006 EEE |
| Motor KV (RPM/V): | 380 |
| Maximum Thrust (gm) | 2200 |
| Max Thrust | 2.2kg |
| Voltage Compatibility | 6S LiPo |
| Max Current (A) | 17.8 |
| Max Power Output (W) | 419 |
| Torque: | 0.43Nm |
| Compatibility: | 13”–16”(Propeller ) |
| Shaft Diameter (mm): | 3.80 |
| Outer Diameter (mm): | 44.34 |

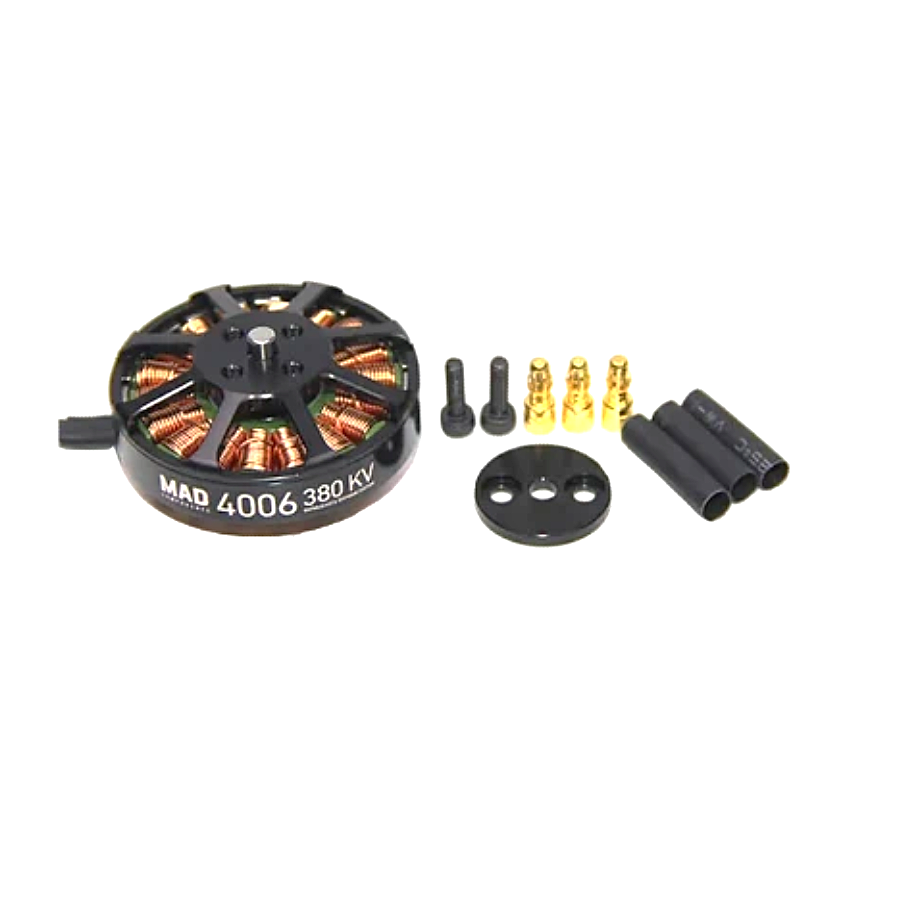

Package Includes:
1 x MAD Motor 4006 EEE 380 KV
1 x Propeller Plate
3 x 3.5mm Bullet Connector
3 x Heat Shrinkable Tube
6 x Screws
1 x Adapter Ring
Stepper Motor Current Setting: A4988 Vref Calculation Guide
Table of ContentsWhy Vref Matters for Stepper MotorsA4988 Driver OverviewVref Formula ExplainedStep-by-Step Vref Setting ProcedurePractical Example: NEMA17 MotorHeat,...
Read More →
Miniature Pump Hydroponics: Automated Nutrient Dosing System
Hydroponics grows plants in nutrient-rich water instead of soil, and automating the nutrient dosing process with peristaltic pumps...
Read More →
Motor Driver Shield for Arduino: Top 5 Picks India 2026
Table of ContentsWhy Use a Motor Driver Shield?Types of Motor Driver ShieldsTop 5 Motor Driver Shields in India...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| KV Rating | 380KV |
| SKU | AI8078 |
| Weight | 0.27625 kg |
| Availability | In Stock |
Applications & Use Cases
The MAD Motor 4006 EEE 380 KV is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine MAD COMPONENTS product sourced from authorized channels
