In drone operation, the transmitter is a crucial component. It’s impossible to fly a multirotor without one, as it sends radio signals to a Radio Receiver, which then controls the aircraft or multirotor remotely.
FlySky introduces its latest 6-channel 2.4GHz system, the FS-T6. Building on the success of the CT6B, FlySky unveils the FS-T6, brimming with cool and convenient features that make operating this transmitter straightforward and instinctual.
The FlySky FS-T6 6CH Transmitter, paired with the FS-R6B Receiver, is ideal for sports modelers who desire the capabilities of a programmable transmitter without unnecessary extra features. It encompasses all vital features and programmable parameters to support an array of helicopters, gliders, and airplanes. Additionally, it can store 20 models, enabling users to save an entire fleet of aircraft.

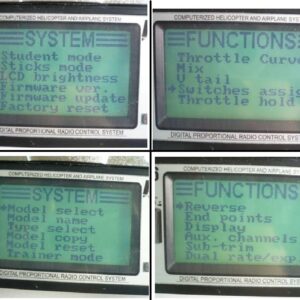

Programming the FS-T6 is a breeze, thanks to its simple click and scroll dial, which facilitates quick menu navigation and adjustment. The large, backlit LCD screen displays large fonts for easy reading, and the streamlined menus are designed to be user-friendly, even for first-time programmers. Key programming functions, such as throttle curves and expo, are graphically represented, providing a clear visualization of the adjustments being made.
The FlySky AFHDS (Automatic Frequency Hopping Digital System) 2.4GHz system has numerous benefits. It boasts robust active and passive anti-jamming capabilities and is highly energy-efficient with exceptional receiver sensitivity.
This 2.4GHz system operates outside the frequency range of interference generated by other electronic components in your model, like the brushless motor, speed controller, servos, or metal-to-metal noise, thus preventing the interference and glitching common in traditional radio systems.
DC Power Jack For External Power Supply
In-Built AAA Battery Adapter Slot
Sporty joysticks with large backlight LCD screenÂ
Schematic
Features:
- The newest 6 channel 2.4GHz system with lots of cool and convenient features makes the operation of this transmitter simple and instinctive.
- The FlySky FS-T6 is the perfect transmitter for sports modelers who want the power of a programmable transmitter but don’t necessarily need a lot of excess features they do not use.
- It includes all of the important features and programmable parameters to support a variety of helicopters, gliders, and airplanes.
- It has the ability to store 20 models allowing the user to save a whole fleet of aircraft.
Programming the FS-T6 is very easy and intuitive. - It is implemented with a simple click and scroll dial allowing quick and easy menu navigation and manipulation.
- The large backlit LCD screen with large fonts is easy to read and the simplified menus will immediately put first-time programmers at ease.
- Many programming functions like throttle curves and expo are graphically depicted to give you a clearer picture of the changes you’re making.
Specification:
FS-T6 6CH Transmitter
- Channels: 6
- Model type: glider/heli/airlane
- RF range: 2.4000-2.485GHz
- Bandwidth: 500KHz
- Band: 160
- RF power: less than 20 dBm
- 2.4G system: AFHDS
- Code type: GFSK
- Sensitivity: 1024
- Low voltage warning: yes(less than 9V)
- DSC port: yes(PS2; output: PPM)
- Charger port: yes
- Power: 12V DC(1.5AA*8)
- Weight:590g
- ANT length: 26mm
- Size: 191*93*302mm
- Color: black
- Certificate: CE0678, FCC
FS-R6B Receiver
- Item Name: FS-R6B Receiver
- Brand Name: Flysky
- Channels: 6 Channels
- Model type: heli/airplane
- RF power: less than 20DBm
- modulation: GFSK
- Code type: PCM
- Sensitivity: 1024
- Low voltage warning: LED
- Charger port: yes
- ANT length: 26mm
- Frequency: 2.4G
- Power: 5V DC(1.5V AAA*4)
- weight: 25g
- size: 30*25*8mm
- Certificate: CE,FCC,RoHS

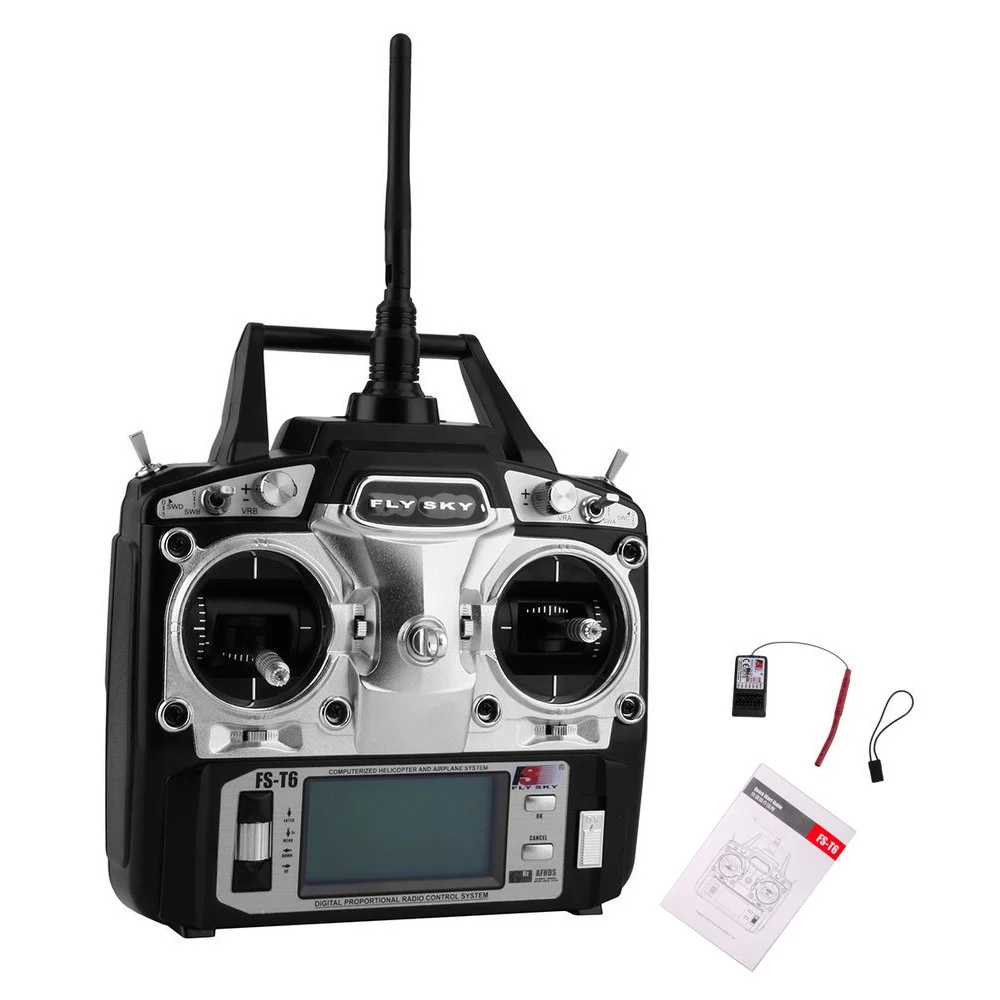

Package Includes:
1 x FlySky FS-T6 6CH Transmitter Remote
1 x FS-R6B 6-channel Receiver
1 x User Manual
