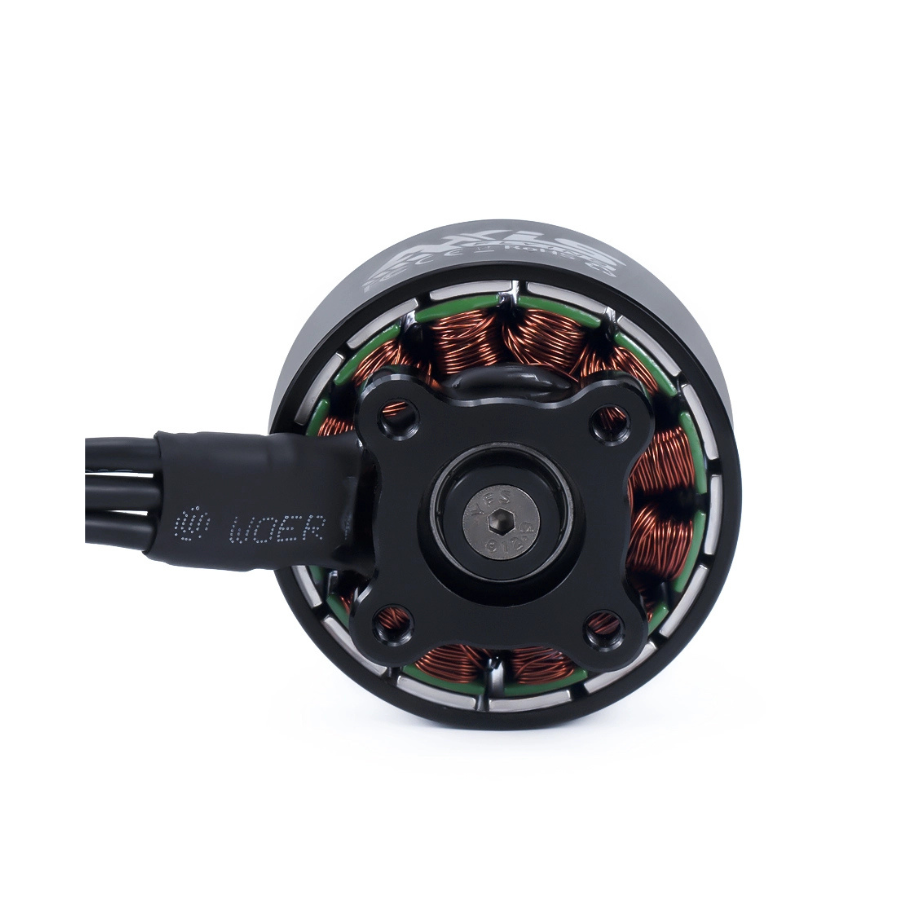

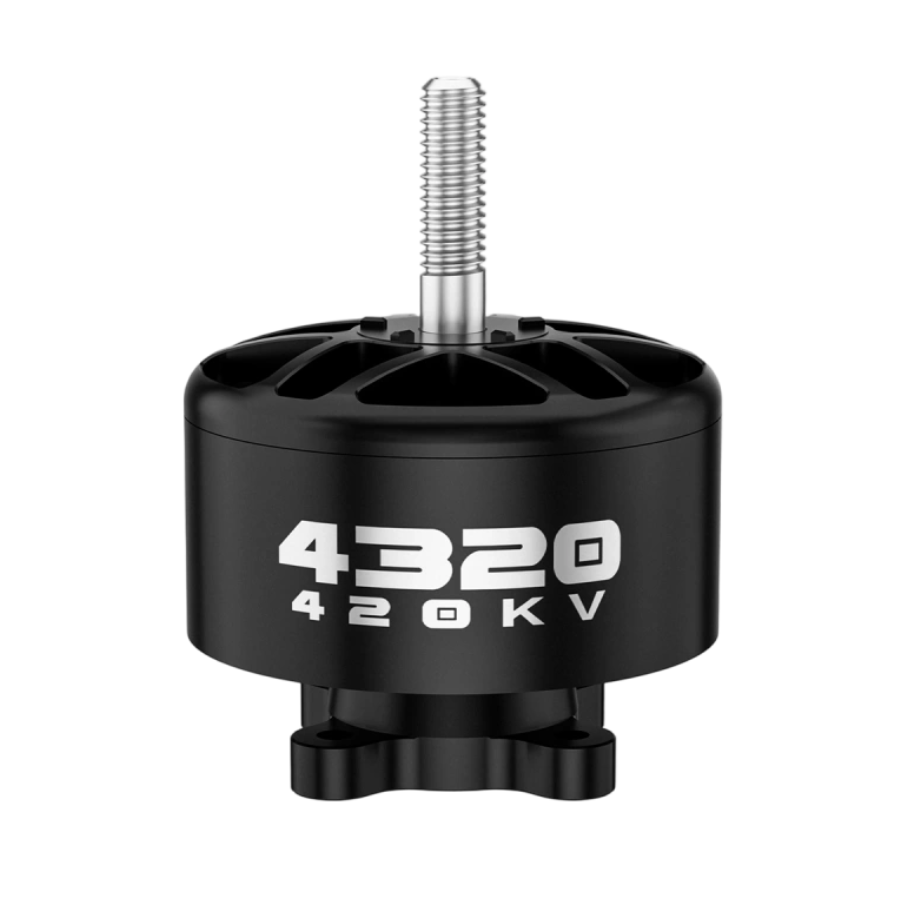

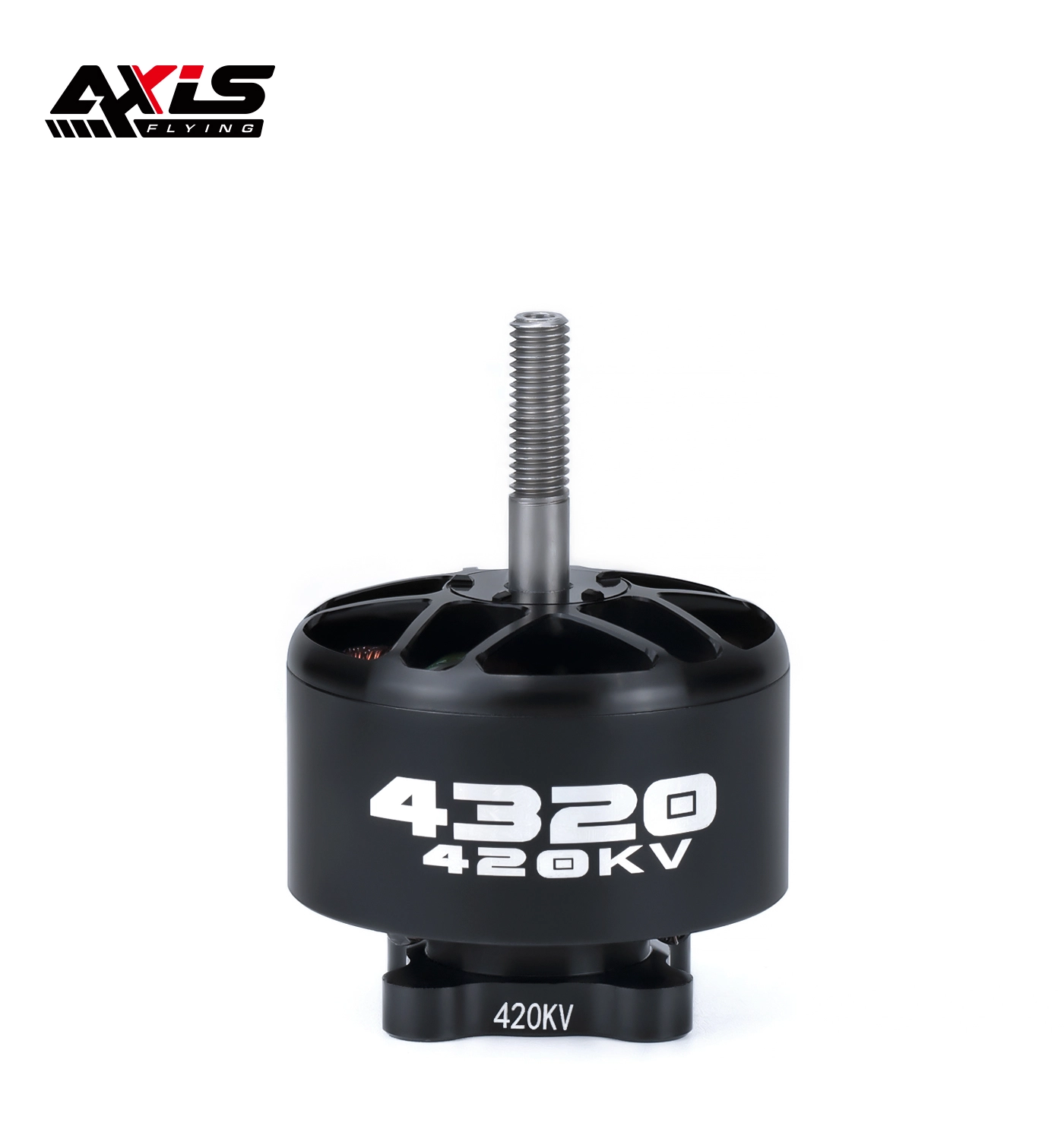

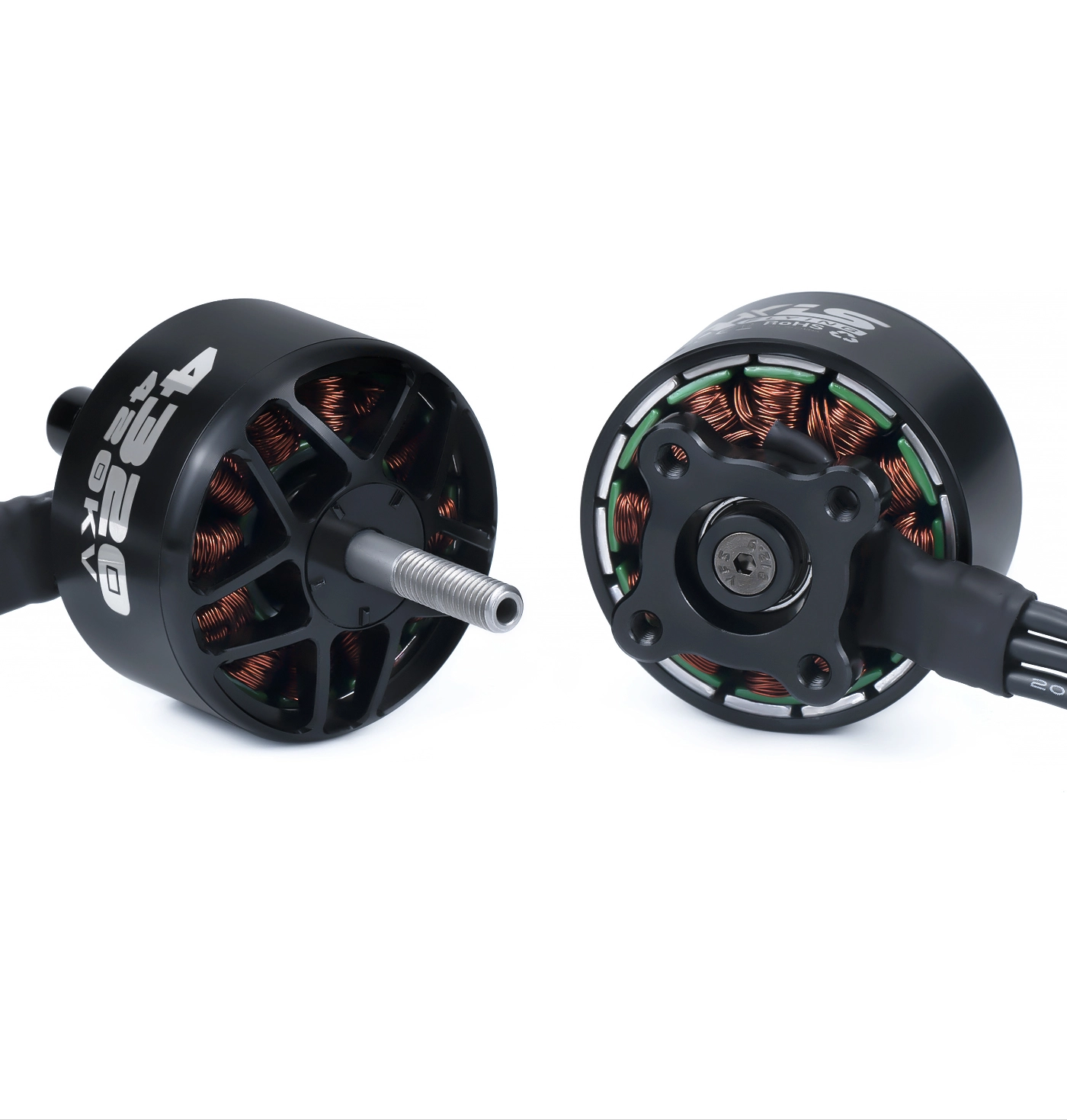

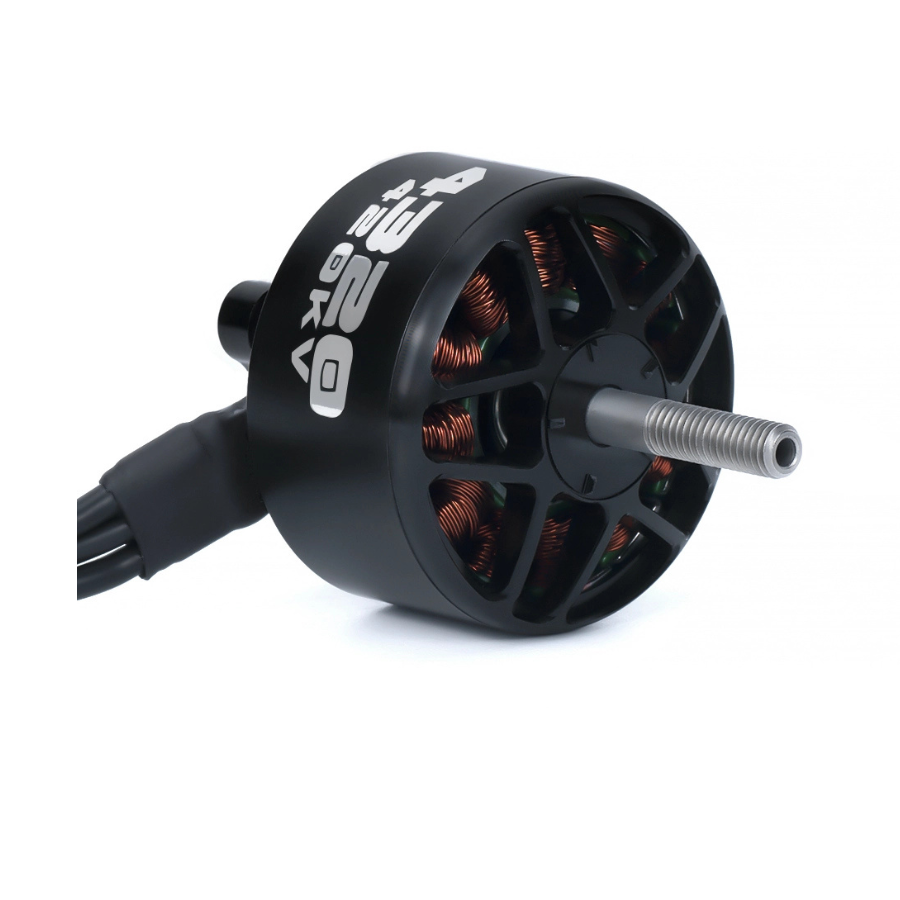

Axisflying AZ4320 6-8S 420KV Brushless Motor
Description:
The AXISFLYING AZ4320 420KV Brushless Motor is designed for high-performance FPV drones, UAVs, and heavy-lift applications. Supporting 6–8S LiPo batteries, it delivers reliable and efficient power for compatible propeller setups.
The AZ4320 is specially developed for 13‑inch long‑range, cinematic and heavy‑loading FPV drones, delivering ultra‑high torque, strong thrust and high efficiency to meet professional heavy‑load flight requirements.
Feature
- AZ series professional heavy‑load motor, designed for 13‑inch FPV drones
- Perfect for long‑range, cinematic shooting and heavy‑loading missions
- 12N14P structure with high‑strength arc magnets for super torque
- High‑temperature enameled wire, stable under high power & long flight
- Imported high‑speed bearings, long service life & strong durability
- Large‑current wiring design for efficient power output
- High efficiency & low heat, ideal for large‑frame long‑endurance flight
Recommended Configuration
- Motor: Axisflying AZ4320 420KV
- Voltage: 6–8S LiPo
- Props: HQ15×7‑3
- Application: 13‑inch long‑range, cinematic, heavy‑loading drones

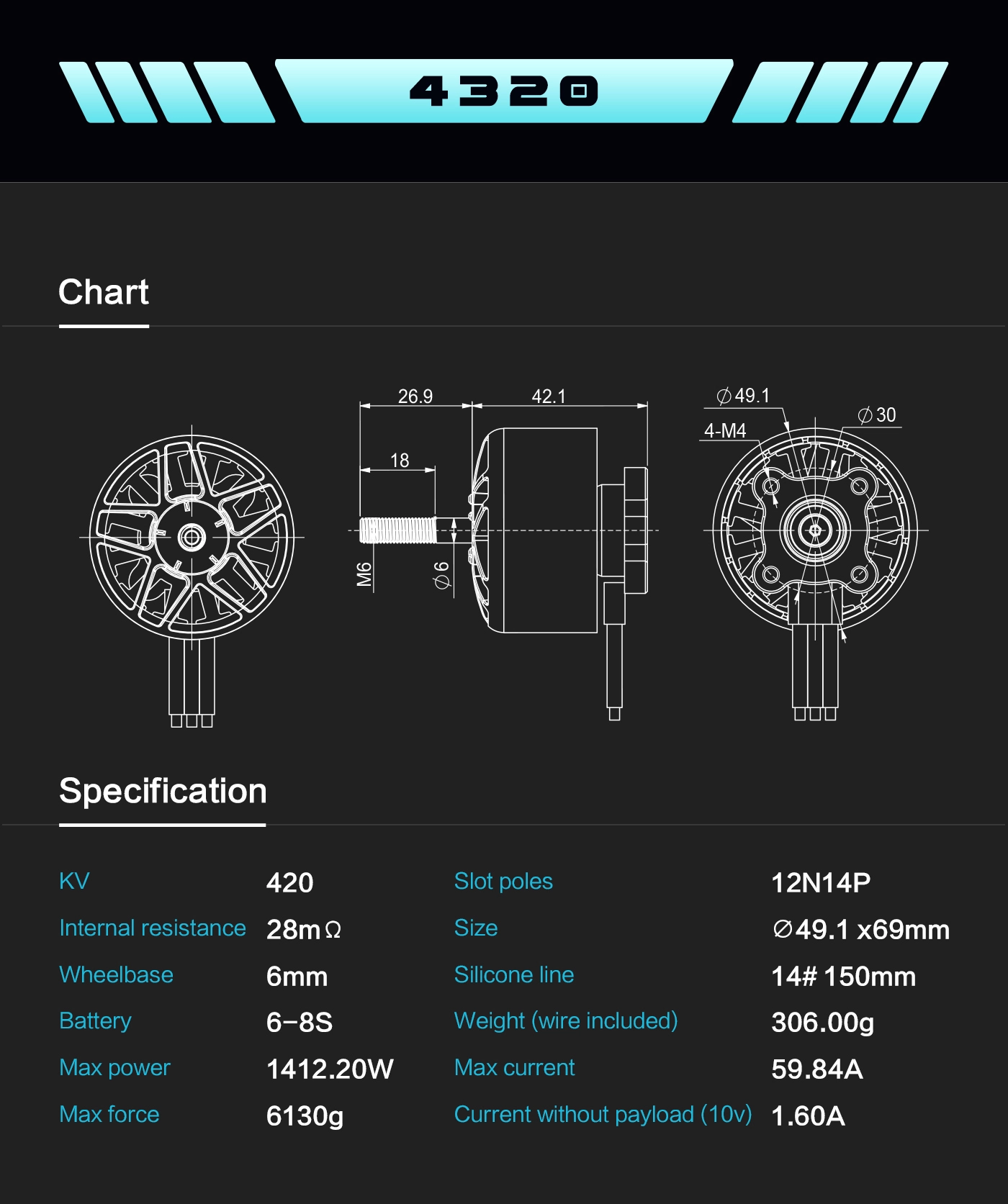

Specifications
- Model: AZ4320
- KV: 420KV
- Configuration: 12N14P
- Internal Resistance: 28mΩ
- Stator Size: 49.1×69mm
- Shaft Diameter: 6mm
- Silicone Wire: 14# 150mm
- Rated Voltage: 6–8S
- Weight (with wire): 306.00g
- Max Power: 1412.20W
- Peak Current: 59.84A
- Max Thrust: 6130g
- Idle Current (10V): 1.60A
- Mount: 4×M4
Package Include:
1x AZ4320 420KV Brushless Motor
1x Mounting screws & accessories set
Motor Driver PWM Frequency: Impact on Performance & Efficiency
Table of ContentsIntroductionPWM Basics for Motor ControlHow PWM Frequency Affects Motor BehaviourAudible Noise and the 20 kHz RuleDriver...
Read More →
Drone Winch System: Pick and Place Payload Delivery UAV
Drone Winch System: Pick and Place Payload Delivery UAV The idea of drones that can autonomously pick up...
Read More →
GPS Rescue Mode Setup: Return-to-Home Safety Feature in Betaflight
GPS Rescue Mode in Betaflight: Complete Setup Guide for Return-to-Home Safety Losing your FPV quad in a tree,...
Read More →Technical Specifications
| Brand | Axis Flying |
|---|---|
| Model | AZ4320 |
| Cell Configuration | 8S |
| KV Rating | 420KV |
| SKU | AI4983 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Axisflying AZ4320 6-8S 420KV Brushless Motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine Axis Flying product sourced from authorized channels
