Description:

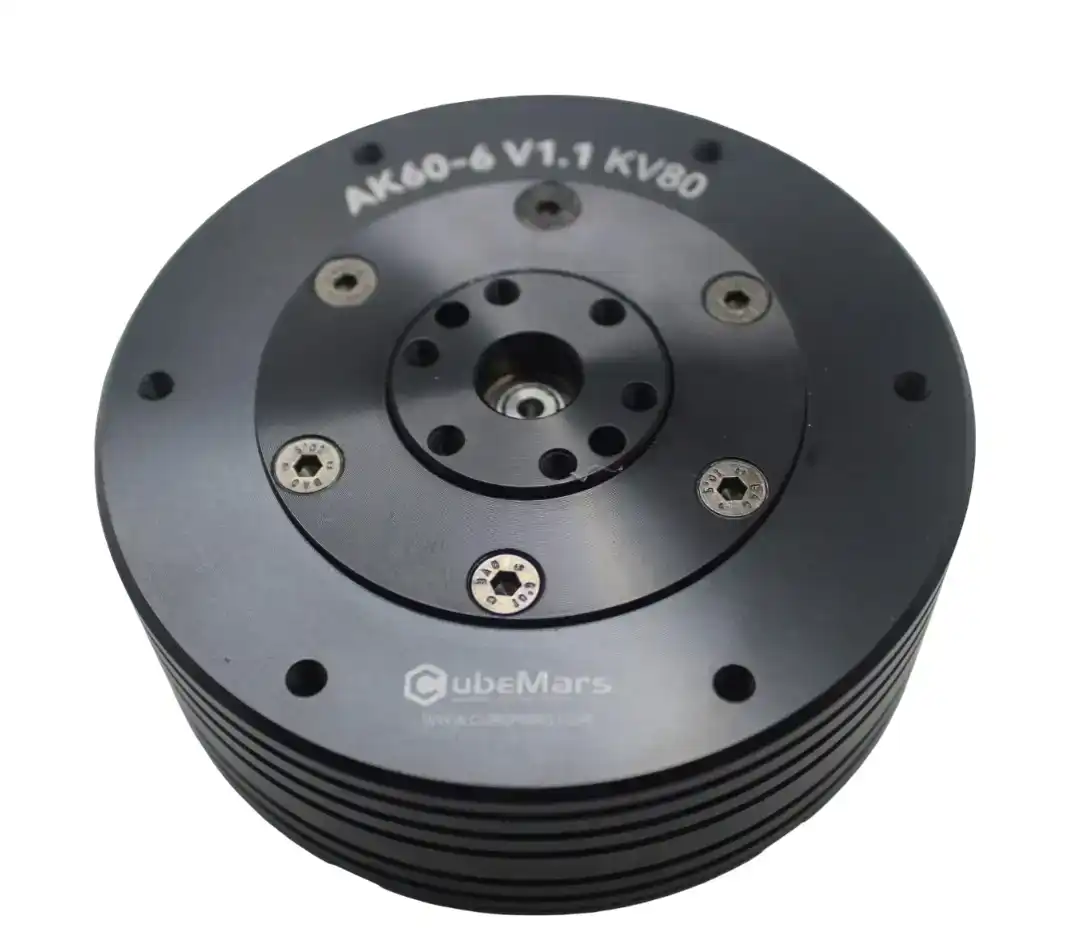

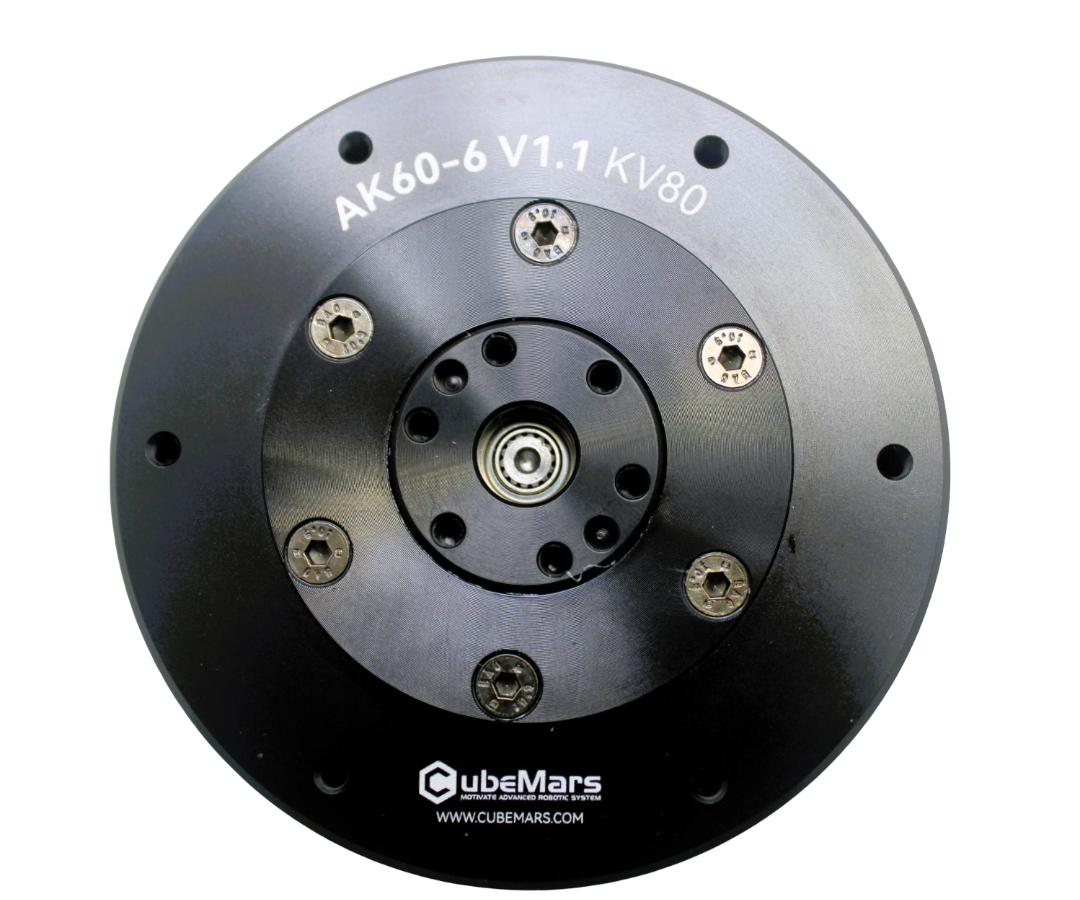

Introducing the T Motors AK60-6 V1.1 80KV Cube Mars Motor, a cutting-edge innovation that seamlessly combines a high-performance brushless DC motor, a proprietary planetary reducer, an encoder, and an integrated drive. This integration ensures smooth operation with exceptional torque output. With a portable drive solution, the AK60-6 V1.1 Power Module supports both servo and MIT modes, offering versatility in application. It revolutionizes traditional approaches by achieving synchronized control of position, velocity, and acceleration, automatically adapting to PID settings. This streamlined approach eliminates complexity, enabling efficient and precise targeting.
Features:
- Integrates a high-performance brushless DC motor
- Self-developed planetary reducer, and encoder
- Ensuring robust performance in various applications
- Supports both servo and MIT modes
- Ensures smooth operation and efficient performance
Specification:
| Model | T Motors AK60-6 V1.1 80KV Cube Mars Motor |
|---|---|
| Operating Voltage (V) | 24 |
| Rated Torque(N-m) | 3 |
| Rated Speed (RPM) | 233/420 |
| Operating Temperature (°C) | -20~50 |
| Winding Type | star |
| Insulation Class | 500V 5mA/2s |
| Insulation Resistance (MΩ) | 500V10MQ |
| Number of Phase | 3 |
| Reduction ratio | 6:1 |
| Temperature sensor | NTC MF51B 103F3950 |
Package Includes:
- 1 x T Motor AK60-6 V1.1 80KV Cube Mars Motor (without driver board)
Stepper Motor Current Setting: A4988 Vref Calculation Guide
Table of ContentsWhy Vref Matters for Stepper MotorsA4988 Driver OverviewVref Formula ExplainedStep-by-Step Vref Setting ProcedurePractical Example: NEMA17 MotorHeat,...
Read More →
BEC and Voltage Regulator on Drones: Power Distribution Guide
Table of ContentsWhat is a BEC? Understanding Battery Eliminator CircuitsLinear vs Switching BEC: Which One for Your Drone?Power...
Read More →
DIY Drone Payload Release Mechanism: Step-by-Step Build
Table of ContentsIntroduction: Why Add a Payload Release to Your Drone?Types of Payload Release MechanismsComponents RequiredBuilding a Servo-Based...
Read More →Technical Specifications
| Brand | T -Motor |
|---|---|
| Model | AK60-6 |
| KV Rating | 80KV |
| SKU | AI7911 |
| Weight | 0.65 kg |
| Availability | In Stock |
Applications & Use Cases
The T Motor AK60-6 V1.1 80KV Cube Mars Motor (without driver board) is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine T -Motor product sourced from authorized channels
