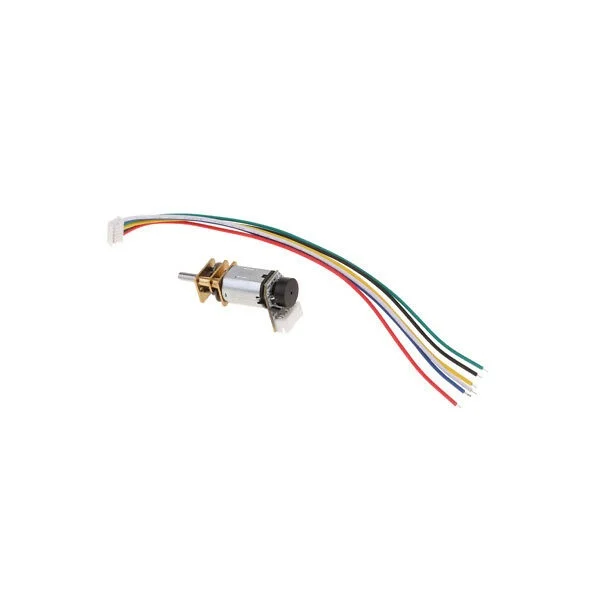

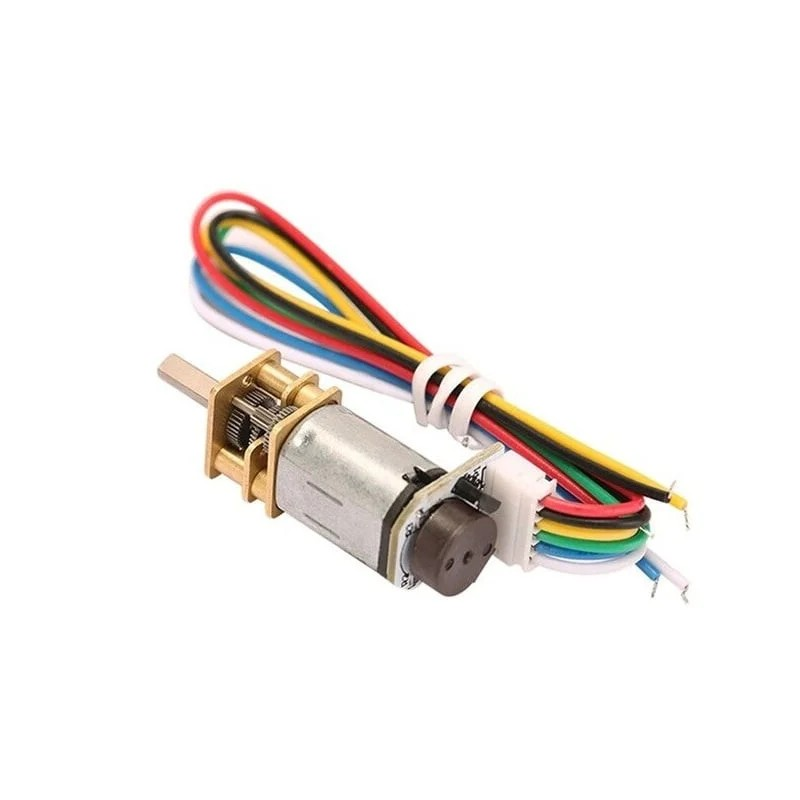

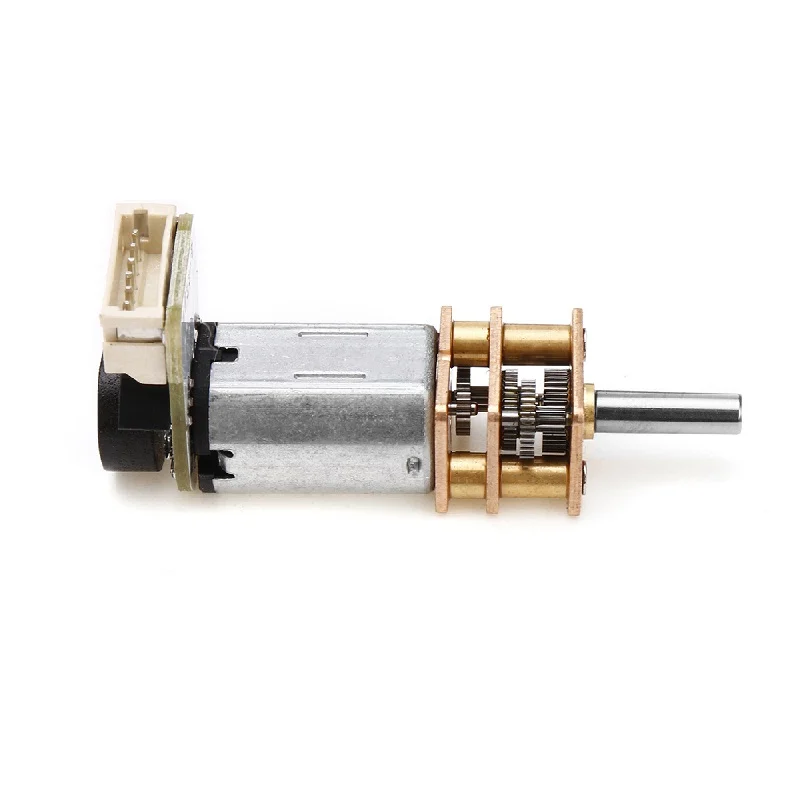

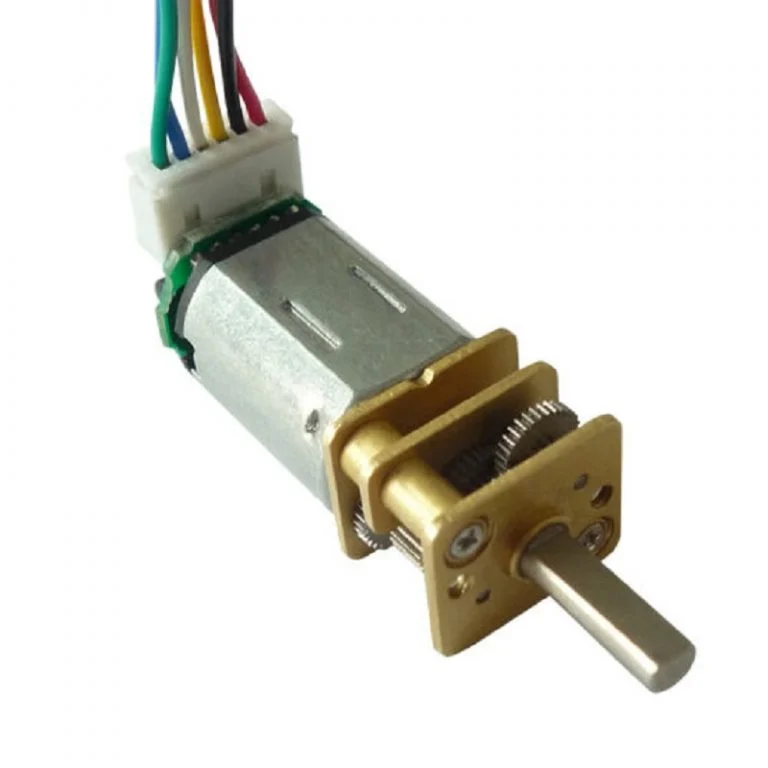

This is the Red variant of the GA12-N20 12V 1000RPM Micro DC Reducer Motor in N20 Motor with Encoder. Available at ₹284.38 (₹241.00 + GST) with free shipping across India.
Looking for Ga12 Motor 12v Ga12-n20 526895? GA12-N20 12V 1000RPM Micro DC Reducer Motor is available at Zbotic with fast shipping across India.
This is a light-weight, high-torque N20 12v 1000 RPM Metal Gear Micro DC Motor with Precious Metal Brush. It is suitable for various industrial, home appliance and hobby applications. It has an all-metal gearbox assembly that provides amazing torque for its size. The motor uses precious metal brushes instead of carbon brushes, which increases its working life.
Compared to other motors of similar size, with metal or plastic gears, the N20 all-metal geared motor has a much higher torque-to-size ratio. It outperforms the BO motor series 1 and series 2 and the centre shaft 12 V motors in terms of torque, sturdiness, reliability and working life. The specifications below confirm this.
The N20 motor is ideal for small IOT (Industrial IOT) products such as electric locks, webcam pan-tilt and other similar actuators that need good torque in limited space and weight. For hobby projects such as robotic cars, micromouse, electric boats and other small motor-related projects, where power consumption and optimal pricing are important, the N20 all-metal gear motor is a perfect fit.
This N20 encoder motor can help to control the motor position accurately.
This N20 Encoder motor is compatible with our PID Servo controller Drive.
specification-
Motor Specifications:
Model No: GA12 N20
Motor Type: Center Shaft DC Motor
Base Motor RPM: 30000
RPM at output shaft: 1000RPM
Rated Voltage: 12V DC
Gear ratio: 1:30
No Load Current: 10 mA
Rated Current: 40 mA
Stall Current: 1 A
Rated Torque: 0.1 Kgcm
Stall Torque: 2 Kgcm
Shaft Type: D-type Single Side
Shaft Diameter (mm): 3mm
Shaft Length (mm) : 9mm
Weight (gm): 15
Encoder Connections:
Red – Motor +
White – Motor –
Yellow – Encoder B
Green – Encoder A
Black – Vcc (5 V)
Blue – Gnd
Package Includes:
1 x GA12-N20 12V 1000RPM Micro DC Reducer Motor
GA12-N20 12V 1000RPM Micro DC Reducer Motor Overview
The GA12-N20 12V 1000RPM Micro DC Reducer Motor is a compact, high-torque geared motor designed for precise low-speed applications at 12 V. Its all-metal gearbox and precious metal brushes deliver exceptional durability, making it ideal for industrial controls, home appliances and hobby robotics.
Key Features of GA12-N20 12V 1000RPM Micro DC Reducer Motor
- 12 V DC operating voltage with nominal speed of 1000 RPM
- All-metal gearbox assembly for superior torque-to-size ratio
- Precious metal brushes for extended lifespan and stable conductivity
- Lightweight N20 form factor, easy to integrate into compact designs
- Higher torque and reliability compared to Series 1/2 BO and centre-shaft motors
- Genuine product, fast shipping across India from Zbotic
Applications and Use Cases
- Micro or desktop robotic arms requiring precise motion control
- Automated window or vent openers in smart home setups
- Miniature conveyor belts and turntables for prototyping
- DIY hobby projects like robotic rovers and grippers
- Small pump or mixer drive where high torque is needed at low speed
- Educational electronics kits demonstrating geared motor principles
How to Use GA12-N20 12V 1000RPM Micro DC Reducer Motor
Mount the GA12-N20 motor securely using M2 mounting holes or a compatible bracket. Connect a regulated 12 V DC power supply, ensuring sufficient current capacity for startup and stall conditions. Wire the positive and negative leads to your controller or switch, then integrate the motor output shaft into your mechanism using a suitable coupling. Test operation at no-load before applying full mechanical load to confirm smooth rotation and alignment.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What power supply is needed for the GA12-N20 motor?
The motor is designed for a stable 12 V DC supply. Use a regulated source capable of supplying the stall current to prevent voltage drops and ensure consistent 1000 RPM performance.
How do precious metal brushes benefit this motor?
Precious metal brushes exhibit lower wear rates and better electrical contact than carbon brushes, resulting in longer operational life and reduced maintenance over thousands of running hours.
Can the GA12-N20 handle continuous high-load operation?
Yes, thanks to its all-metal gearbox and sturdy construction, the GA12-N20 delivers high torque for extended periods. However, proper heat dissipation and load management are recommended for continuous heavy-duty use.
Solenoid Guide: Door Locks, Valves, and Automation Projects
A solenoid is an electromechanical device that converts electrical energy into linear motion. When you energise the coil,...
Read More →
Motor Speed Sensor: Optical vs Magnetic Encoder Comparison
Choosing the right motor speed sensor can make or break a robotics or automation project. Whether you're building...
Read More →
Gear Reduction Motor: How to Calculate Output Speed & Torque
If you've ever built a robot arm, an automated sliding door, or a motorised camera gimbal, you've probably...
Read More →Technical Specifications
| Model | GA12-N20 |
|---|---|
| Operating Voltage | 12V |
| Speed | 1000 RPM |
| Color | Red |
| SKU | AI6366 |
| Weight | 0.0156 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GA12-N20 12V 1000RPM Micro DC Reducer Motor is a versatile n20 motor with encoder used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
