Product Description

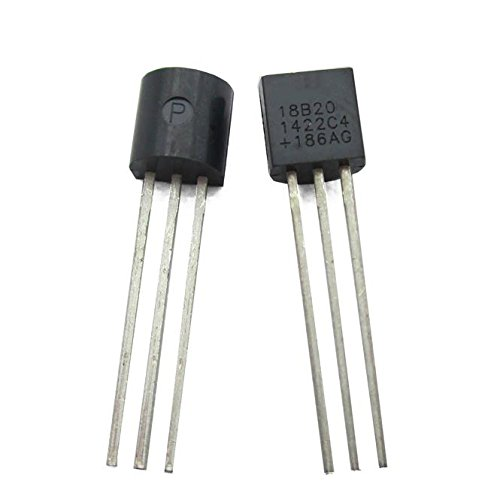

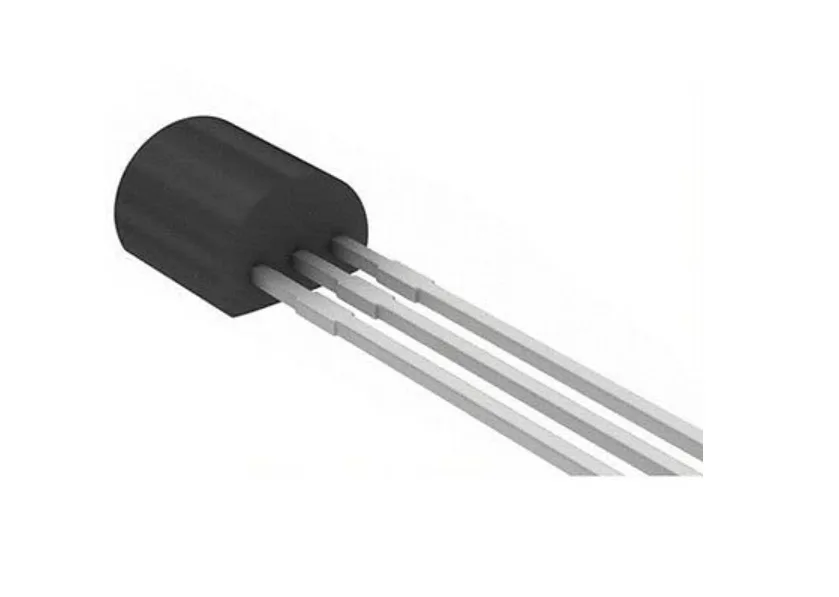

3-pin 1-Wire Programmable Resolution Digital Thermometer
The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with non volatile user-programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire bus that by definition requires only one data line (and ground) for communication with a central microprocessor.
It has an operating temperature range of -55°C to +125°C and is accurate to ±0.5°C over the range of -10°C to +85°C. In addition, the DS18B20 can derive power directly from the data line (“parasite power”), eliminating the need for an external power supply.
Features
- Unique 1-wire interface requires only one port pin for communication
- Packaging: TO-92
- Voltage: 3V to 5.5V
Specification
| Specification | Value |
|---|---|
| Package | TO-92 3 |
| Accuracy | ±2°C(Max) |
| Interface Type | 1-Wire |
| Output Type | Digital |
| Family | DS18B20 |
| Function | Temp Sensor |
| Resolution | 12Bit(Max) |
| Minimum Input Voltage | 3V |
| Input Voltage | 3.3V, 5V |
| Maximum Input Voltage | 5.5V |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | 125°C |
| Mounting | Through Hole |
| Pins | 3 |
| Width | 3.94mm(Max) |
| Height | 4.95mm(Max) |
| Product Length | 4.95mm(Max) |
| Product Type | Temp Sensor |
Package Includes
- Â 1 x DS18B20 Programmable Resolution
