Thermoelectric Peltier Heatsink DIY Kit

Looking for Thermoelectric Kit? Thermoelectric Peltier Heatsink DIY Kit is available at Zbotic with fast shipping across India.

Thermoelectric Peltier Heatsink DIY Kit

The Thermoelectric Peltier Refrigeration Cooling System DIY Kit is a semiconductor-based cooling solution that leverages solid-state thermoelectric technology and electronic assembly techniques. This DIY kit features a TEC1-12706 Thermoelectric Cooler (Peltier Module) capable of handling up to 6A of current.

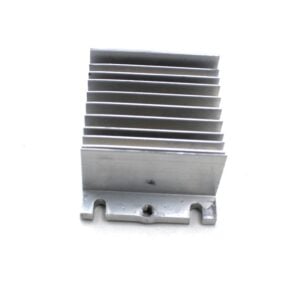

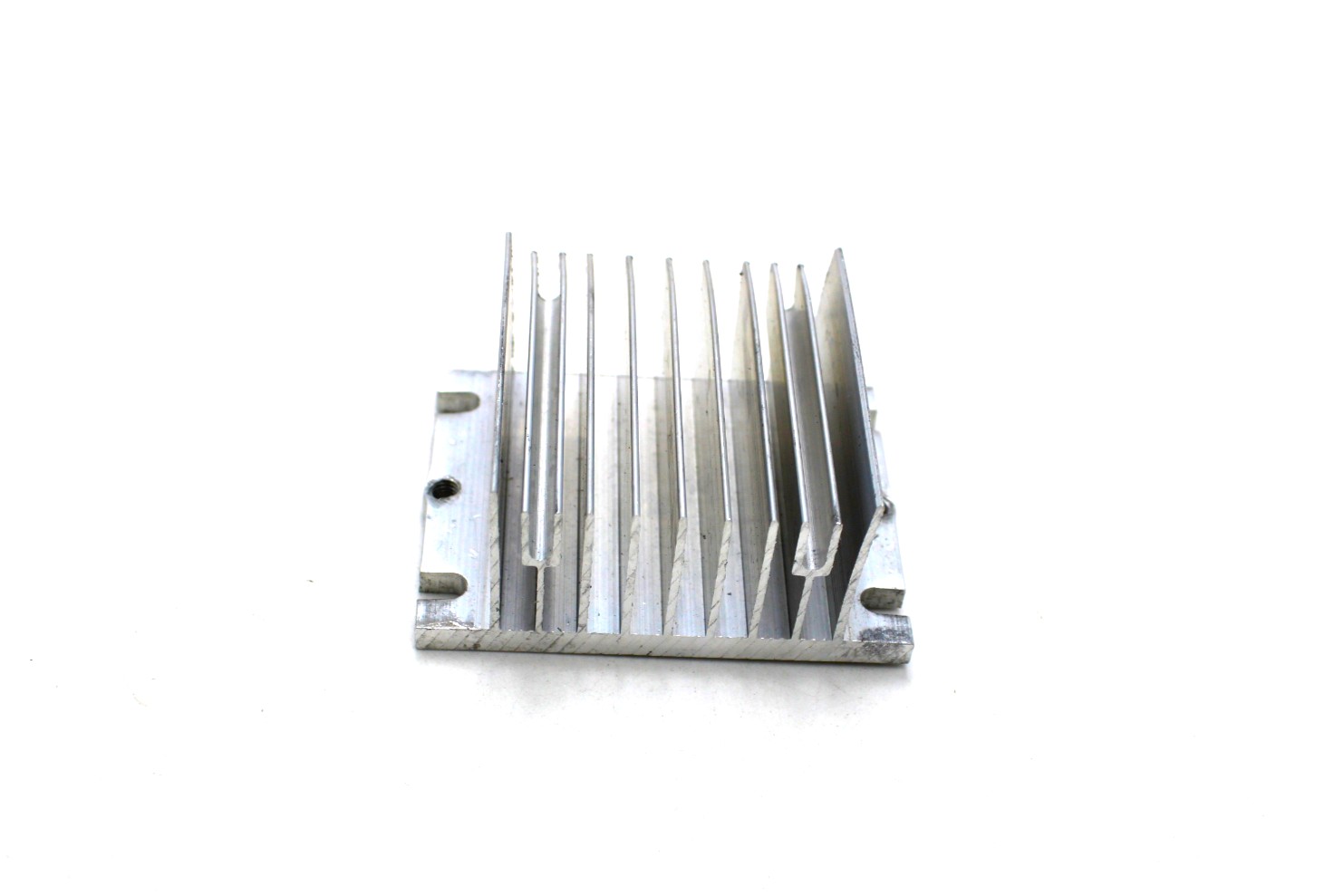

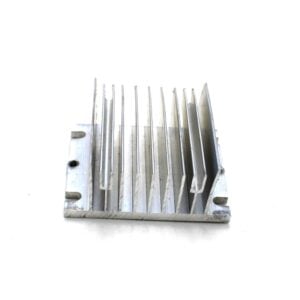

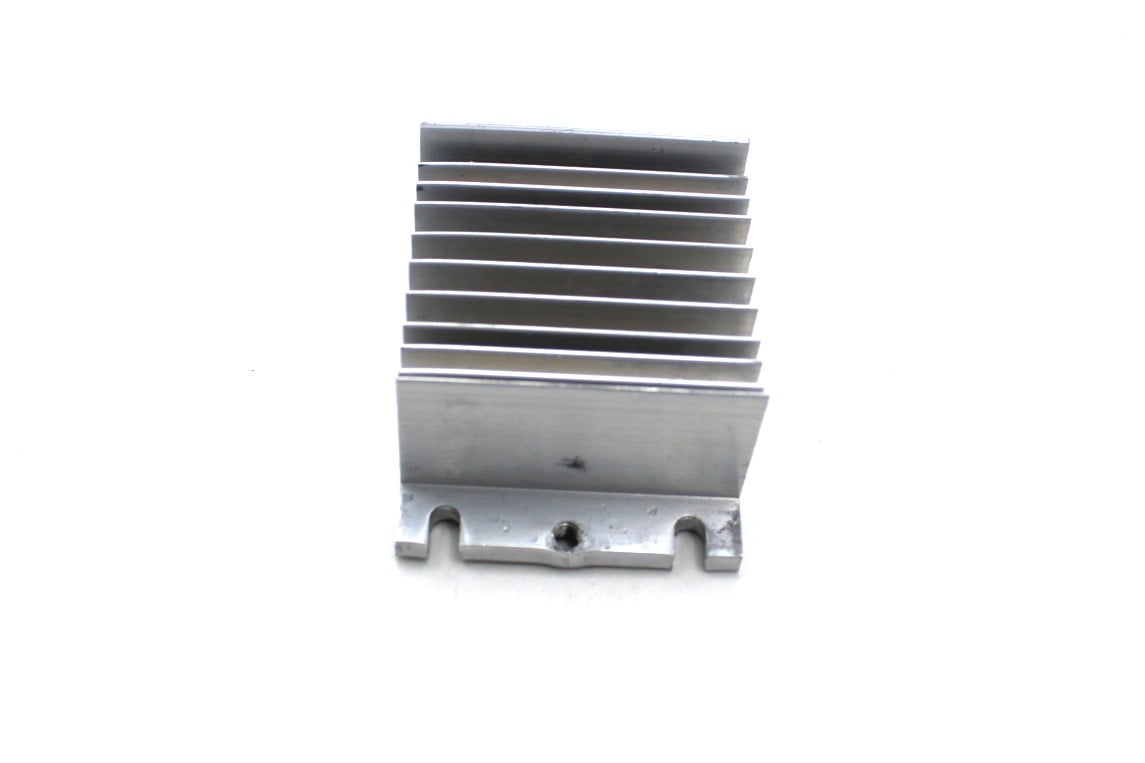

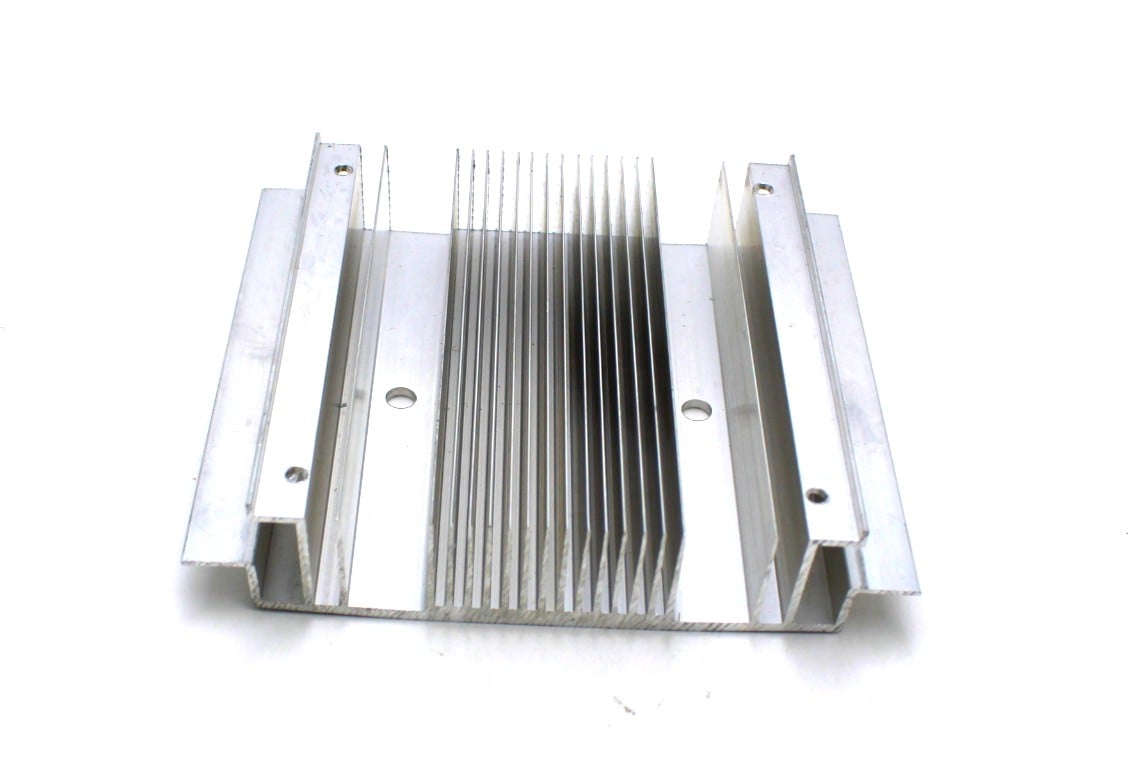

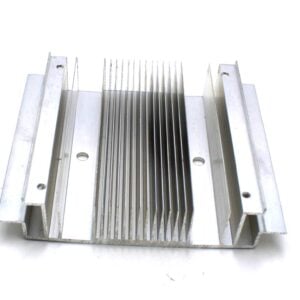

The kit includes two heat sinks: a larger one designed to dissipate heat from the hot side of the Peltier module, and a smaller one for the cold side. The size of the heat sink directly correlates to the efficiency of heat dissipation—the larger the heat sink, the better the heat management.

Additionally, a fan is included in the kit and serves as a radiator, helping to cool the larger heat sink. The TEC1-12706 Peltier module is positioned between the two heat sinks, effectively reducing the temperature on the cold side.

Once assembled, the compact system is ideal for use in applications such as pet space air conditioning (e.g., dog houses, chicken coops), small refrigeration units, or other cooling projects that require efficient thermal management in limited spaces.

Note:

1. This is an unassembled kit.
2. The kit does not include TEC1-12706 Thermoelectric Peltier Module
3. Please allow a tolerance of 5% on all dimensions as it is done manually.

Features of Thermoelectric Peltier Refrigeration Cooling System DIY Kit:-

Using GL style of the refrigerator, effectively release the thermal deformation ability of the refrigerator produce at work.

Small volume, does not occupy space, installation is simple.

This semiconductor cooler is a form of solid-state cooling that incorporates both semiconductor technologies and electronic assembly techniques.

It can be used as a Pet Air Conditioner (chicken, little dog, etc.) or a little fridge.

Thermoelectric Peltier Heatsink DIY Kit Overview

The Thermoelectric Peltier Heatsink DIY Kit is a solid-state cooling module featuring a TEC1-12706 Peltier element paired with two heat sinks and a 12 V fan. Ideal for hobbyists and small-scale projects, it converts electrical input into a temperature differential, enabling compact cooling solutions like mini fridges or pet chillers.

Key Features of Thermoelectric Peltier Heatsink DIY Kit

• TEC1-12706 Peltier cooler capable of up to 6 A current for effective heat pumping
• Dual heat sinks: large finned sink for hot side dissipation and small sink for cold side delivery

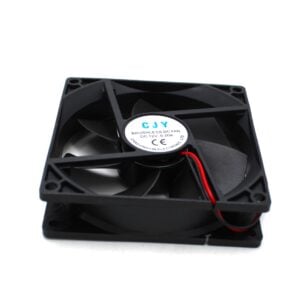

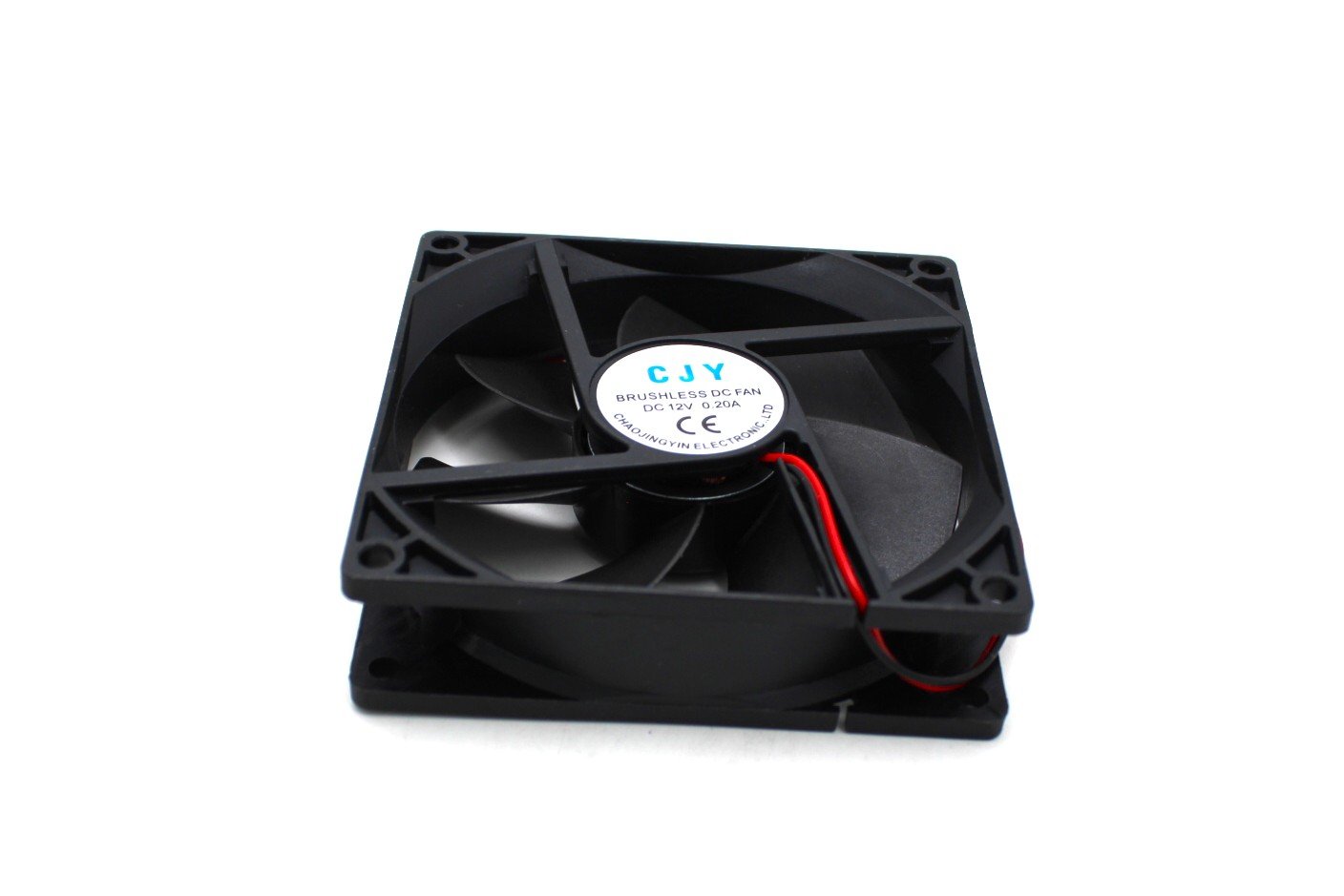

• 12 V DC fan (0.20 A) ensures continuous airflow and boosts thermal performance
• Lightweight, compact design with simple screw-mount assembly for quick installation
• Genuine product supplied by Zbotic, backed by authorized distribution channels
• Fast shipping from Zbotic across India ensures you get your kit within 24 hours

Applications and Use Cases

• Pet air cooling units for small animals like rabbits, chicks or toy dogs
• Portable mini refrigerator for beverages, skincare creams or cosmetics
• DIY CPU/GPU or electronics component cooling in enclosed boxes
• Temperature-controlled experiments in laboratories or maker spaces
• Car dashboard beverage chillers powered via 12 V adapter or battery
• Custom cooling modules for greenhouses or plant propagation racks

How to Use Thermoelectric Peltier Heatsink DIY Kit

Apply thermal paste between the Peltier module and both heat sinks, then secure them with the provided screws. Mount the 12 V fan onto the hot-side heat sink, connect the Peltier’s leads to a 12 V power supply rated for at least 6 A, and switch on. Ensure proper airflow clearance around the hot sink and monitor temperature with a thermal probe for optimal performance.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What power supply do I need for this DIY kit?

The Peltier module draws up to 6 A at 12 V, and the fan requires 12 V at 0.20 A. Use a regulated 12 V DC power supply capable of delivering at least 6.5 A to ensure stable operation.

How much temperature difference can I achieve?

Under proper heatsink airflow, the TEC1-12706 can generate a ΔT of around 60 °C between its hot and cold sides. Actual cooling performance depends on ambient temperature, heatsink size, and airflow efficiency.

Is this kit safe for pet cooling applications?

Yes. The solid-state Peltier module has no moving refrigerants and the fan ensures heat is safely expelled. Just enclose the assembly to prevent direct contact and monitor surface temperatures to avoid overcooling.
