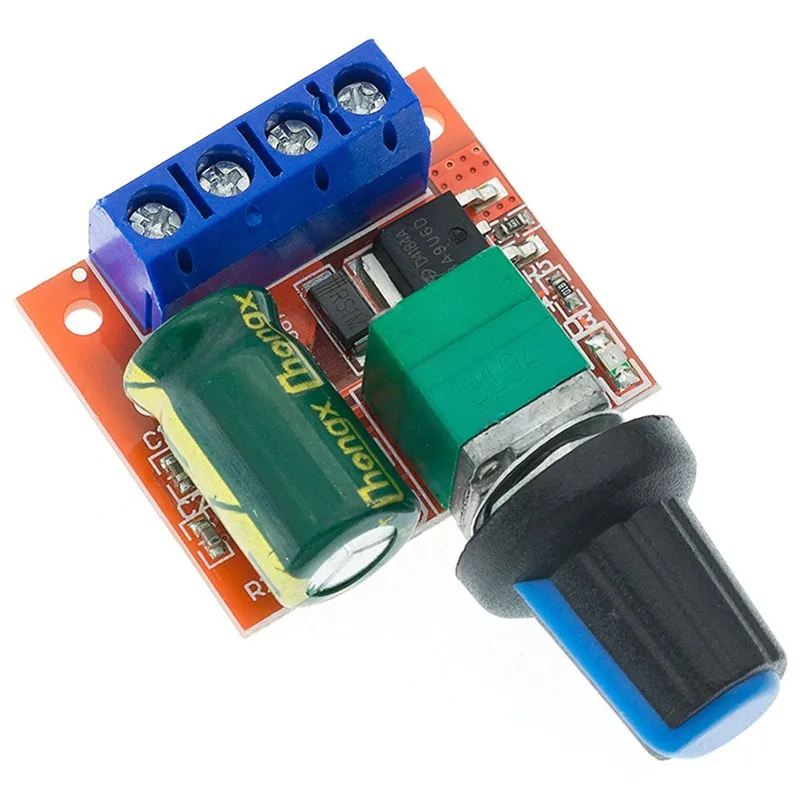

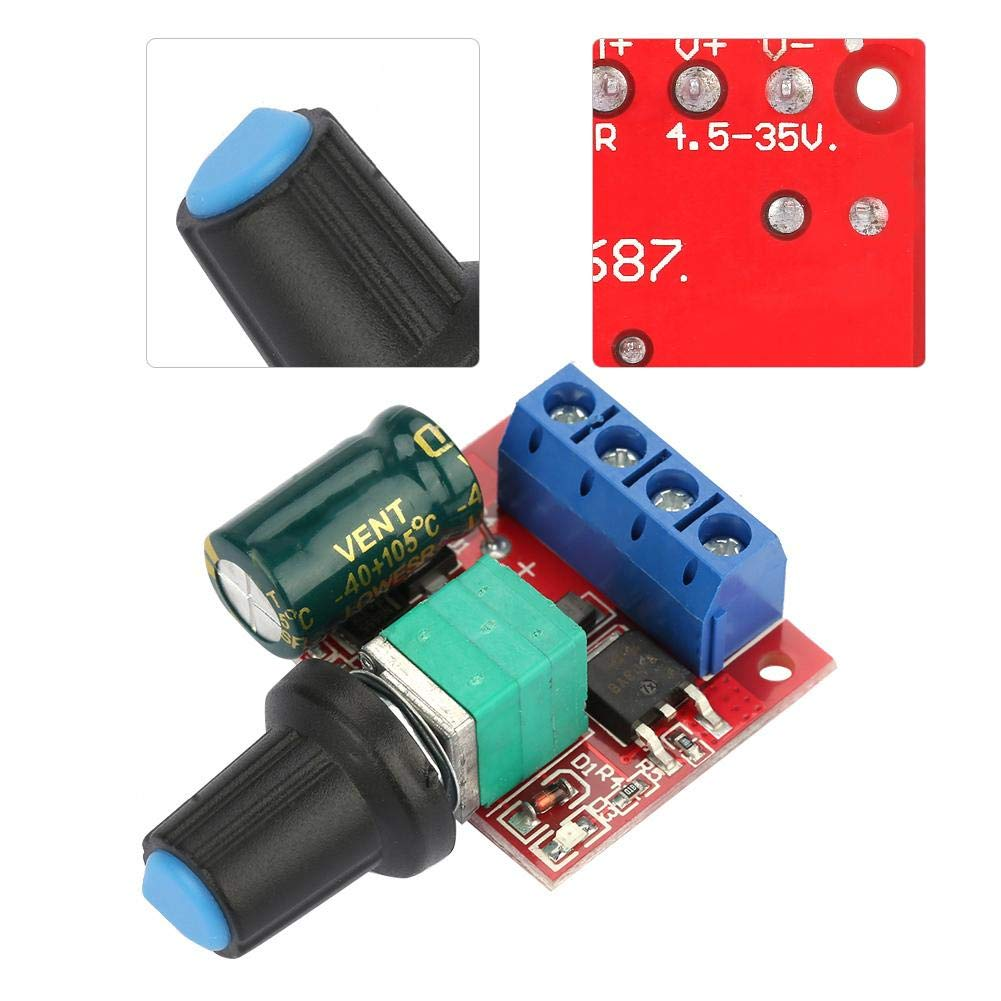

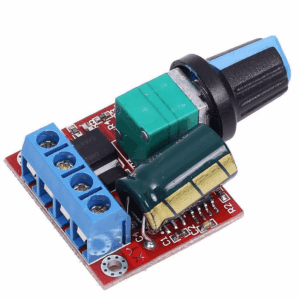

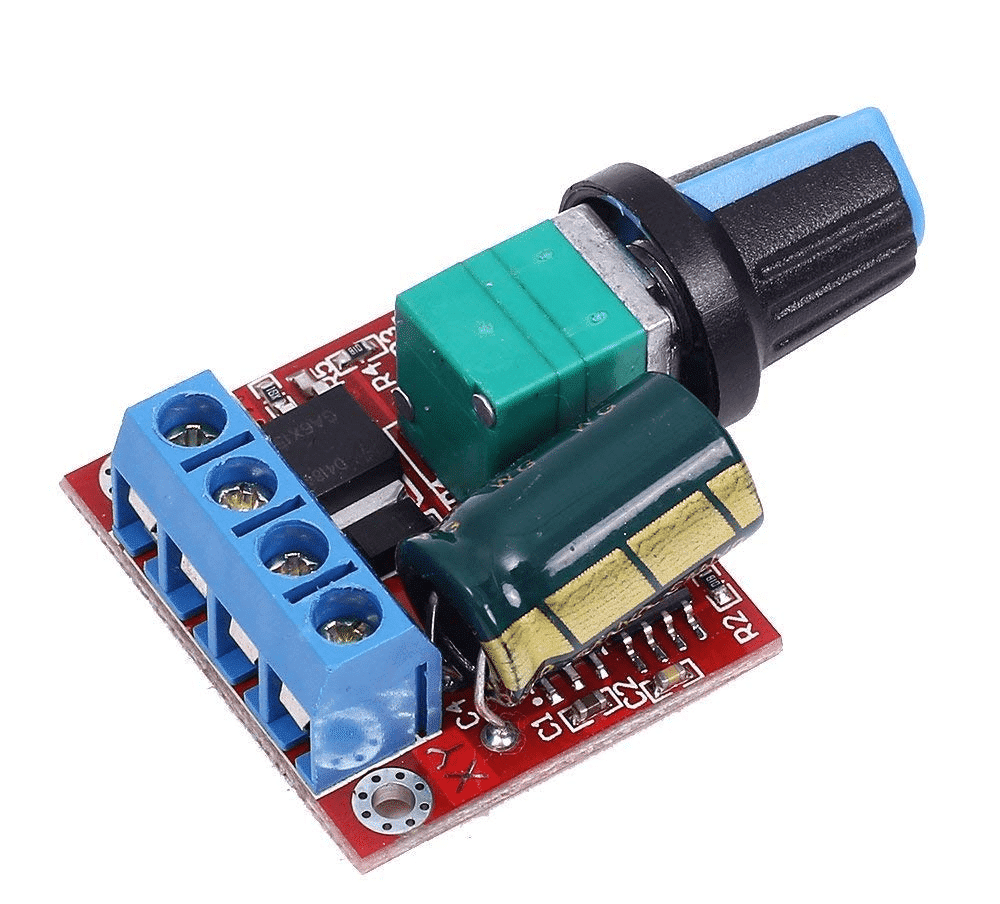

DC Motor Speed Controller 4.5V-35V 5A Speed Control Switch
The DC Motor Speed Controller is a versatile device designed for controlling the speed of DC motors within a voltage range of 6V to 28V. With its mini wide-voltage design and PWM (Pulse Width Modulation) technology, it offers precise speed control from 0 to 100%.
Featuring the latest low-voltage drive technology, this controller ensures efficient motor operation while maintaining a compact form factor. It incorporates a high-quality fuse for over-current protection, automatically cutting off in case of overflow and recovering within seconds.
Adjusting the potentiometer knob allows for easy speed adjustment, enabling users to fine-tune the motor’s speed according to their application requirements. This controller is suitable for various applications such as water heaters, thermal devices, lighting dimmers, and small motor speed control.
With a wide working voltage range of 4.5V to 35V and an output capacity of 0 to 5A (90W), this PWM speed controller is compatible with DC motors operating at different voltages. Its compact size of 30.5 x 26.5 x 13.5mm makes it suitable for integration into various projects and setups.
- Motor : Motor Positive Terminal
- Motor-: Motor Negative terminal
- Power : DC 6V – 28V
- Power-: GND
Features
- Mini wide-voltage DC motor controller 5V-25V Speed Control Switch Controller 5A HW-687 PWM with the latest low-voltage drive technology.
- Using this Motor Control high voltage and high current recovery fuse.
- The fuse is automatically cut off over-flow And the fuse is recovered for several seconds, almost no need to change fuse.
- Adjusting the pot knob can change the speed of the governor and change the speed of the motor.
- It is Suitable for water heater, thermal, lighting dimmer, small motor speed, etc. It Can not connect directly to AC.
Application
- This PWM Speed controller is for DC 6V 12V 24V 28V Motor.
Specifications:
| Specifications | |
|---|---|
| Working Voltage | DC 4.5V – 35V |
| Output | 0 – 5A (90W) |
| PWM Duty Cycle | 1% – 100% |
| PWM Frequency | 20kHz |
| Size | 30.5 x 26.5 x 13.5mm |
Package Includes
- 1 x DC Motor Speed Controller 4.5V-35V 5A Speed Control Switch
