This is the 12V variant of the 12V-40V10A DC Motor PWM Speed Control Switch Governor in Brushed / Brushless DC motor Driver. Available at ₹151.04 (₹128.00 + GST) with free shipping across India.
Looking for 12v Dc Motor? 12V-40V10A DC Motor PWM Speed Control Switch Governor is available at Zbotic with fast shipping across India.

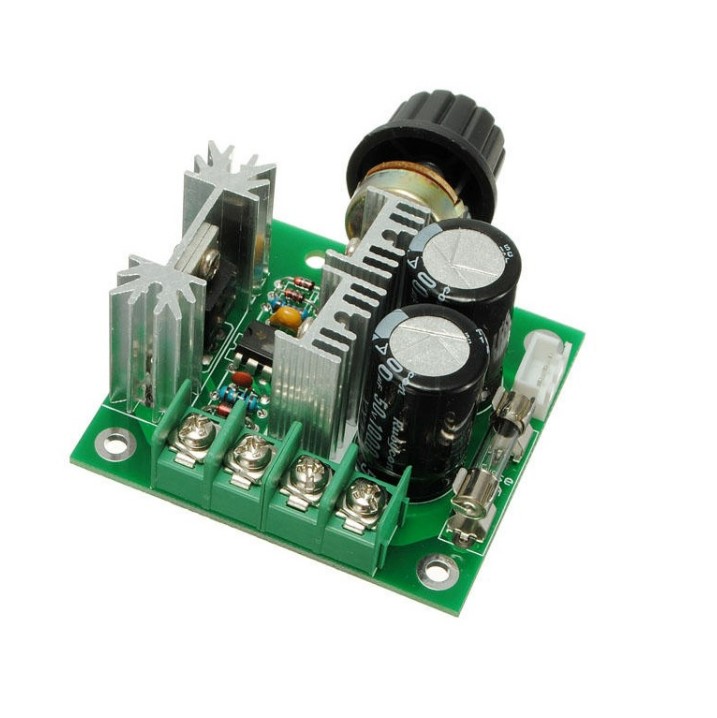

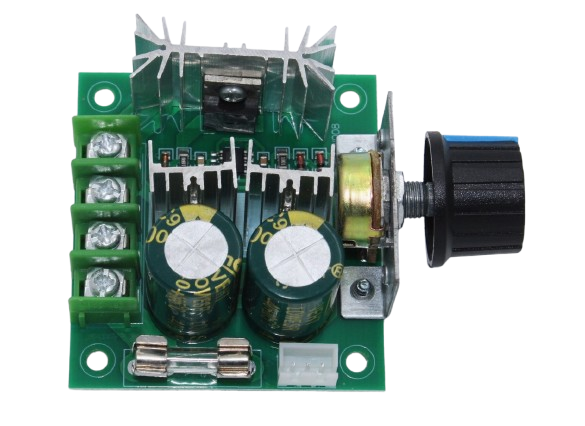

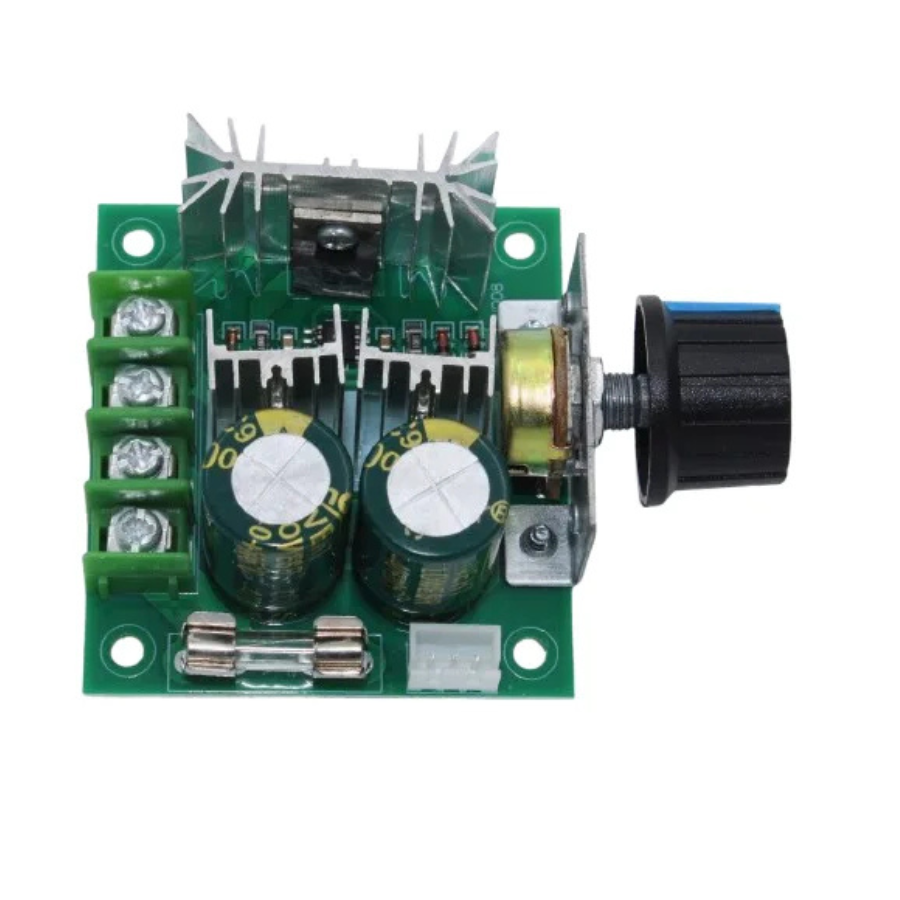

12V-40V10A DC Motor PWM Speed Control Switch Governor
The DC Motor Speed Controller allows for the direction control of a DC motor by employing a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle that is adjustable from 10% to 100%. It is capable of providing a continuous current of 8A to a DC motor or any other DC load. The circuit also includes a 10A fuse and offers protection against the reverse connection of the power supply and control voltage over-voltage.
Note:
This can NOT be used to the BRUSHLESS motor. The controller is NOT reverse-polarity protected and will be damaged if it connects the supply voltage with the wrong polarity.
Specifications:
| Item Type: | PWM Speed Regulator |
|---|---|
| Current Rating (A): | 10 |
| Voltage Rating (V): | 12 to 40 |
| Input supply voltage | DC 12V-40V |
| Output Power (W) | 400W |
| Continuous Current (A) | 8A |
| Static Current | 0.02 A ( Standby ) |
| PWM frequency | 13kHz |
| Material: | Plastic, Metal |
| Duty Cycle Adjustable (%) | 10%-100% |
| Operating Temperature (°C) | -20-40℃ |
| Dimensions (LxWxH) cm | 6*5.5*2.8 |
| Weight (g): | 69g |
Features:
- Control the speed of a DC motor with this controller.
- High efficiency, high torque, low heat generating.
- With reverse polarity protection, high current protection.
- Control voltage over-voltage protection function
- The overload and short circuit protecting current is 10A
- Working Voltage: DC 12V – DC 40V.
- Control Power:0.01 – 400W.
- Static Current:0.02 A ( Standby ).
- PWM Duty Cycle:10% -100%.
Package Includes:
- 1 x 12V-40V10A DC Motor PWM Speed Control Switch Governor
12V-40V10A DC Motor PWM Speed Control Switch Governor Overview
The 12V-40V10A DC Motor PWM Speed Control Switch Governor is a robust controller designed to regulate the speed of brushed DC motors. By varying the duty cycle of a 13kHz PWM signal, it delivers up to 8A continuous current (400W) for precise motor speed adjustment in a 12–40V DC system.
Key Features of 12V-40V10A DC Motor PWM Speed Control Switch Governor
- Wide input range: 12–40V DC supply compatibility
- Continuous output current up to 8A with 400W maximum power
- 13kHz PWM frequency for smooth, low-noise performance
- Adjustable duty cycle from 10% to 100% for fine speed control
- Built-in 10A fuse and over-voltage protection for safety
- Fast shipping across India from Zbotic
Applications and Use Cases
- Speed control for DC cooling fans and ventilation systems
- Power regulation in small conveyor belts and material handling
- Variable-speed drives for water pumps and fluid circulation
- Prototyping and testing in robotics and automation projects
- Custom electric go-karts, carts, and hobby motor drives
How to Use 12V-40V10A DC Motor PWM Speed Control Switch Governor

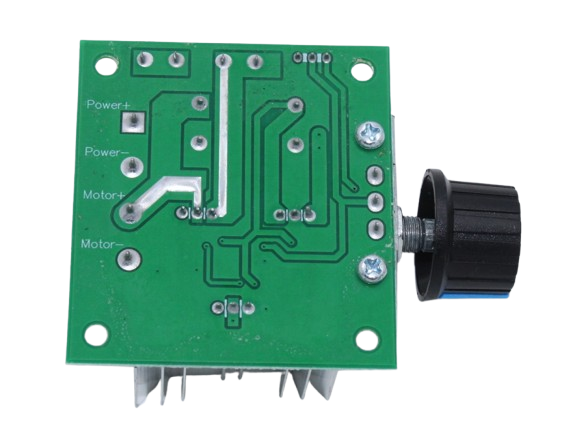

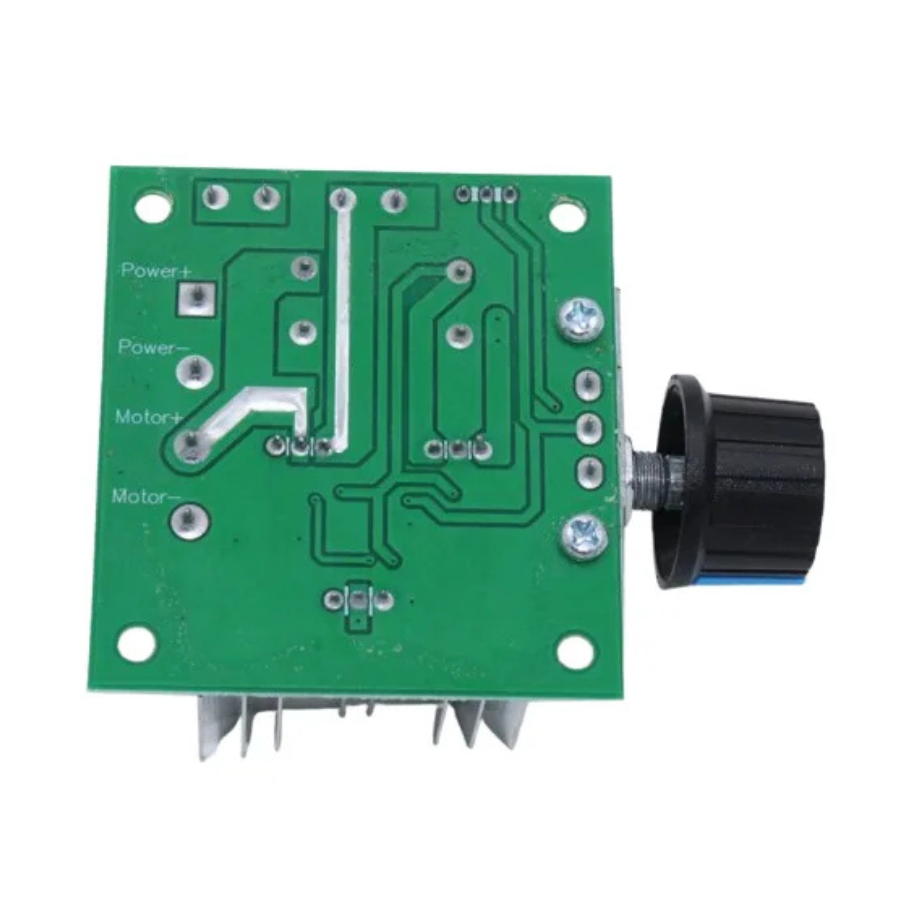

To set up the controller, connect your 12–40V DC supply to the power input terminals, attach the brushed DC motor to the output terminals, and ensure correct polarity. Power on the unit, then rotate the onboard potentiometer to adjust the PWM duty cycle and achieve the desired motor speed. Monitor current draw to stay within the 8A continuous limit and replace the 10A fuse if triggered.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I use this controller with a brushless DC motor?
No. The 12V-40V10A PWM Speed Control Switch Governor is designed exclusively for brushed DC motors and will not operate correctly with brushless motors.
What protection features are included?
The controller includes a 10A fuse and over-voltage protection to safeguard the circuit. It does not include reverse-polarity protection, so ensure correct supply polarity during installation.
How do I adjust the motor speed precisely?
Speed adjustment is done by turning the built-in potentiometer, which varies the PWM duty cycle from 10% (minimum speed) up to 100% (full speed) for accurate control.
