This is the 12V variant of the DC 12V-60V Lead-Acid Digital Battery Capacity Indicator Charge Tester Voltmeter in Digital Voltage, Current and Frequency Meter. Available at ₹110.92 (₹94.00 + GST) with free shipping across India.
Looking for Lead-acid Battery? DC 12V-60V Lead-Acid Digital Battery Capacity Indicator Charge Tester Voltmeter is available at Zbotic with fast shipping across India.
Description:

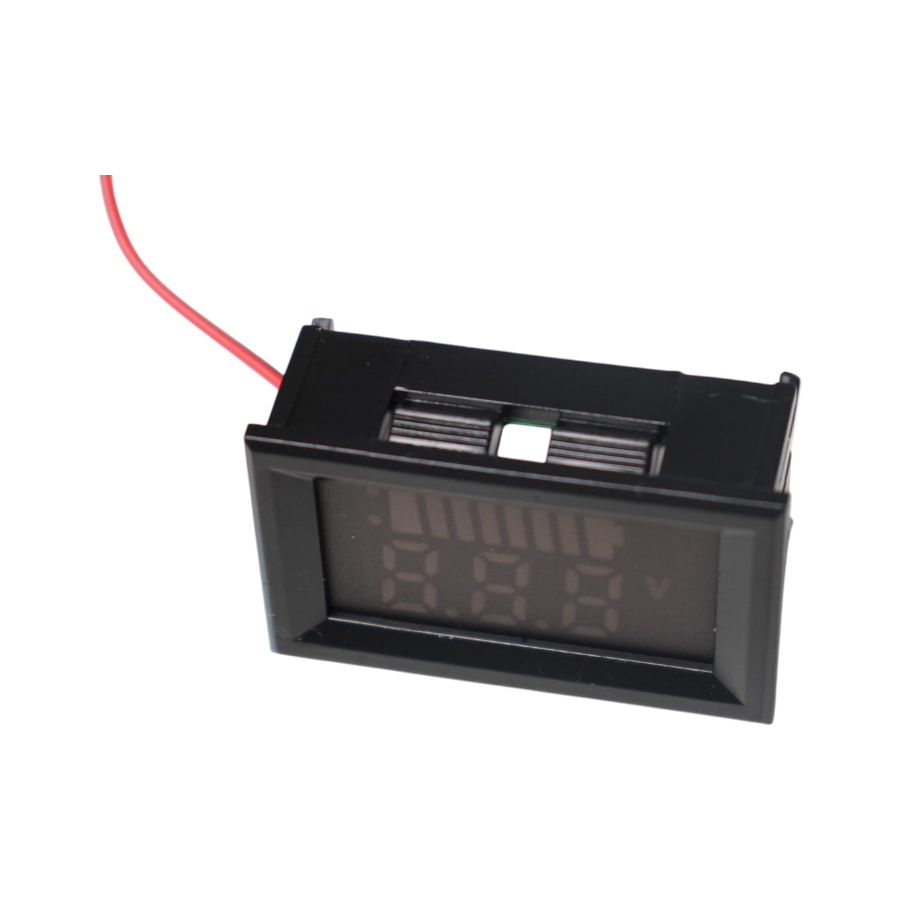

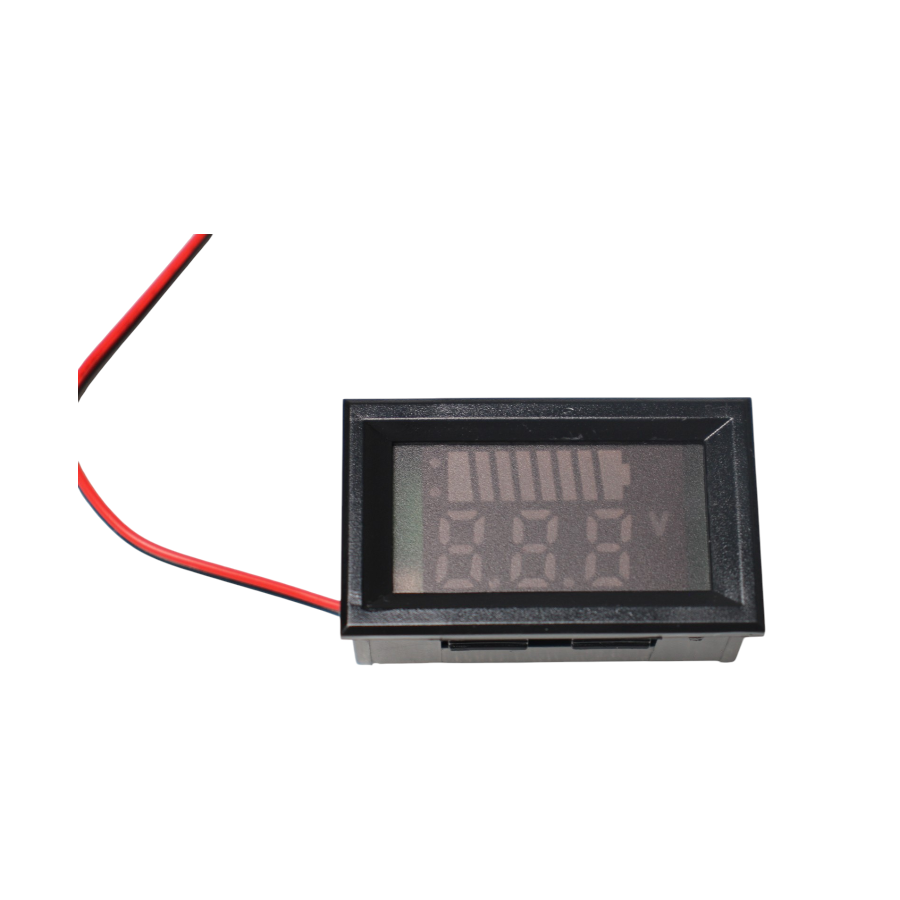

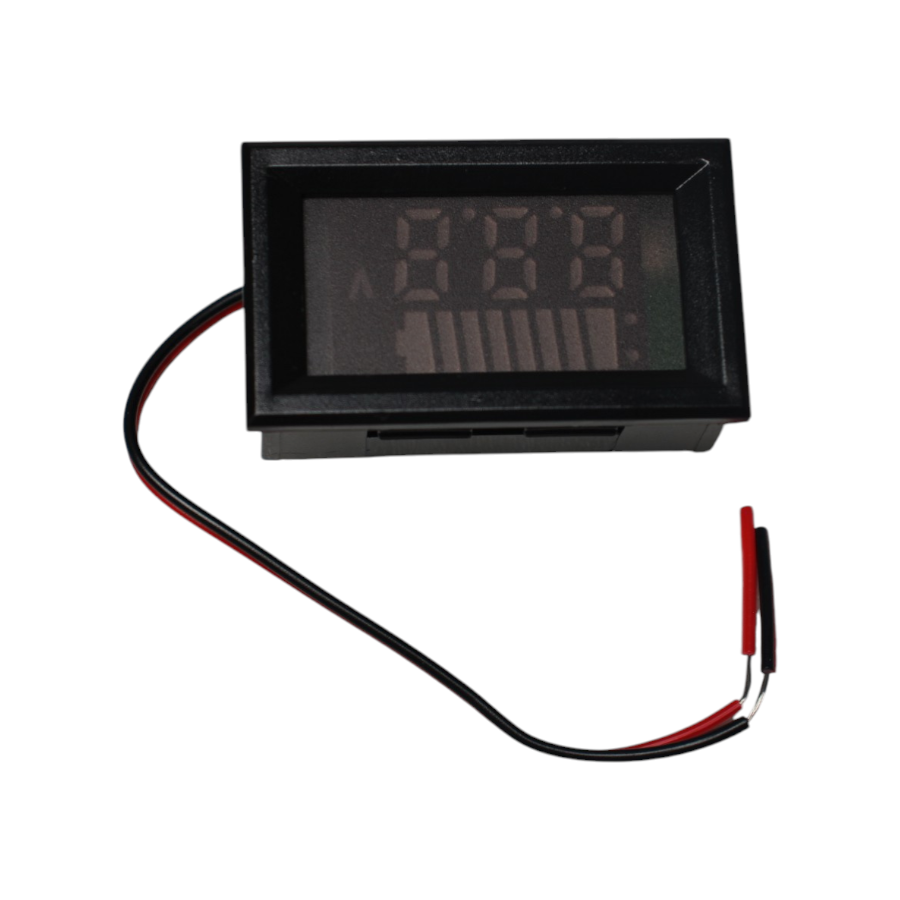

This meter can automatically identify the voltage of 12V, 24V, 36V, 48V, or 60V battery cars and similar electric vehicles (up to 84V). It can also measure the battery level of lithium, polymer, or nickel-metal hydride batteries. It has a dual display that shows the battery level in 8 colorful bars, with the last two red bars indicating low battery (below 10%). This meter is easy to connect by attaching it parallelly to the battery terminal. It can be used as a fuel gauge for your vehicle dashboard.
The module installation size on your dashboard is 50mm × 30mm.
Features:
- Can be used for other power/voltage measurement purposes
- Double display: battery + voltage at a glance
- Intuitive display
- Upper 8 bars show the battery power (2 red and 6 green)
- Downlink voltmeter displays battery voltage; decimal point automatic shift ensures higher accuracy
- Wide range of applications: lithium battery packs, lead-acid batteries, car batteries, electric car batteries, and many other types of batteries and electric equipment
- Voltage calculation same as power display meter of an electric vehicle
- Meter head automatically recognizes voltage and electricity
- Reverse connection protection (reverse connection will not burn)
Specifications:
| Voltage Measuring Range | 12–60V DC |
|---|---|
| Working Current | 5–15mA |
| Material | Copper + ABS Plastic |
| Body Color | Black |
| Dimension (L × W × H) mm | 55 × 32 × 28 |
| Cable Length | 15 cm |
| Digital Display Light Color | Blue |
| Type | LED Voltage Voltmeter |
| Working Temperature | -10ºC ~ 65ºC |
| Refresh Speed | About 300 ms once |
| Waterproof | No |
Package Includes:
-
1 × DC 12V-60V Lead-Acid Digital Battery Capacity Indicator Charge Tester Voltmeter
DC 12V-60V Lead-Acid Digital Battery Capacity Indicator Overview
The DC 12V-60V Lead-Acid Digital Battery Capacity Indicator Charge Tester Voltmeter is a dashboard-mounted meter that automatically detects 12 V, 24 V, 36 V, 48 V or 60 V lead-acid battery systems (up to 84 V). It displays the state of charge in an 8-bar, color-coded digital display, making it ideal as a fuel gauge for electric vehicles and battery banks.
Key Features of DC 12V-60V Lead-Acid Digital Battery Capacity Indicator
- Automatic voltage recognition for 12–60 V DC systems, compatible up to 84 V
- 8-bar dual display with blue backlight; last two bars turn red when battery drops below 10%
- Ultra-low working current of just 5–15 mA to minimize drain on the battery
- Durable copper and ABS plastic housing in sleek black finish
- Standard dashboard cut-out size of 50 mm × 30 mm for quick installation
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- Electric scooters, e-bikes and golf carts for real-time battery monitoring
- Solar power storage banks and off-grid battery systems
- Backup UPS and telecom battery racks to prevent unexpected shutdowns
- Marine and RV battery compartments for safe boating and camping trips
- DIY robotics projects and custom electric vehicle dashboards
How to Use DC 12V-60V Lead-Acid Digital Battery Capacity Indicator
Mount the unit by cutting a 50 mm × 30 mm opening in your dashboard panel, then connect the red lead to the battery’s positive terminal and the black lead to the negative terminal. Once powered, the module automatically detects system voltage and displays the state of charge in real time. Monitor the colored bars to know when to recharge or replace the battery.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I use this meter with lithium-ion battery packs?
Yes. Although designed for lead-acid systems, this indicator also reads lithium, polymer and nickel-metal hydride battery voltages up to 84 V, displaying state of charge through its 8-bar gauge.
What do the different bar colors mean?
The display uses seven blue bars to show normal charge levels and two red bars to warn when the charge drops below 10%, helping you avoid deep discharge.
How do I install the display in my vehicle dashboard?
Drill a 50 mm × 30 mm hole in your panel, insert the unit, secure it in place, then wire the red lead to positive and black lead to negative terminals. No additional calibration is needed.
Technical Specifications
| Operating Voltage | 12V |
|---|---|
| SKU | AI0542 |
| Weight | 0.02 kg |
| Availability | In Stock |
Applications & Use Cases
The DC 12V-60V Lead-Acid Digital Battery Capacity Indicator Charge Tester Voltmeter is a versatile digital voltage, current and frequency meter used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
