This is the Blue variant of the Blue Two-Wire 0.56 Inch DC5V-120V DC Digital Display Voltmeter For Car Bicycle Motorcycle in Digital Voltage, Current and Frequency Meter. Available at ₹56.64 (₹48.00 + GST) with free shipping across India.

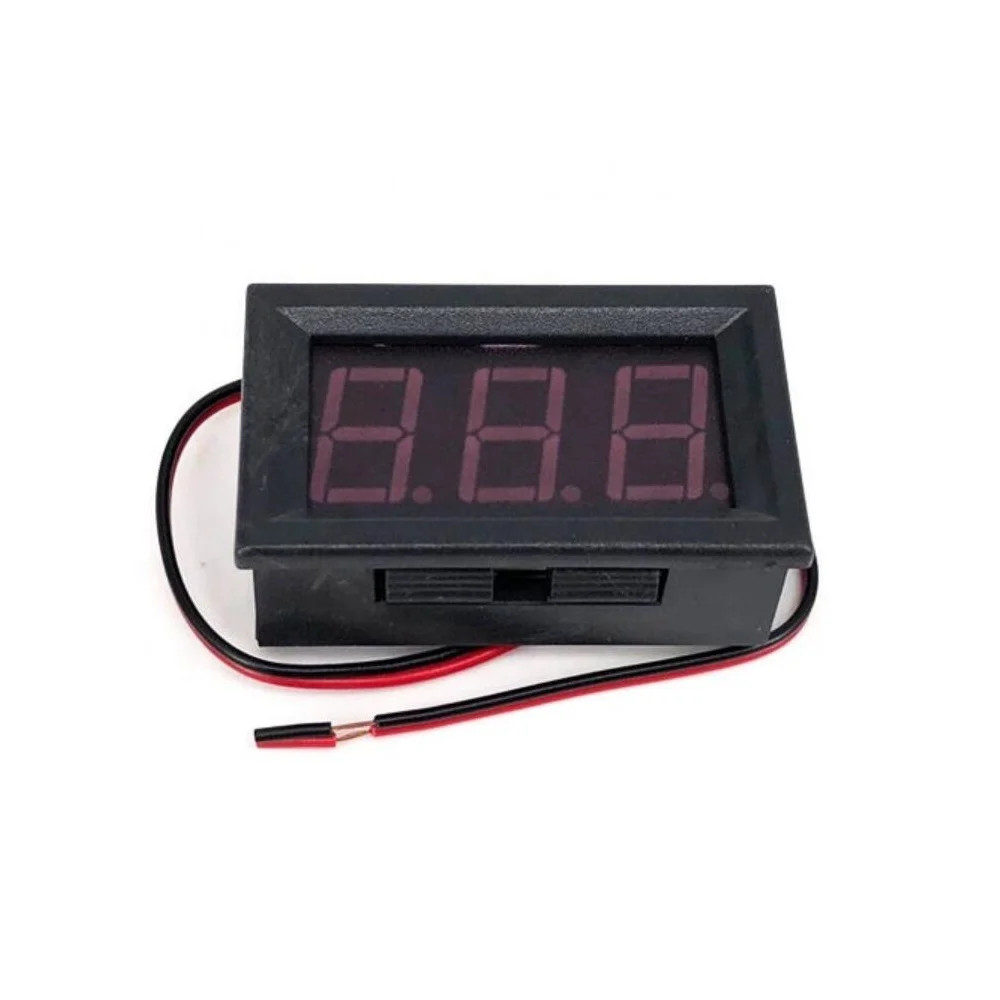

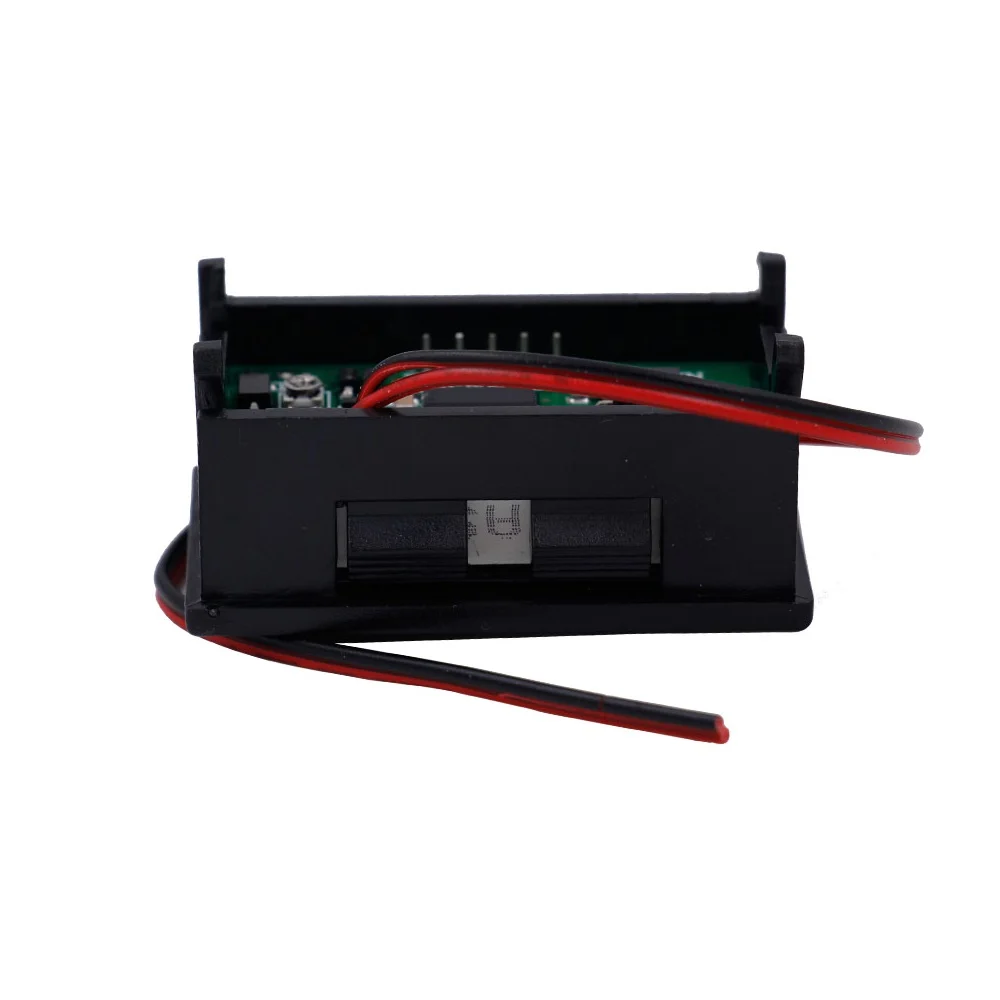

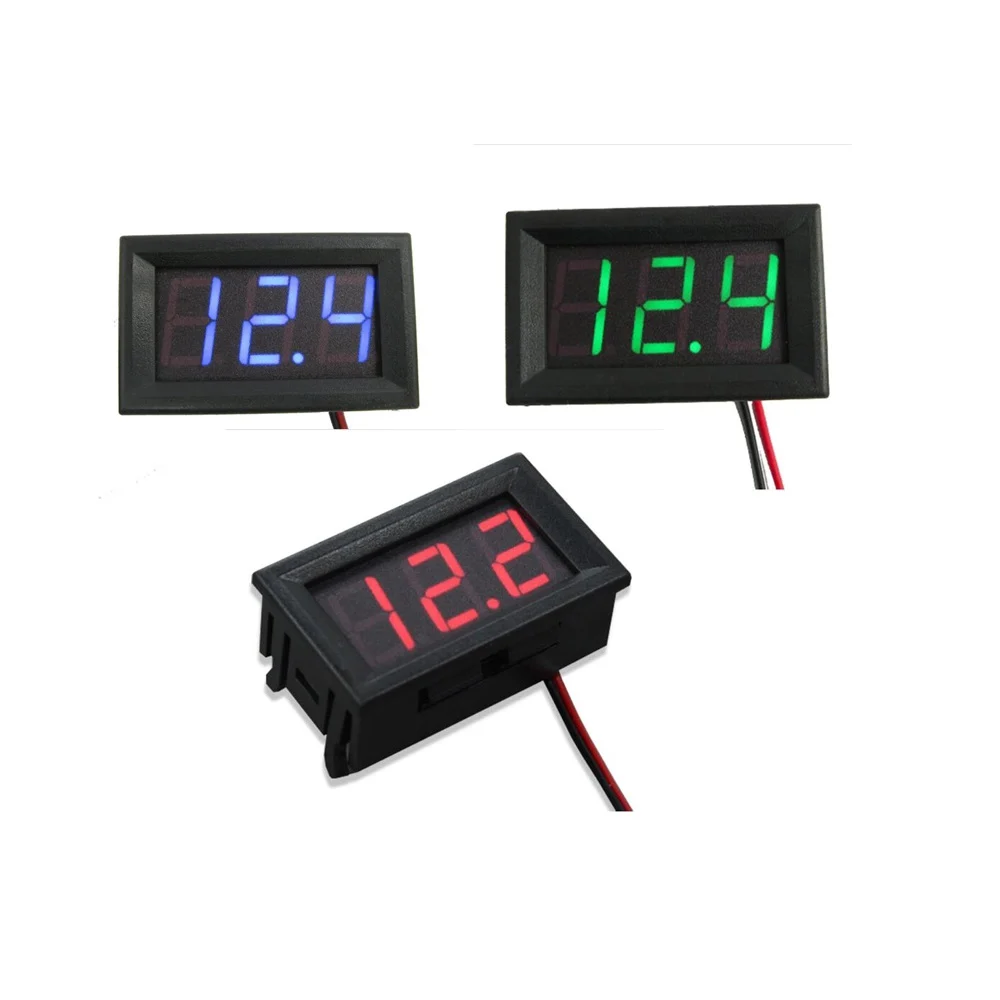

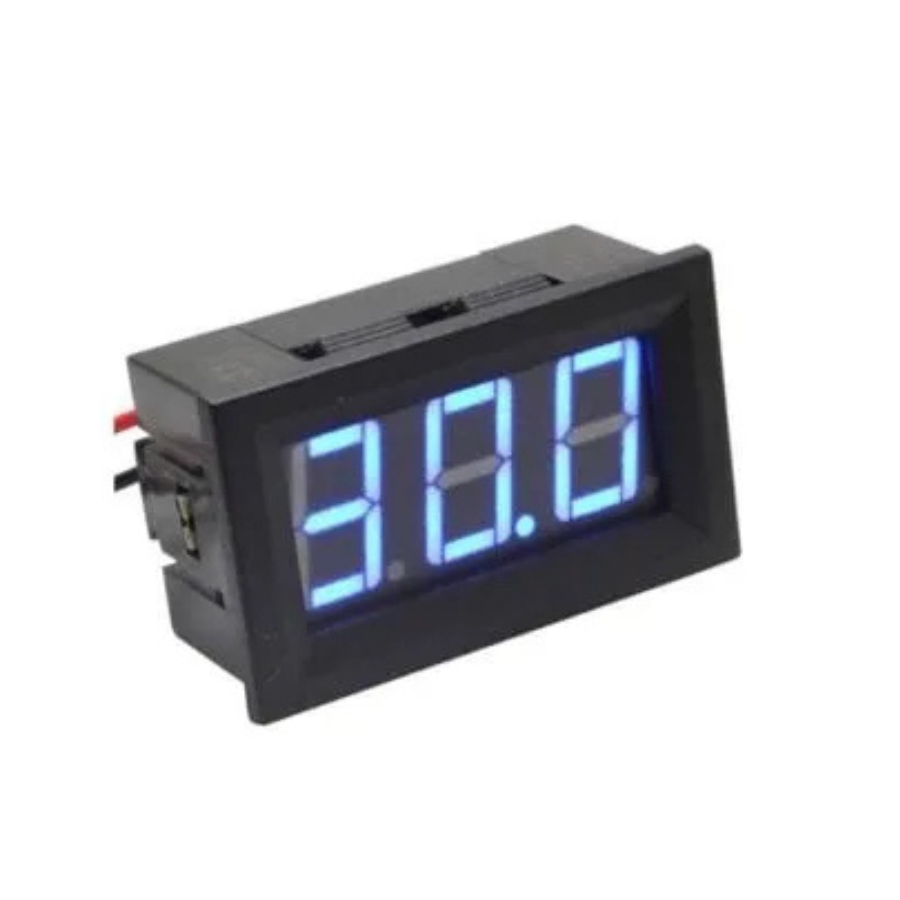

Blue Two-Wire 0.56 Inch DC5V-120V DC Digital Display Voltmeter For Car Bicycle Motorcycle
Introducing our versatile DC Voltmeter, engineered for easy installation and precise voltage measurement in a wide range of applications. The setup is straightforward: simply connect the red wire to the positive terminal and the black wire to the negative terminal. Reverse connection protection ensures the device remains safe from damage even if the connections are made incorrectly.
Operating independently using the voltage it measures this voltmeter eliminates the need for an external power source. With a broad voltage range of 0 to 200 VDC, it’s ideal for various voltage monitoring tasks, including tracking battery levels in motorcycles, cars, and other vehicles.
Key Features:
- Wide voltage range: 5-120V DC, suitable for various vehicles including motorcycles, electric vehicles, and battery cars.
- Direct measurement with two wires, no auxiliary power supply required, ensuring easy installation.
- Reverse connection protection prevents burning even if connected incorrectly.
- Automatic adjustment of decimal point position for optimal measurement accuracy
- Resolution of 0.1V below 100V and 1V above 100V for precise readings
- ABS plastic frame design allows convenient installation in rectangular holes of 1.5-3mm thickness.
- High precision with low operating voltage
- Ultra-high-pressure resistance up to 132V without risk of burning.
Note: Consider a 1V voltage drop at the voltmeter itself, as observed during testing at Robu Labs. Product image may vary in terms of color, wire, PCB, or PCB layout due to manufacturer updates.
Upgrade your voltage monitoring capabilities with this reliable and easy-to-install DC Voltmeter, ensuring timely monitoring of battery status and voltage levels in various vehicles and applications.
Specifications:
| Display | 2-wire |
|---|---|
| Voltage Measuring Range | 0 to 200 VDC |
| LED Color | Blue |
| Current Consumption (mA) | generally 5-15 |
| Accuracy | 0.1 V |
| Refresh Speed (ms) | Approx 300 |
| Shipping Weight | 0.03 kg |
| Shipping Dimensions | 8 × 5 × 3 cm |
Package Includes:
1 x 0.56 Inch DC5V-120V DC Two-Wire Digital Display Voltmeter for Car Bicycle Motorcycle-Blue
Technical Specifications
| Model | DC5V-120V |
|---|---|
| Operating Voltage | 5V |
| Display Size | 0.56" |
| Color | Blue |
| SKU | AI3380 |
| Weight | 0.02 kg |
| Availability | In Stock |
Applications & Use Cases
The Blue Two-Wire 0.56 Inch DC5V-120V DC Digital Display Voltmeter For Car Bicycle Motorcycle is a versatile digital voltage, current and frequency meter used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
