This is the 100V variant of the Dual Led 0.28 Display for DC0-100V Voltage and Current Test Digital Instrument Digital Meter Panel Amplifier Red Blue 10A in Digital Voltage, Current and Frequency Meter. Available at ₹123.92 (₹105.02 + GST) with free shipping across India.

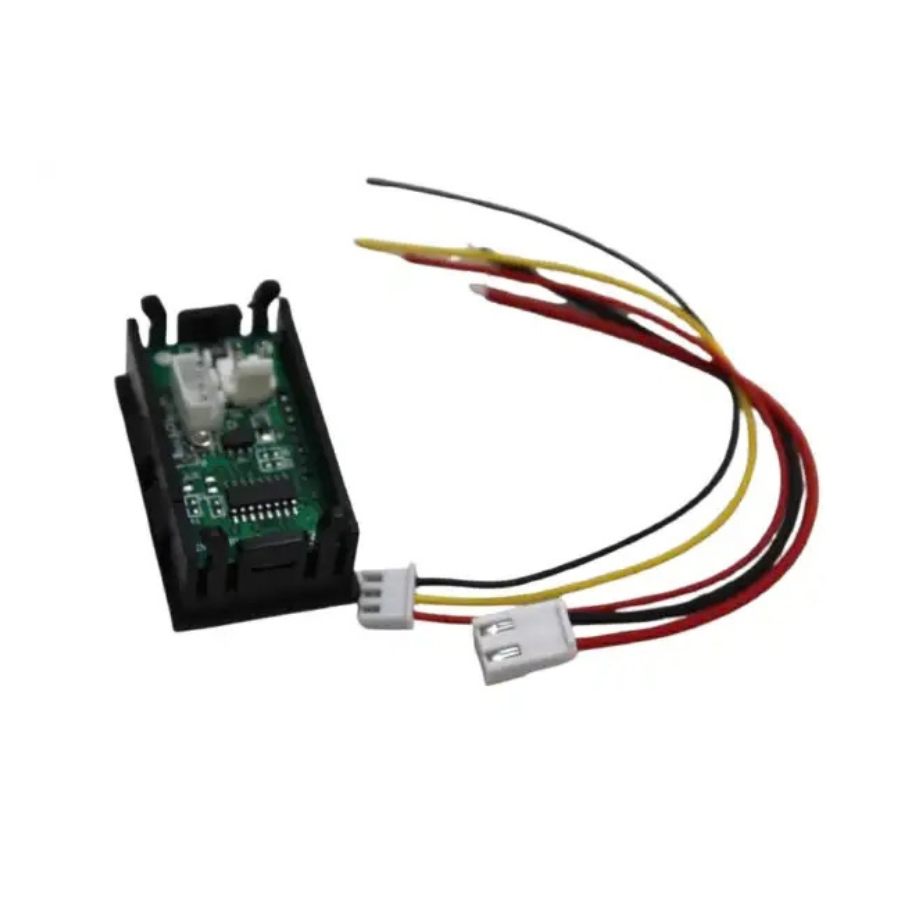

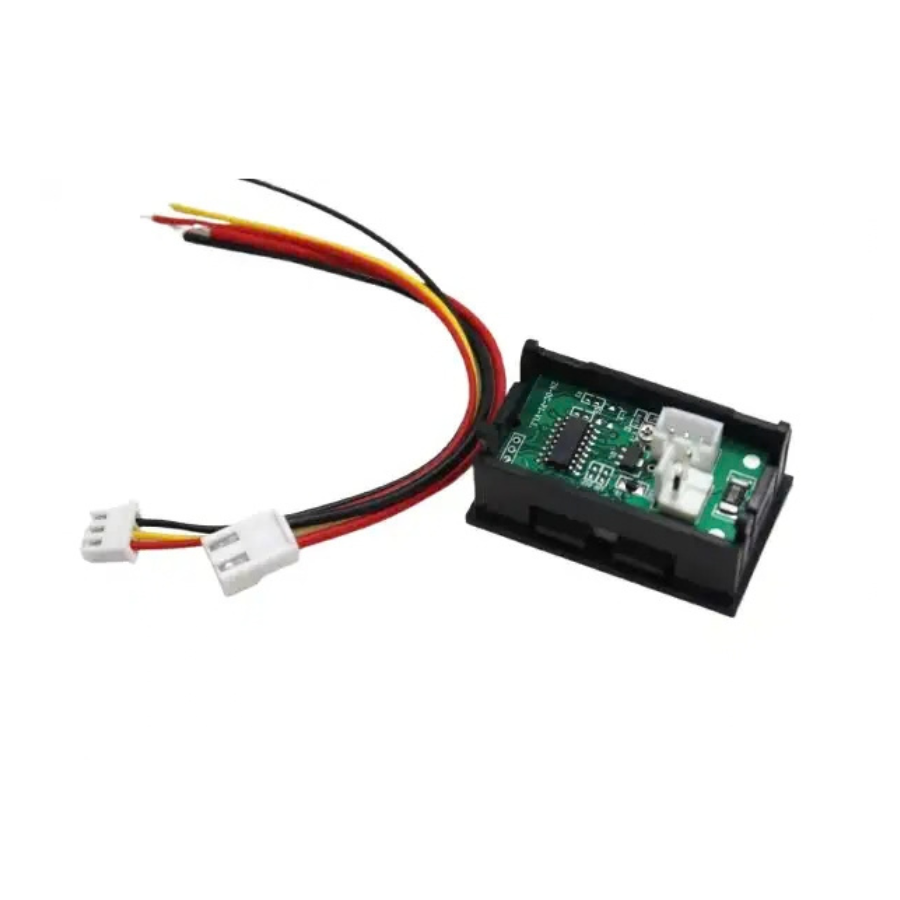

Dual Led 0.28 ” Display for DC0-100V Voltage and Current Test Digital Instrument Digital Meter Panel Amplifier Red Blue 10A
Introducing the Dual LED 0.28” Display for DC 0-100V 10A Voltage and Current Test Digital Instrument, a versatile and accurate digital meter designed for voltage and current measurements across a range of applications. The panel features dual LED displays—red for voltage and blue for current—allowing for clear, simultaneous readings for easy and efficient monitoring.
This digital voltmeter operates by converting an analog signal into a series of pulses, with the pulse count corresponding to the magnitude of the input signal. Using A/D conversion, it ensures precise and reliable voltage readings. The digital voltage display works on a binary principle, showing either 0V (off) or a peak voltage (on), such as 5V, for accurate measurement of electrical parameters.
Features:
Dual LED display: Red for voltage, Blue for current (measured in the negative rail)

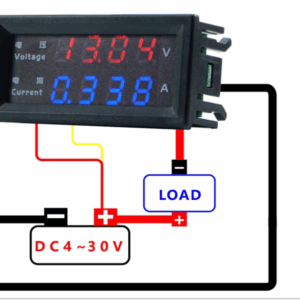

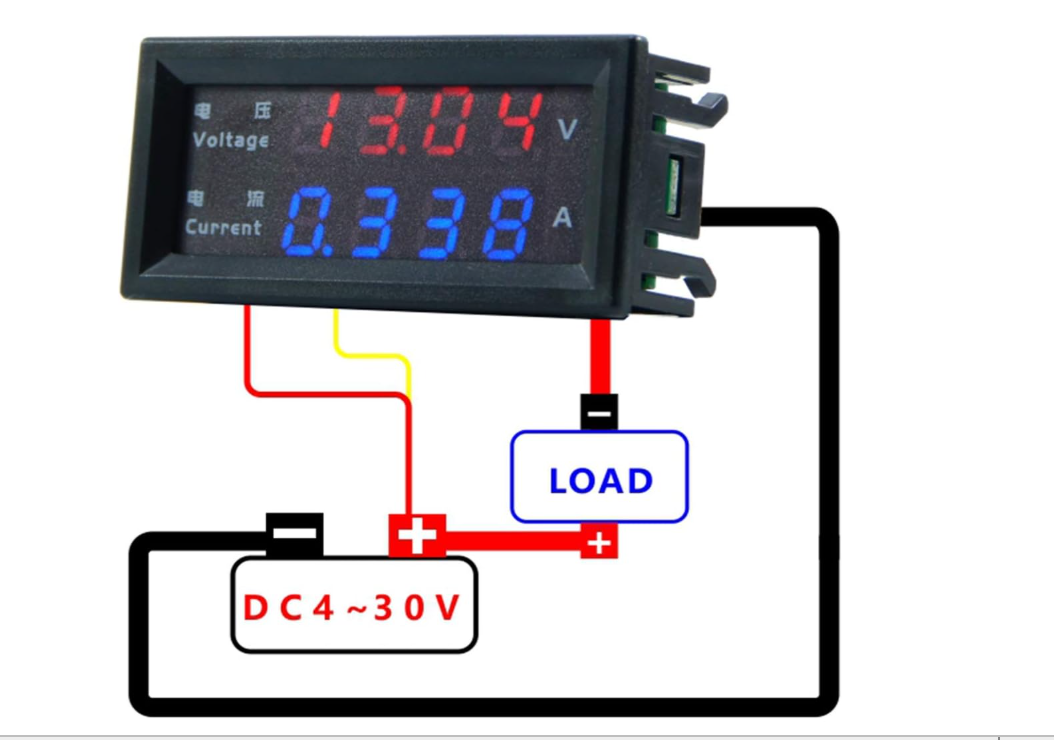

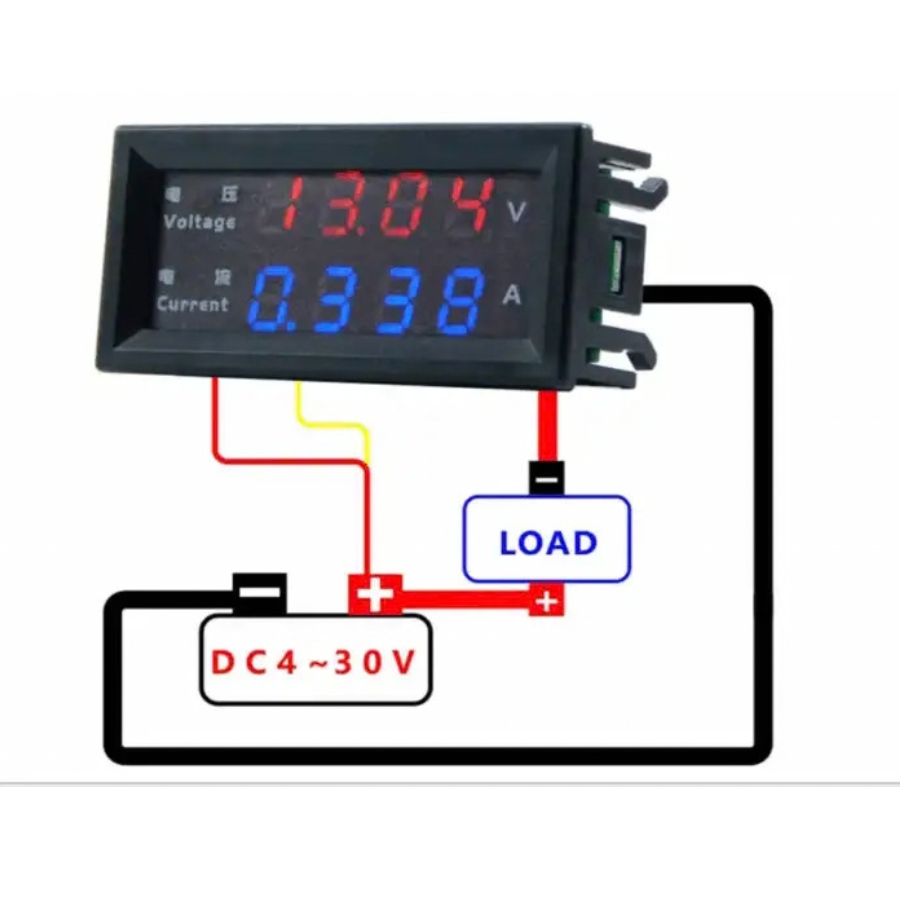

Requires external power supply with reversed connection protection
Ground wire of the testing end and power supply terminal is the same wire, ensuring quick refresh of about 500 MS/time
Built-in shunt with voltage and current calibration potentiometers
Suitable for automotive/electric cars/motorcycles battery monitoring and other voltage/current measurement applications
Rapid response recovery characteristics
Long life and reliable stability
High precision, four-digit display
Measures voltage: DC 0 ~ 100V
Operating voltage: DC 4.5 ~ 30V
Minimum resolution for voltage: 0.1V
Minimum resolution for current: 10A
Operating current: 20mA
Display: Three 0.28″ LED digital tubes
Mounting cutout: 45.5 x 26.5mm
Refresh rate: Approximately 500mS / times
Upgrade your voltage and current monitoring capabilities with the Dual LED 0.28” Display digital instrument, providing accurate readings and reliable performance for your electronic projects.
Specifications:
Display
0.28″ Two-color blue and red
Working Voltage
DC 4V-28V
Working Current(mA)
20mA
Operating Temperature (°C):
-10 to 65° c
Working Pressure Range
80 to 106 kPa.
Operating humidity
10 to 80% (non-condensing)
Accuracy
1%
Length (mm):
48
Width (mm):
25
Height (mm):
20
Shipping Weight
0.0002 kg
Shipping Dimensions
8 × 5 × 2 cm
Package Includes:
1 x Dual Led 0.28 ” Display for DC0-100V 10A Voltage and Current Test Digital Instrument, Digital Meter Panel Amplifier Red Blue 50A
The Dual Led 0.28 Display for DC0-100V Voltage and Current Test Digital Instrument Digital Meter Panel Amplifier Red Blue 10A is a versatile digital voltage, current and frequency meter used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
Integrating into a custom electronics project
Learning and experimenting with circuits
Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
