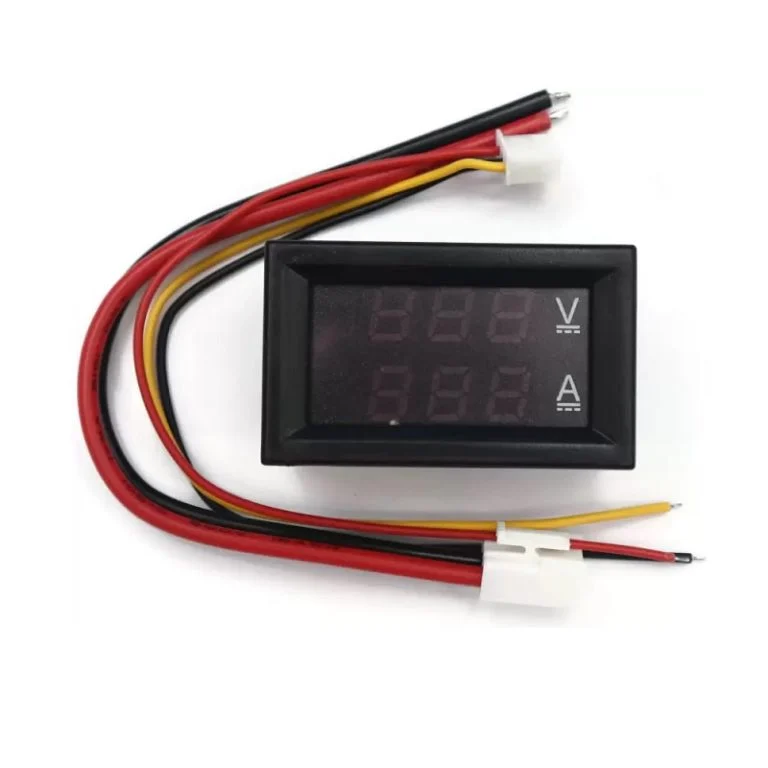

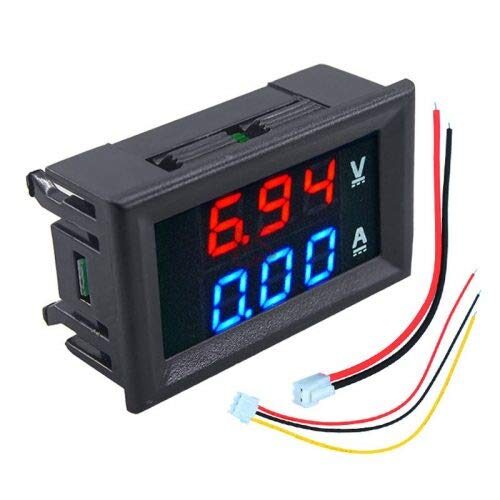

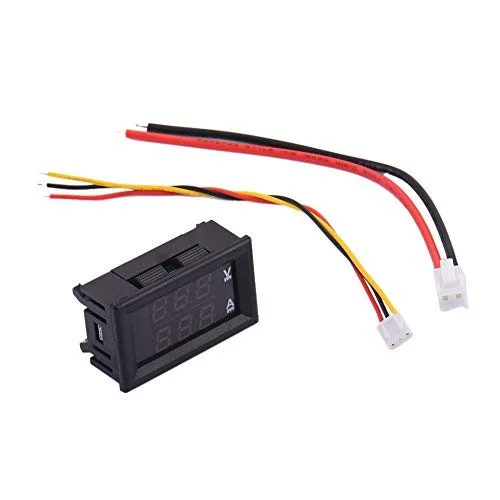

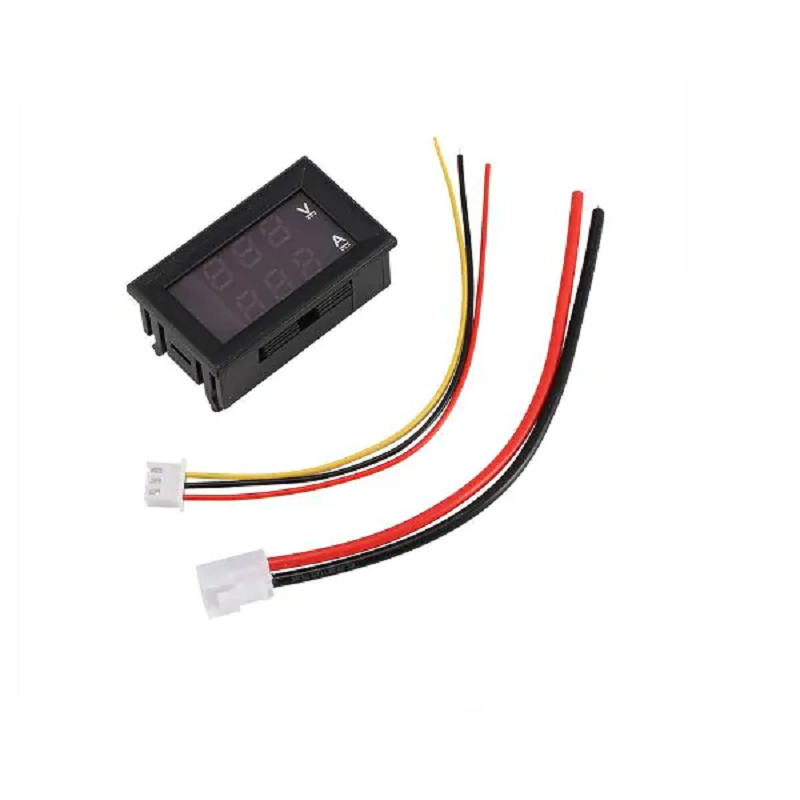

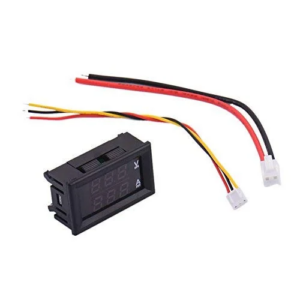

0.28″ 100V 50A Dual LED Voltmeter Ammeter Blue+Red
This device offers simultaneous display of voltage and current, with red indicating voltage and blue representing current measured on the negative rail. It requires an external power supply and boasts protection against reversed connections for safety. With a unified ground wire for testing and power supply terminals, setup is simplified. It provides rapid data updates every 500 milliseconds for real-time monitoring and features calibration potentiometers for precise adjustments. Suitable applications include monitoring battery systems in automotive, electric vehicles, motorcycles, and other products requiring accurate voltage and current measurements.
Features:
- Rapid response recovery characteristics.
- It Has a long life and reliable stability.
- High precision, four digital displays.
- Measure voltage: DC 0 ~ 100V
- Operating voltage: DC 4.5 ~ 30V
- Minimum resolution(V): 0.1V
- Minimum resolution(A): 0.01A
- Operating current: 20mA
- Display: three 0.28″ LED digital tube
- Display color: Red and Blue (two-color display)
Specification:
Specification | Value |
---|---|
Display Size | 0.28 inches |
Maximum Voltage | 100V |
Maximum Current | 50A |
Display Type | LED |
Display Color | Blue (Voltmeter), Red (Ammeter) |
Functionality | Voltmeter and Ammeter (Dual) |
PACKAGE INCLUDES
1 X 0.28″ 100V 50A Dual LED Voltmeter Ammeter Blue+Red
