This is the 4V variant of the 2S 3A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module in Battery Protection Board. Available at ₹41.54 (₹35.20 + GST) with free shipping across India.

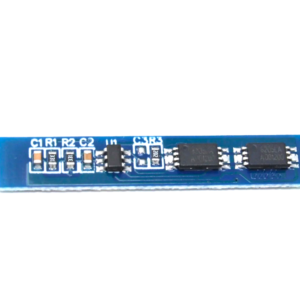

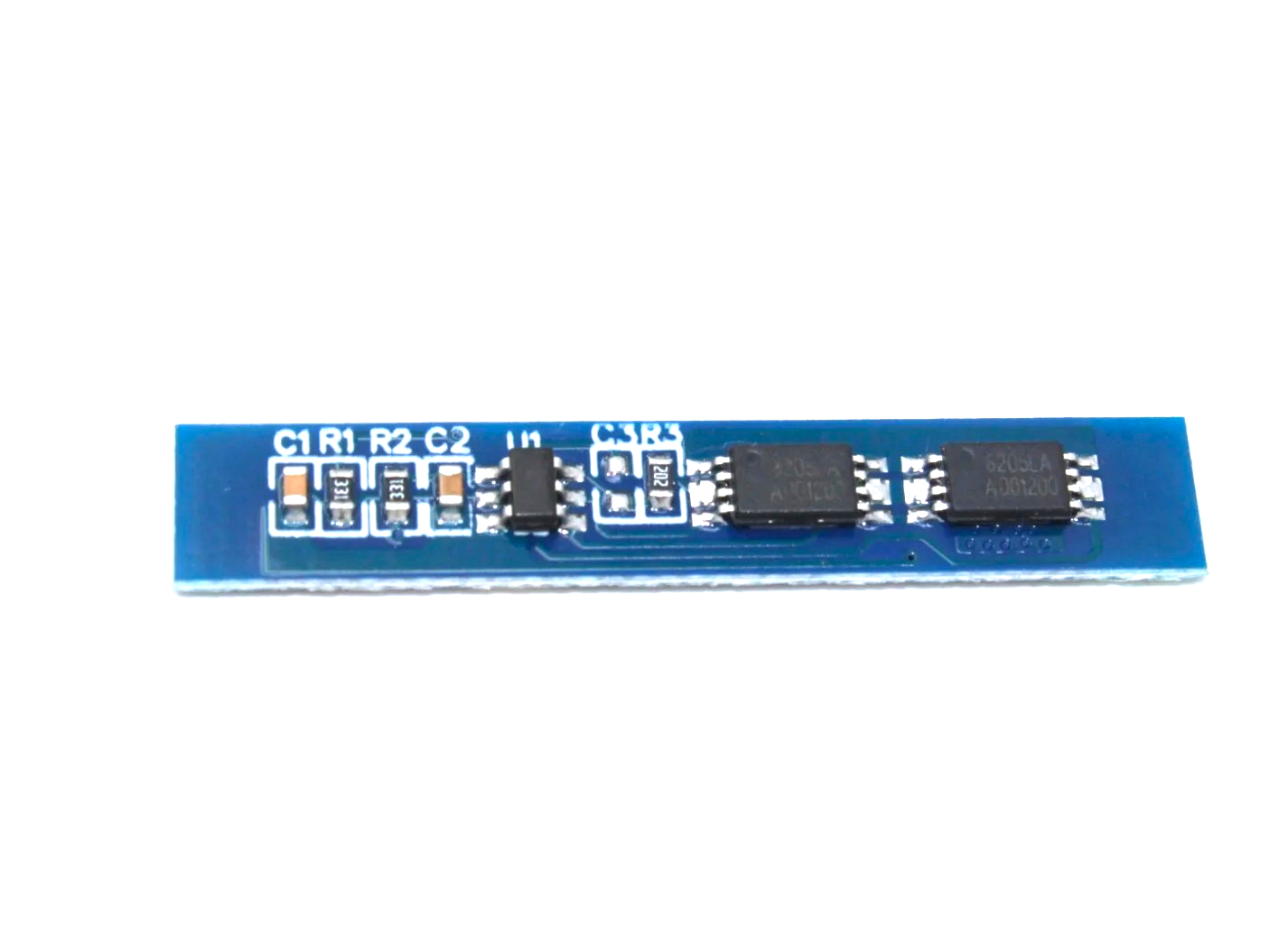

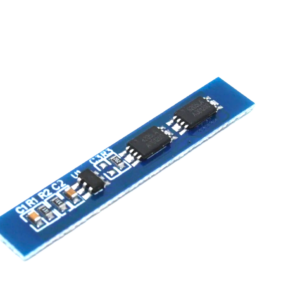

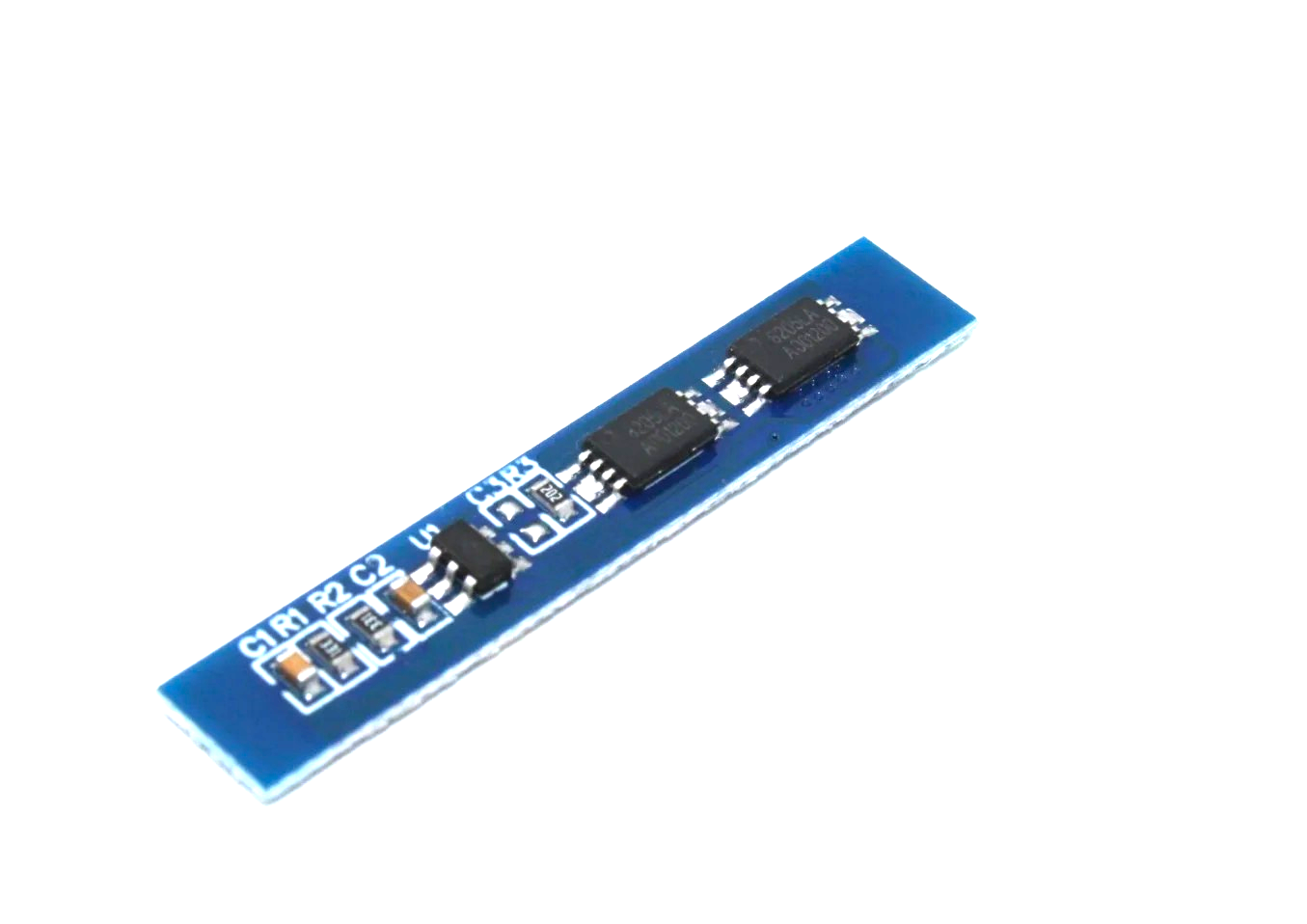

2S 3A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module
2S 3A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module is a small PCB mounted Li-ion Lithium Battery charger protection module. This small and smart battery charger protection module comes with various features like Short circuit protection, Overcharge protection, Over-discharge protection, Overcurrent protection. It is very easy to install and convenient to use in all your DIY portable projects.

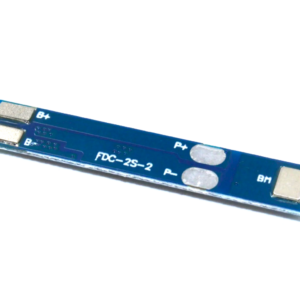

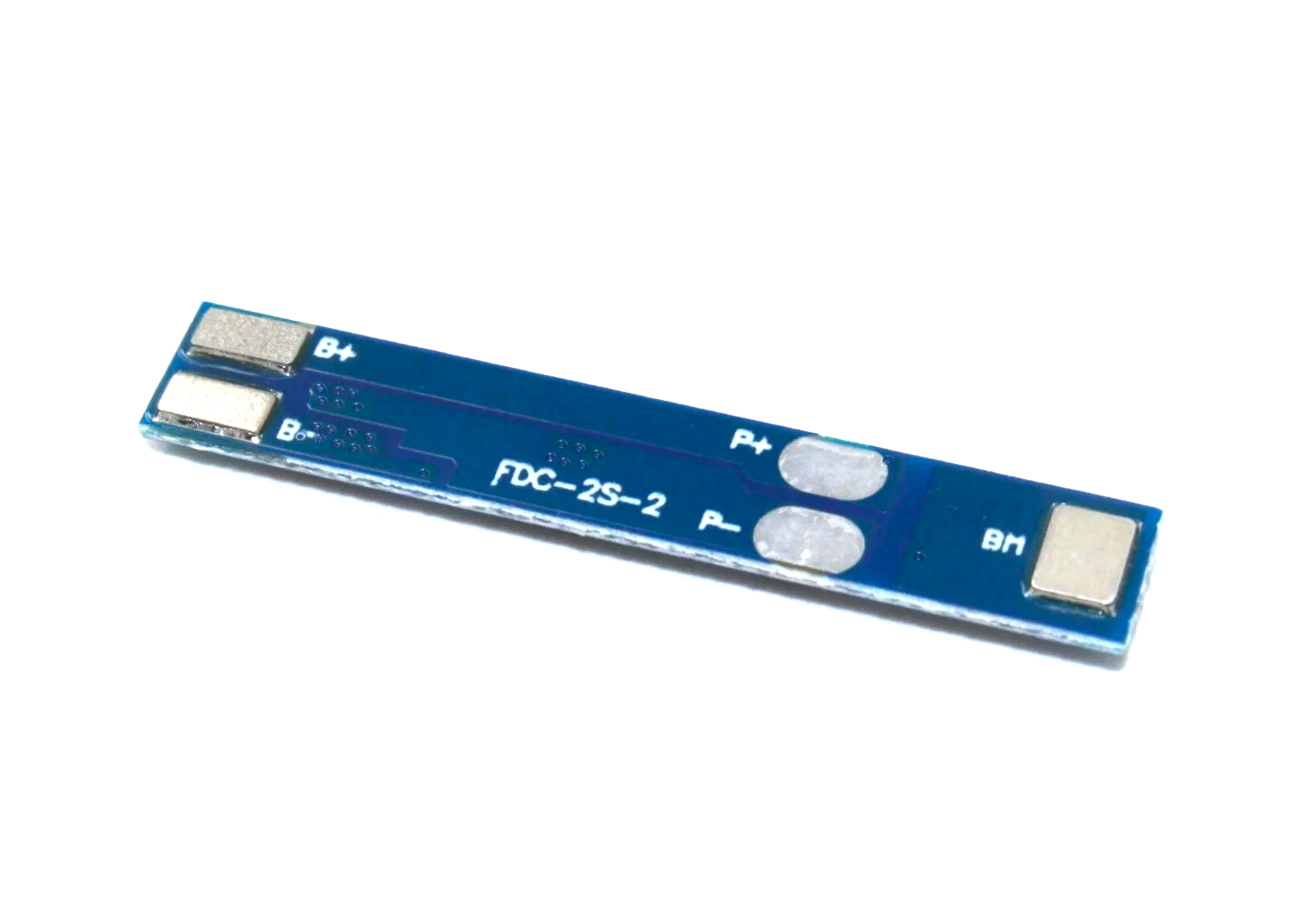

Pin Descriptions:
B+ B-: The interface of battery core
P+ P-: The connector of the battery board
MB: The connection point between the batteries
B+: Battery V+ Positive
B-: Battery V- Negative
P+: Output / Charging V+
P-: Output / Charging V-
Note:
The protection board cannot be used for lithium iron phosphate batteries, hernia lamps, hand drill battery pack, electric fish battery pack, electric bicycle battery pack, buggy battery, 775 (4A) above the motor, 1W fisheye LED lamp.
Features:
- Over-Discharge Detection Voltage: 2.3-3.0V±0.05V.
- Maximum Working Current: 3A.
- Transient Current: 5A.
- Operating Temperature : -40-50 C.
- Internal Resistance: Less than 45m Ω.
- B+ B-: The interface of battery core.
- P+ P-: The connector of the battery board.
- MB: The connection point between the batteries.
Package Includes:
Multi-Cell Charger: Balance Charging 2S-6S Packs
Table of ContentsWhy Balance Charging Matters How Balance Chargers Work 2S and 3S Charging Modules Professional Multi-Cell Chargers...
Read More →
Islanding Detection: Safety for Grid-Connected Solar
Islanding detection is the critical safety mechanism that prevents solar inverters from energising dead grid lines during a...
Read More →
Voltage Regulator Dropout: LDO vs Standard Comparison
Table of Contents What is Dropout Voltage? Standard Linear Regulators: The Classic 78xx Series LDO Regulators: Low Dropout...
Read More →Technical Specifications
| Voltage Range | 7.4V - 8.4V |
|---|---|
| Current Rating | 3A |
| Cell Configuration | 2S |
| SKU | AI1051 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The 2S 3A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module is a versatile battery protection board used across a wide range of applications including lithium battery pack protection, power bank builds, e-bike battery management, solar energy storage, and UPS systems.
Common use cases:
- Building a custom lithium battery pack
- Adding overcharge/overdischarge protection
- Creating a DIY power bank
This product is ideal for battery pack builders and power electronics engineers.
Technical Tip: BMS boards prevent overcharge, overdischarge, overcurrent, and short circuit. Match cell count (S) and max current rating to your battery pack.
