Product Description

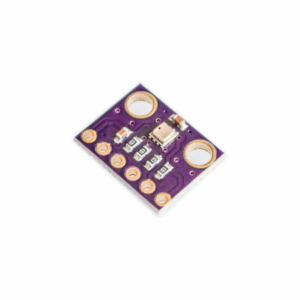

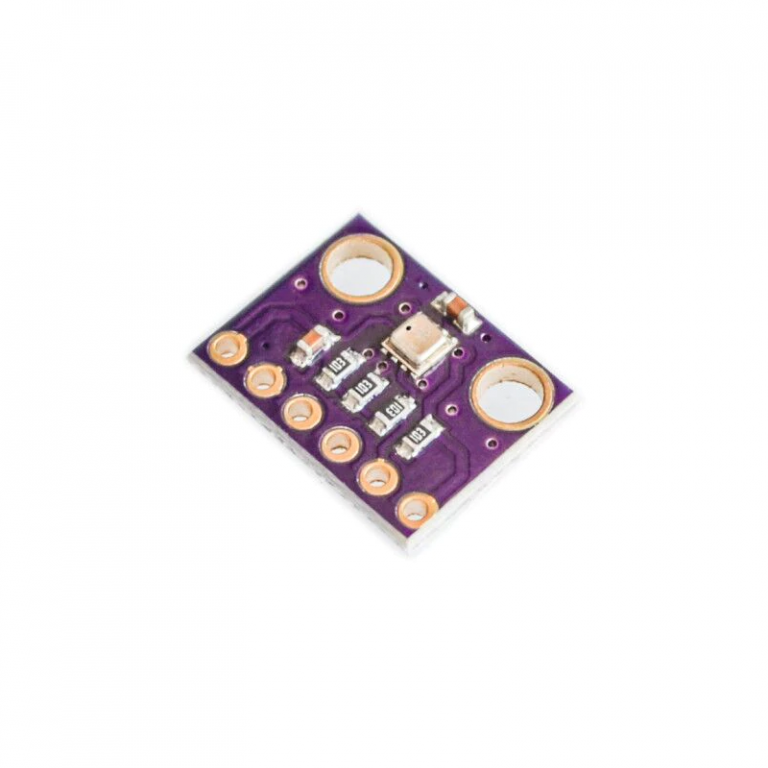

GY-BME280-3.3 is a breakout board that features a Bosch Sensortec ME280 sensor for measuring temperature, humidity and pressure.

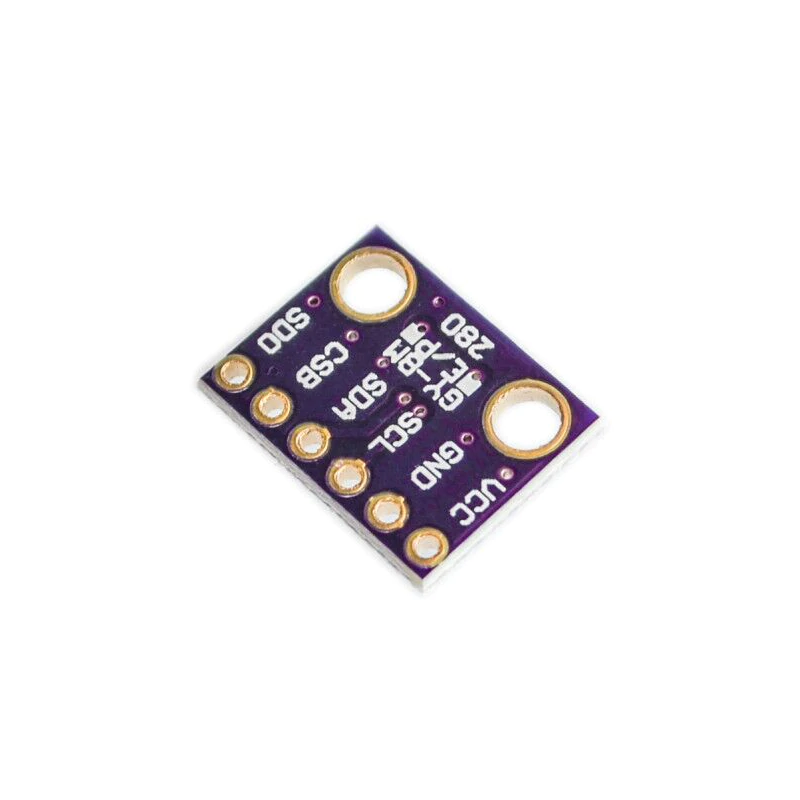

The board has a jumper (solder link GS2) that allows selecting the I2C address, pull-up resistors (R2, R3) of 10k for the I2C bus, a 7-pin header with 2.54mm pitch, and two mounting holes of 3.5mm diameter.
The board’s default configuration is to use a single power rail for both Vdd and Vdd_IO (solder link GS1), and to have 0.1uF decoupling capacitors on both power supply pins.
If you want to use separate power rails for Vdd_IO (1.8V) and Vdd (3.3V), you need to remove the jumper GS1!
Features:
- Package 2.5 mm x 2.5 mm x 0.93 mm metal lid LGA
- Digital interface I2C (up to 3.4 MHz) and SPI (3 and 4 wire, up to 10 MHz)
- Supply voltage VDD main supply voltage range: 1.71 V to 3.6 V
- VDDIO interface voltage range: 1.2 V to 3.6 V
- Current consumption 1.8 uA @ 1 Hz humidity and temperature
- 2.8 uA @ 1 Hz pressure and temperature
- 3.6 uA @ 1 Hz humidity, pressure and temperature
- 0.1 uA in sleep mode
- Operating range -40… 85 C, 0…100 % rel. humidity, 300…1100 hPa- Humidity sensor and pressure sensor can be independently enabled/disabled
Package Includes:

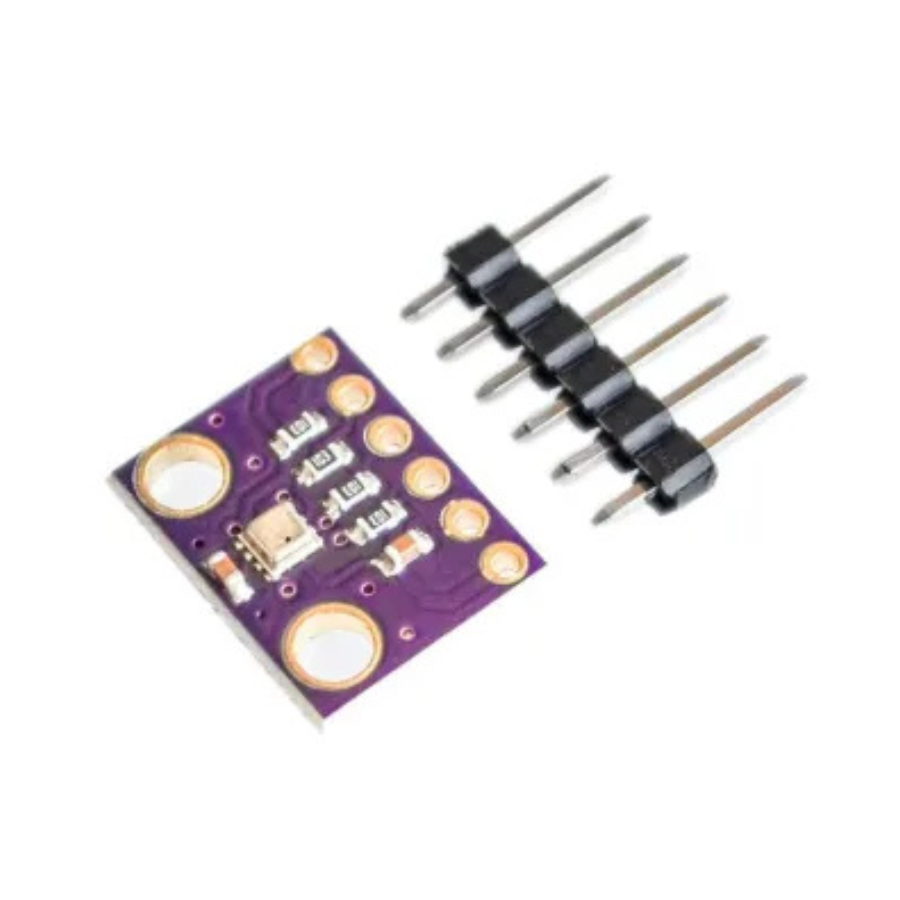

1 x GY-BME280-3.3 Precision Altimeter Atmospheric Pressure Sensor Module
1 x 6 pin Male Header
Tutorial:
Best Sensors for Smart Agriculture Projects in India
India is an agricultural nation where 60% of the population depends on farming for livelihood. Yet water wastage,...
Read More →
LIDAR vs Ultrasonic Sensor: Which Is Better for Robots?
Table of Contents The Distance Sensing Dilemma in Robotics How Ultrasonic Sensors Work How LIDAR Works Head-to-Head Specifications...
Read More →
INA3221 Triple-Channel Power Monitor for Multi-Rail Systems
Managing power across multiple voltage rails simultaneously is a daily challenge in embedded systems, single-board computers, robotics, and...
Read More →Technical Specifications
| Model | GY-BME280-3 |
|---|---|
| SKU | AI2477 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GY-BME280-3.3 Precision Altimeter Atmospheric Pressure Sensor Module is a versatile load / pressure / force / flex sensor used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
