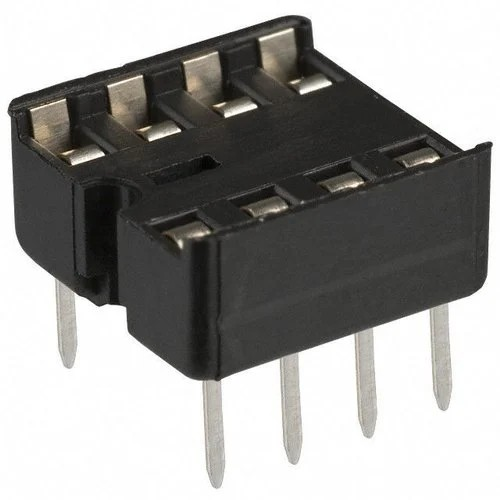

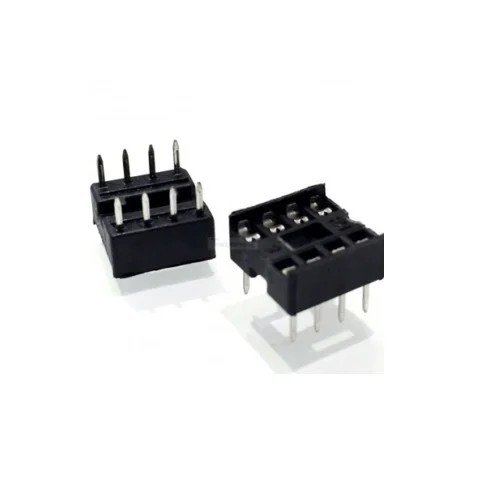

The 8-Pin IC Socket Base Adapter is an 8-pin IC holder designed to be directly soldered onto a PCB. The IC can be easily inserted and removed from the socket as needed. This base serves as a removable holder for the IC.
The socket is particularly useful for temperature-sensitive ICs, as it prevents damage from the heat of the soldering iron. It is commonly used with microcontroller ICs, allowing them to be removed for programming or other purposes.
Features:
- 8 pins.
- JDEC compliant.
- Molded notch for proper orientation.
- Easy to insert and remove ICs.
Specification
| Manufacturer: | Generic |
|---|---|
| Current Handle Capacity (A) | 1 |
| No. of Contacts | 8 |
| Contact Material | Phosphor Bronze |
| Contact Plating | Tin |
| Operating Temperature (°C) | -25 to 85 |
| Flammability Rating | UL94V-o |
| Color: | Black |
| Insertion force | 340g max per contact |
| Exertion Force | 80g max per contact |
| Length (mm): | 10 |
| Width (mm): | 10 |
| Height (mm): | 4 |
| Weight (g): | 1 (approx) (each) |
Package Included:
1 x 8 Pin DIP8 Integrated Circuit IC Sockets Adaptor( Pack of 10)
Technical Specifications
| Model | DIP8 |
|---|---|
| Pin Count | 8-pin |
| Package Quantity | 10 pcs |
| SKU | AI6351 |
| Weight | 0.02 kg |
| Availability | In Stock |
Applications & Use Cases
The 8 Pin DIP8 Integrated Circuit IC Sockets Adaptor(Pack of 10) is a versatile ic base used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
