Looking for Dip Ic? 28 Pin Wide DIP IC Socket Base Adaptor (Pack of 5) is available at Zbotic with fast shipping across India.
Description:

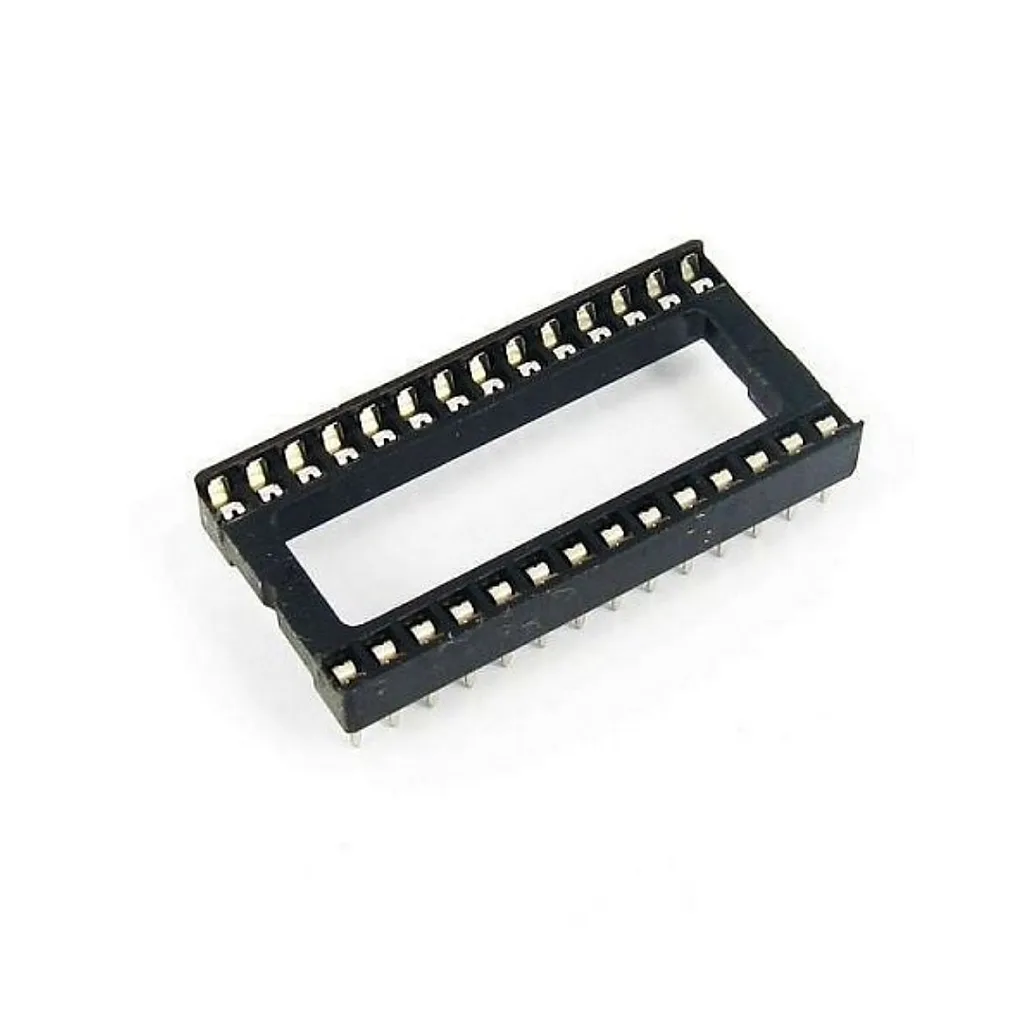

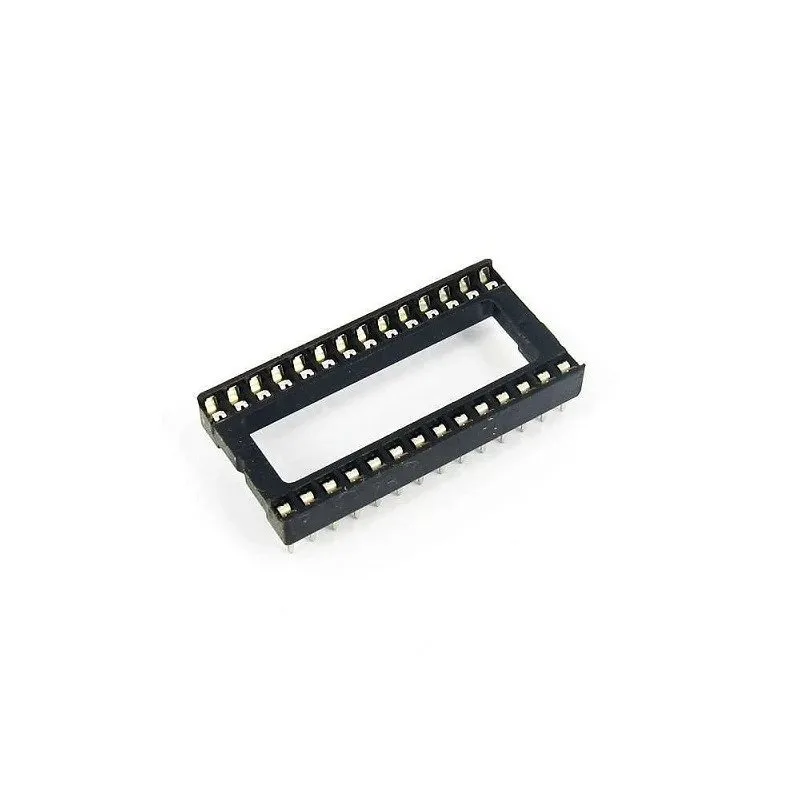

A 28 pin wide IC socket base adaptor is an IC holder that can be attached to the PCB by soldering and can hold or release the IC as required. It acts as a removable IC holder. The IC base fits a wide IC.
The socket shields the IC from heat damage during soldering, which can affect some ICs more than others. It is also handy for microcontroller ICs that have to be programmed outside the PCB.
Features:
- 28 pins
- JDEC compliant
- Molded notch for proper orientation
- Easy to insert and remove ICs
Specifications:
| Current Handling Capacity (A) | 1 |
|---|---|
| No. of Contact Points | 28 |
| Contact Material | Phosphor Bronze |
| Contact Plating | Tin |
| Operating Temperature (°C) | -25 to 85 |
| Flammability Rating | UL94V-0 |
| Color: | Black |
| Insertion Force | 340g max per contact |
| Exertion Force | 80g max per contact |
| Length (mm): | 35 |
| Width (mm): | 17 |
| Height (mm): | 4 |
Package Includes:
- 1 x 28 Pin Wide DIP IC Socket Base Adaptor(5 pcs).
28 Pin Wide DIP IC Socket Base Adaptor Overview
The 28 Pin Wide DIP IC Socket Base Adaptor is a solder-in holder designed for wide DIP integrated circuits. It provides a safe, removable interface on your PCB, allowing you to insert or replace ICs without repeated soldering.
Key Features of 28 Pin Wide DIP IC Socket Base Adaptor
- 28 gold-plated contact points compatible with standard wide DIP ICs
- JDEC compliant dimensions ensure reliable fit for all 28-pin packages
- Molded notch for clear pin-1 orientation and error-free PCB assembly
- Phosphor bronze contacts resist corrosion and maintain low contact resistance
- Protects ICs from soldering heat, ideal for sensitive microcontrollers
- Pack of 5 adaptors, ready to ship fast from Zbotic across India
Applications and Use Cases
- Prototyping circuits where ICs require frequent replacement or testing
- Programming microcontroller ICs externally before final PCB mounting
- Repair and maintenance of consumer electronics by swapping faulty chips
- Educational electronics kits for teaching DIP-IC based designs
- Custom embedded systems where heat-sensitive ICs need a protective socket
- Low-volume production runs where soldering solderless insertion saves time
How to Use 28 Pin Wide DIP IC Socket Base Adaptor
Align the adaptor’s molded notch with the PCB’s pin-1 silk screen, then solder each of the 28 pins to the board pads. Once soldered, allow the PCB to cool and simply press your DIP IC straight into the socket. To replace the IC, gently pull it out using IC extractor tools or fingers protected with ESD-safe gloves.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I use this socket with any 28-pin DIP IC?
Yes. This adaptor follows JDEC standard spacing for wide DIP packages, so it accommodates any compliant 28-pin IC regardless of manufacturer.
What is the maximum current this socket can handle?
This socket is rated for up to 1 A per contact, making it suitable for most low-power digital and analog ICs without overheating.
How do I ensure correct IC orientation?
Match the molded notch on the socket with the pin-1 marker on your PCB silkscreen. Then align the matching notch or dot on your IC for flawless orientation every time.
Technical Specifications
| Pin Count | 28-pin |
|---|---|
| Package Quantity | 5 pcs |
| SKU | AI0625 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The 28 Pin Wide DIP IC Socket Base Adaptor (Pack of 5) is a versatile ic base used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
