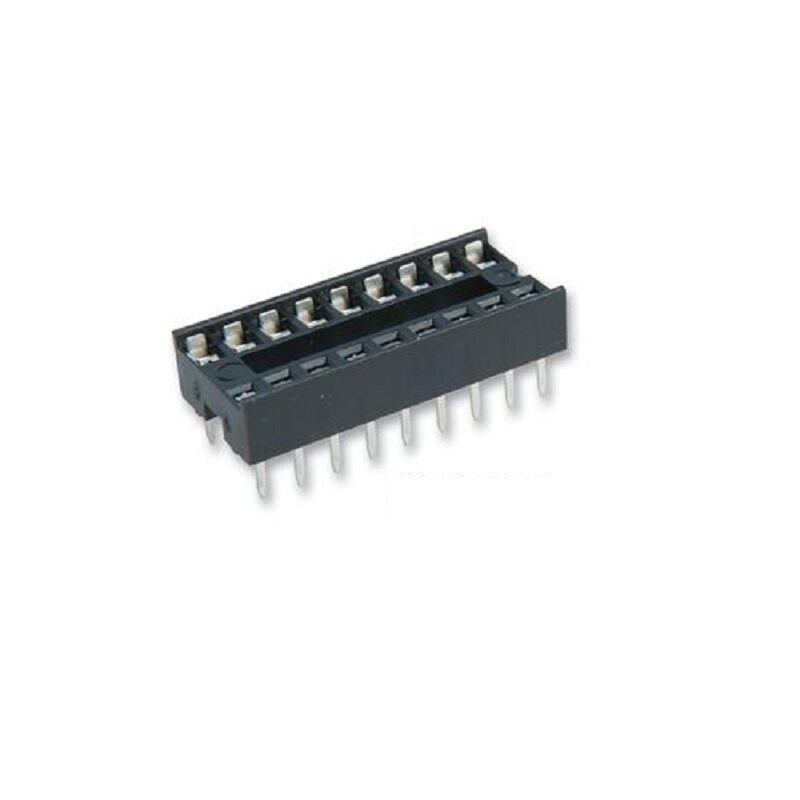

18 Pin DIP IC Socket Base Adaptor
18 Pin IC Socket base adaptor is an 18 pin IC holder, which can be soldered directly onto the PCB. The IC can be removed from this socket when required. The IC is placed on the socket at the time of use. This base acts as a removable IC holder.
The socket is used when the IC is temperature sensitive and the heat from the soldering iron can damage the IC. This socket is used when working with a microcontroller IC and can be removed for programming.
Features
- 18 pins.
- JDEC compliant.
- Molded notch for proper orientation.
- Easy to insert and remove ICs.
Specifications:
| Current Handling Capacity (A) | 1 |
|---|---|
| No. of Contact Points | 18 |
| Contact Material | Phosphor Bronze |
| Contact Plating | Tin |
| Operating Temperature (°C) | -25 to 85 |
| Flammability Rating | UL94V-0 |
| Color: | Black |
| Insertion Force | 340g max per contact |
| Exertion Force | 80g max per contact |
| Length (mm): | 23 |
| Width (mm): | 10 |
| Height (mm): | 4 |
| Weight (g): | 1 (approx) (each) |
Package Includes
- 1 x 18 Pin DIP IC Socket Base Adaptor(5 pcs).
Technical Specifications
| Pin Count | 18-pin |
|---|---|
| Package Quantity | 5 pcs |
| SKU | AI0621 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 18 Pin DIP IC Socket Base Adaptor (Pack of 5) is a versatile ic base used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
