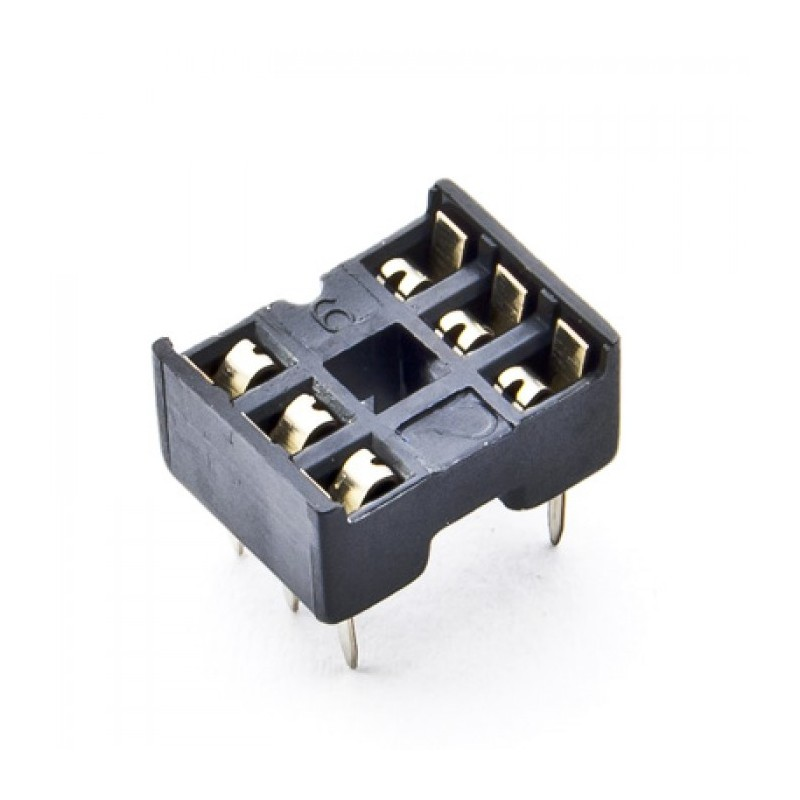

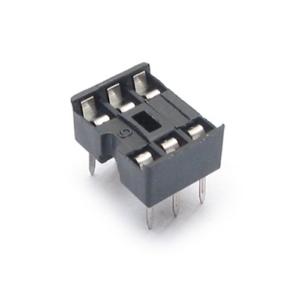

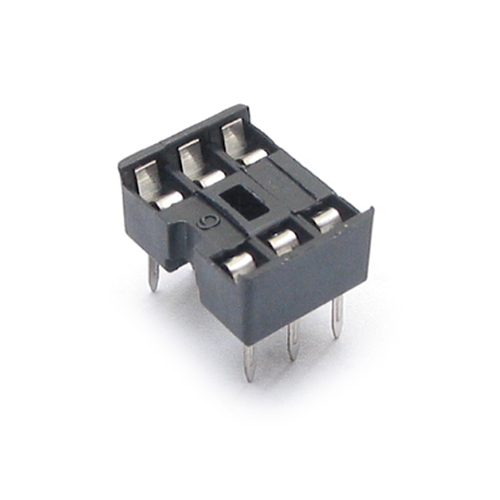

6 Pin DIP IC Socket Base Adaptor
A 6 pin IC socket base adaptor is a device that holds a 6 pin IC and can be attached to the PCB by soldering. The socket allows the IC to be easily plugged in and unplugged as required. The socket acts as a removable IC holder.
The socket shields the IC from heat damage that might happen during soldering, especially if the IC is sensitive to temperature. The socket is also handy for working with a microcontroller IC that can be removed for programming.
Features
- 6 pins.
- JDEC compliant.
- Molded notch for proper orientation.
- Easy to insert and remove ICs.
Specifications:
| Current Handling Capacity (A) | 1 |
|---|---|
| No. of Contact Points | 6 |
| Contact Material | Phosphor Bronze |
| Contact Plating | Tin |
| Operating Temperature (°C) | -25 to 85 |
| Flammability Rating | UL94V-0 |
| Color: | Black |
| Insertion Force | 340g max per contact |
| Exertion Force | 80g max per contact |
| Length (mm): | 7.7 |
| Width (mm): | 10 |
| Height (mm): | 4 |
| Weight (g): | 1 (approx) (each) |
Package Includes
- 1 x 6 Pin DIP IC Socket Base Adaptor (10 pcs).
Technical Specifications
| Pin Count | 6-pin |
|---|---|
| Package Quantity | 10 pcs |
| SKU | AI0627 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The 6 Pin DIP IC Socket Base Adaptor (Pack of 10) is a versatile ic base used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
