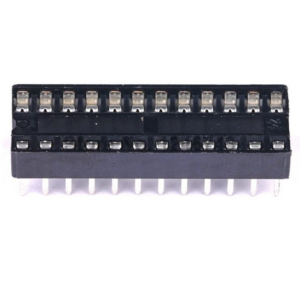

24 Pin Narrow DIP IC Socket Base Adaptor
  • 24 Pin Narrow DIP IC Socket Base Adaptor

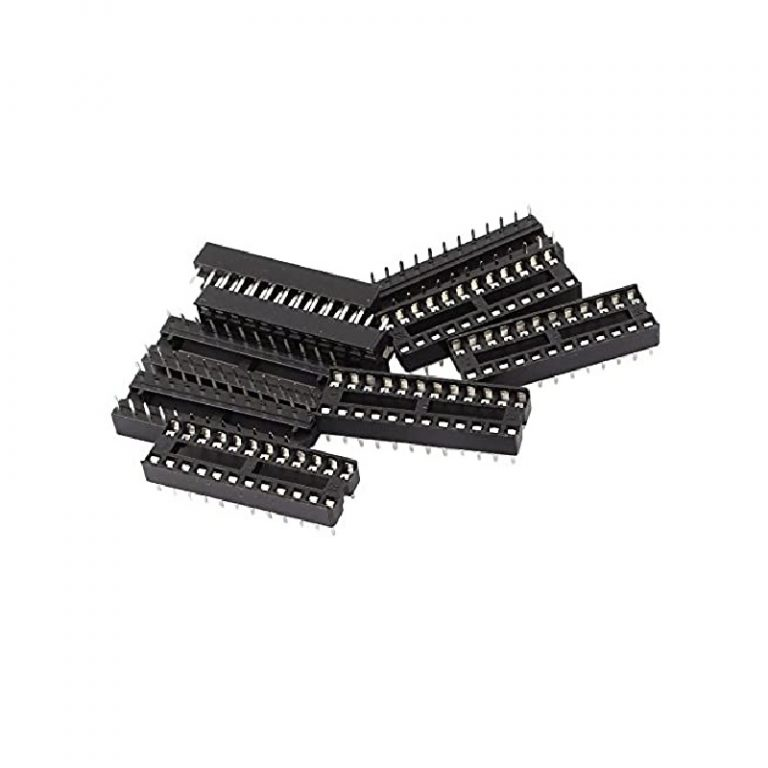

24 Pin Narrow DIP IC Socket Base Adaptor (Pack of 5)

Share: Facebook Twitter Tumblr Linkedin Houzz Vk Pinterest Whatsapp
Add to wishlist
Add to compare

24 pins.

JDEC compliant.

Molded notch for proper orientation.

Easy to insert and remove ICs.

Ideal for narrow ICs.

46 in stock

Brand: Generic SKU: AI0623
Category: IC Base
Tags: 24 Pin DIP IC Socket, DIP IC Socket, IC Base, IC Socket

₹30.68 (₹26.00 + GST)

Purchase this product now and earn 1 Zbotic Point!
Frequently Bought Together
24 Pin Narrow DIP IC Socket Base Adaptor
This item: 24 Pin Narrow DIP IC Socket Base Adaptor (Pack of 5)
₹30.68 (₹26.00 + GST)
₹30.68 (₹26.00 + GST)
40 Pin DIP IC Socket Base Adaptor
1 × 40 Pin DIP IC Socket Base Adaptor (Pack of 5)
₹40.47 (₹34.30 + GST)
Description
Additional information
Warranty
COO

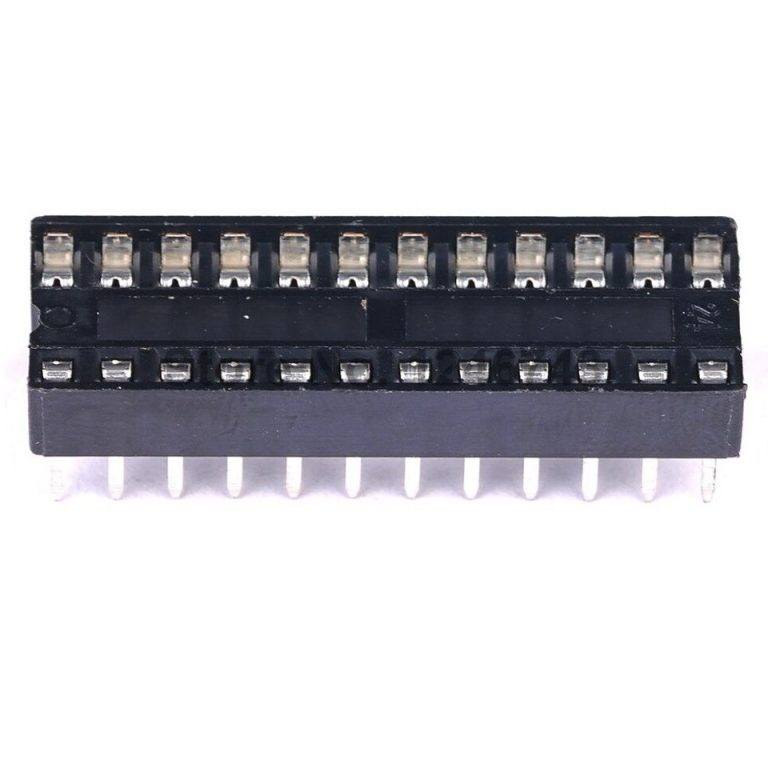

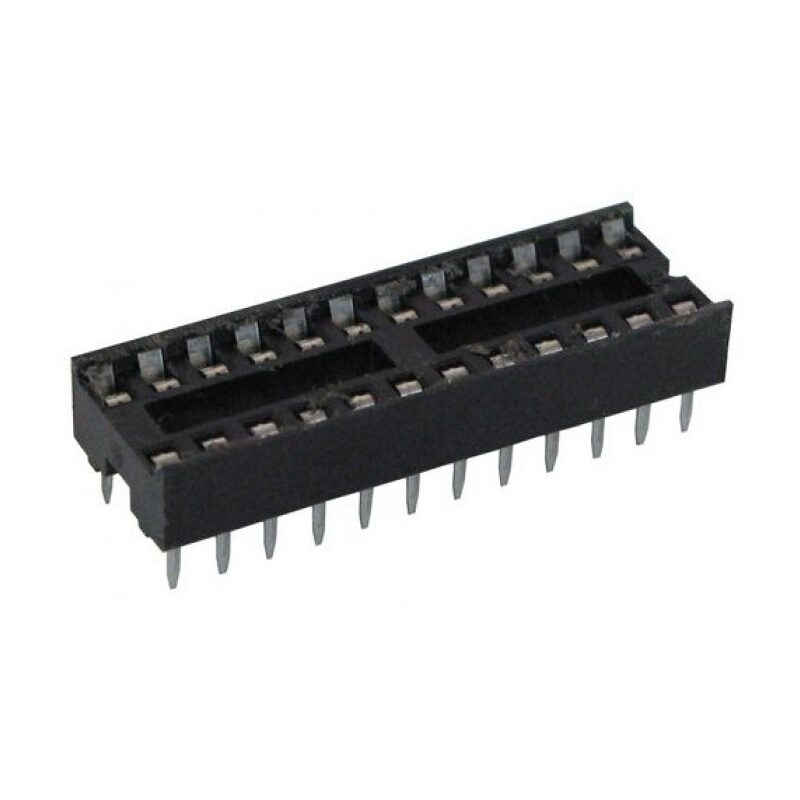

24 Pin Narrow DIP IC Socket Base Adaptor

A 24 pin narrow IC socket base adaptor is a holder for a 24 pin IC that can be soldered onto the PCB. The IC can be easily inserted and removed from this socket as needed. This base serves as a detachable IC holder. The IC base fits a narrow IC.

The socket protects the IC from heat damage that may occur during soldering. The socket is useful for working with a microcontroller IC that can be taken out for programming.



  1. 24 pins.
  2. JDEC compliant.
  3. Molded notch for proper orientation.
  4. Easy to insert and remove ICs.

Specifications:

Current Handling Capacity (A) 1
No. of Contact Points 24
Contact Material Phosphor Bronze
Contact Plating Tin
Operating Temperature (°C) -25 to 85
Flammability Rating UL94V-0
Color: Black
Insertion Force 340g max per contact
Exertion Force 80g max per contact
Length (mm): 30
Width (mm): 10
Height (mm): 4
Weight (g): 1 (approx) (each)



Package Includes

  • 1 x 24 Pin Narrow DIP IC Socket Base Adaptor(5 pcs).
Weight 0.00975 kg
Dimensions 6 × 4 × 2 cm
15 Days Warranty

Please note that this item is only covered by a standard supplier warranty against manufacturing defects for a period of 15days from the time of delivery. It is important to understand that only manufacturing defects are covered under this warranty, and any other issues will not be considered for reimbursement or replacement. We strongly advise inspecting the product upon delivery to ensure it meets your expectations. In case of any manufacturing defects, we guarantee reimbursement or replacement.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Country Of Origin: China
