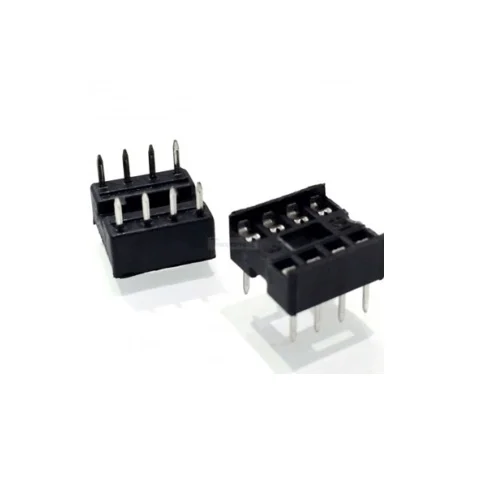

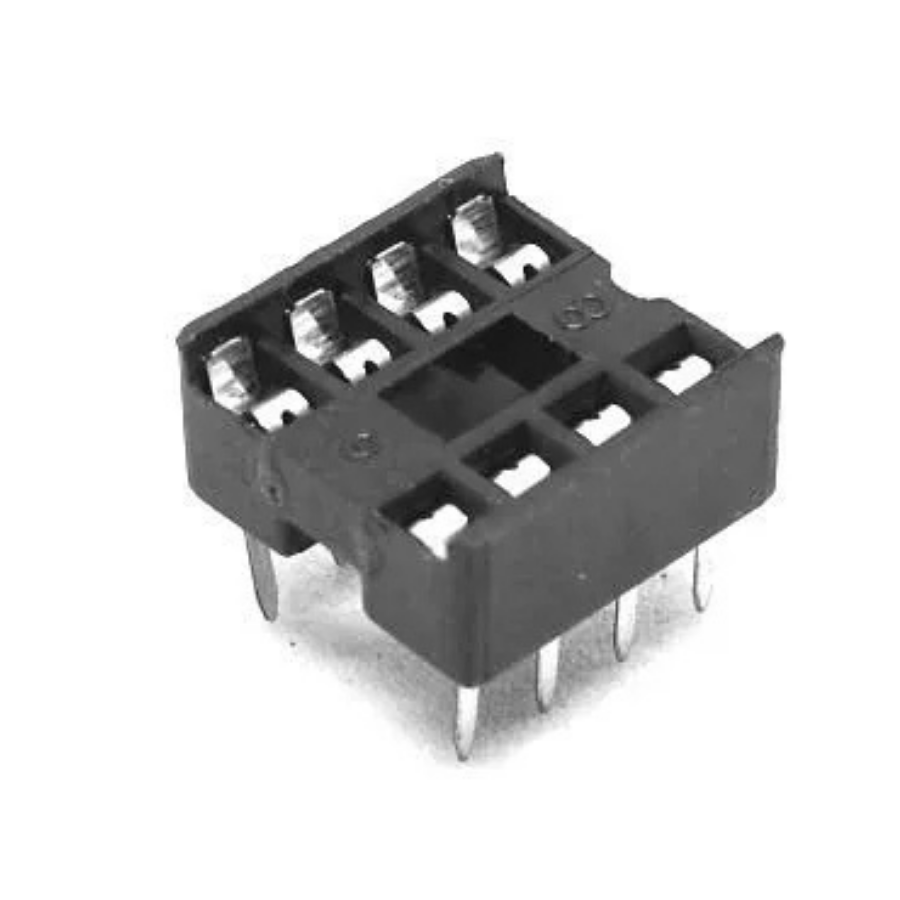

8 Pin DIP IC Base or IC Socket
The 8-Pin IC Socket Base Adapter serves as a holder for 8-pin integrated circuits, allowing them to be securely mounted on a PCB. It provides the convenience of easily detaching the IC from the socket when needed, offering greater flexibility in its use.
This socket is particularly useful for temperature-sensitive ICs, as it helps prevent damage from the heat of soldering irons. It is commonly used with microcontroller ICs, making it easier to remove them for programming or other maintenance tasks.
Features
8 pins.
JDEC compliant.
Molded notch for proper orientation.
Easy to insert and remove ICs.
Specification:
| Current Handling Capacity (A) | 1 |
|---|---|
| No. of Contact Points | 8 |
| Contact Material | Phosphor Bronze |
| Contact Plating | Tin |
| Operating Temperature (°C): | -25 to 85 |
| Flammability Rating | UL94V-0 |
| Color: | Black |
| Insertion Force | 340g max per contact |
| Exertion Force | 80g max per contact |
| Length (mm): | 10 |
| Width (mm): | 10 |
| Height (mm) | 4 |
| Weight (g): | 1 (approx) (each) |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 6 × 4 × 2 cm |
Package Included
10 x 8 Pin DIP IC Socket or IC Base.
Technical Specifications
| Pin Count | 8-pin |
|---|---|
| Package Quantity | 10 pcs |
| SKU | AI0431 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The 8 Pin DIP IC Base or IC Socket (Pack of 10) is a versatile ic base used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
