This is the 36V variant of the 36V Two Wire Digital Display Electric Quantity Meter in Lipo Voltage Checker. Available at ₹153.40 (₹130.00 + GST) with free shipping across India.
Looking for 36v Display? 36V Two Wire Digital Display Electric Quantity Meter is available at Zbotic with fast shipping across India.

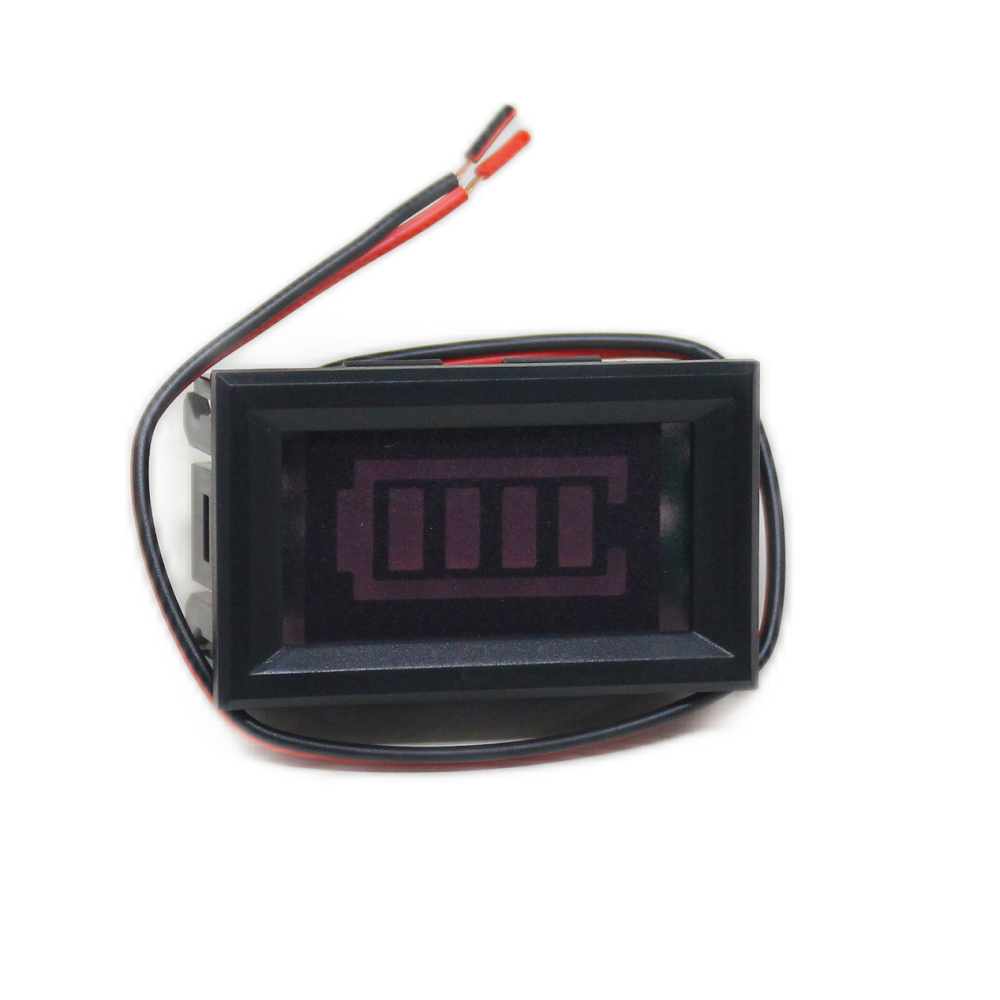

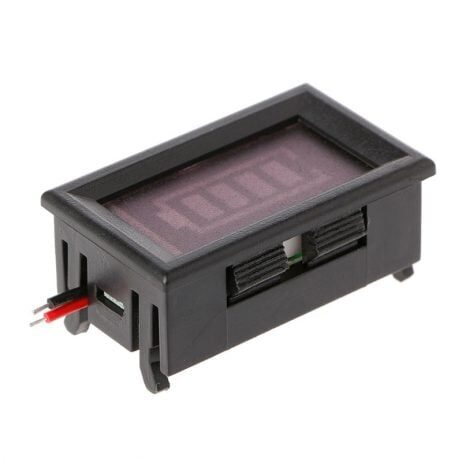

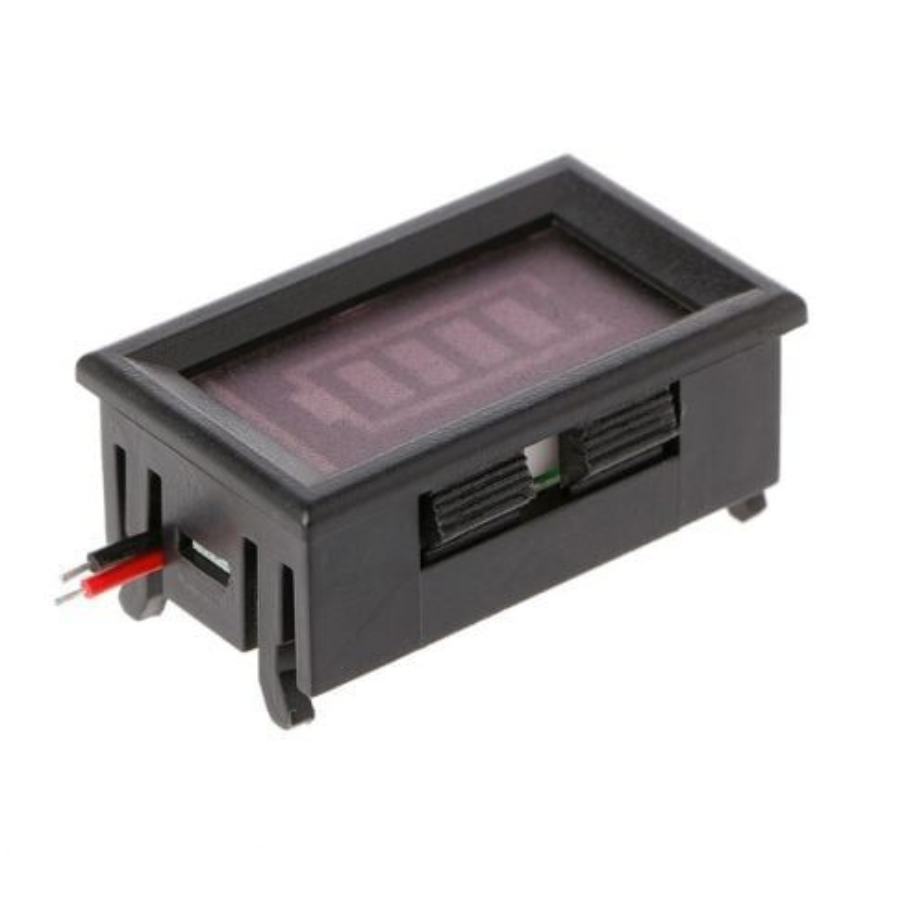

36V Two Wire Digital Display Electric Quantity Meter:
Introducing our compact and efficient Digital Battery Level Indicator with LED Display. The 36V Two-Wire Digital Display Battery Level Indicator simplifies the process of monitoring battery levels, requiring just a few minutes for setup. Its straightforward design allows for easy connection to the power source you wish to measure, with LED indicators providing clear visual feedback.
Electricity Quantity Parameter Display:
- Illuminates 1 block for battery voltage over N*3.3V.
- Illuminates 2 blocks for battery voltage over N*3.5V.
- Illuminates 3 blocks for battery voltage over N*3.7V.
- Illuminates 4 blocks for battery voltage over N*3.9V.
- If battery voltage falls below N*3.3V, all 4 blocks will turn off, indicating a need for recharging.
Simple Installation:
- Red wire connects to the positive pole, while the black wire connects to the negative pole.
- Built-in reverse polarity protection ensures safety, preventing damage from connection mismatches.
Features:
- DRegistration Roleisplays battery type electricity quantity.
- Suitable for lithium batteries.
- Easy to use: Connect the display board’s positive and negative ports to the corresponding battery terminals for real-time battery electricity quantity display.
- LED Display Color: Outline in red, with blue blocks indicating battery level (all blocks illuminate when battery is fully charged).
Specifications:
| Shell Color | Black |
|---|---|
| Display Color | Outline: Red, Status block: Blue |
| Voltage tolerance | ±1%; |
| 4 Levels of Power | 25%, 50%, 75%, 100% full |
| Working current | 5-15 ma |
| Refresh speed | 300mS once |
| Lead length | About 20cm |
| Working temperature | -20℃~65℃ |
Upgrade your battery monitoring experience with our Digital Battery Level Indicator, offering convenience, reliability, and peace of mind for various applications, especially those using lithium batteries
Package Includes:
1 x 36V Two-Wire Digital Display Battery Level Indicator
36V Two Wire Digital Display Electric Quantity Meter Overview
The 36V Two Wire Digital Display Electric Quantity Meter is a compact voltage indicator designed to monitor lithium battery charge levels up to 36 V. With its two-wire connection and clear LED blocks, it provides a quick visual reference of battery health in real time.
Key Features of 36V Two Wire Digital Display Electric Quantity Meter
- Voltage range from 0 V to 36 V, ideal for 36 V lithium battery packs
- Four LED blocks that light up progressively to show remaining battery capacity
- Outline in red with blue block illumination—fully charged status lights all blocks
- Reverse polarity protection prevents damage if wires are connected backwards
- Simple two-wire hookup: red to positive pole, black to negative pole
- Genuine unit with fast shipping from Zbotic across India
Applications and Use Cases
- Electric bicycles and scooters using 36 V lithium battery systems
- Portable power stations or DIY battery backup setups
- Remote-controlled vehicles and robotics projects requiring battery level feedback
- Solar power installations with 36 V battery banks
- Battery maintenance stations for quick health checks
How to Use 36V Two Wire Digital Display Electric Quantity Meter
To install, connect the red wire to the battery’s positive terminal and the black wire to the negative terminal. Once powered, the LED blocks will illuminate according to voltage thresholds, offering an immediate readout of the battery’s state of charge. No additional configuration is needed.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What voltage levels correspond to each LED block?
Each LED block lights when the battery voltage exceeds preset thresholds within the 0–36 V range. The more blocks illuminated, the higher the remaining charge.
Can I connect this meter to any battery chemistry?
This meter is optimized for lithium-based batteries up to 36 V. Using it with other chemistries may not provide accurate readings.
Is the meter protected against reverse wiring?
Yes, the 36V Two Wire Digital Display Electric Quantity Meter includes built-in reverse polarity protection to safeguard against accidental miswiring.
How to Read Battery State of Charge: Voltage vs Actual Capacity
How to Read Battery State of Charge: Voltage vs Actual Capacity Understanding battery state of charge voltage SOC...
Read More →
Battery Recycling Process: Extract Materials Safely
Understanding the battery recycling process is essential as lithium-ion batteries reach end of life in growing numbers. India...
Read More →
Solar Charge Profile: Absorb, Float, and Equalize
Understanding the solar charge profile -- absorb, float, and equalise stages -- is essential for correctly configuring solar...
Read More →Technical Specifications
| Operating Voltage | 36V |
|---|---|
| SKU | AI2377 |
| Weight | 0.0195 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 36V Two Wire Digital Display Electric Quantity Meter is a versatile lipo voltage checker used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
