This is the 6V variant of the 11.1-12.6V 3S Lithium Battery Capacity Indicator in Lipo Voltage Checker. Available at Original price was: ₹110.92.₹76.70Current price is: ₹76.70. (₹65.00 + GST) with free shipping across India.
This 11.1-12.6V 3S Lithium Battery Capacity Indicator Module is designed to provide an intuitive and visually appealing display of the battery’s real-time power level. It is specifically tailored for 3S lithium batteries, including configurations such as 11.1V to 12.6V lithium-ion packs, often used in drones, electric vehicles, and other battery-powered devices. The module ensures a clear and accurate understanding of the remaining battery charge, helping users to monitor battery health and usage efficiently.
The module is equipped with a reverse connection protection function, preventing potential damage if the battery is connected incorrectly. It is very easy to use – simply connect the module’s positive and negative terminals to the corresponding battery terminals, and the digital display will show the real-time battery capacity.
Features:
- Battery Type: Designed for 3S Lithium batteries (11.1V – 12.6V).
- Application Range: Suitable for various lithium-ion applications, including drones, electric vehicles, and other devices that use 3S lithium batteries.

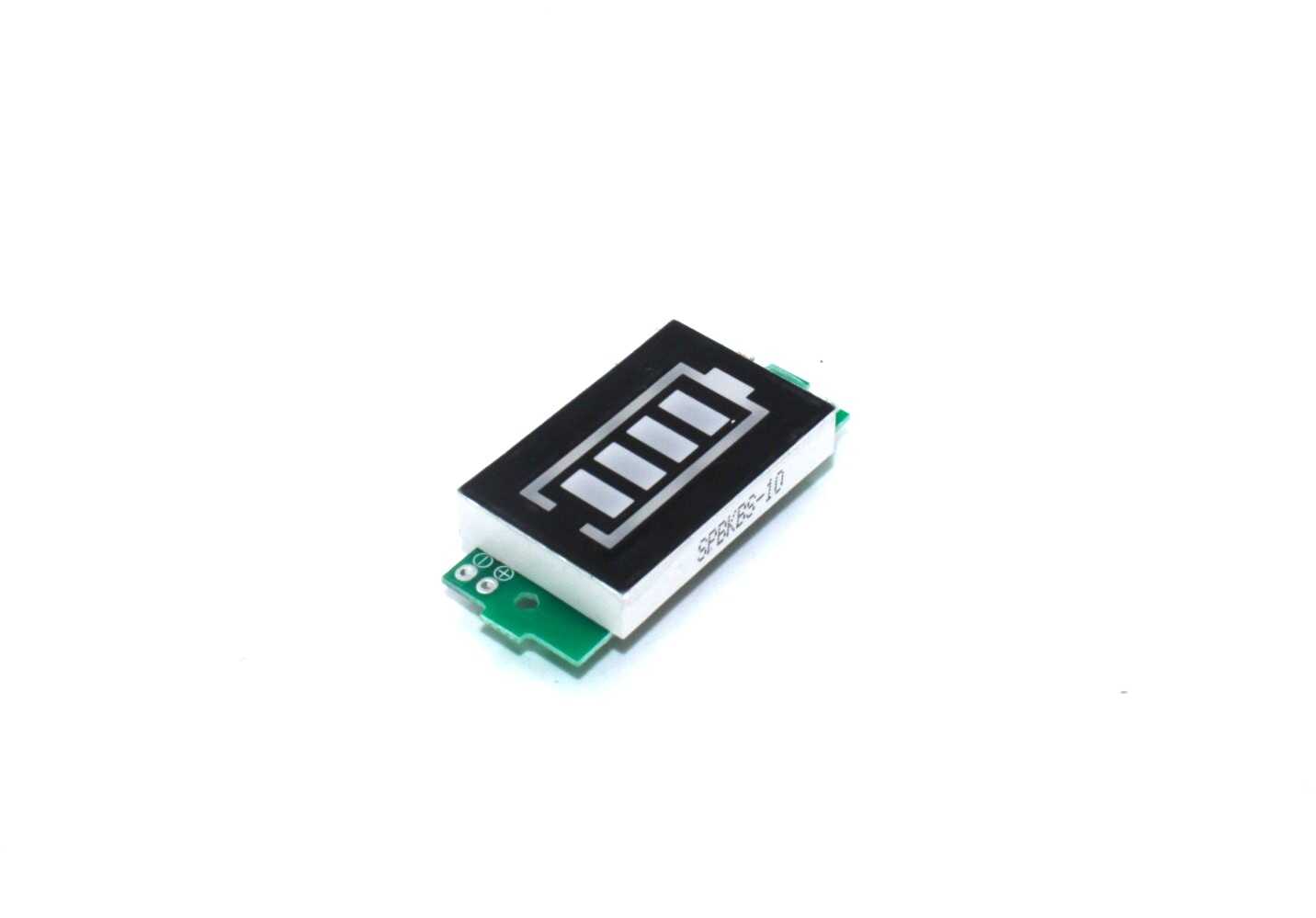

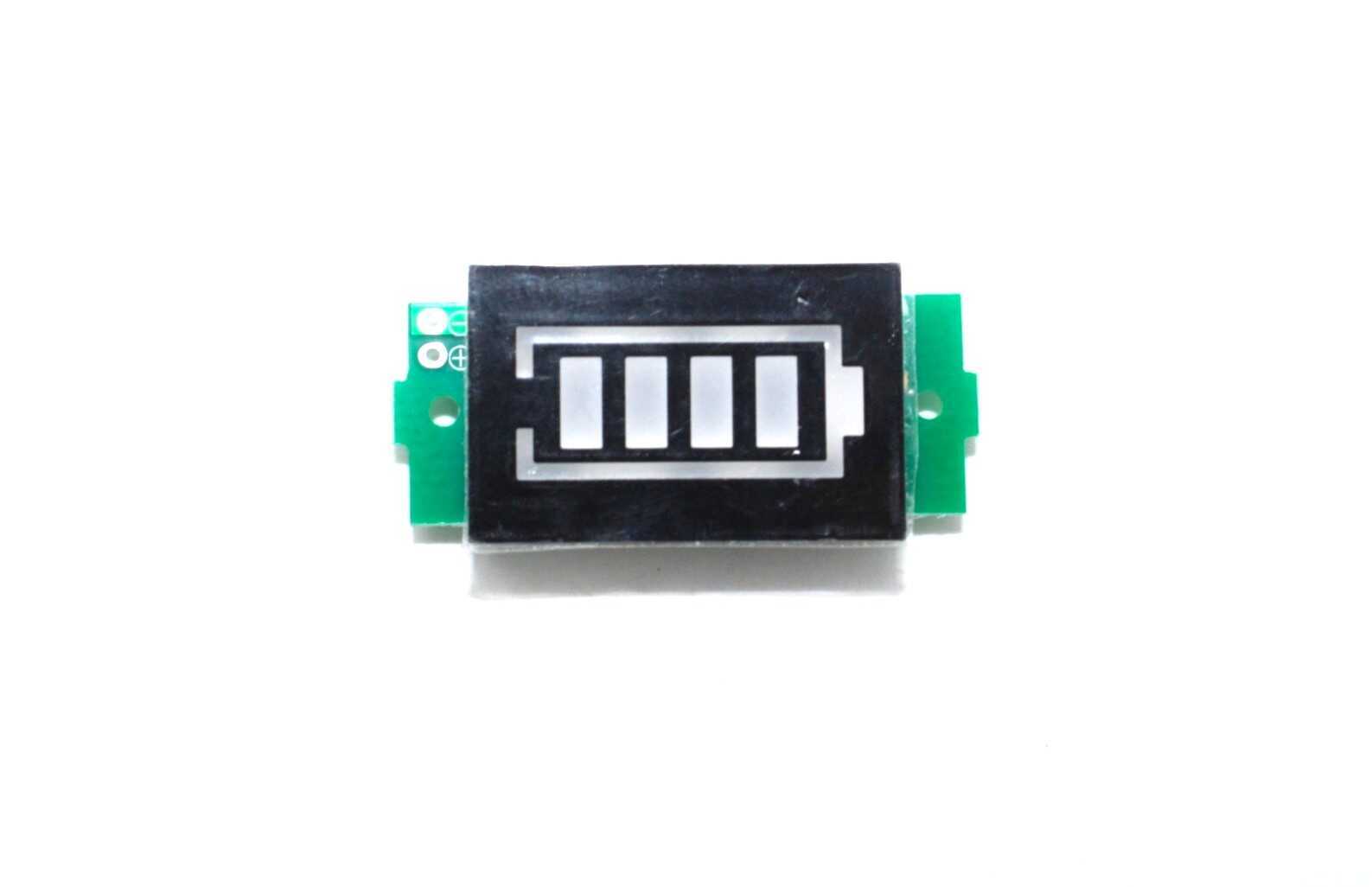

- Display: Clear, real-time battery capacity displayed on a digital tube, with an outline in red and a blue display block that indicates full battery (all LEDs will light up when the battery is full).
- Reverse Connection Protection: Prevents the module from burning out in case of incorrect connections.
- Simple Operation: Connect the positive and negative terminals of the display board to the corresponding terminals of the tested battery, and it will automatically show the remaining charge on the digital screen.
Package Includes:
- 1 x 3S Lithium Battery Capacity Indicator Module (11.1V – 12.6V)
11.1-12.6V 3S Lithium Battery Capacity Indicator Overview
The 11.1-12.6V 3S Lithium Battery Capacity Indicator is a compact module designed to display the remaining charge of 3S lithium-ion battery packs in real time. Ideal for applications needing precise battery monitoring, it ensures users can track voltage levels instantly and avoid unexpected power loss.
Key Features of 11.1-12.6V 3S Lithium Battery Capacity Indicator
- Compatible with 3S lithium-ion packs (11.1 – 12.6 V) for drones, EVs, and RC models
- Digital LED bar display provides an immediate visual of remaining charge
- Reverse connection protection guards the module against incorrect wiring
- Red outline highlights low-voltage warning; blue segments depict charge levels
- Simple screw-terminal connections for secure and reliable wiring
- Fast shipping from Zbotic ensures you receive your indicator module quickly
Applications and Use Cases
- Real-time battery monitoring on quadcopters and fixed-wing drones
- Voltage level checks for electric bicycles powered by 3S LiPo packs
- Battery capacity display in portable power stations and field chargers
- Status indication for DIY robotics projects using 3S battery modules
- Onboard battery health monitoring in RC cars, boats, and helicopters
How to Use 11.1-12.6V 3S Lithium Battery Capacity Indicator
Connect the module’s positive (+) and negative (–) terminals to your 3S battery pack using the provided screw terminals, ensuring correct polarity. Once hooked up, the LED bar display will immediately show voltage-based capacity levels. To power down, simply disconnect the terminals.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How accurate is the capacity display?
The LED bar graph is calibrated for 3S lithium-ion chemistry and provides an accuracy within ±0.1 V per segment, giving a clear visualization of remaining charge.
What happens if I reverse the connections?
This indicator features built-in reverse connection protection that prevents damage if the positive and negative leads are swapped, keeping the module safe.
Can I use this with 2S or 4S battery packs?
No. This module is specifically designed for 3S (11.1–12.6 V) lithium-ion packs and will not display correct readings for 2S, 4S, or other battery configurations.
